PNP - No receiver installed or Dji Fpv transmitter.
or you can install a receiver of your choice to match your transmitter.
Descriptions

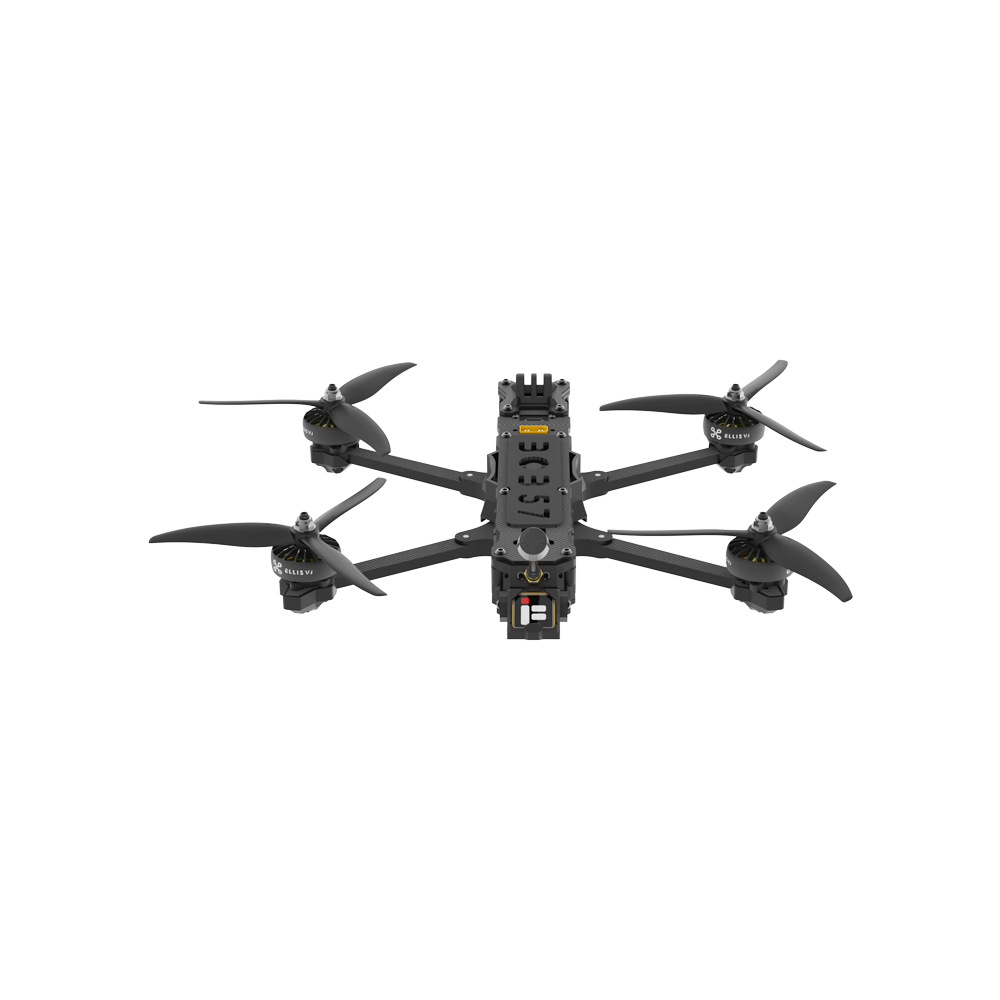

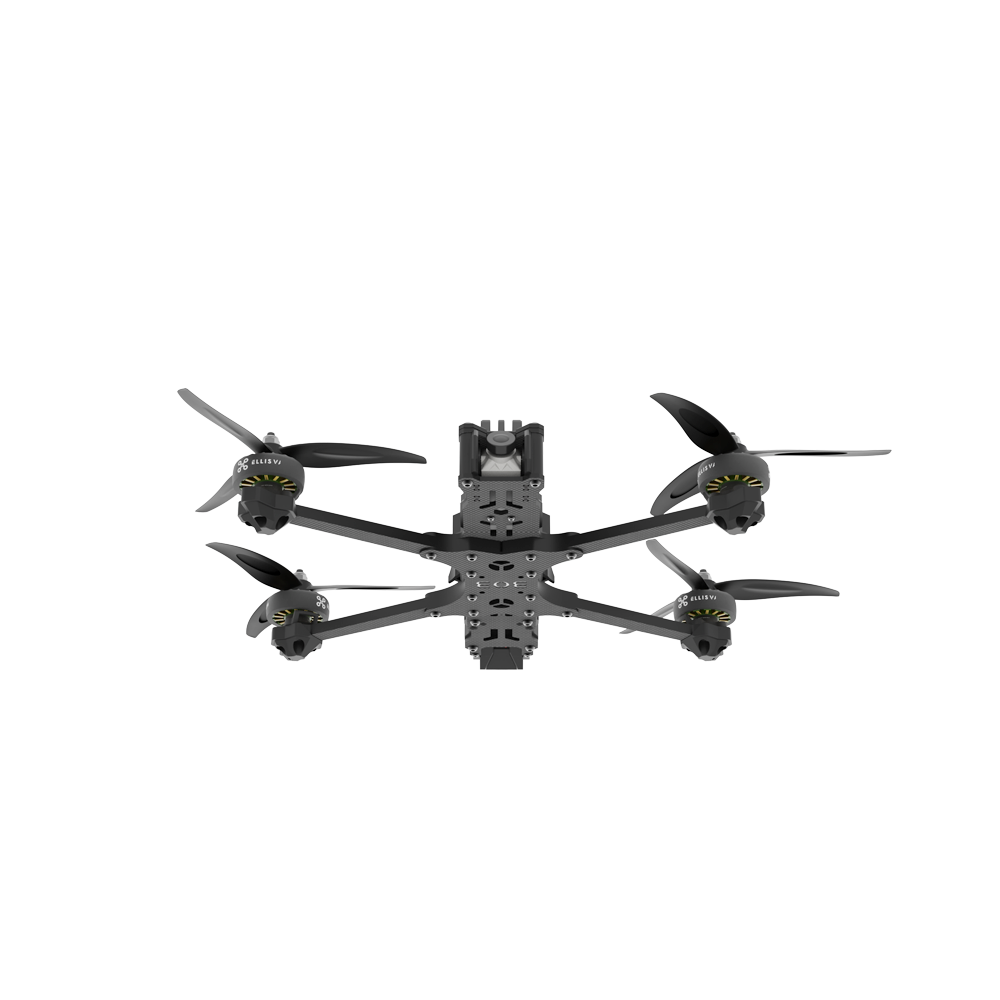

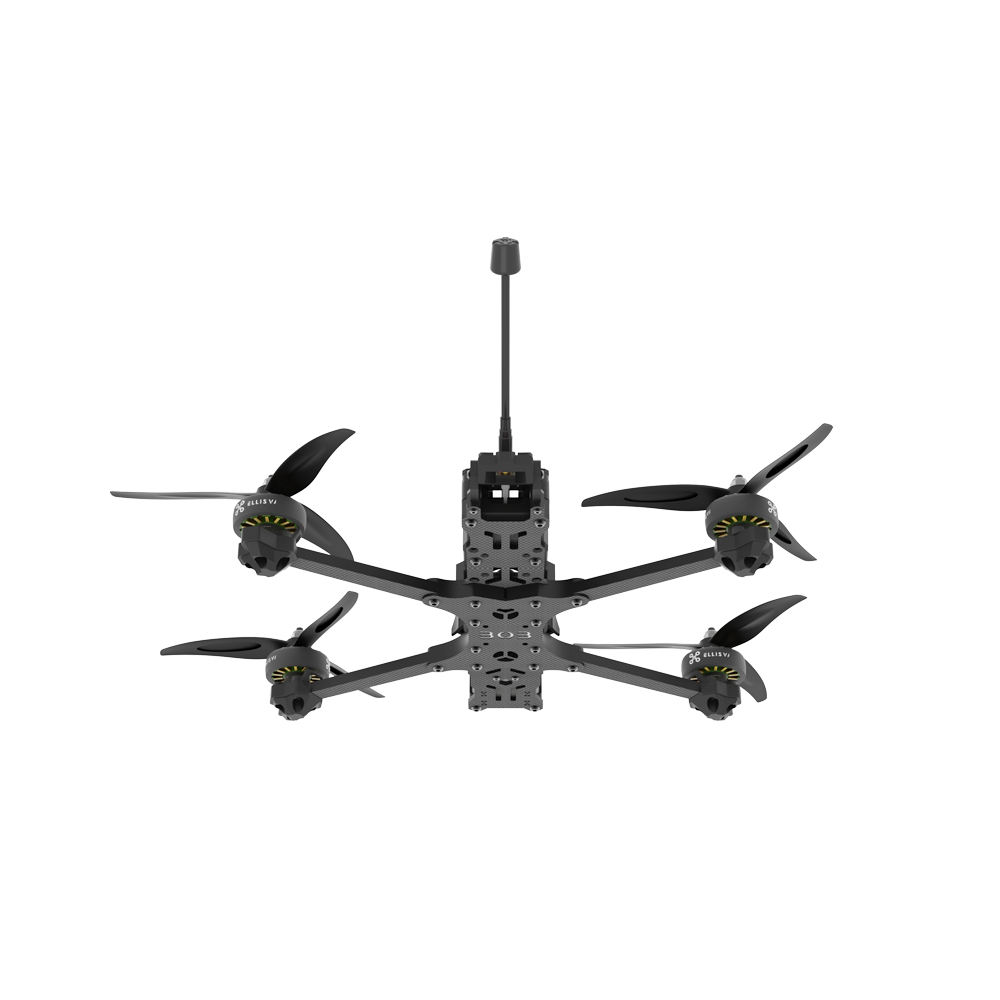

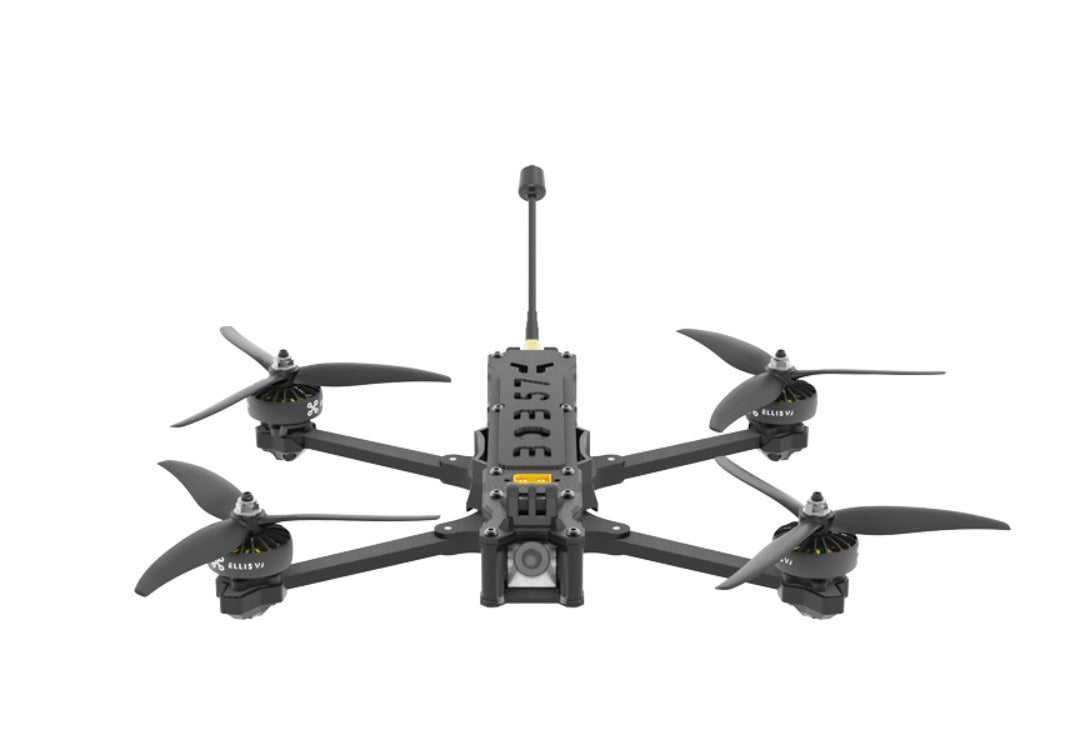

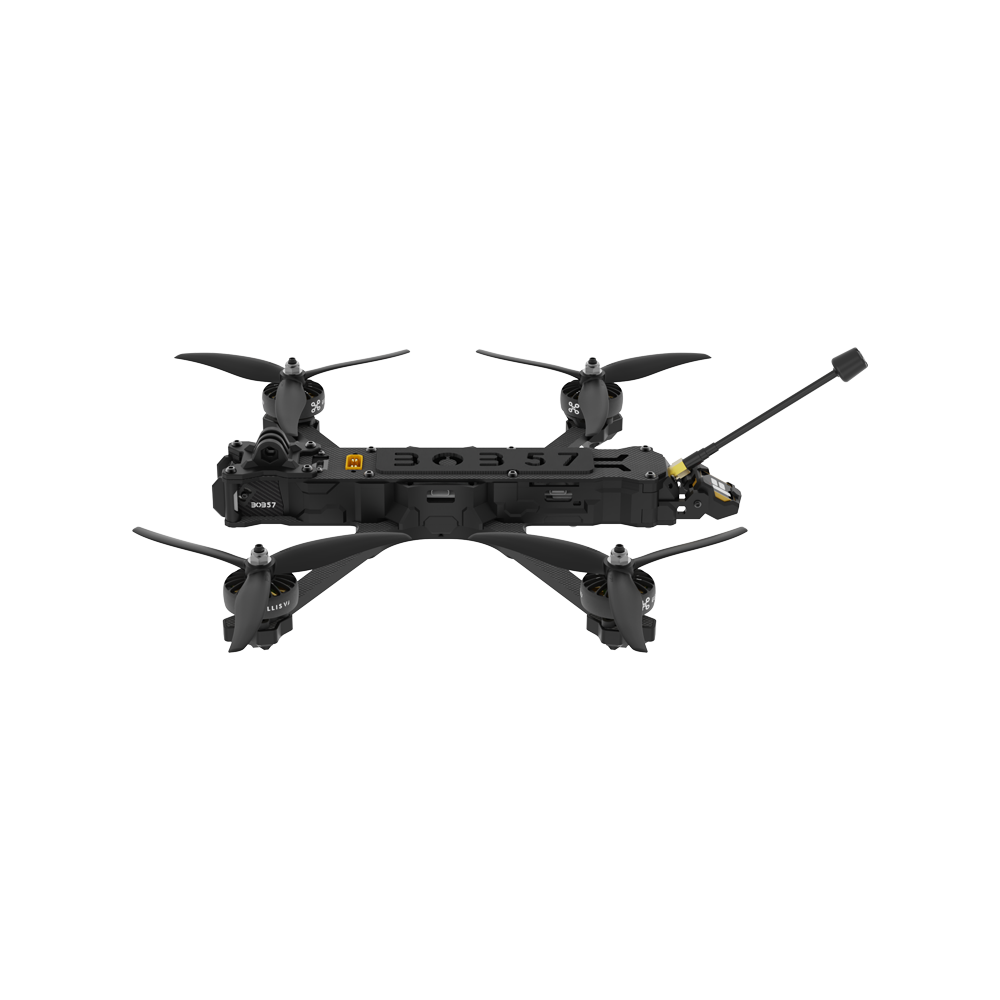

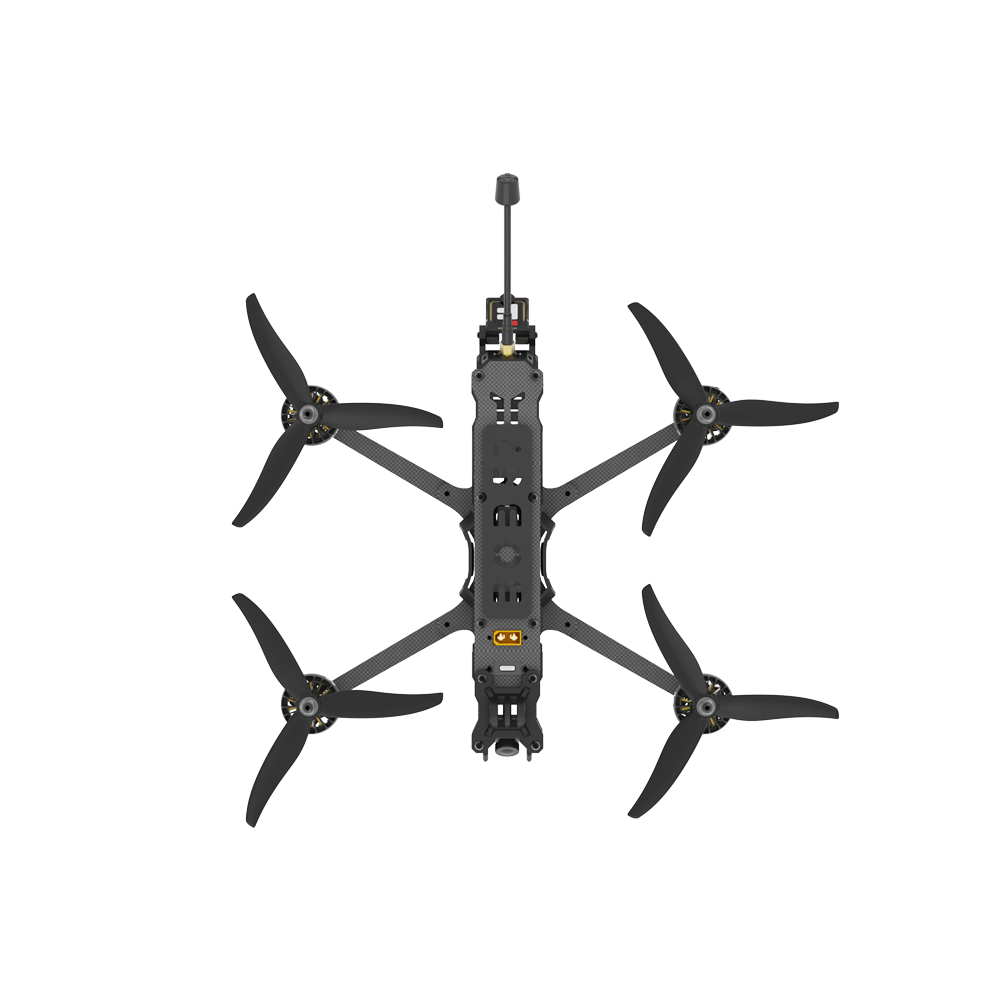

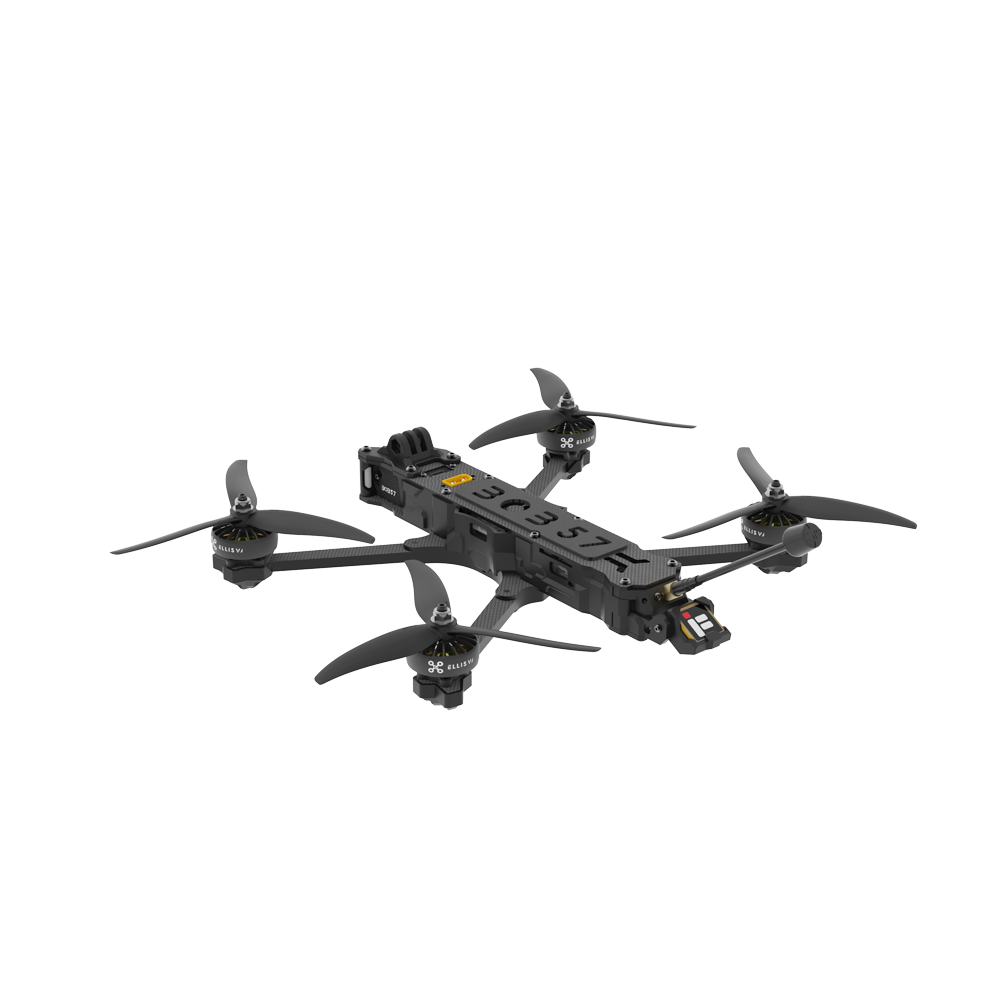

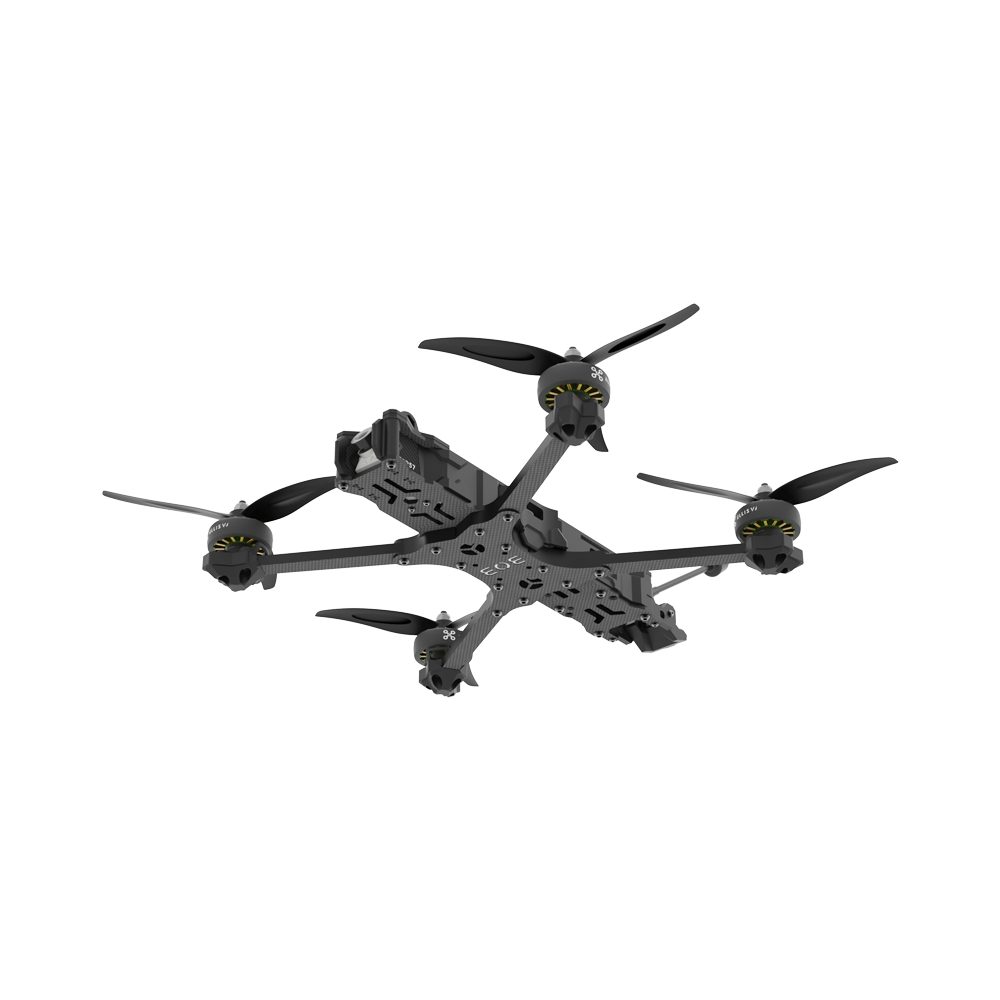

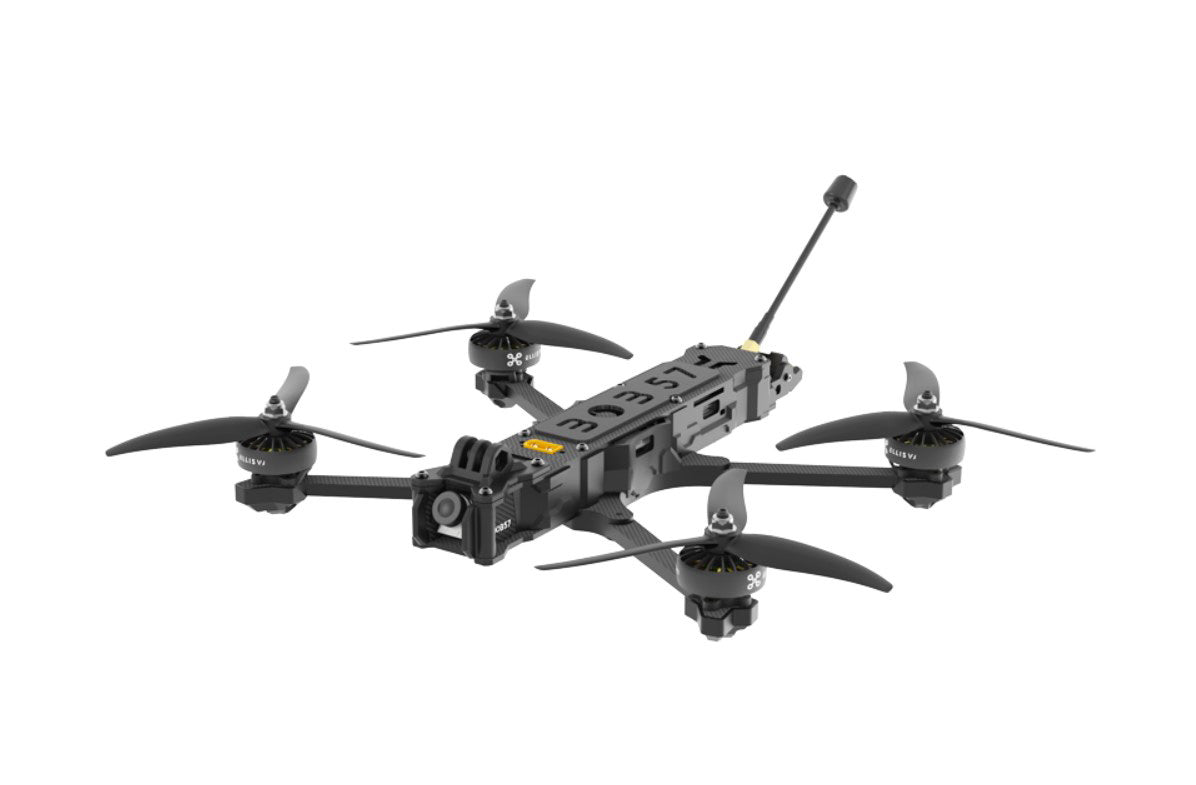

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.
Highlights
Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6" propellers
High-end GPS is used to minimize the risk of failure during proximity flights
Long backbone with enough space up to fit 3000mAh 6S batteries
Solid antenna mount for less ocillations when using long antennas
H-shaped frame with robust middle section for less props in view
Gladiator shell protects from dust and water droplets
ESCs with built-in spike absorber for more reliability
Built in BEC to directly power a GoPro camera
9-minute flight time with 3000mAh 6S Lipo
Front-mounting XT-60
Specifications
Product Name：BOB57 6S HD
FC: BLITZ F722
ESC: BLITZ E55 55A 4-IN-1 ESC
Video Transmission: Nebula Pro Vista
Frame: 255mm wheelbase
Motor: XING2 2506 motors
Prop: Nazgul 6 inch propellers
Takeoff Weight：Approx. 620 g
Dimensions (L×W×H)：180×180×80 mm
Diagonal Distance：245mm
Max Speed：130 Km/h (Manual Mode)
Maximum Takeoff Altitude：5000 m
Max Hover Time：Approx. 8 mins
Max Flight Distance：5 km
Max Wind Speed Resistance：130 Km/H (Level 4)
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas: 1 Antenna
GNSS：GPS +GALELEO
Video Transmission
Product Name: Nebula Pro Vista
FPV Cam : Nebula Pro Cam
Dimensions:
Runcam Link: L19mm*W19mm*H19mm
FPV Cam: L29mm * W29mm * H13mm
Communication Frequency: 5.725-5.85GHz
Transmission Power (EIRP): FCC/SRRC/MIC: <20dBm; CE: <14dBm
Input Volts：14-26.4 V
Weight: 23.5 g
Image Sensor: 1/3.2”
Resolution: 720P@120fps
LENS： FOV D:155° H:125° V:96°
Coaxial Cable: 120 mm
Audio Transmission：Yes
Packing List
1 x BOB57 6S HD BNF
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)
Important
Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
