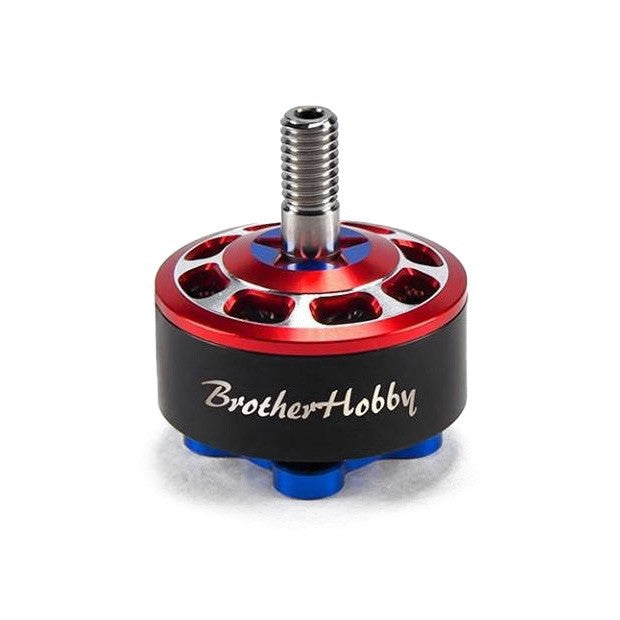

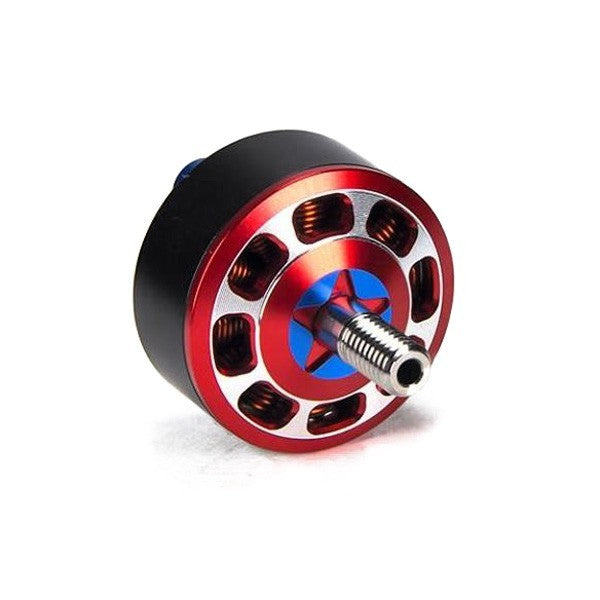

The Speed Shield from Brotherhobby looks reminiscent of a certain super powered shield, and while it may not give you superpowers, the engineers from Brotherhobby have been able to fit a unique stator size of 2207.5 inside a rather small bell. The result is an amazingly powerful motor in a small package that only weighs 31g.
Specifications
KV: 2400KV
Configuration:12N14P
No.of Cells(Lipo):4-6S
Rotor: N52H arc magnets
Stator:0.15mm Nippon Steel silicon steel
Shaft: Titanium Alloy hollow shaft
Bearings: Japanese NMB 9x4x4mm
Wire AWG:20AWG 16cm length
Bell cap: Al 7075
Base casing: Al 7075
Prop Adapter Shaft Thread: M5
Bolt Pattern: M3 (16X16mm)
Weight: 31g with wires
