THIS IS A BRAND NEW OFFERING FROM BROTHER HOBBY THAT PUSHES THE ENVELOPE OF MOTOR TECH EVEN FURTHER. IT HAS THE HEIGHT AND WEIGHT OF A SMALLER MOTOR BUT DUE TO GEOMETRY CHANGES ON THE INTERIOR THE DESIGN ENGINEERS ARE SOMEHOW ABLE TO PACK A 2207.5 SIZE STATOR IN THIS SMALL ENVELOPE.
SPECIFICATIONS
Brand name: Brotherhobby

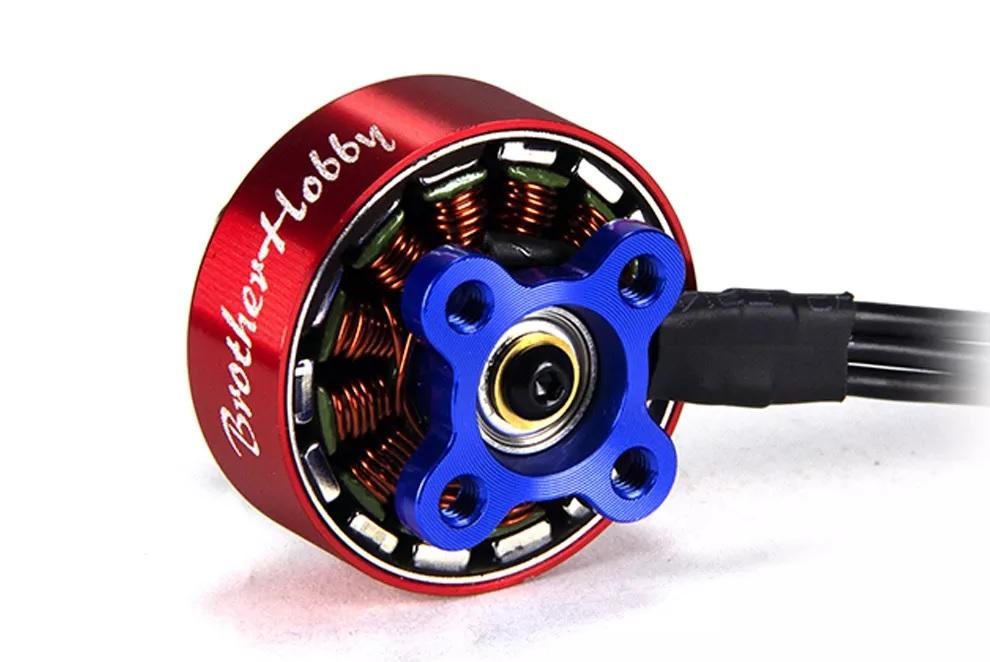

Item name: Speed Shield 2207.5 V2 Brushless Motor
KV: 1560/1750/1920/2108/2400/2700/3400
Base casing: Al 7075
Stator: 0.15mm Nippon Steel silicon steel
Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
No.of Cells(Lipo): 4-6S
Bolt Pattern: M3 (16X16mm)
Bearings: Japanese NMB 9x4x4mm
Rotor: N52H arc magnets
Weight: 33g with short SR wires
Bell cap: Al 7075
Package Included:
1 x Speed Shield 2207.5 V2 Brushless Motor
