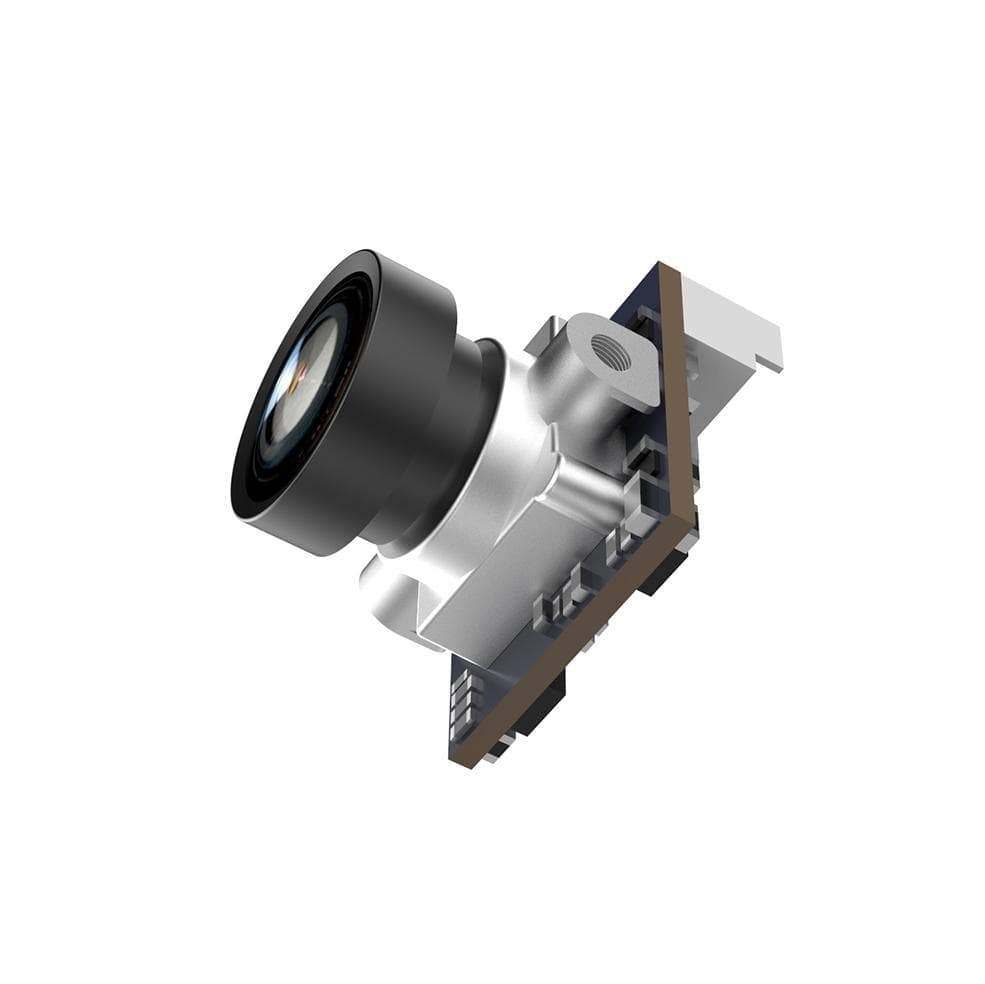

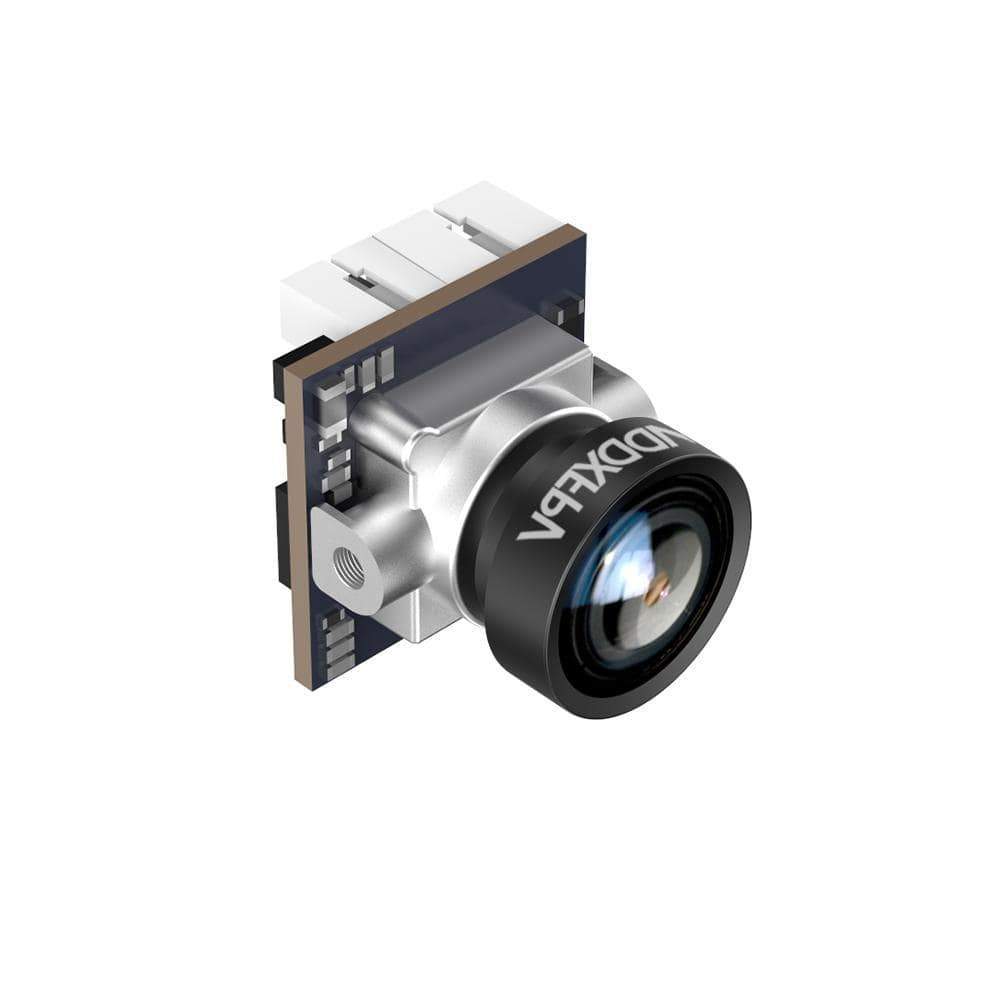

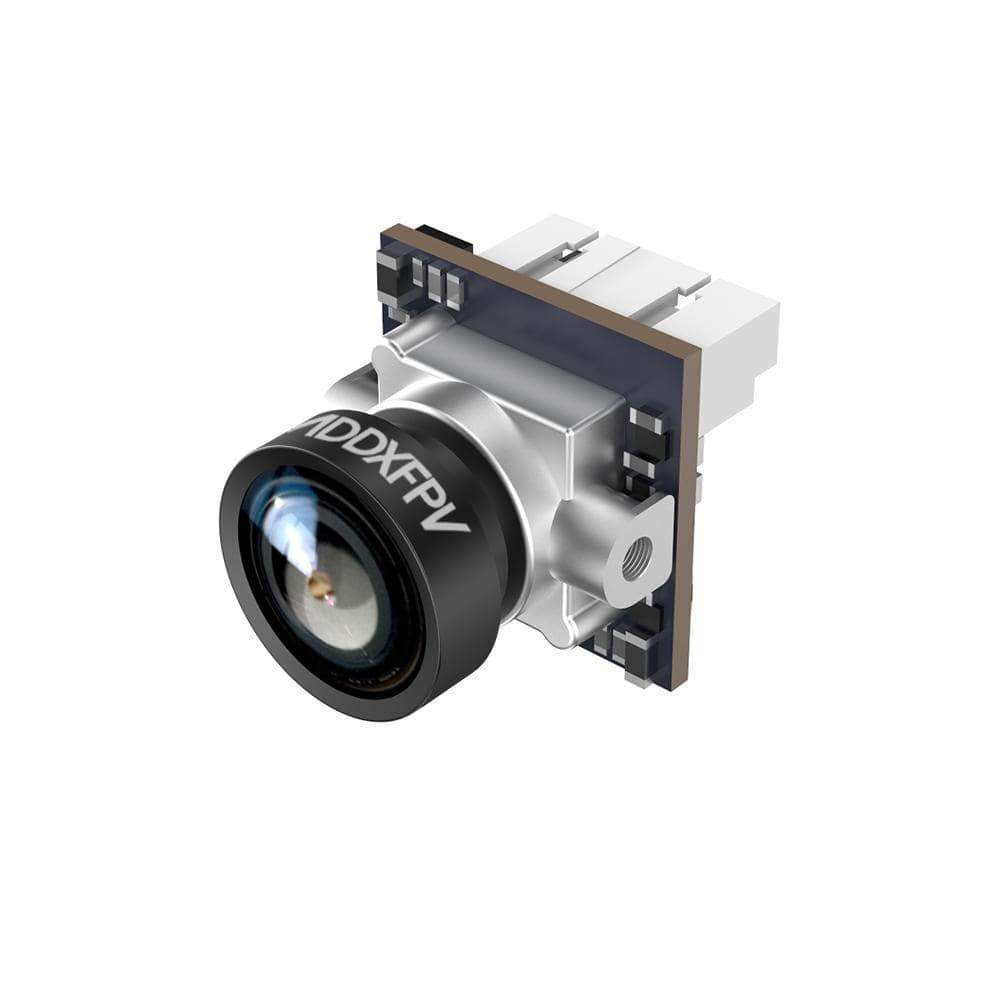

Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
Specification
|
Model |
Caddx Ant |
|
Image Sensor |
1/3" CMOS Sensor |
|
Horizontal Resolution |
1200 TVL |
|
TV System |
NTSC or PAL |
|
MENU |
Support |
|
IMAGE |
4:3 |
|
Synchronization |
Internal |
|
Electronic Shutter |
PAL: 1/50~100,000; NTSC: 1/60~100,000 |
|
S/N Ratio |
>52dB (AGC OFF) |
|
Video Output |
CVBS |
|
Lens |
1.8mm |
|
Min. Illumination |
0.001Lux@F1.2 |
|
Auto Gain Control |
YES |
|
BLC |
YES |
|
WDR |
Global WDR |
|
DNR |
3D DNR |
|
Dimensions |
14*14mm(with bracket to 19*19mm) |
|
Wide Power Input |
DC 3.7-18V |
|
Work Temperature |
-20℃~+60℃ |
|
Work Humidity |
20%~80% |
|
Weight |
2g (N.W.) |
|
|
|
|
Packing List
|
Camera x1 3pin FPV silicone cable x1 Warranty card x1 Expend bracket x1 Screws x 4 |
