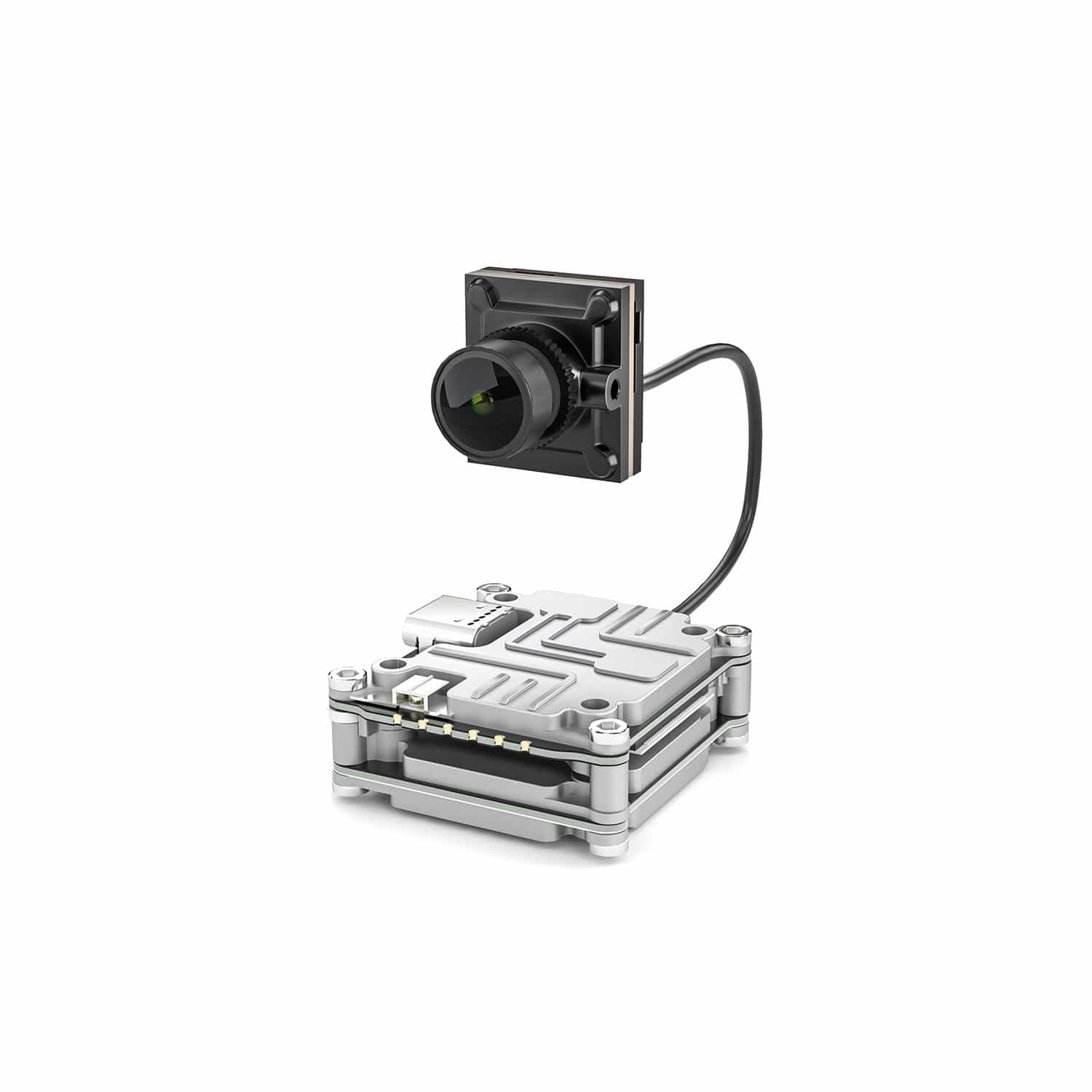

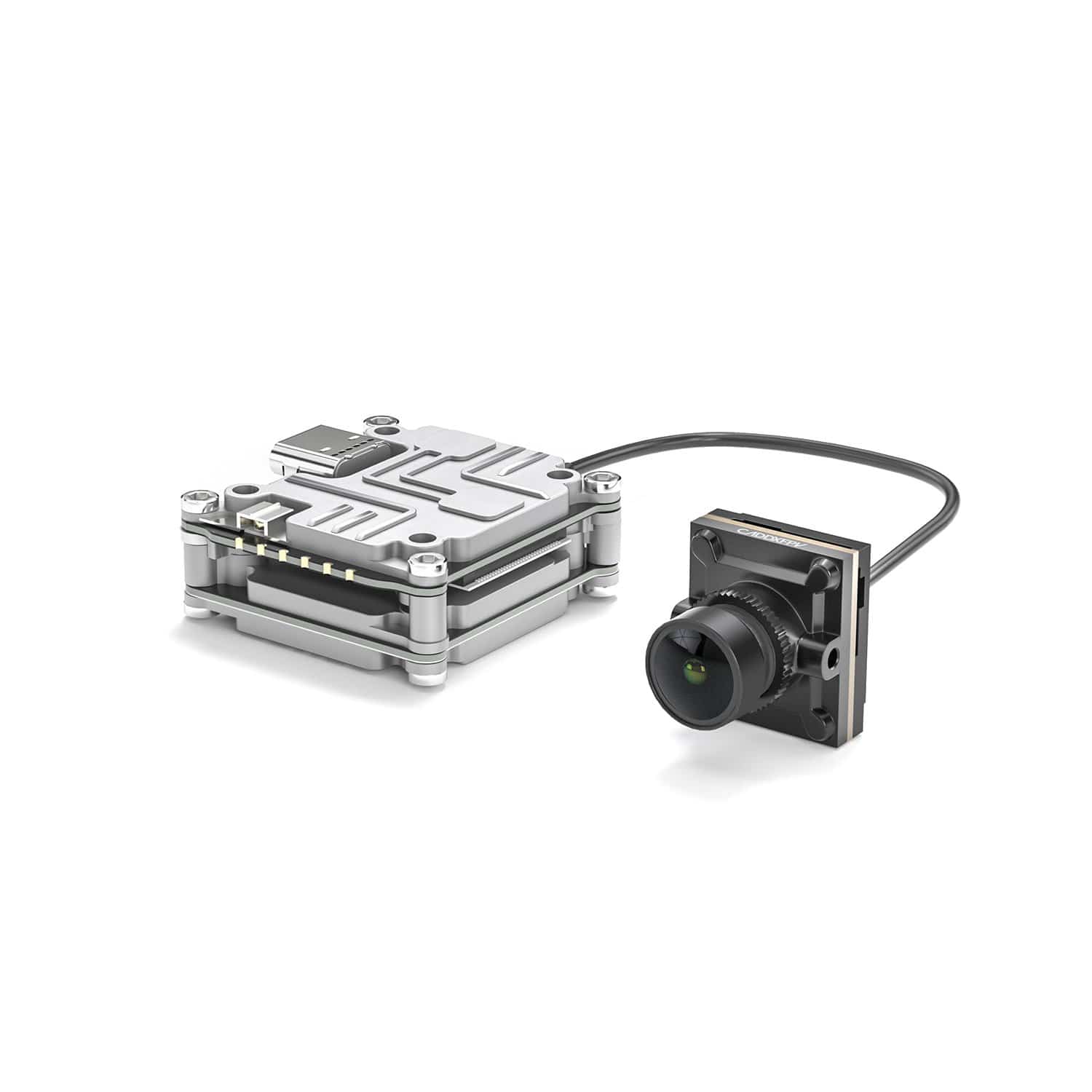

CADDX Nebula Pro Nano Vista Kit Digital FPV DJI System

The Caddx Nebula Pro Nano Vista Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and switchable 16:9/4:3 1080p to 720p image transmission. The Caddx Nebula Pro Nano with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.
User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller V1 and DJI FPV Goggles without having to purchase additional receivers, as well as mount on racing drones!

Features

• Switchable 16:9/4:3 1080p to 720p image transmission
• Caddx Vista Unit with Nebula Pro Nano Camera
• Weighs in at only 3.5 grams
• Low 28ms latency

Specifications

CADDX NEBULA PRO NANO CAMERA

• Latency: 12-28ms (low latency mode), 30-40ms (high quality mode)
• Image Sensor: 1/3 inch CMOS Sensor
• Field of View: 150°(D);122°(H);93°(V)°
• Aspect Ratio: 16:9 & 4:3 (Switchable)
• Dimensions: 16.5x16x14mm
• Resolution: 720p/120fps
• Lens Size: 2.1mm f/2.1
• Cable Length: 8cm
• Aperture: F/2.0
• Weight: 3.5g

CADDX VISTA UNIT

• Min.latency: (end-to-end) Low Latency Mode (720p 120fps): 21-28ms
• Transmitter Power: (EIRP) FCC/SRRC/MIC: <30dBm / CE: <14dBm
• Max.Transmission Distance: FCC/SRRC: 4km / CE: 0.7km
• Power Output: 25mW / 200mW / 500mW / 700mW
• Supported Flight Controller System: F3 / F4 / F7
• High Quality Mode: (720p 60fps): 30-40ms
• I/O Interface: USB-C, Ipex3, 3-in-1 port
• Operating Frquency: 5.725-5.850GHz
• Dimensions: 30x29x13mm
• Weight: 20.8g (unit only)
• Input Power: 7.4-26.4V

Included

• 1x Caddx Nebula Pro Nano Vista Kit w/ 8cm Coaxial Cable
• 2x M@ Screws 3/4/5mm
• 1x User Manual
• 1x 3-in1 Cable
• 1x Antenna
