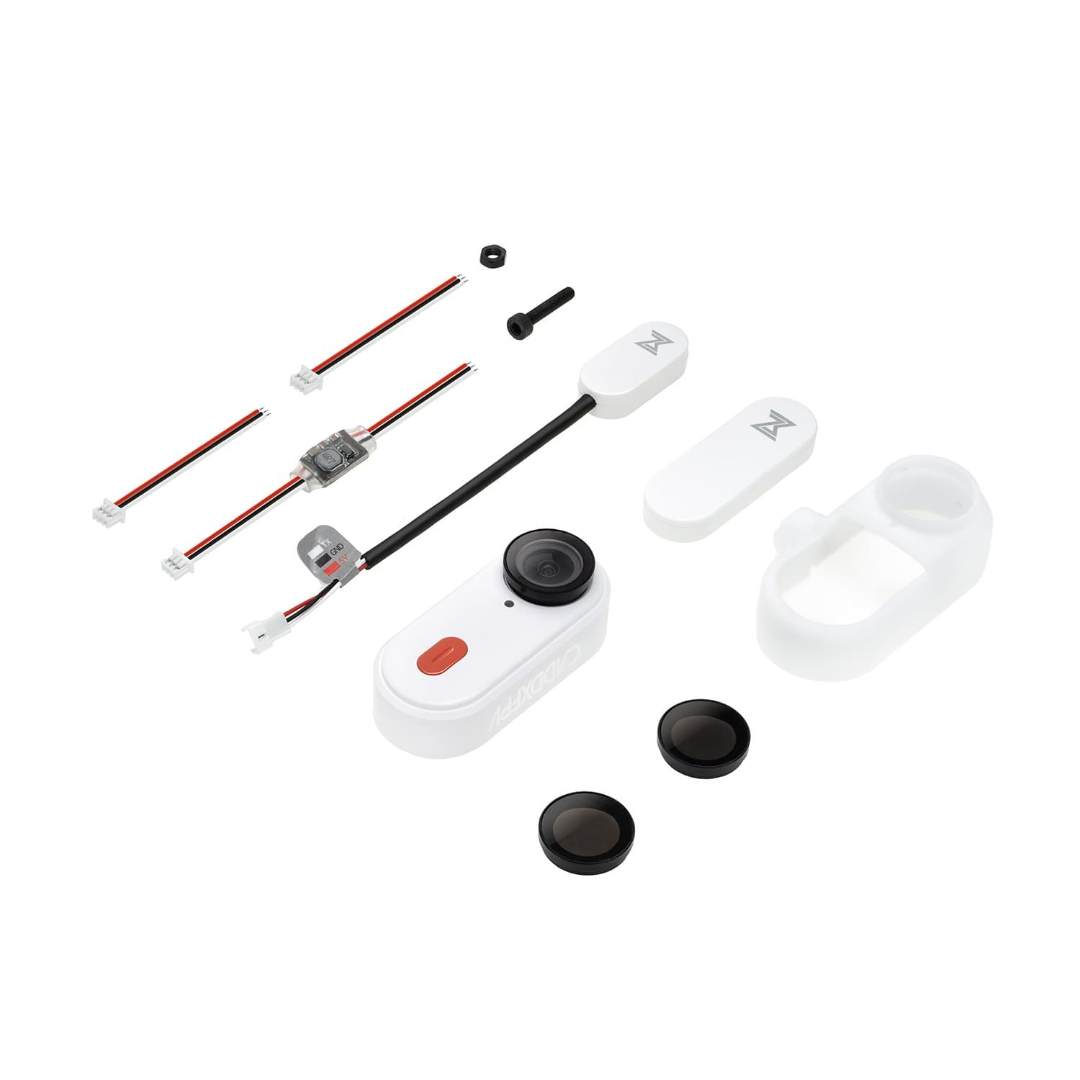

CADDX PEANUT

FEATURES

• Magnetic battery charging (included charging cable can be used during flight)
• Enhanced mechanical design to stand up to drone crashes.
• 30 minute recording lengths. No more flights cut short.
• Connect through the flight controller for remote starting/stopping of recordings.
• FlowState Stabilization.
• WiFi control through the Insta360 APP.
• 16:9, 9:16, and 1:1 aspect ratios are available.
• Included ND 8 and ND 16 filter set.

27G ULTRALIGHT WEIGHT

• Peanut is the world’s smallest action camera, co-developed by Insta360 and CaddxFPV specially for the FPV community.

MAGNETIC CHARGING

• Peanut with two power supply modes: built-in power supply and external power supply, with external power supply, you dont need to worry about low battery and the footage will not be lost even when the power is interrupted.
• Built-in power supply: only 20 minutes of shooting
• External power supply: As long as your drone battery lasts.

30MINS OF RECORDING TIME

• Peanut can record up to 30mins with flowstate stabilization in FPV mode.

REMOTE CONTROL

• Peanut can be connected to the flight controller for power supply and start/stop recording remotely via Uart.

SPECIFICATION

• Model: Peanut camera
• Weight: 27g
• Dimensions: 52mmx24mmx21mm
• Power supply range: 5V@1A(Or use 2S-6S step-down module)
• Lens aperture: F/2.2
• ISO: Auto, 100-3200
• 35mm equivalent focal length: 11.24mm
• EV: +4 EV
• Video resolution: (2560x1440@50fps, 30fps, 25fps, 24fps)/ (1920x1080@50fps, 30fps, 25fps, 24fps)
• Video mode: Pro Video (FlowState stabilization),Video (Basic stabilization), HDR, Timelapse, TimeShift (Hyperlapse), Slow Motion
• Storage: 32GB (~28GB usable)
• Video format: Mp4.
• Video code: H.264
• Video maximum bit rate: 80Mbps
• USB: Type-C
• Charging Method: Power connector / USB connector
• Charging Time: 23 mins — 80% / 35 mins — 100%
• Bluetooth: BLE 5.0
• Wi-Fi: 5G (standard range approx. 10m)
• Operating environment: -20°C ~ 40°C
• Video format: Mp4.
• Video code: H.264
• Video maximum bit rate: 80Mbps
• USB: Type-C
• Charging Method: Power connector / USB connector
• Charging Time: 23 mins — 80% / 35 mins — 100%
• Bluetooth: BLE 5.0
• Wi-Fi: 5G (standard range approx. 10m)
• Operating environment: -20°C ~ 40°C
