Chimera9 Frame Kit

Description The iFlight Chimera9 is a 9" longrange frame designed to give maximum stability and flight time...
Vendor: I-FLIGHT
Availability: In Stock
$211.18
$211.18
Subtotal: $211.18
Chimera9-M1

Chimera9 Frame Kit

$211.18

Chimera9 Frame Kit

$211.18












Description

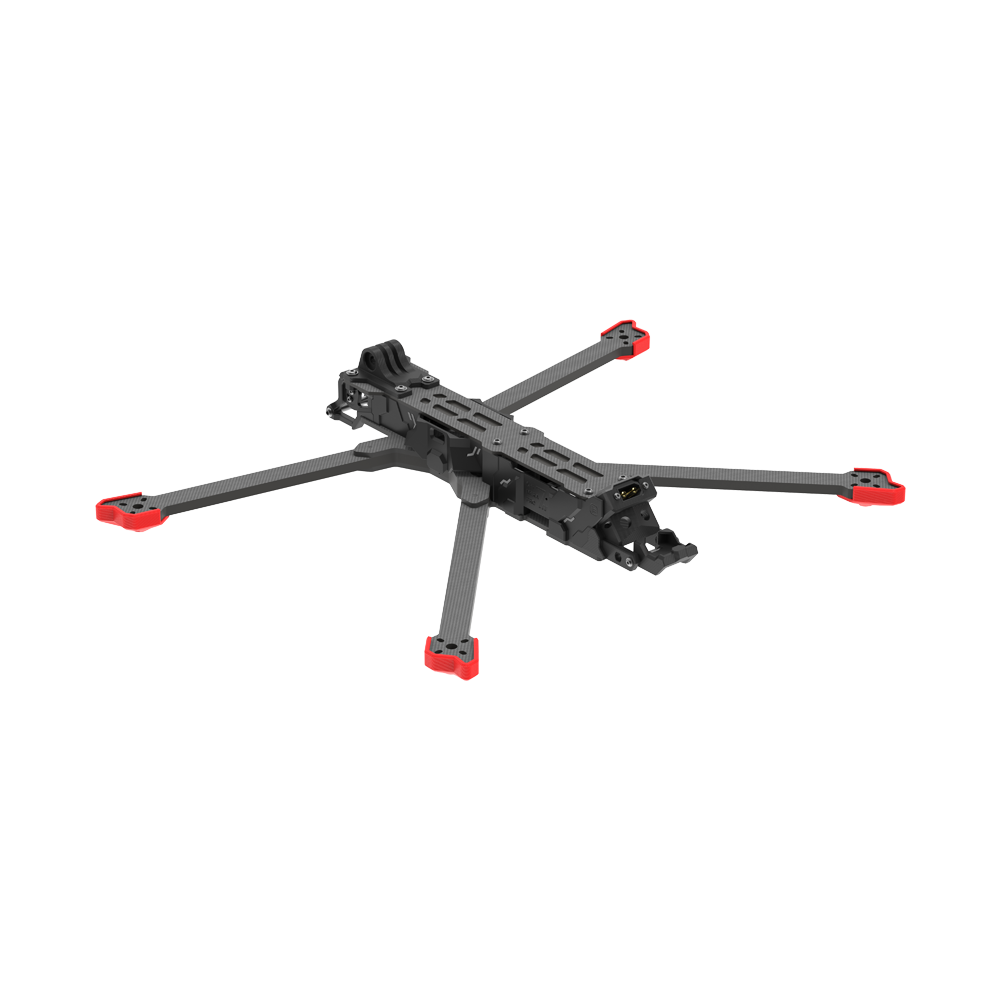

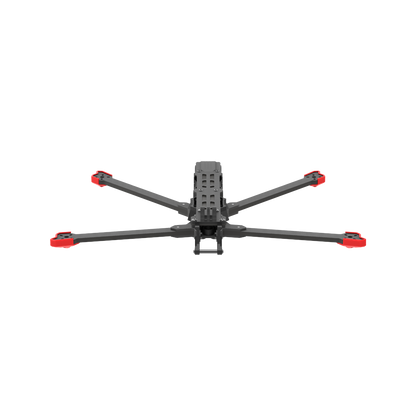

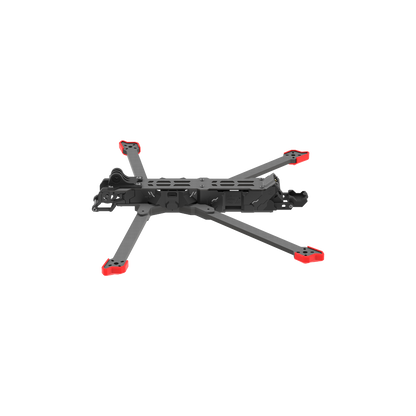

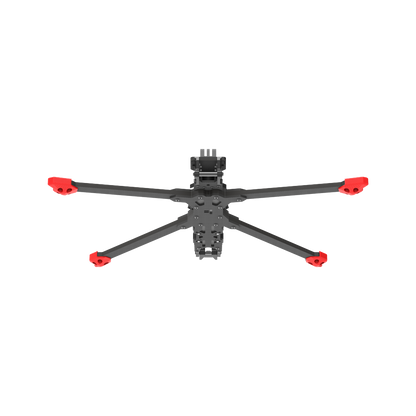

The iFlight Chimera9 is a 9" longrange frame designed to give maximum stability and flight time during your cinematic shoots.
Fly smooth lines on the waterfront all the way to the Swiss Alps if you want! Made from a super-stiff carbon for minimum resonance and recommended 2809 motors for maximum 9" prop control.



Highlights


Specially Designed Heatsink for DJI O3 Air Unit
New Camera Mount for a wider camera FOV with TPU damping inserts
New Side Panels to perfectly fit the O3 Air Unit in the back
New Dual 5.8G VTX Antenna TPU mount
Latest Chimera9 Frame Upgrades for Maximum Protection



Specifications


Product Name:Chimera9 Frame Kit
Geometry: DeadCat(DC)
Wheelbase: 405mm
Frame Dimension: L360*W235*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Motor Mounting: 16x16mm / 19*19mm
VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 385.5grams



Packing List


1 x Chimera9 Frame Kit
1x O3 Air Unit Heatsink
1x O3 MIPI Digital Video Cable 215mm
2x O3 IPEX to RP-SMA Antenna Pigtails
1 x O3 Dual Antenna TPU
1 x Screw Bag
1 x TPU Set
2 x Anti-Slip Battery Pad
2 x Battery Strap (20*300mm)
