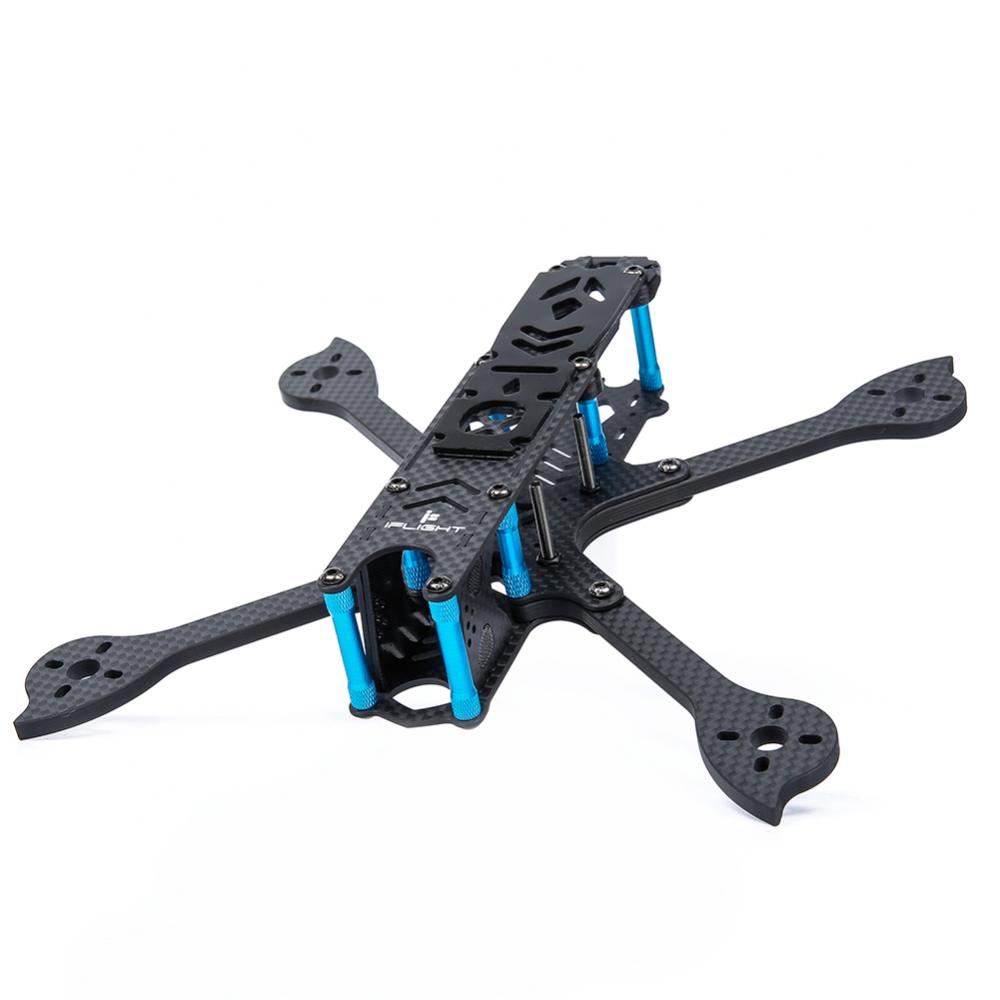

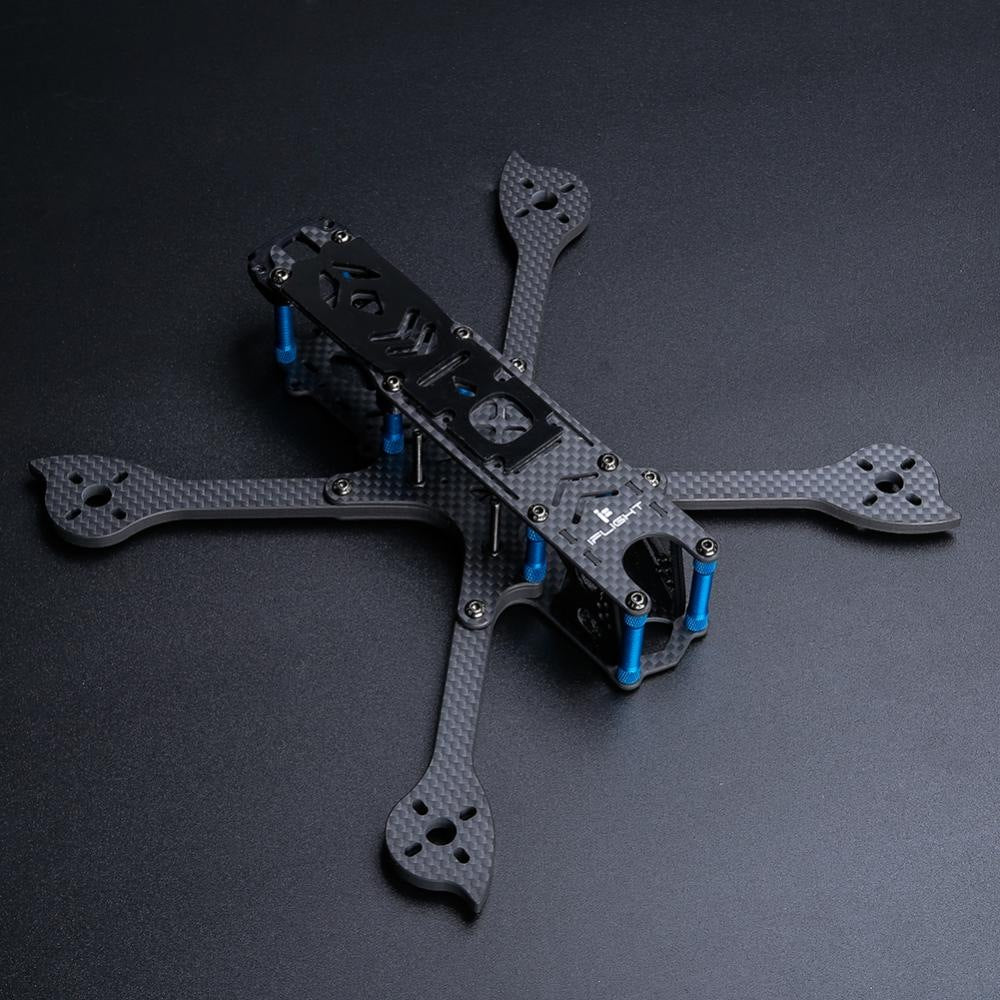

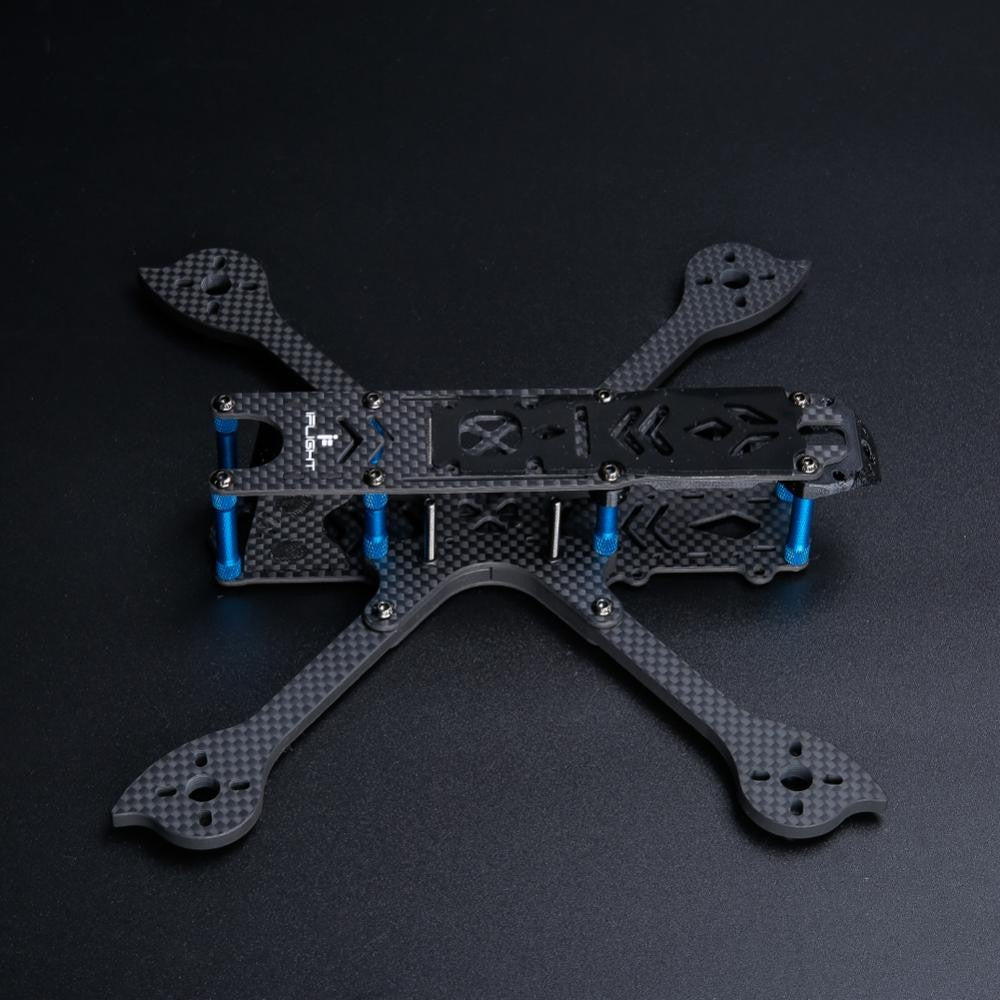

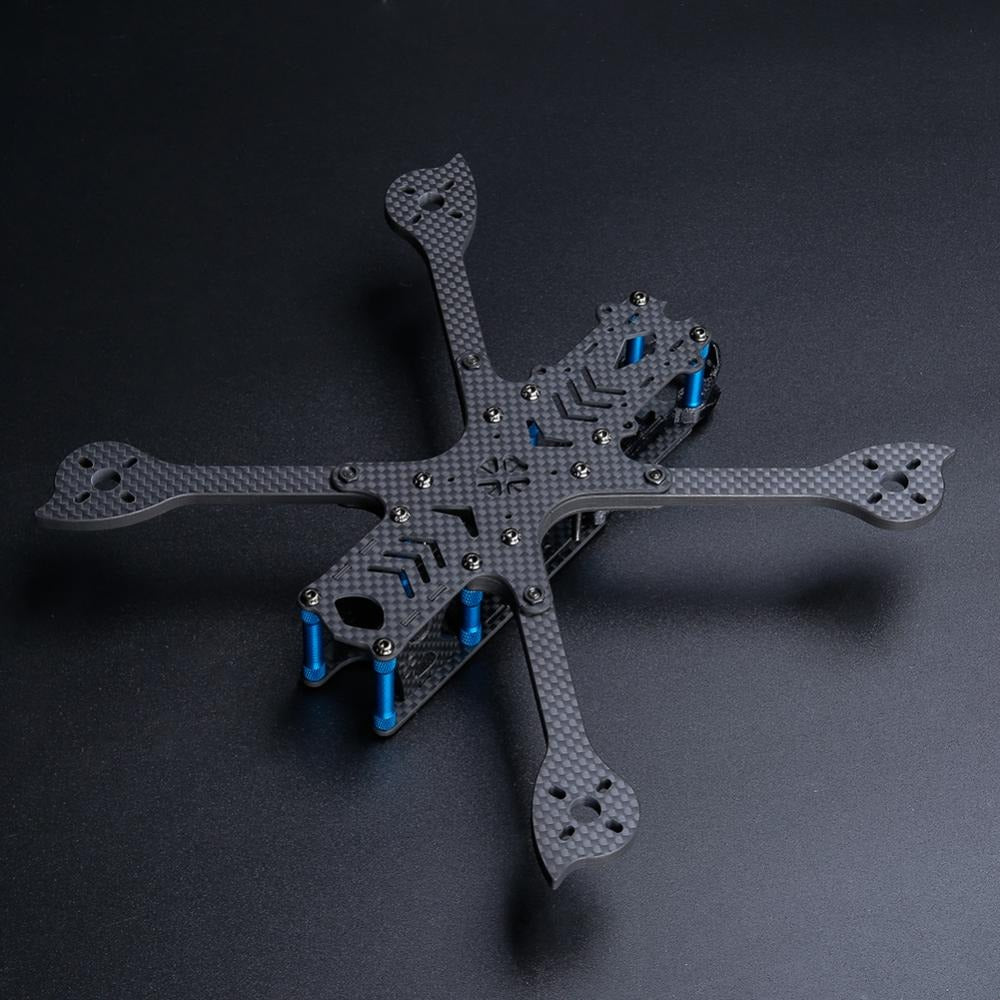

Cidora SL5 FPV Freestyle Frame

The Cidora SL5 is an extension of the XL series- the SL caters toward the freestyle crowd with its extended body, squashed-X quick release arms, longer and taller for your more assembling space. It's a trend by offering a small footprint lightweight freestyle setup with its skinny arms and narrower chassis for micro cams and 4-in-1 ESC's.

Features：
-Full 3K Carbon Fiber airframe
-Easy arm swaps -215mm wheelbase，115g
-Popular Squish X configuration
-Fits both 30.5x and 20x stacks

Specifications:

- Type: 5" FPV Freestyle frame

- Frame wheelbase: 215mm

- Dimensions: 165*138mm (body dimension)

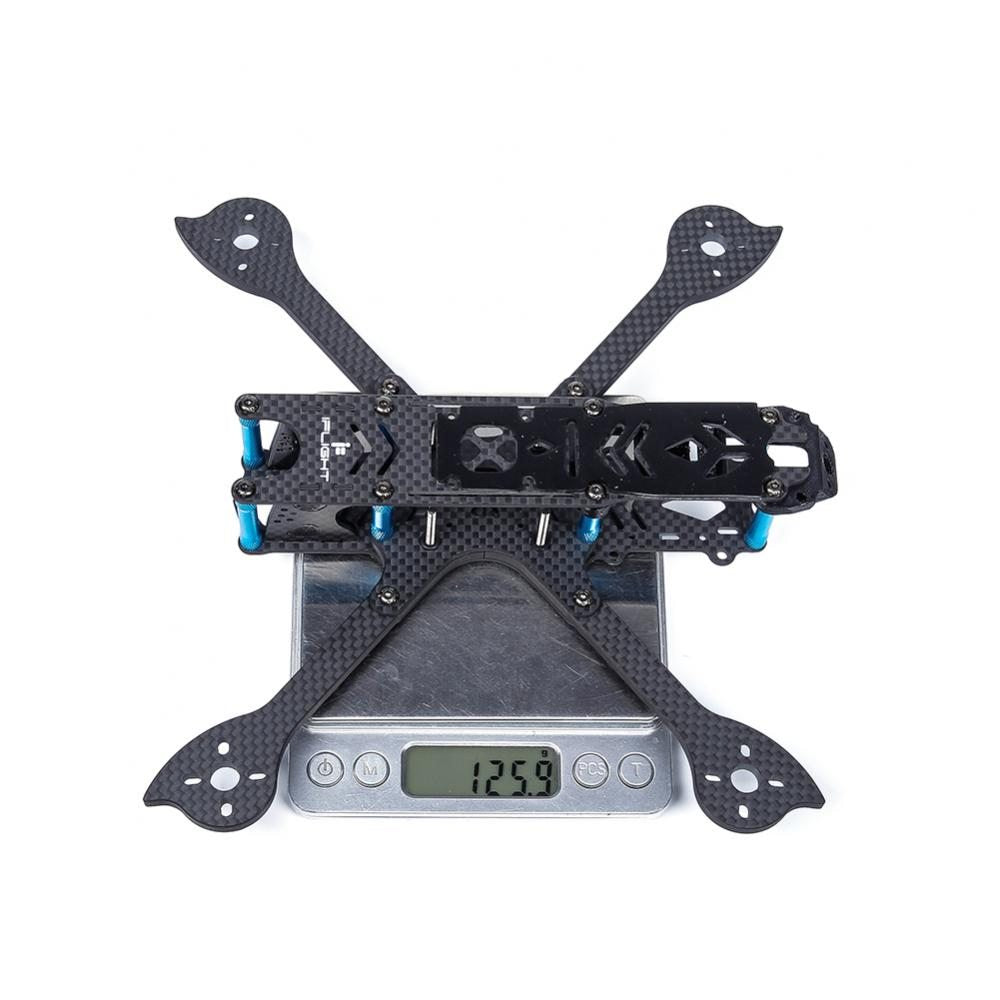

- Frame weight:125.9g approx

- Standoff: M3*25mm(4pcs), M3*32mm(4pcs）

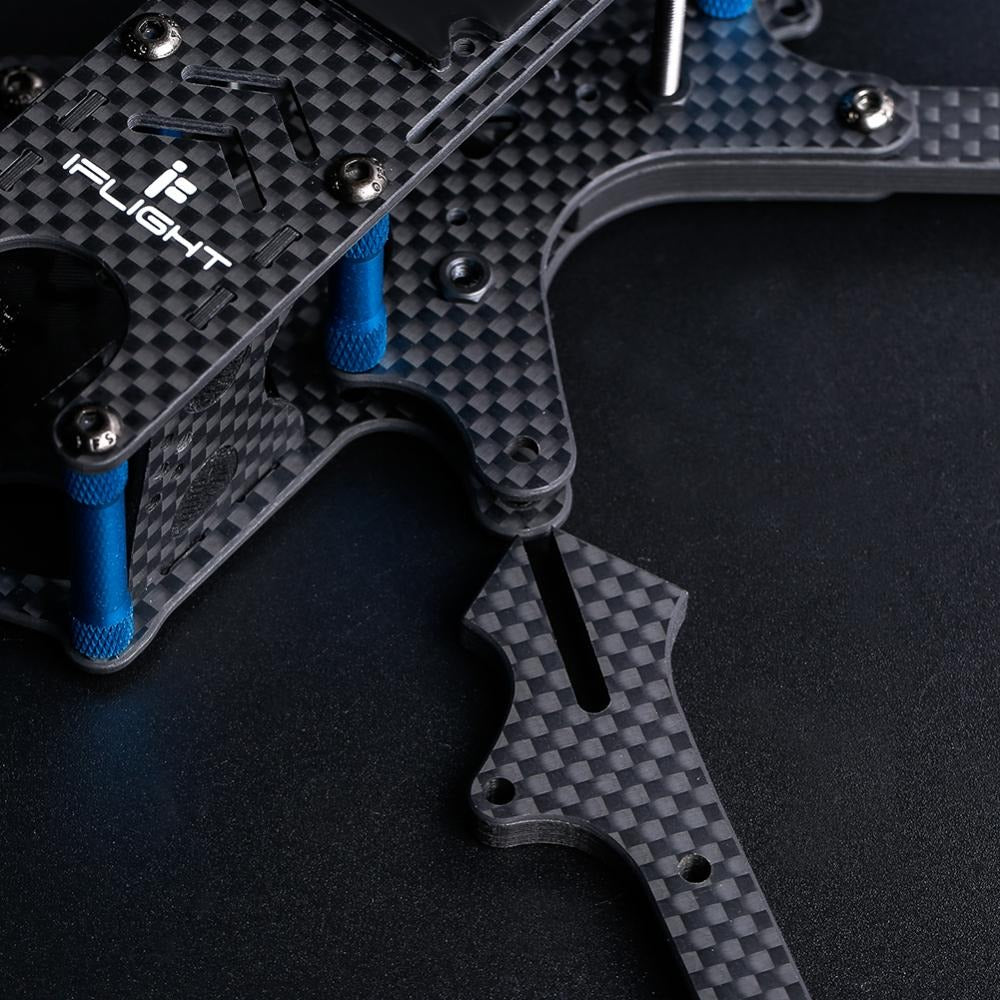

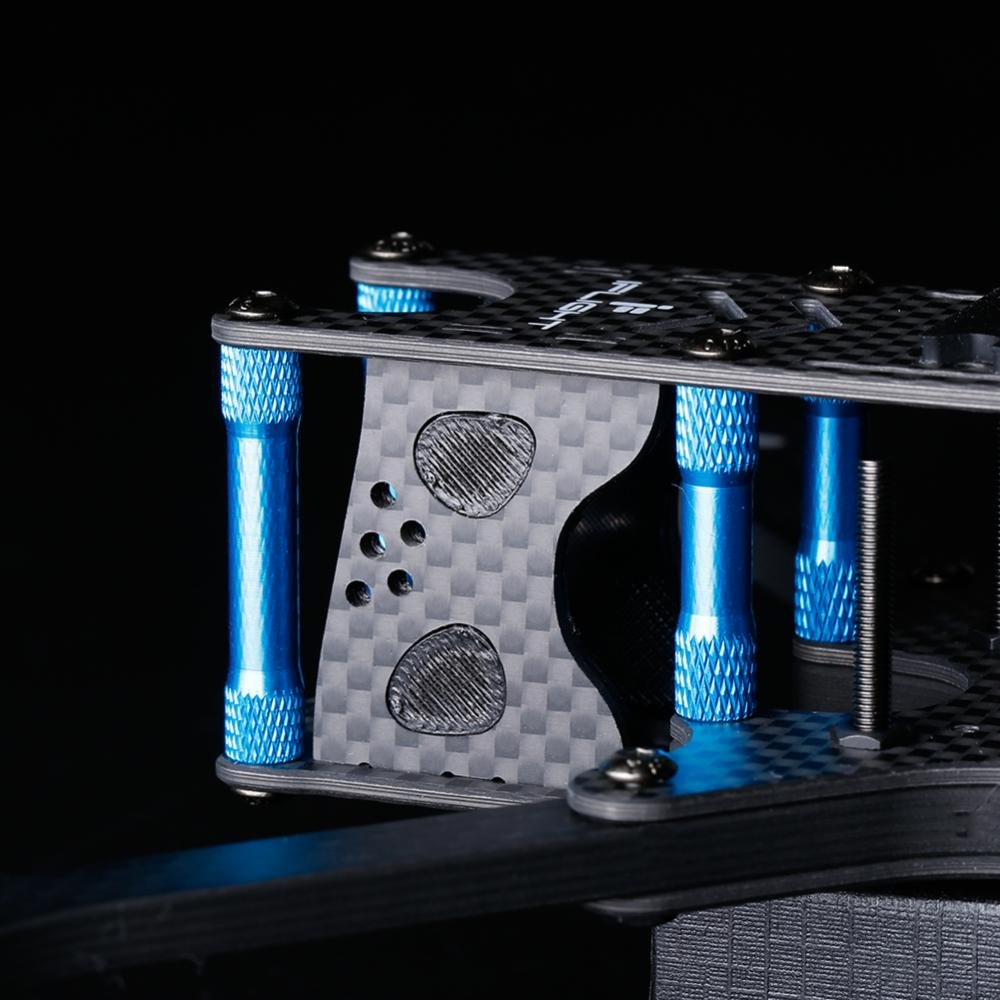

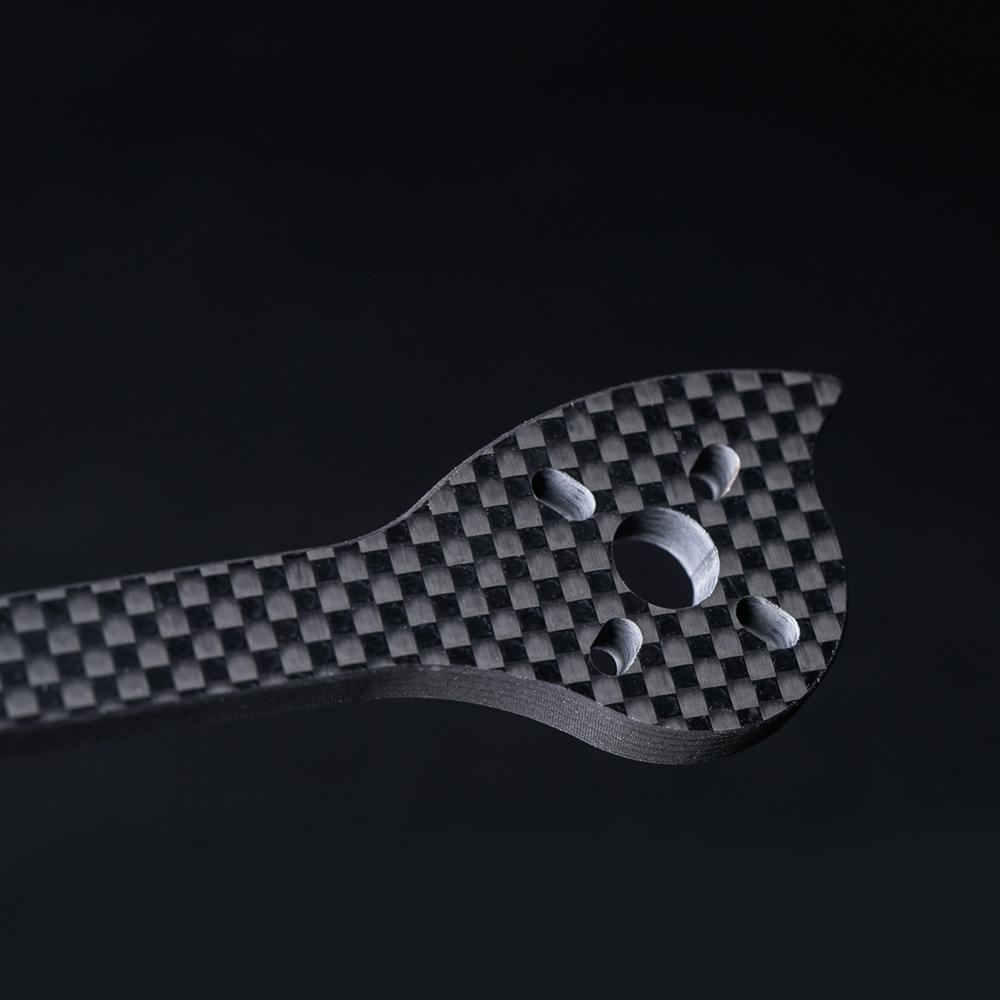

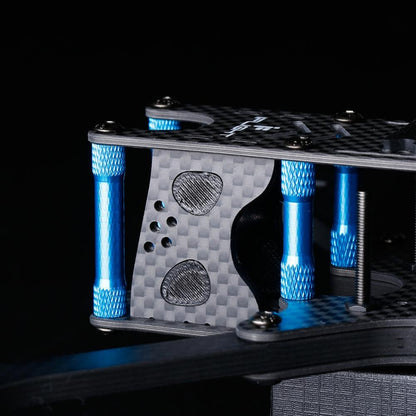

- 5mm thickness, 11.3mm width arms,1.5mm vertical side plates

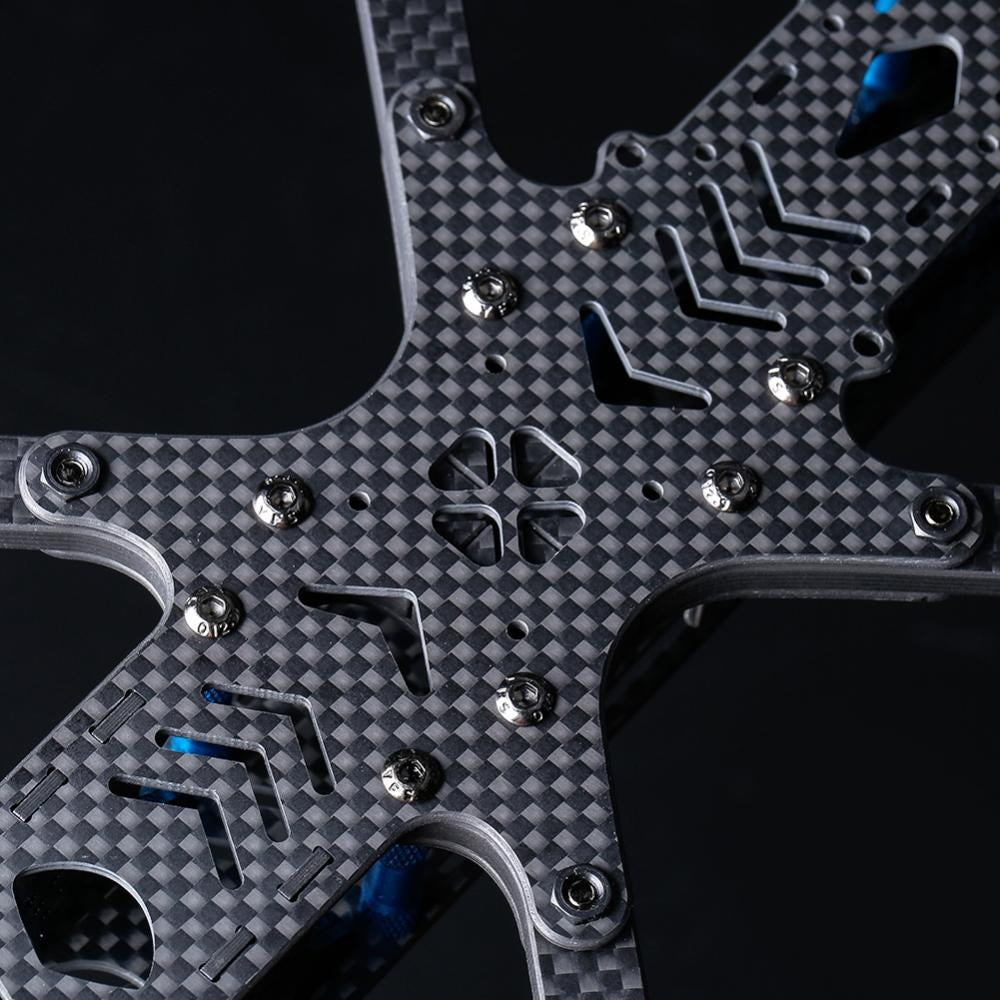

- 2mm top, the upper & bottom plate

- Mounting Holes: 30.5*30.5mm/20*20mm

- Support camera size: 19*19mm 22*22mm

- Recommended motors: 22xx, 23xx

Recommended pack list: (not included)

XING X2207 2450KV 4S

XING X2207 1800KV 6S

Nazgul 5140 propellers

SucceX mini F4 TwinG Stack w/500mw VTX

SucceX mini F7 TwinG Stack w/500mw VTX

SucceX F4 TwinG V2.1 SucceX 50A 4in1 ESC Stack

SucceX F7 TwinG V2.1 SucceX 60A 4in1 ESC Stack

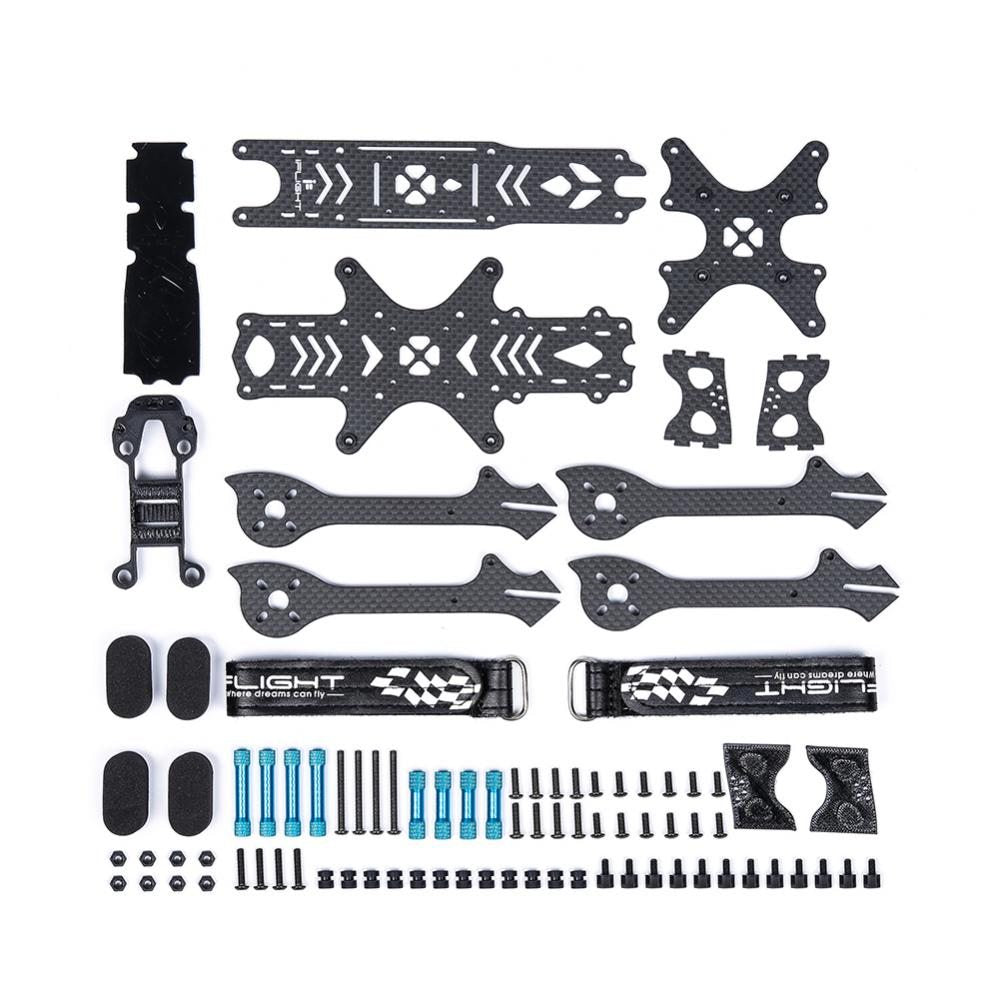

Package included:

1set x SL5frame

1pack x screws

1set x TPU Camera mount adapters

1pc x TPU VTX antenna mount

2pcs x battery anti-slip mat

2pcs x battery straps
