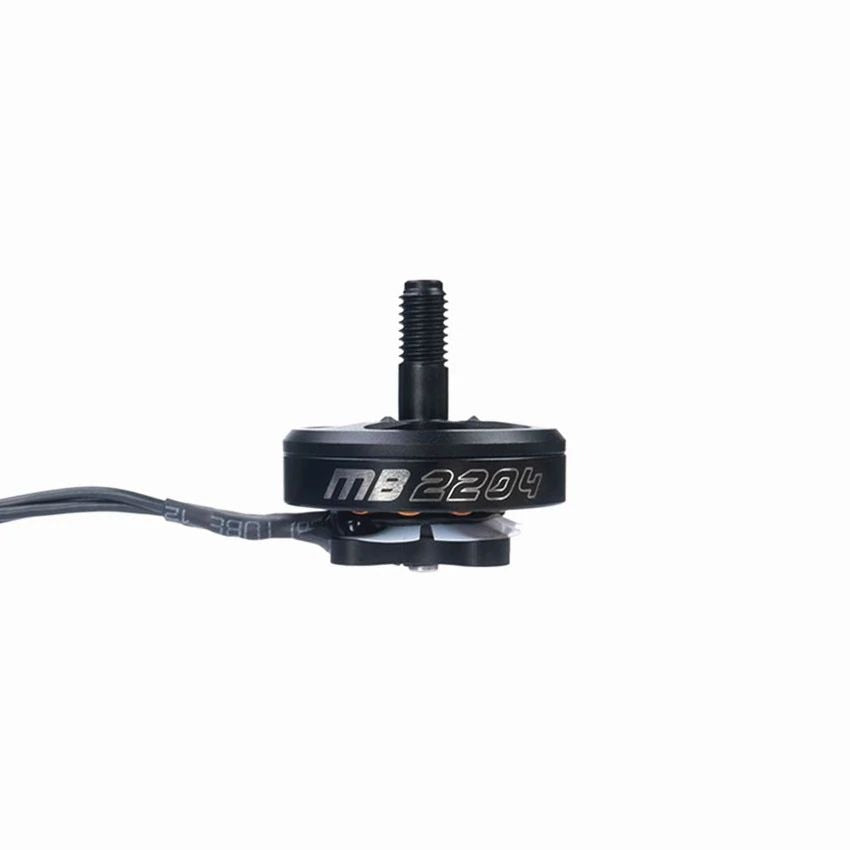

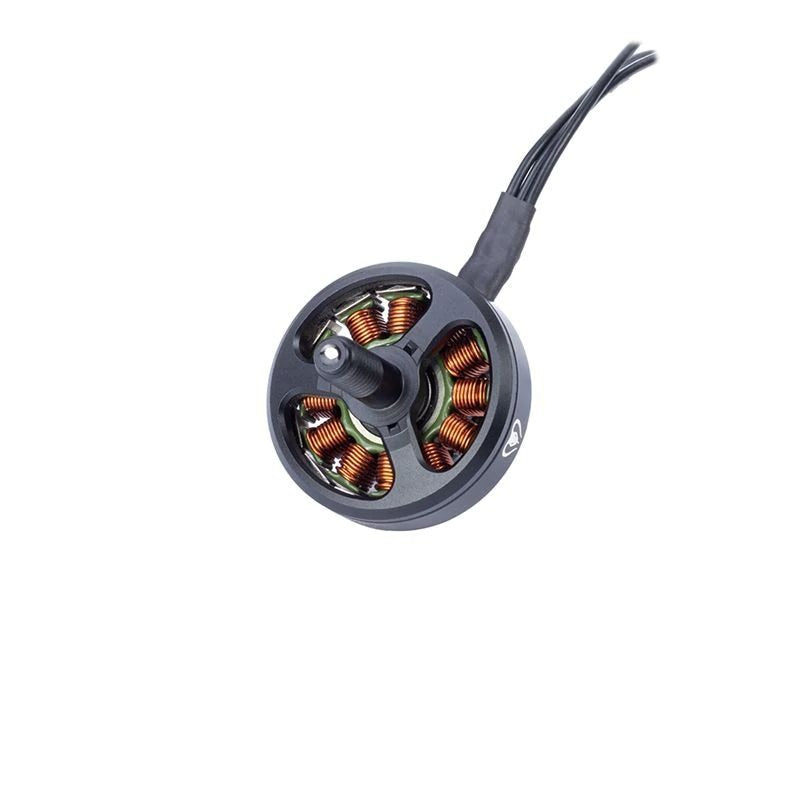

Diatone Mamba 2204 1450kv motor with 16x16 mounting, and 21g weight!
SPECIFICATIONS:
- Mamba 2204 1450KV motor
- Overall Dimension：Φ22.2×15mm
- Weight：21g
- Inner Shaft Diameter：5mm
- Installation hole position：16×16mm，M3
- Prop：5inch
- Outer Shaft Diameter：3mm
- Lead Wire Size：24AWG ×190mm
- Configuration：9N12P
- Magnet Wire: Class H，180℃ Enameled Wire
- Stator Diamter：22mm
- Stator Height：4mm
- Rated Voltage：4~6S (16.8V~25.2V)
- Peak Current：15.5A
- Maximum Power：376W
PACKAGE INCLUDES:
- 1 x Diatone Mamba 2204 1450KV Motor
