Description:
Brand: Diatone

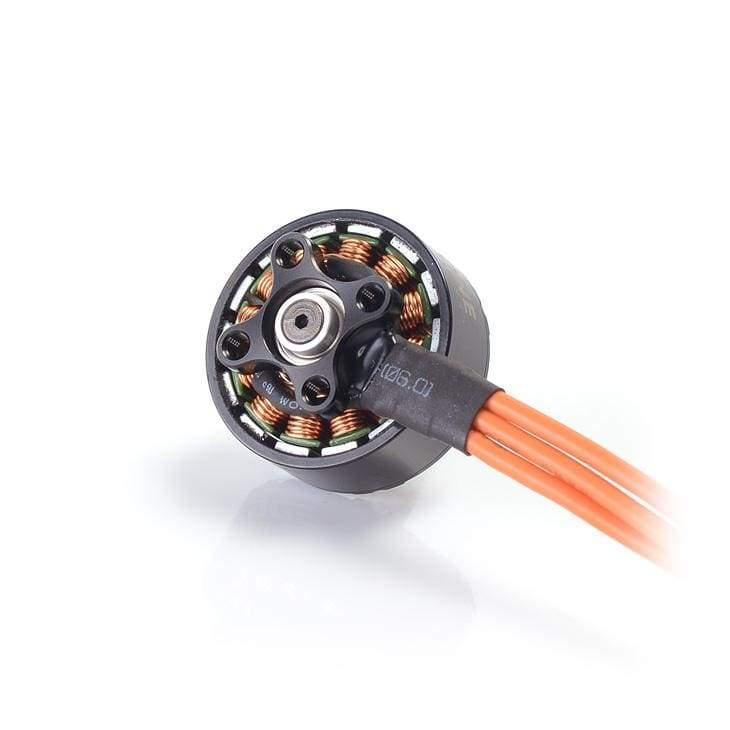

Item name: Edge 2306 2450KV brushless motor
KV: 2450 (rpm/V)
Stator diameter: 23mm
Stator thickness: 6mm
No. of stator arms: 12
No. of stator poles: 16
No. load current (A/10V): 2.0A
Motor resistance: 24mΩ
Max continuous current: 65A/10S
Max continuous power: 1100W
Weight: 32g
Outside diameter: 23mm
Body length: 40mm
Max lipo cell: 3-5S
ESC: 30-50A
Recommended prop (inch): 5x4x3 / 5x4.5x3 / 5x5x3
CW screw threads
Package included:
1 x Edge 2306 2450KV brushless motor
