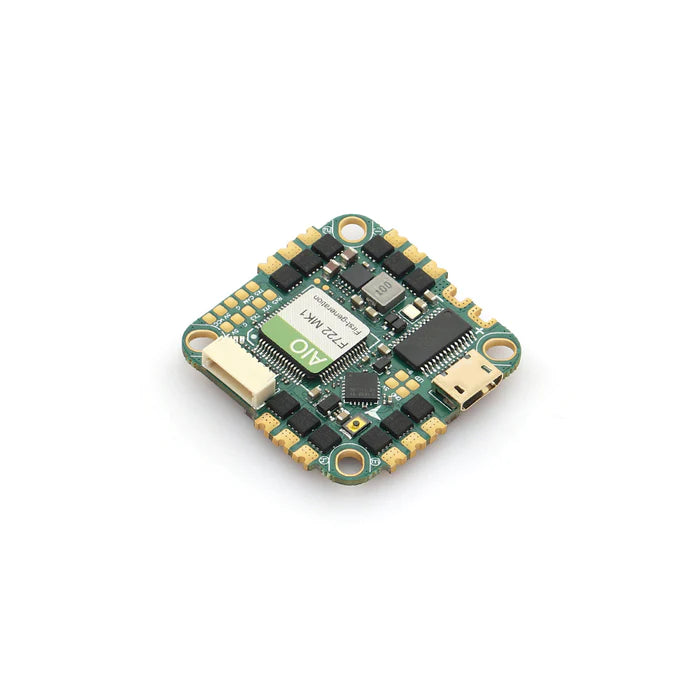

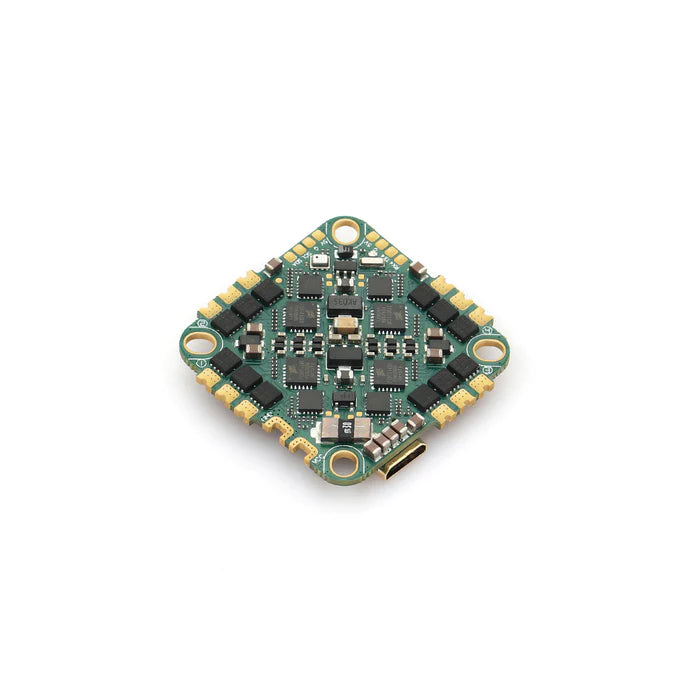

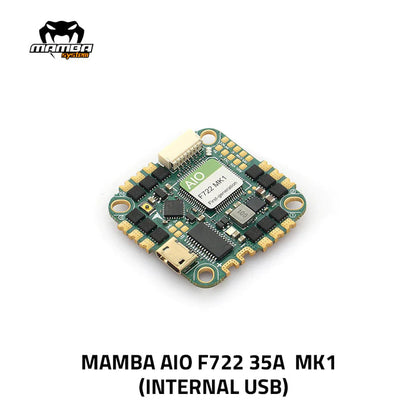

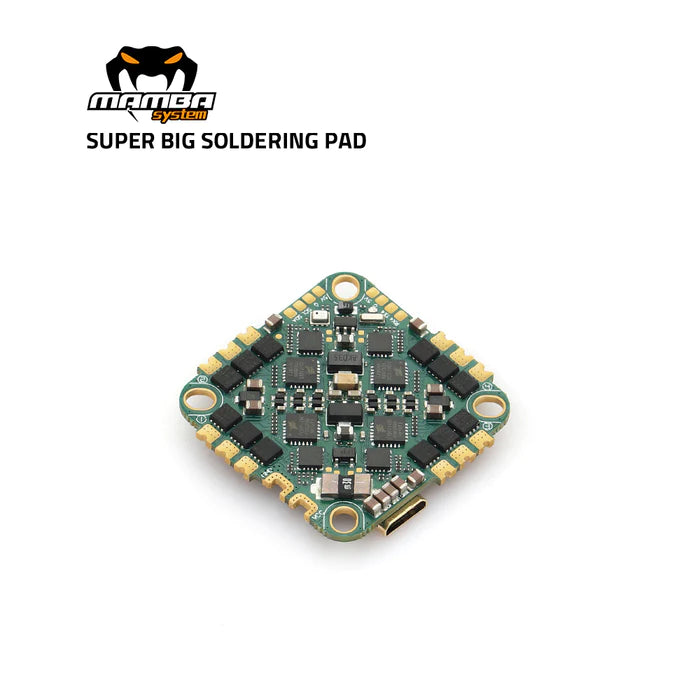

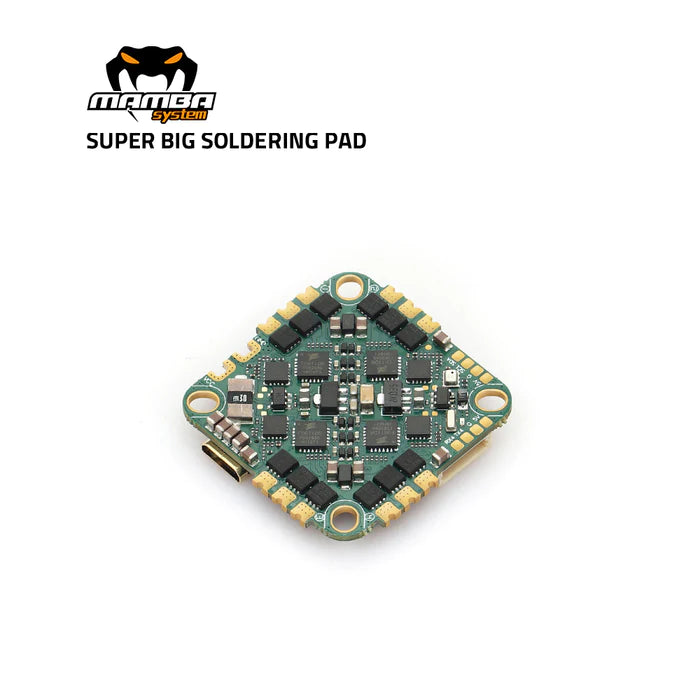

Diatone Mamba AIO F722 MK1 35A 6S 8bit Flight Controller ESC Stack 25.5x25.5mm

Diatone Mamba AIO F722 MK1 35A 6S 8bit Flight Controller ESC Stack 25.5x25.5mmFC SpecificationsMAMAB AIO 35A F722MK1...
Vendor: DIATONE
Availability: Out Of Stock
$126.89
$126.89
Subtotal: $126.89
2_26f95238-dcfe-4021-88b4-943b37e5ec55_1024x1024

Diatone Mamba AIO F722 MK1 35A 6S 8bit Flight Controller ESC Stack 25.5x25.5mm

$126.89
2_26f95238-dcfe-4021-88b4-943b37e5ec55_1024x1024
5_0e86f6ce-6554-402e-80c8-de25edd0b671_1024x1024
7_376a4872-98c3-4c58-9f93-73dff5cfde34_1024x1024
4_b2e2585c-46b8-47e5-ba90-720a3eb12b27_1024x1024
3_4093defe-a238-41ae-a22e-f4bc3ae3f935_1024x1024
1_26ab8493-1484-4920-9968-df7ae50ea7b9_1024x1024
8_35be4d1f-e67b-4951-b34c-5646bc70ac4c_1024x1024
6_2d3829f4-e9ed-4d2a-96b9-21d45b28b127_1024x1024

Diatone Mamba AIO F722 MK1 35A 6S 8bit Flight Controller ESC Stack 25.5x25.5mm

$126.89
Description

Diatone Mamba AIO F722 MK1 35A 6S 8bit Flight Controller ESC Stack 25.5x25.5mm


FC Specifications

MAMAB AIO 35A F722MK1 (INTERNAL USB)

  • Target：MAMBA F722_2022B
  • MCU: 216MHz STM32F722
  • GYRO: ICM42688P
  • Barometer: Yes
  • OSD: Yes
  • Blacbox: NO
  • Uarts: 5 Set
  • ESC Soft: Dshot300/600
  • Power Led: Yes
  • LED Controller: BF LED
  • F.Port: Yes
  • RSSI: No
  • Buzz: Yes
  • Input: 2~6S Lipo (8.4~25.2V)
  • TVS Protection: Yes
  • BEC: 5V 2.5A
  • Mounting size: 25.5×26.5mm,M2

ESC Specifications


MAMAB AIO 35A F722MK1 (INTERNAL USB)

  • Input: 3~6S Lipo (8.4~25.2V)
  • Continue current: 35A×4
  • Burst current: 45A (10S)
  • Target： BLHeli_S GH30
  • SOFT: Dshot300/600

Supply:

  • 1x High-Frequency 470uF/35V
  • 2x 7pin sh1.0
  • 2x 16AWG 60mm
  • 1x AMASS Original XT60
