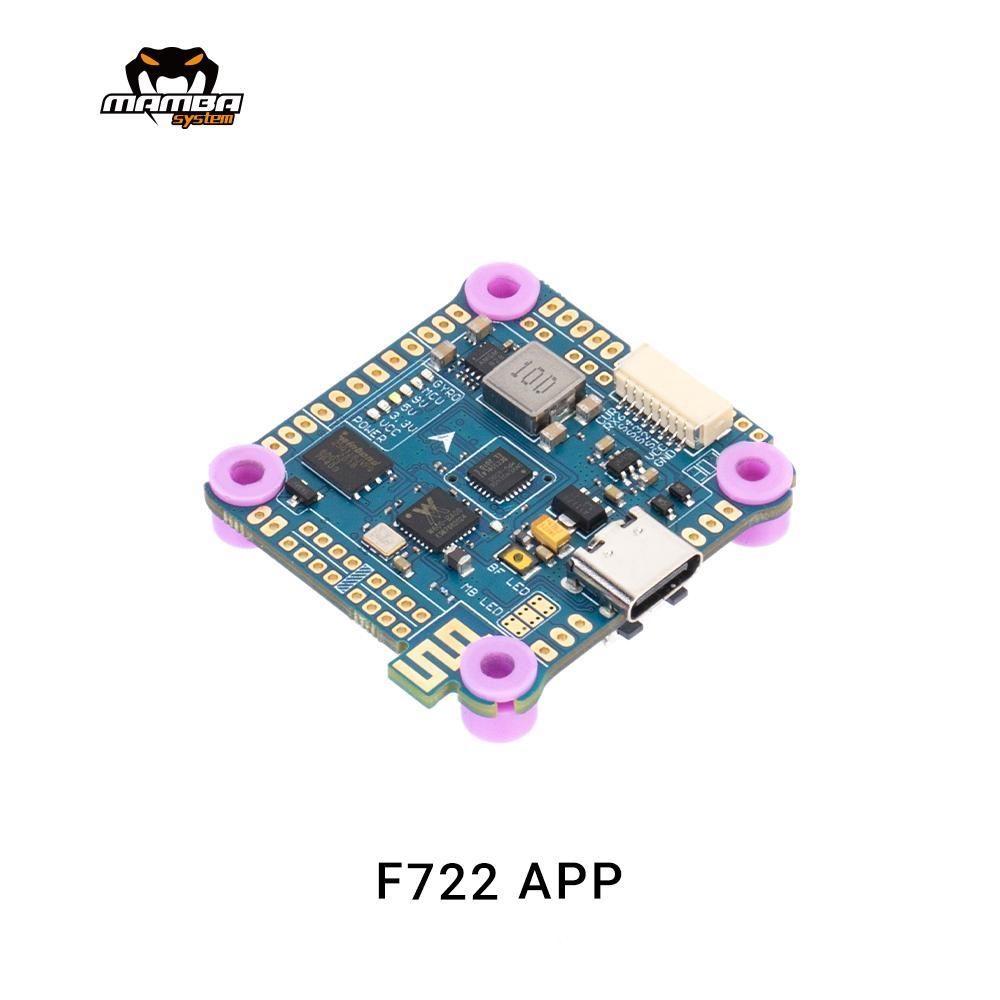

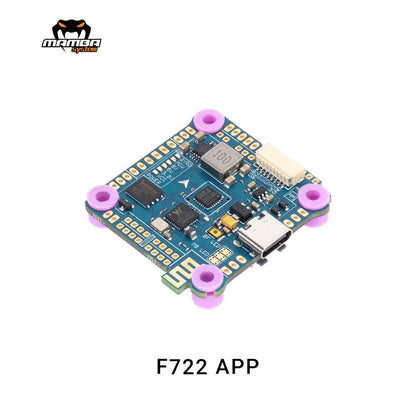

MAMBA F722S APP I2C WIFI
FIRMWARE TARGET /CONFIG： MAMBA F722 I2C
Note：Since STM32F722 Produces a lot of heat， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.
Update Details:
- BT to WiFi
- USB power supply can use receiver, OSD
- Add a group of I2C pads (SCL SDA)
- Add inverter Dual-Way TX serial port

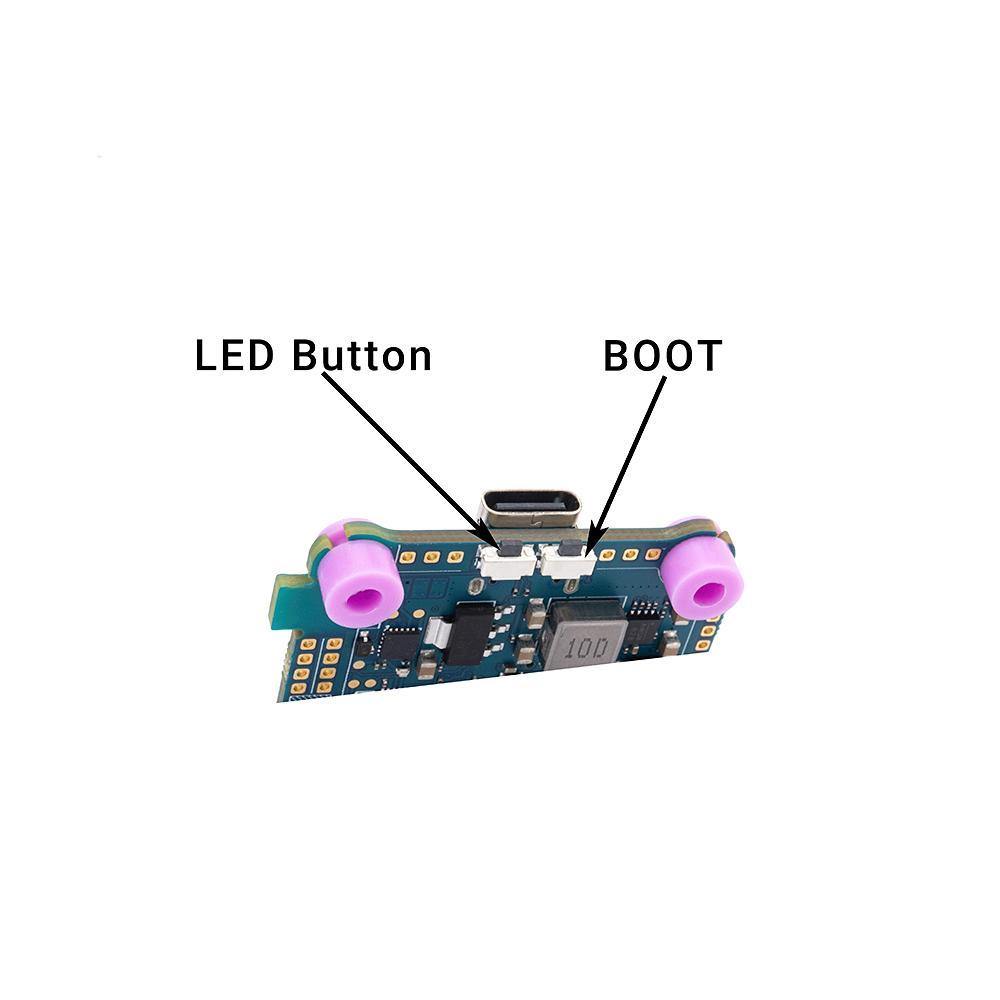

- Add 2812 LED switch function, key can turn off led
- Add 4 corner LED interface to support BF led and Mamba led
- Upgrade to stronger type-C, optimize pad position
FC Specifications
- MCU: 216MHz STM32F722RET6 32BIT
- IMU: MPU6000
- Barometer: No
- OSD: BF OSD
- Blacbox: 16M Flash Memory
- Uarts: 6Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: RX6
- LED indicator: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V
- LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
- WIFI: SpeedyBee APP
- Smartaudio: Yes
- Buzz: Yes
- Input: 3~6S Lipo (12.6~25V)
- TVS Protection: Yes
- BEC: 5V 2.5A & 9V 2A (Max 3A)

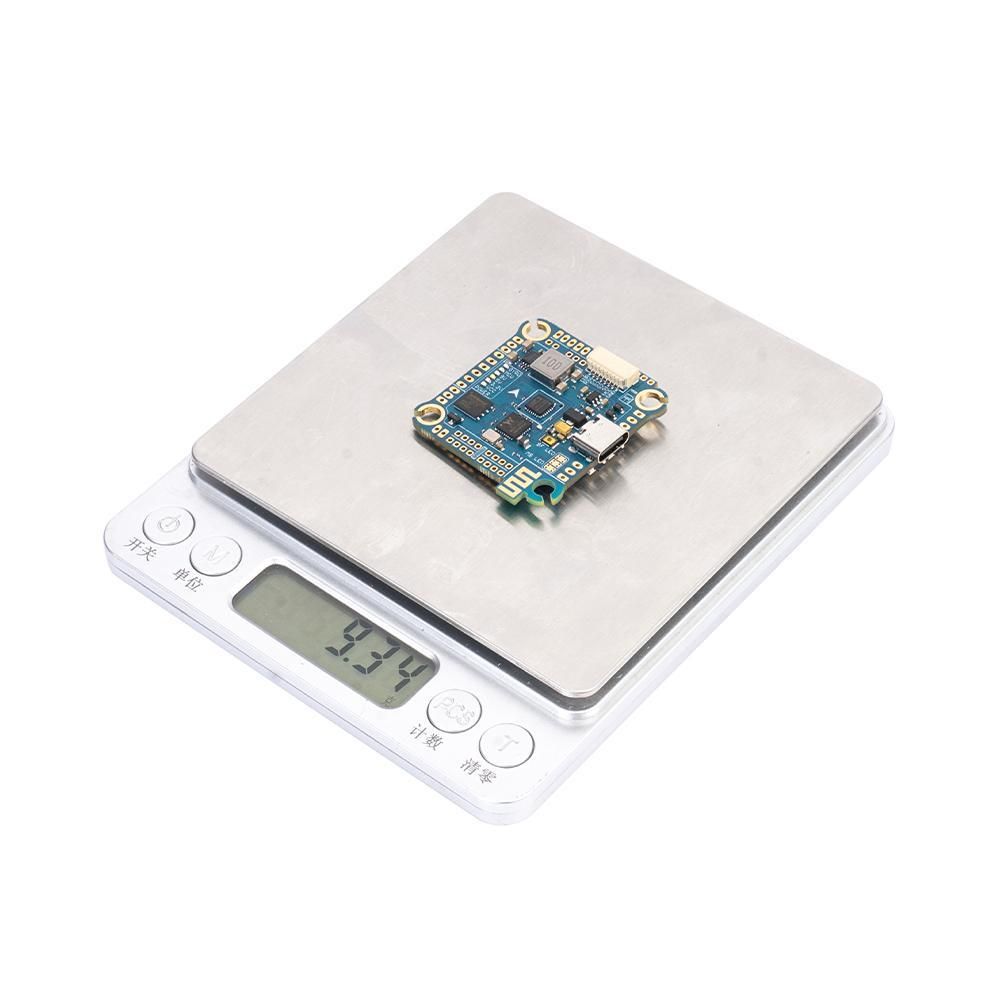

- MOUNTING: 30.5mm/M3 WEIGHT: 9g
- Supply :
- 8pin sh1.0 *1
- Smartaudio: Yes
- Buzz: Yes
- Input: 3~6S Lipo (12.6~25V)
- VTS Protection: Yes
