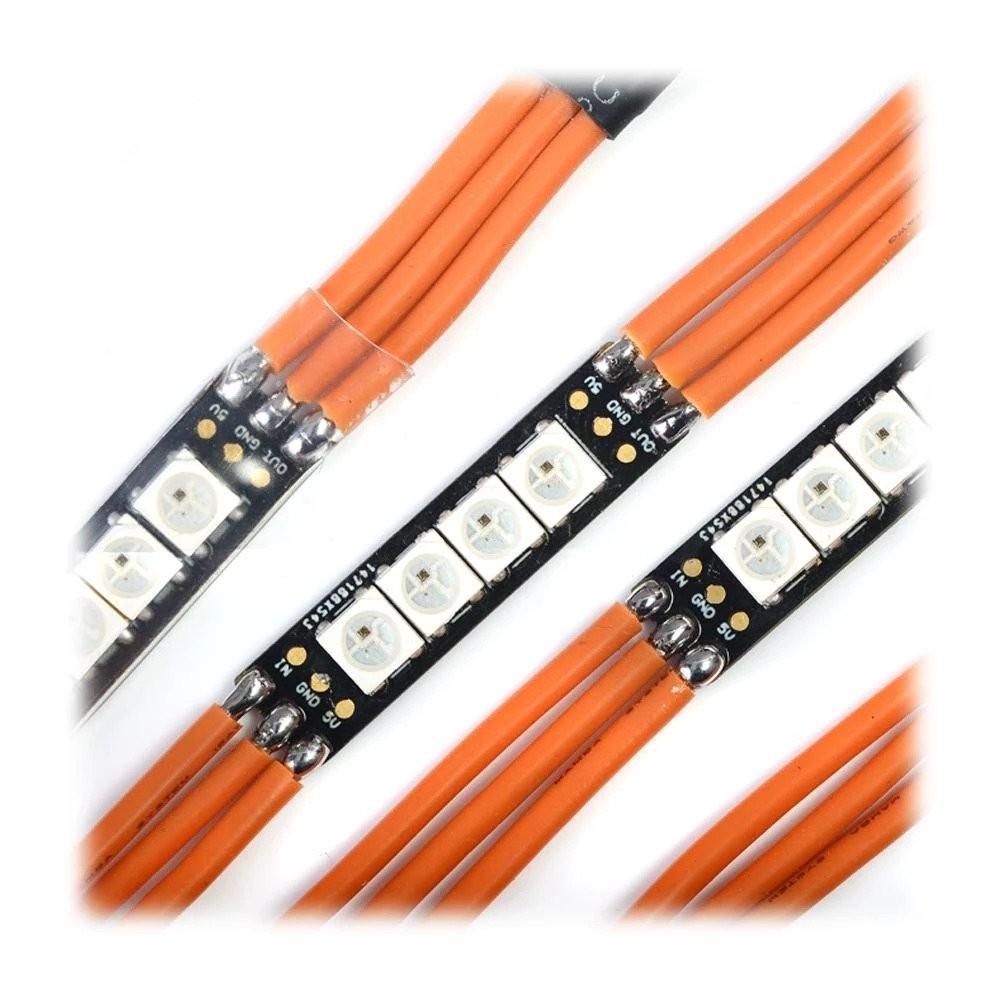

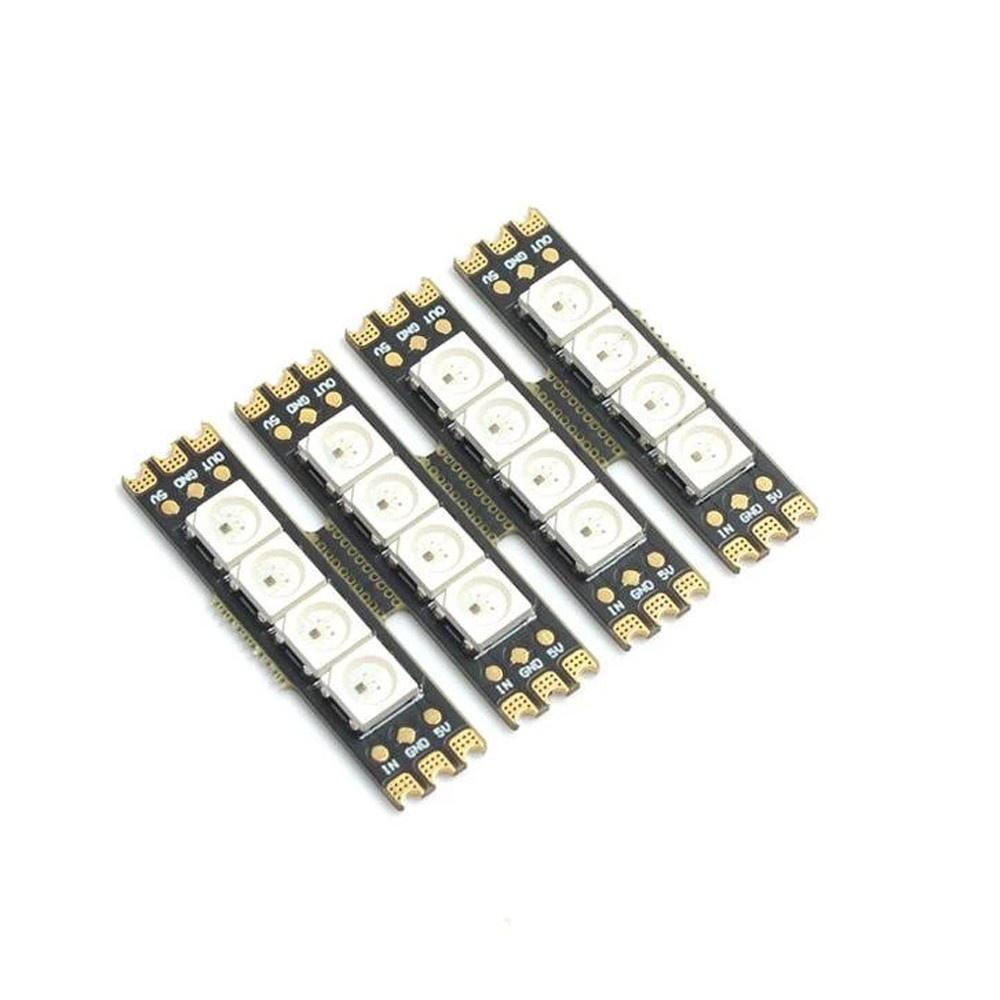

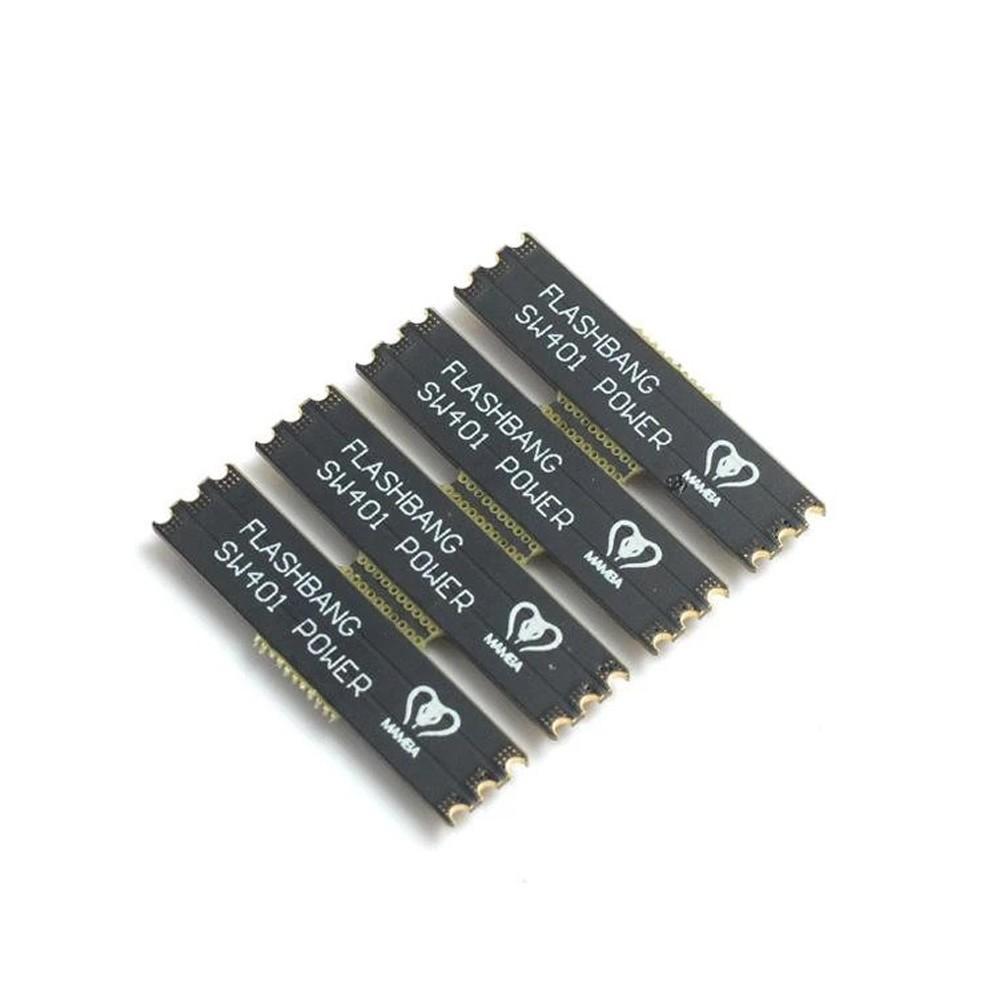

The Diatone MAMBA Flashbang SW401 Motor LED Board was designed to give your quadcopter light when flying in dark places, and it also looks cool! These universal addressable arrays of RBG LEDs have four super-bright RBG LEDs installed, that can work directly with RGB LED tail and a LED control software.
The LEDs need 5v, ground and a signal source in order to work.
When mounting the race wire to your carbon fiber frame please make sure that the PDB is insulated from the carbon fiber to avoid any possible short circuits.
Specifications
- Name: SW401 Power LED Board
- Brand: Diatone
- Cable Size: 100mm
- Motor Voltage: MAX 25V (6S)
- Led Voltage: 5V
- Size: 33×8×2.5MM
- Weight: 1g/PCS

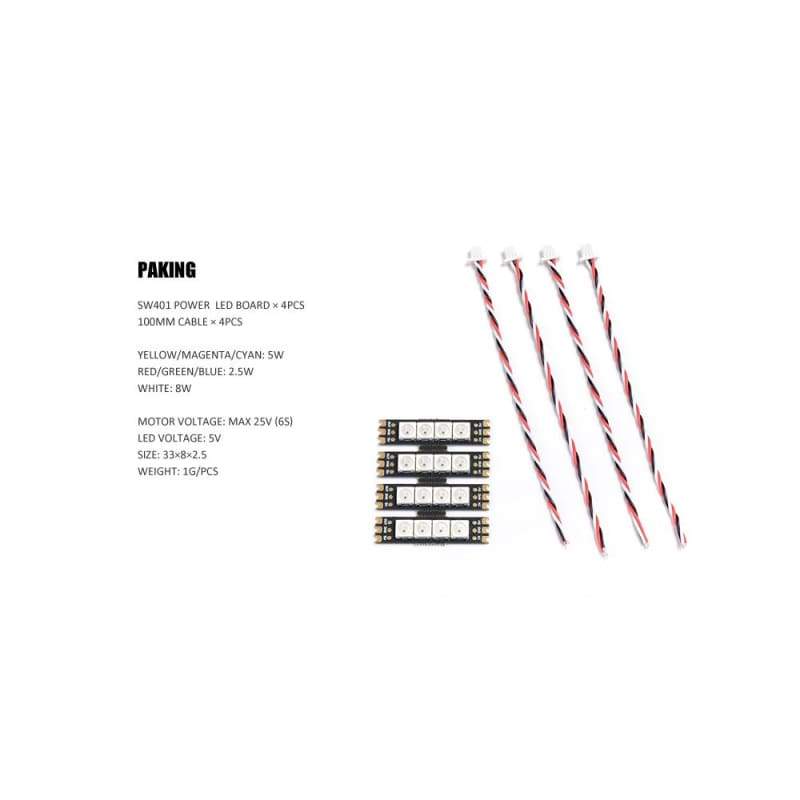

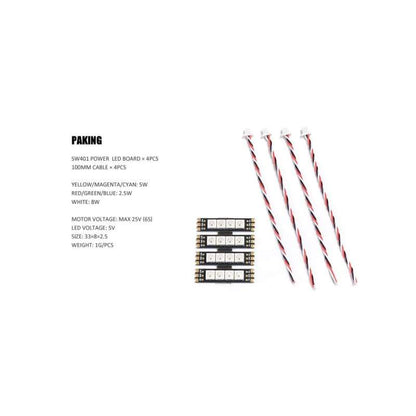

Includes
- 4 x SW401 Power LED Board
- 4 x 100mm Cable
