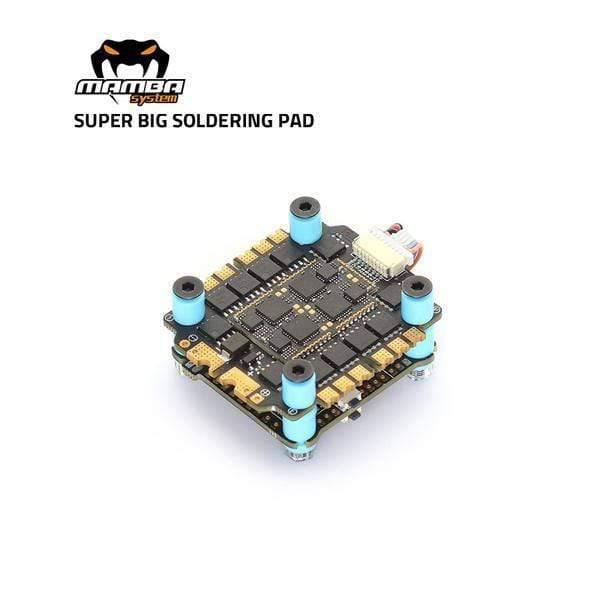

Diatone Mamba Master F722 MK3 55A 6S 32bit 96K Stack 30.5mm-M3

FC Specifications

Basic F722MK3
MCU: 216MHz STM32F722
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED/MB LED（4 Set 2812 LED）
F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A (System Power)&5V 3A(LED)& 9V 3A
MOUNTING: 30.5mm,M3

ESC Specifications

MASTER SERIES 96K ESC
-The most practical High-speed ESC

- F350 High-speed MCU 168MHz
- EMI Anti-interference isolation design
- 14oz Super-copper bigger current
- Japan Toshiba 40V/0.8mΩ rated mosfet

MAMBA Master F55_96K
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:55A×4
BURST CURRENT:65A (10S)
BEC: No
Target：BLHeli_32 Master F55_96K
SOFT: Dshot300/600/1200
PWM:48~96K
TVS Protection: Yes
MOUNTING: 30.5mm/M3

Supply :
High-Frequency 470uF/35V ×1
8pin sh1.0 ×2
12AWG 100mm ×2
AMASS Original XT60
