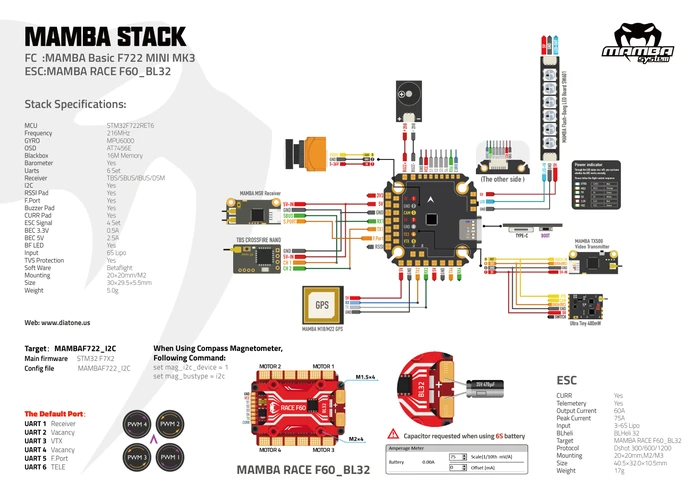

DIATONE MAMBA RACE F722 MINI MK3 60A 3-6S 32BIT FLIGHT CONTROLLER STACK 20*20MM-M2

Diatone MAMBA RACE F722 Mini MK3 60A 3-6S 32bit Flight Controller Stack 20*20mm/M2

FC SPECIFICATIONS:

• MAMBA Basic F722MINI MK3
• MCU: 216MHz STM32F722RET6
• GYRO: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: 16M Flash Memory
• Uarts: 6 Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 2~6S Lipo (8.4~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 2.5A
• MOUNTING: 20mm, M2

ESC SPECIFICATIONS

• MAMBA RACE F60_BL32
• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT: 60A×4
• BURST CURRENT: 75A (10S)
• BEC: NO
• SOFT: Dshot300/600/1200
• Target：BLHeli_32
• MAMBA RACE F60_BL32
• TVS Protection: Yes
• MOUNTING: 20mm/M3/M2

PACKAGE INCLUDES:

• High-Frequency 470uF/35V ×1
• 8pin sh1.0 ×2
• 16AWG 60mm ×2
• AMASS Original XT60
