FC Specifications

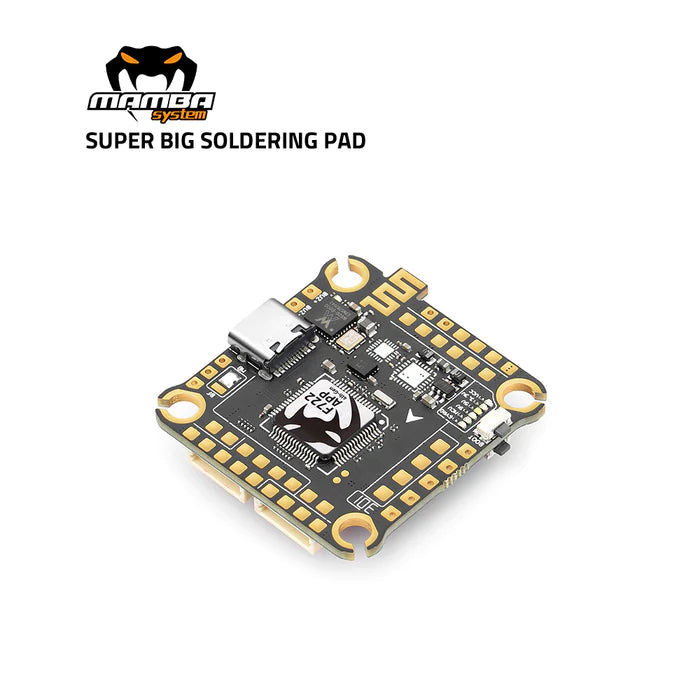

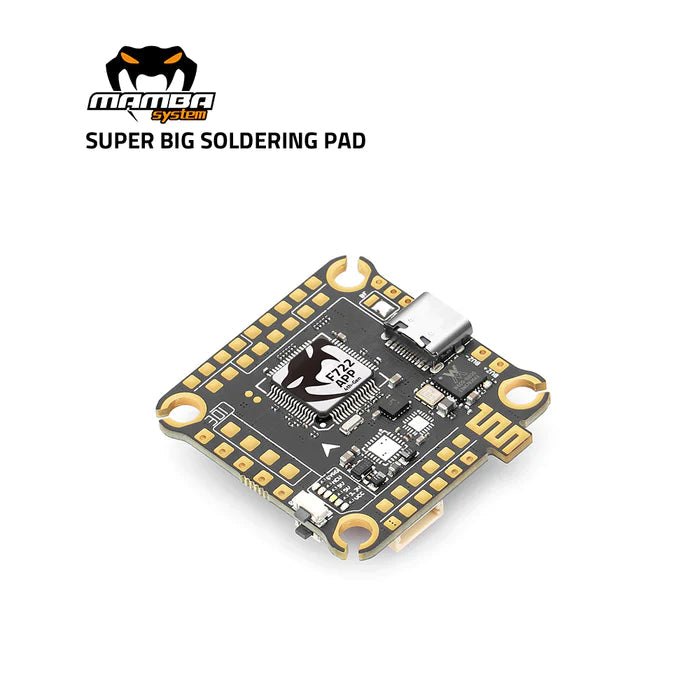

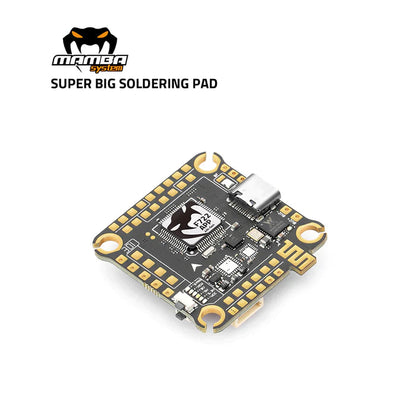

• MAMBA MK4 F722 APP
• MCU: 216MHz STM32F722
• GYRO: ICM42688
• Barometer: Yes
• OSD: Yes
• Blacbox: 16M Flash Memory
• Uarts: 6Set
• ESC Signal:8Set
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED/MB LED（4 Set 2812 LED）
• F.Port: Yes
• Buzz: Yes
• Input:3~6S Lipo (12.6~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A & 5V3A & 9V 3A
• WiFI: SpeedyBee APP
• VTX Swith: Yes
  MOUNTING: 30.5mm,M3

ESC Specifications

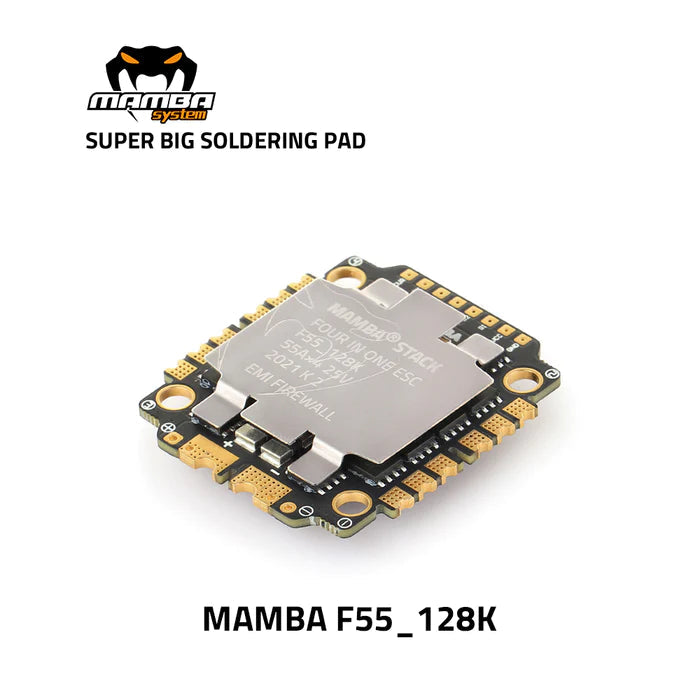

• MAMBA F55_128K
• NPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT: 55a
• BURST CURRENT: 65A (10S)
• BEC: No
• Target: BLHeli_32 MAMBA F55_128K
• SOFT: Dshot300/600/1200
• PWM: 24~128K
• TVS Protection: Yes
• MOUNTING: 30.5mm/M3

Includes

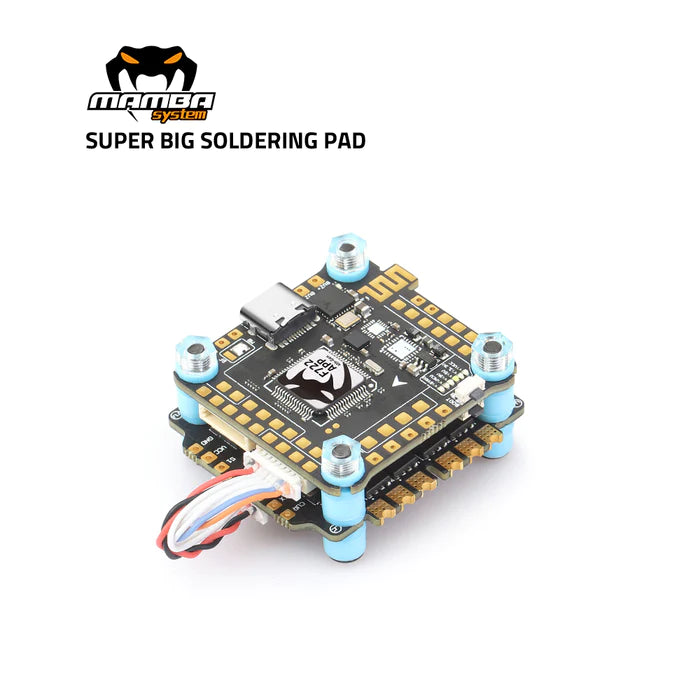

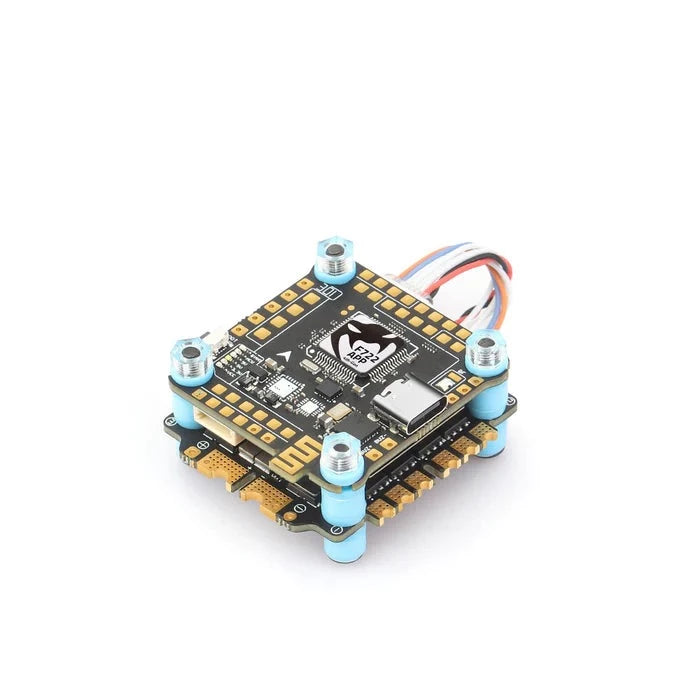

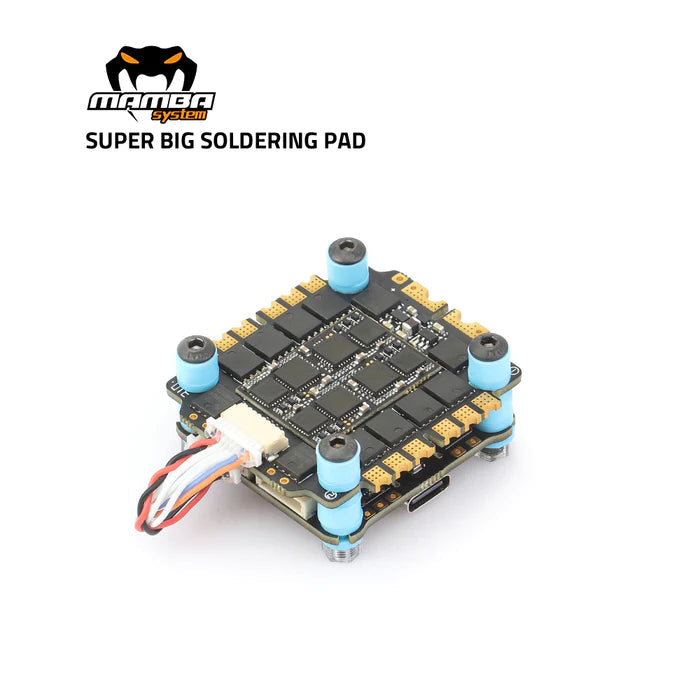

• MAMBA Stack MK4 F722APP 55A 6S 32bit 128K
• High-Frequency 470uF/35V ×1
• 8pin sh1.0 ×2
• 12AWG 100mm ×2
• AMASS Original XT60

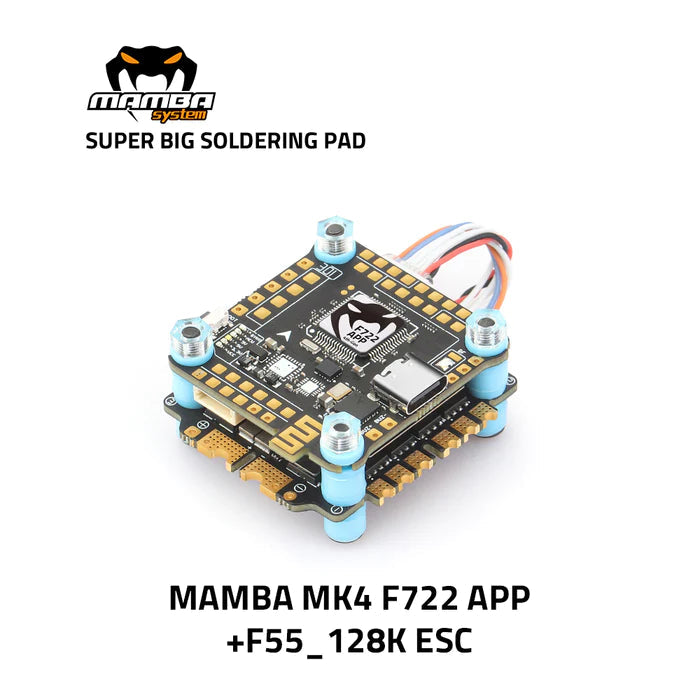

Diatone Mamba Stack MK4 F722 APP F7 Flight Controller + F55 128K 3-6S 55A ESC 30.5x30.5mm
