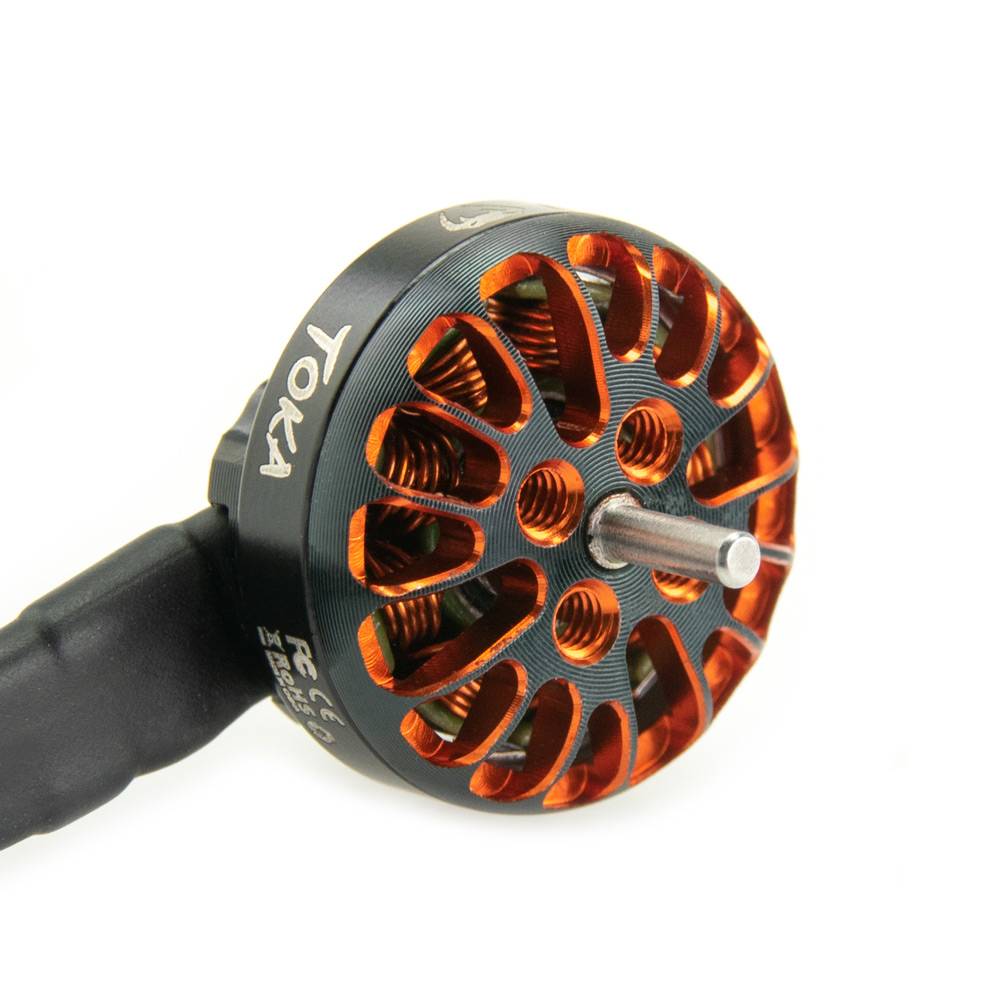

Diatone Mamba Toka 1202 Motor - 6500KV-8500KV-10000KV

The Mamba Toka 1202 Motor is part of a new series of motors by Diatone that is best suited for CineWhoops, like the Diatone MX-C Taycan or any 3"-4" builds! Choose between three KVs to best fit your FPV needs: 6500KV, 8500KV, or 10000KV.

Specifications

KV:6500

• Installation hole position: 9×9mm, M2
• Prop mounting shaft diameter:1.5mm
• Magnet Wire: 240℃ Enameled Wire
• Lead Wire Size: 24AWG×100mm
• Rated Voltage:2~3S (8.4V~12.6V)
• Overall Dimension:Φ16×9mm
• Internal Resistance: 382Ω
• ladle Current: 5V/0.36A
• Stator Diameter: 12mm
• Maximum Power: 88W
• Shaft Diameter: 2.0mm
• Prop: 1.6inch~2.5inch
• Peak Current: 7.3A
• Stator Height: 2mm
• Slots/poles: 9N12P
• Bearing: 5*2*1.5
• Motor Table

KV:8500

• Installation hole position:9×9mm，M2
• prop mounting shaft diameter:1.5mm
• Magnet Wire: 240℃ Enameled Wire
• Lead Wire Size: 24AWG×100mm
• Overall Dimension:Φ16×9mm
• Internal Resistance: 226Ω
• Stator Diameter: 12mm
• Rated Voltage:2S (8.4V)
• Maximum Power: 50W
• Shaft Diameter:2.0mm
• ldle Current: 4V/0.48A
• Prop: 1.6inch~2.5inch
• Peak Current: 5.9A
• Stator Height:2mm
• slots/poles:9N12P
• Bearing: 5*2*1.5
• Motor Table

KV:10000

• Prop mounting shaft diameter:1.5mm
• Installation hole position:9×9mm, M2
• Magnet Wire: 240℃ Enameled Wire
• Lead Wire Size: 24AWG×100mm
• Overall Dimension:Φ16×9mm
• Internal Resistance: 167Ω
• Rated Voltage:2S(8.4V)
• Stator Diameter: 12mm
• Shaft Diameter: 2.0mm
• Maximum Power: 71W
• ldle Current: 3V/0.49A
• Prop: 1.6inch~2.5inch
• Peak Current: 8.4A
• Stator Height:2mm
• Slots/poles:9N12P
• Bearing: 5*2*1.5
• Motor Table

Includes

• 1x Diatone Mamba Toka 1202 Motor (6500KV, 8500KV, or 10000KV options)
