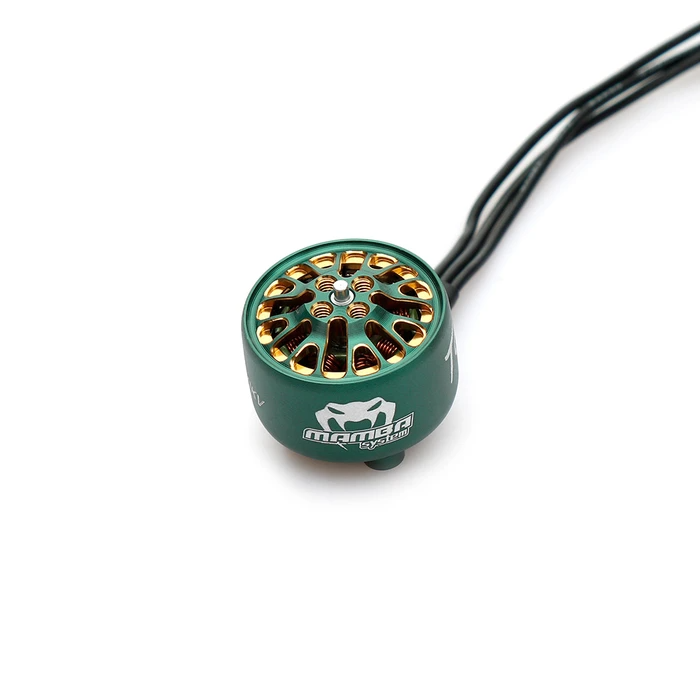

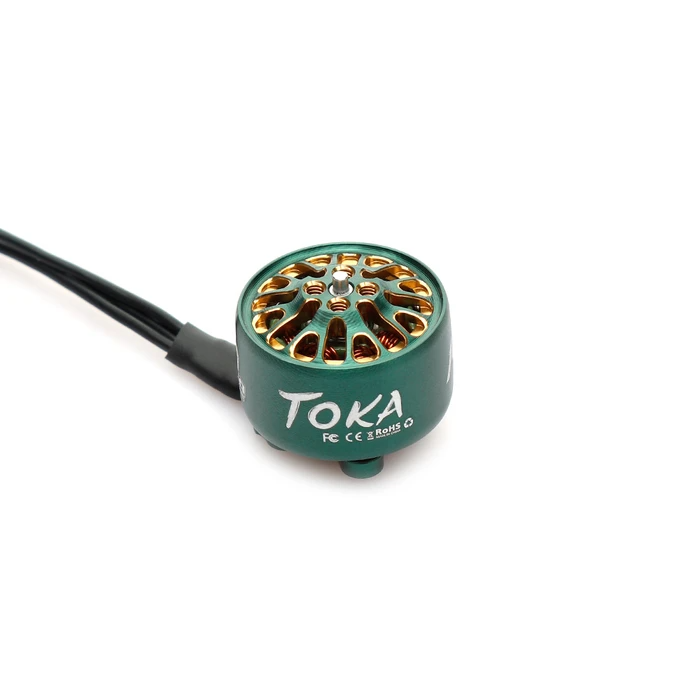

Diatone Mamba TOKA 1408 2900KV Racing motor

MAMBA TOKA 1408 2900KV Racing motorSpecifications:  Overall Dimension:Φ20.6×18.5mm prop mounting shaft diameter:1.5mm Installation hole position:12×12mm,M2 Prop: 3inch~4inch...
Vendor: DIATONE
Availability: In Stock
$25.91
$25.91
Subtotal: $25.91
1_ccf3da93-1fc4-49ba-aeb0-6a567e45687f

Diatone Mamba TOKA 1408 2900KV Racing motor

$25.91

Diatone Mamba TOKA 1408 2900KV Racing motor

$25.91

MAMBA TOKA 1408 2900KV Racing motor


Specifications:

  • Overall Dimension:Φ20.6×18.5mm
  • prop mounting shaft diameter:1.5mm
  • Installation hole position:12×12mm,M2
  • Prop: 3inch~4inch
  • Bearing:5*2*2.5
  • Shaft Diameter:2.0mm
  • Lead Wire Size:24AWG×150mm
  • slots/poles:9N12P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:14mm
  • Stator Height:8mm
  • Rated Voltage:4~6S (16.8V~25.2V)
  • Peak Current: 15.75A
  • ldle Current:10V/0.4~1.0A
  • Maximum Power: 376.3W
  • Internal Resistance:135Ω

Package Includes:

  • 1 x  MAMBA TOKA 1408 2900KV Racing motor
