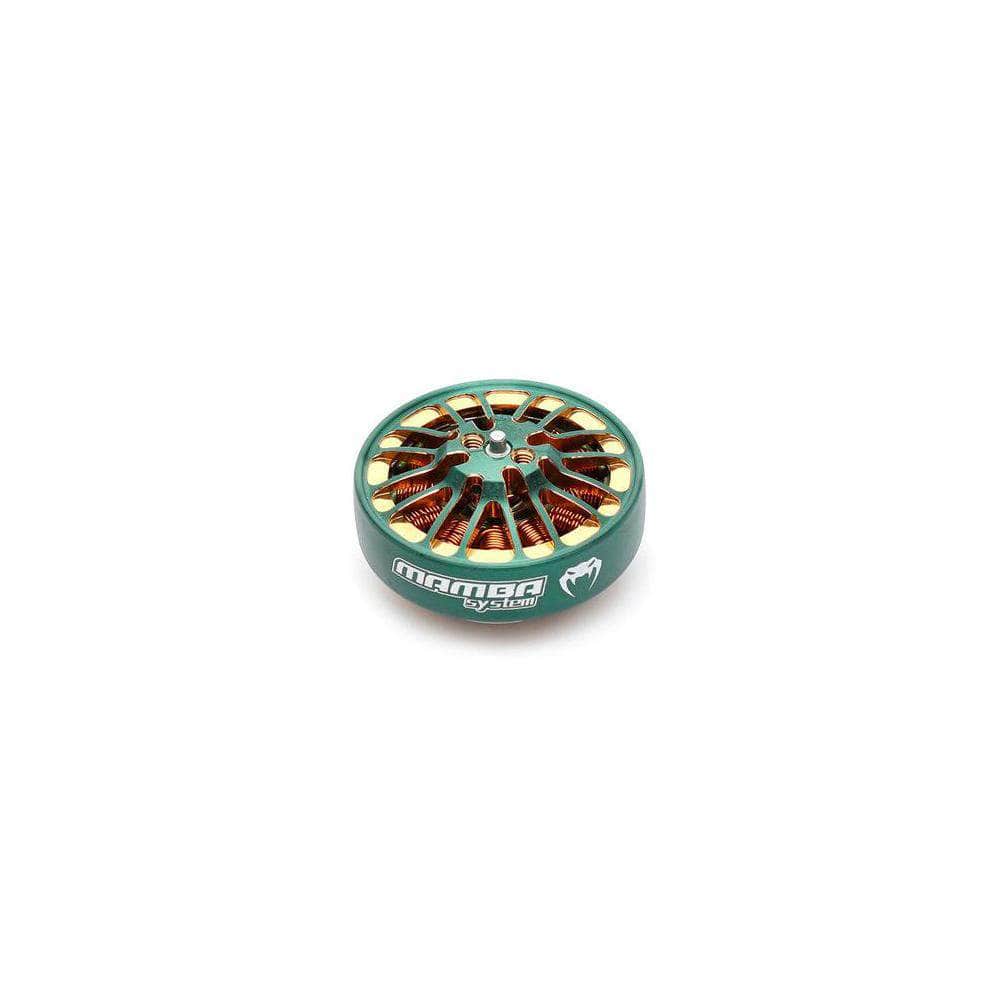

Diatone Mamba Toka 2004 1700Kv Motor

A powerful motor, great for smaller micro builds and also toothpick 5" builds.Specifications Overall Dimension: Φ26.2×15.3mm prop...
Vendor: DIATONE
Availability: Out Of Stock
$28.15
$28.15
Subtotal: $28.15
2004green

Diatone Mamba Toka 2004 1700Kv Motor

$28.15

Diatone Mamba Toka 2004 1700Kv Motor

$28.15

A powerful motor, great for smaller micro builds and also toothpick 5" builds.


Specifications

  • Overall Dimension: Φ26.2×15.3mm
  • prop mounting shaft diameter: 1.5mm
  • Installation hole position: 12×12mm,M2
  • Prop: 3.5inch~5inch
  • Bearing:7x3x3
  • Shaft Diameter: 3.0mm
  • Lead Wire Size:24AWG×150mm
  • slots/poles: 12N14P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:20mm
  • Stator Height: 4mm
  • Rated Voltage: 4~6S (16.8V~25.2V)
  • Peak Current: 17.52A
  • ldle Current:10V/0.3~0.8A
  • Maximum Power: 418.1W
  • Internal Resistance:210Ω
  • Weight: 16.3g

Includes

  • 1x Diatone Mamba Toka 2004 1700Kv Micro Motor
