Diatone Mamba TOKA 2203.5 4200KV Racing Motor

Diatone Mamba TOKA 2203.5 4200KV Racing Motor

Regular price $28.95 AUD
Regular price Sale price $28.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

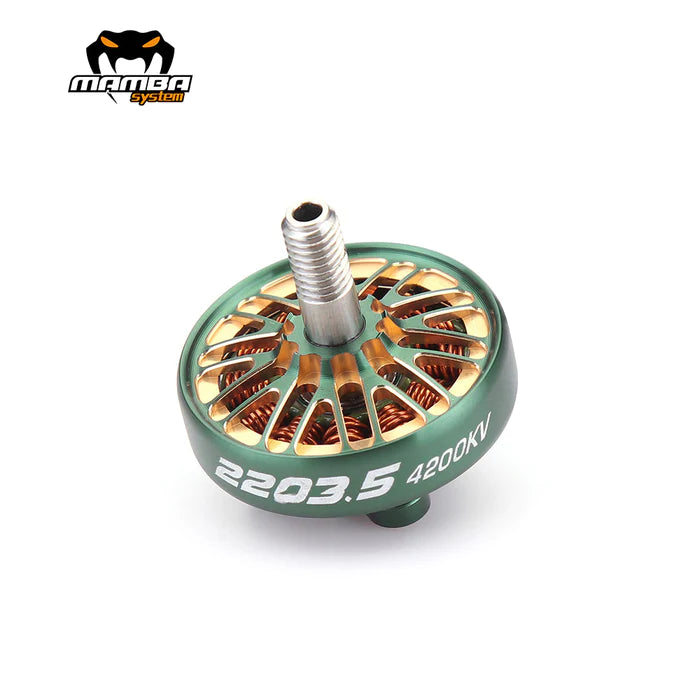

Mamba Toka 2203.5 4200KV Racing Motor Green


Mamba Toka 2203.5 4200KV Motor
Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm,M3
Prop: 3.5inch
Bearing:9*4*4
Shaft Diameter:4.0mm
Lead Wire Size:24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 35.21A
ldle Current:2.2A
Maximum Power: 567.23W
Internal Resistance:65mΩ
