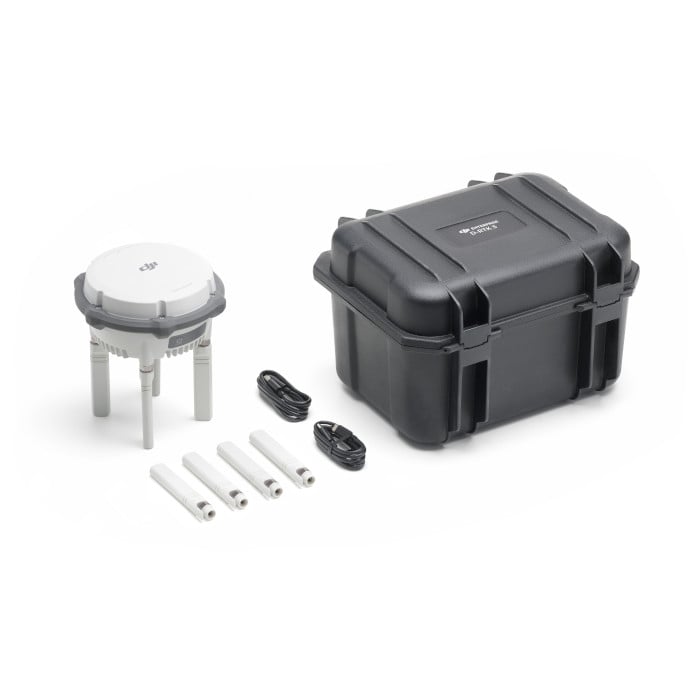

DJI D-RTK 3 Multifunctional Station

DJI D-RTK 3 Multifunctional Station

Regular price $2,320.00 AUD
Regular price Sale price $2,320.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Base Station Mode: Supports Simultaneous Operation of Multiple Models

The DJI D-RTK 3 supports the O4 Enterprise video transmission with four external directional antennas, enabling up to 15 km video transmission in base station broadcast mode while ensuring stable signals in all directions. Operators only need to set up one D-RTK 3 Multifunctional Station without additional configuration, allowing multiple drones to connect to the base station and access centimetre-level positioning.

DJI D-RTK 3 Multifunctional Station
Stronger Performance, More Accurate Positioning

D-RTK 3 uses an air dielectric antenna with a filtering design, effectively tracking low-elevation satellites. The antenna phase-center accuracy is maintained within millimeter level, ensuring strong resistance to multipath interference and enabling high-precision positioning even in complex environments.

With its built-in receiver module, D-RTK 3 can receive satellite data from five major satellite systems across nineteen frequency points. Compared to network RTK, D-RTK 3 provides more accurate and stable positioning results under ionospheric effects.

Standalone Precise Point Positioning (PPP)

D-RTK 3 utilizes DJI’s proprietary PPP solution, enabling satellite-based auto convergence on compatible GNSS frequencies.

It provides free decimetre-level positioning even in challenging network conditions.

Network High-Precision Calibration

D-RTK 3 can receive RTCM data and automatically obtain coordinates and correct positions through the network. When used outdoors, it can achieve centimetre-level precision positioning without pre-measuring the setup point location.

Relay Station Mode: Break Through Limitations

Switch D-RTK 3 to Relay Station Mode and set it up at an elevated location in areas with significant signal obstructions, such as urban environments or valleys. This will enhance the video transmission distance and extend the operational range of compatible DJI drones.

D-RTK 3 supports obstruction sensing with compatible DJI drones, allowing real-time calculations of obstructions and signal quality between the relay station, the remote controller, and drone. Operators can adjust the drone’s position based on prompts from the remote controller to ensure optimal communication quality.

Rover Station Mode: Flexible and Efficient

Besides serving as a base station, D-RTK 3 can also be used as a rover station to collect control point coordinates, enhancing the accuracy of UAV aerial survey and improving survey precision.

DJI D-RTK 3 Multifunctional Station

The DJI Enterprise App

Supports Ground Control Point (GCP) Setup and Tilt Compensation

Install the DJI Enterprise app on an Android device to measure ground control point coordinates. When used with DJI drones supporting RTK, the DJI solution can efficiently complete an entire high-precision surveying workflow.

D-RTK 3 has a built-in high-precision inertial measurement unit, allowing the control point to be measured when the pole is held at an angle without a tripod or ensuring the base station is vertical, significantly improving operational efficiency in complex measurement environments.

Supports Projection Coordinate Conversion

The DJI Enterprise app includes a mainstream projection coordinate database, allowing direct output of planar coordinates.

Compatible with DJI Terra for Efficient Data Processing

One-Click Import, Time-Saving and Effortless

Rover measurements can be imported as control point files into DJI Terra via the DJI Enterprise app, without the need for format adjustments. With powerful algorithms, high-precision results can be easily generated.

Supports Local PPK

D-RTK 3 supports recording raw satellite observations. When imported into DJI Terra version 4.4 or above along with data from compatible DJI drones, local PPK calculations can be performed with one click.

Supported Models

Base Station Mode

Enterprise:

DJI Matrice 4 series
DJI Matrice 3D/3TD*
Matrice 300/350 RTK*
Matrice 30 Series*
DJI Mavic 3 Enterprise Series*

Agriculture:

T60*
T50/T25*
T40/T20P*
DJI FlyCart 30*

Professional Filmmaking:

DJI Inspire 3*

* Currently, only manual D-RTK 3 position calibration is supported. Please refer to official updates for future feature enhancements.

Relay Station Mode

Supports Matrice 4E/Matrice 4T


Rover Station Mode

Supports Bluetooth 5.1, compatible with Android 10 and above
