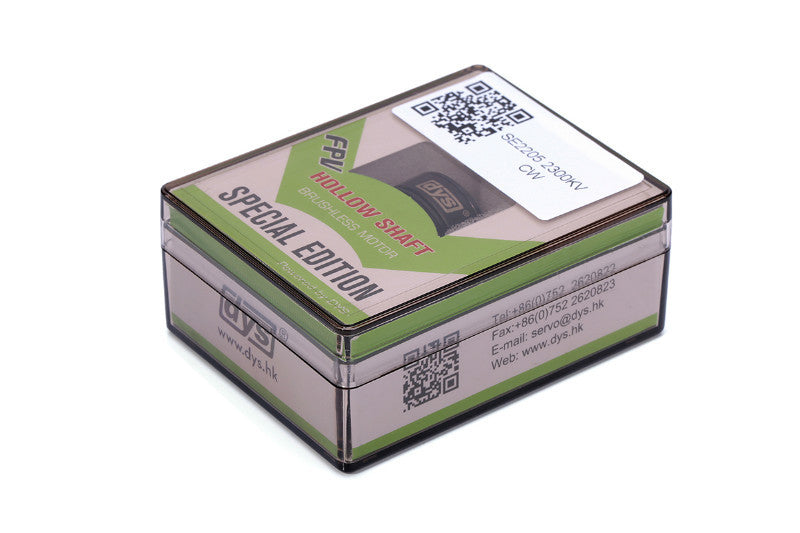

These are the special edition version with the stronger magnets and more thrust !
Specifications:
KV..............................................................................................................2300
Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................?27.7×19.0mm
Weight (g)...................................................................................................30g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................26.8A
Max Continuous Power(W)...........................................................428.8W
Internal resistance..............................................................................0.06?
| NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | EEP | Battery/prop |
| V | A | rpm | A | g | W | % | |
| 12 | 0.9 | 12 | 2 | 100 | 24.0 | 4.2 | LiPo?3/BN4045 |
| 4.7 | 200 | 56.4 | 3.5 | ||||
| 10.9 | 390 | 130.8 | 3.0 | ||||
| 3.7 | 200 | 44.4 | 4.5 | LiPo?3/BN5045 | |||
| 9.3 | 400 | 111.6 | 3.6 | ||||
| 16.4 | 600 | 196.8 | 3.0 | ||||
| 16 | 1.1 | 16 | 3.2 | 200 | 51.2 | 3.9 | LiPo?5/BN4045 |
| 8.2 | 400 | 131.2 | 3.0 | ||||
| 19.1 | 760 | 305.6 | 2.5 | ||||
| 4.4 | 300 | 70.4 | 4.3 | LiPo?5/BN5045 | |||
| 12.3 | 600 | 196.8 | 3.0 | ||||
| 26.8 | 1070 | 428.8 | 2.5 | ||||
