The high performance of the DYS F4 AIO FC has been brought into the Micro class!  DYS...
Vendor: DYS
Availability: Out Of Stock
$49.54
$49.54
Subtotal: $49.54
DYS MINI F4 20X20 FC

DYS MINI F4 20X20 FC

$49.54

DYS MINI F4 20X20 FC

$49.54

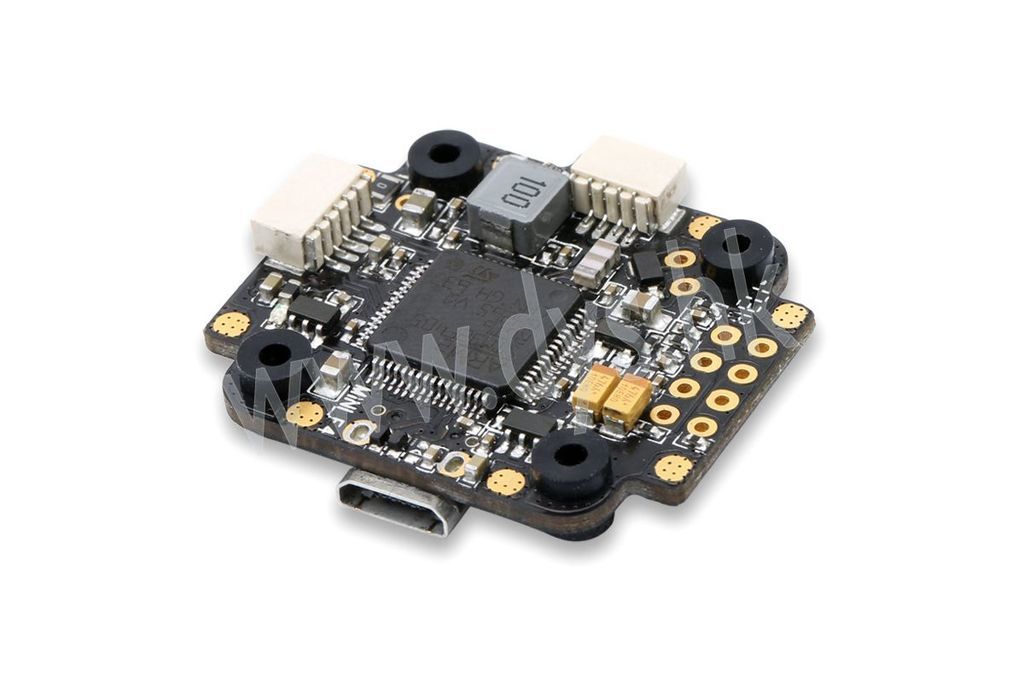

The high performance of the DYS F4 AIO FC has been brought into the Micro class!  DYS has risen to the challenge of putting its best in a small package with a 6-layer PCB board and 3oz copper to keep this tiny thing as cool as can be! The MPU600 accompanied with vibration dampeners bring the BUTTA out on a small scale!

Check out this FC's partner in crime, the DYS F18A 4-in-1 20x20 ESC!

Specifications

* Betaflight firmware
* "DYS F4 PRO" firmware can be used
* STM32F405 master with higher refresh rate and more function ports
* Six-layer PCB board and 3OZ copper to enhance the over-current and heat dissipation
* Connected by SPISix axis senor MPU600
* Compatible all split-type escs
* Microcontroller controls OSD chip through SPI bus DMS mode and faster speed
* Support BF setting software to flash and debug OSD
* 5V power supply max up to 2A
* Use remote control to view flight control parameter through OSD
* Support SAMRT AUDIO, IRC TARAMP agreement, adjust the VTX frequency and power etc by flight control (will support DYS new VTX)
* Features heat resistance damping ball to upgrade the stability and operation
* 2-4s lipo input support, with the anti-ignition function TVS device
* Net weight 6g excluding cable
* Dimension L 30mmX W 27mm, 20X20mm hole pattern
