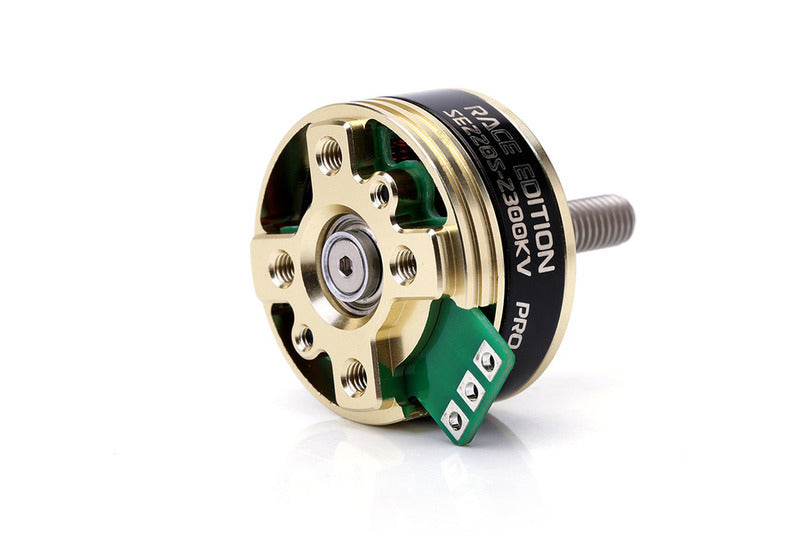

New SE 2205 Pro Motors from DYS - solder tab version for easy install
Silicone wire included
Choose between 2300KV or 2550KV in Options Above
All motors have a cw threaded shaft so normal M5 Locknuts can be used - 2 included
Features:
*New design with imported NMB bearing
*N52 magnet and 0.2mm lamination
*Powerful with 1.1kg thrust to work with BN5045 Prop
*Hollow shaft with screw to fix the shaft
*Special design for the FPV race champions.
Specifications:
KV..............................................................................................................2300
Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................?27.7×19.0mm
Weight (g)...................................................................................................30g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................26.8A
Max Continuous Power(W)...........................................................428.8W
Internal resistance..............................................................................0.06?
Specifications:
KV..............................................................................................................2550
Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................?27.7×19.0mm
Weight (g)...................................................................................................30g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................27.8A
Max Continuous Power(W)...........................................................411.4W
Internal resistance..............................................................................0.08?
