The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.
Launch Video
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector
- Standard 20 cm High Sensitivity Antenna

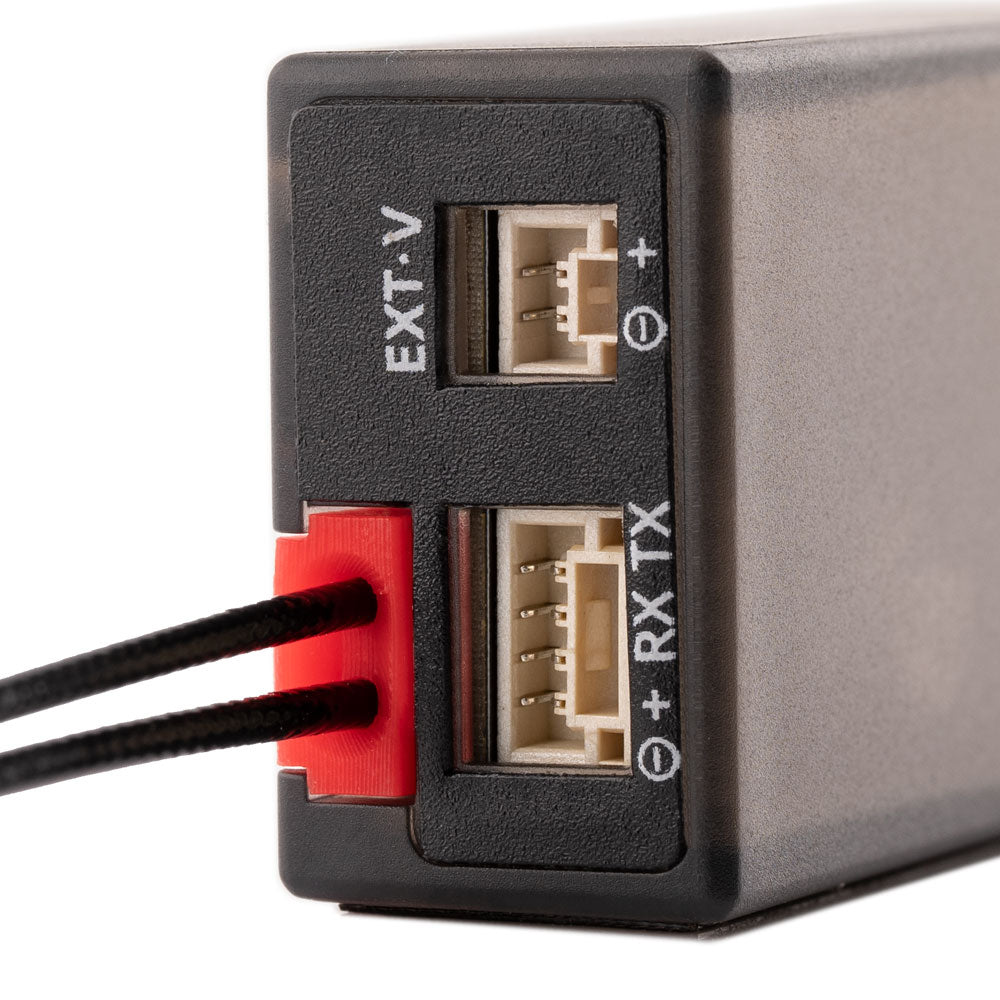

- Reserve 4pin CRSF input port
- The shell adopts one-piece molding process with high structural strength
- For fixed-wing aircraft and more
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item: ER6 2.4GHz ELRS PWM Receiver

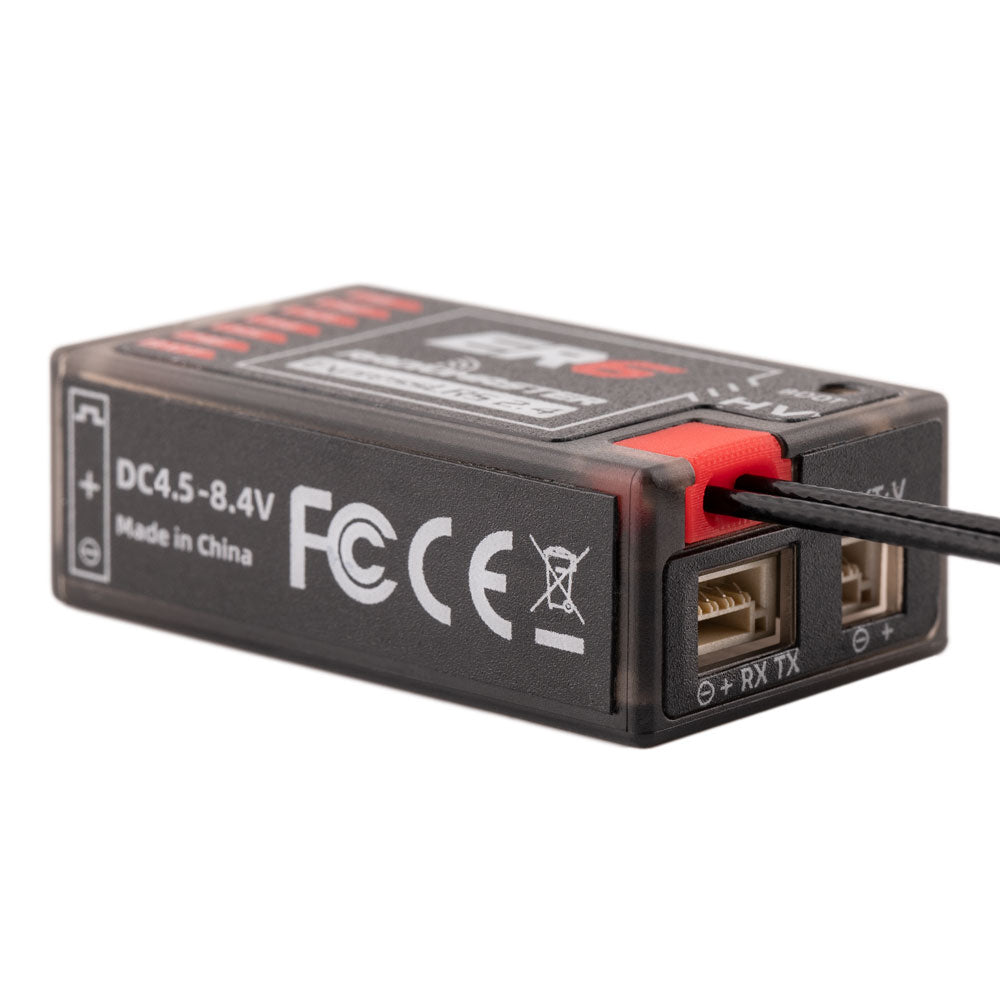

- Power supply: DC 4.5 - 8.4V

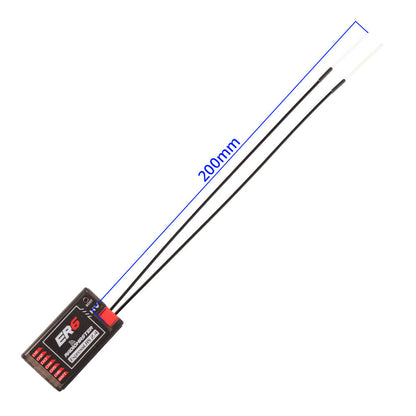

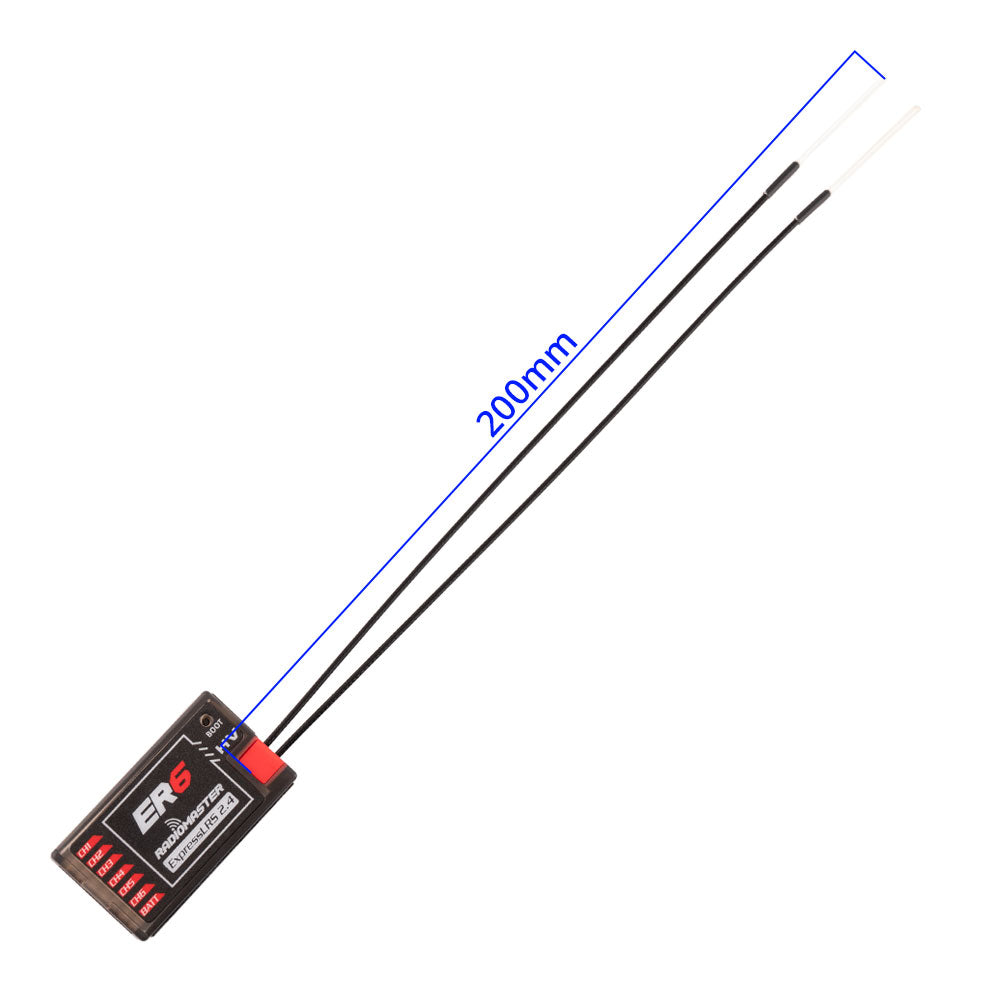

- Antenna type: 20cm high sensitivity dual antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed

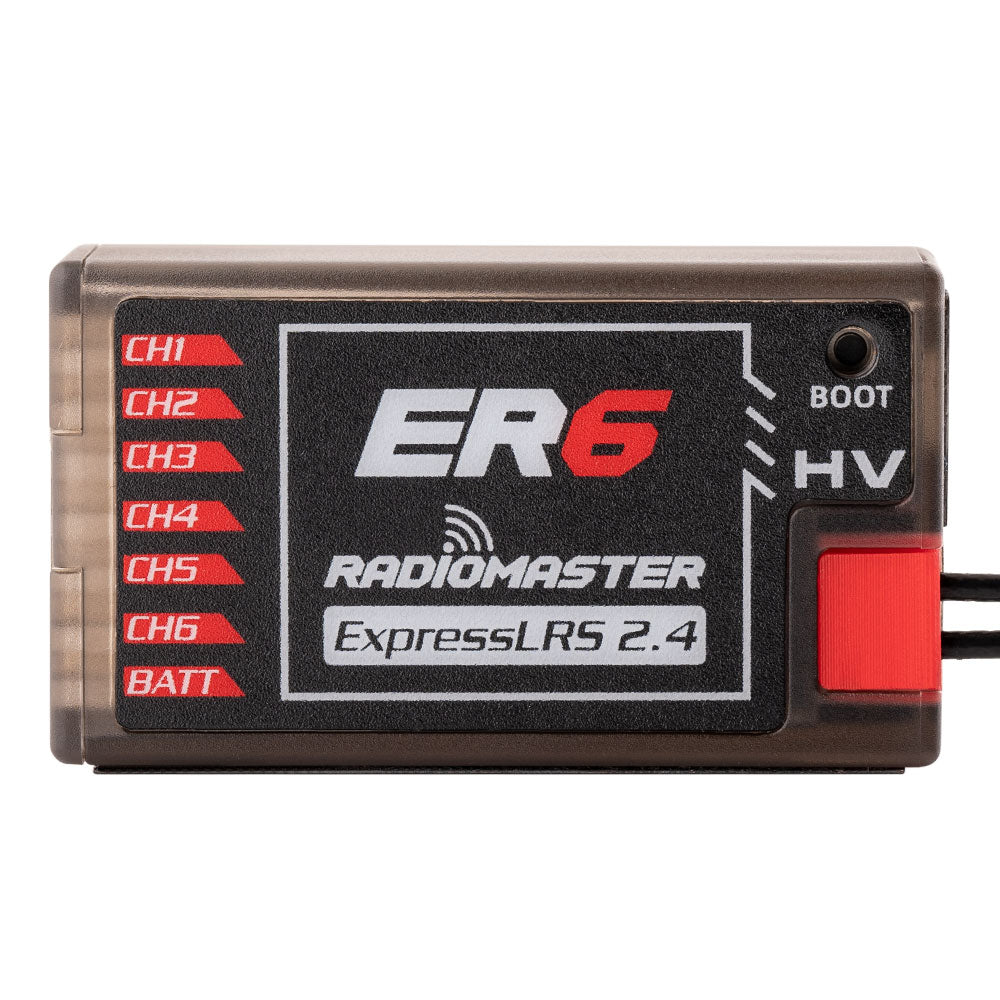

- Output channel: 6CH PWM
- Serial Output: CRSF / Sbus
- Telemetry power: maximum 100mw (LUA Adjustable)
- Telemetry Battery voltage detection range: DC 4.0 - 35V
- Bus interface: CRSF
- Weight: 14.5 grams

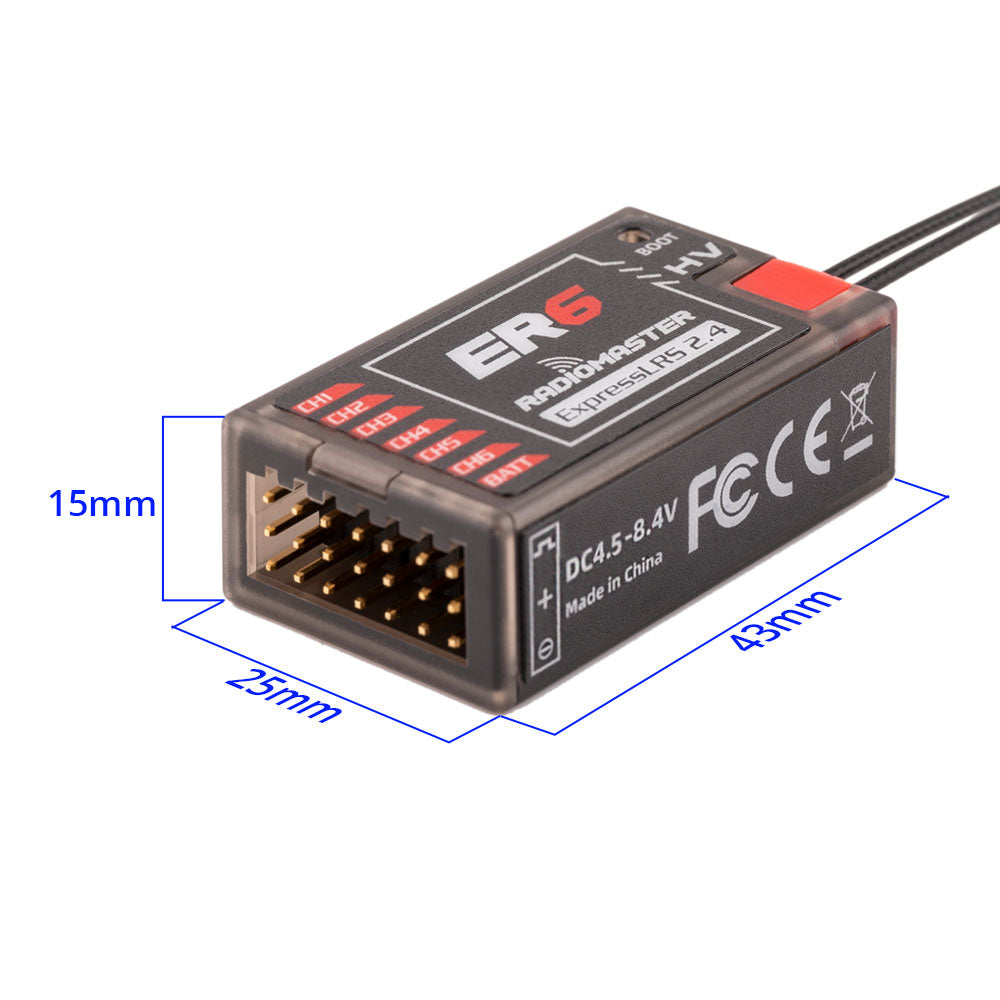

- Dimensions: 43*25*15mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX
Size
RadioMaster ER Series Receivers
- ER4 ELRS PWM Receiver
- ER6 ELRS PWM Receiver
- ER8 ELRS PWM Receiver
- ER6G/ER6GV ELRS PWM Receiver
- ER8G/ER8GV ELRS PWM Receiver
Download
Package Includes
- 1 * ER6 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire (Type-B)
- 1 * CRSF wire
- 1 * ELRS- RX- SBUS wire
- 1 * User Card
