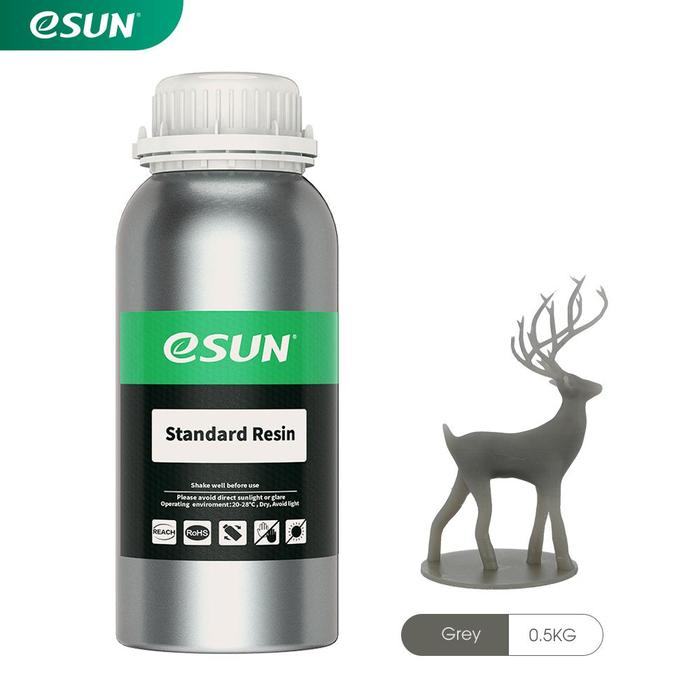

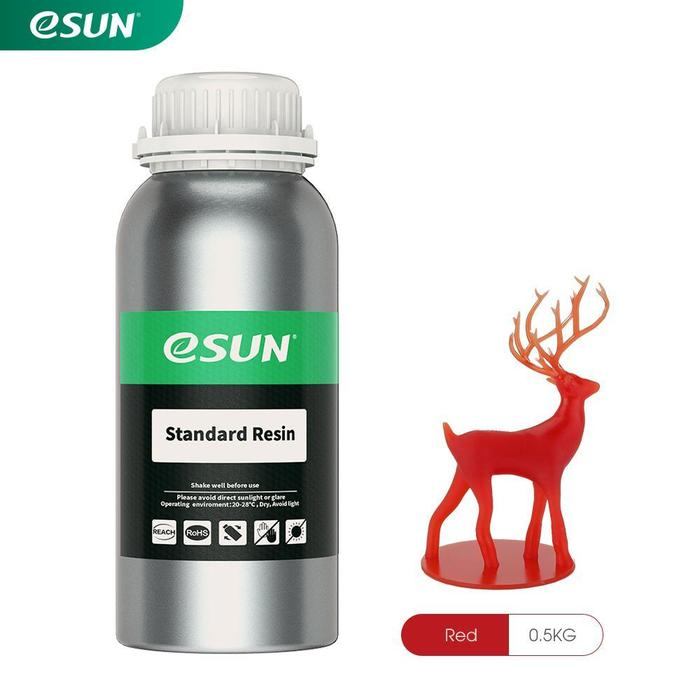

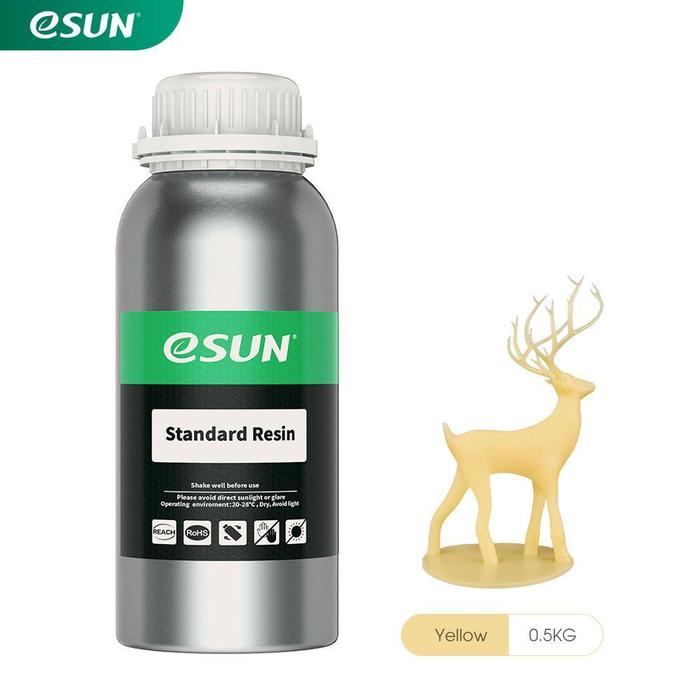

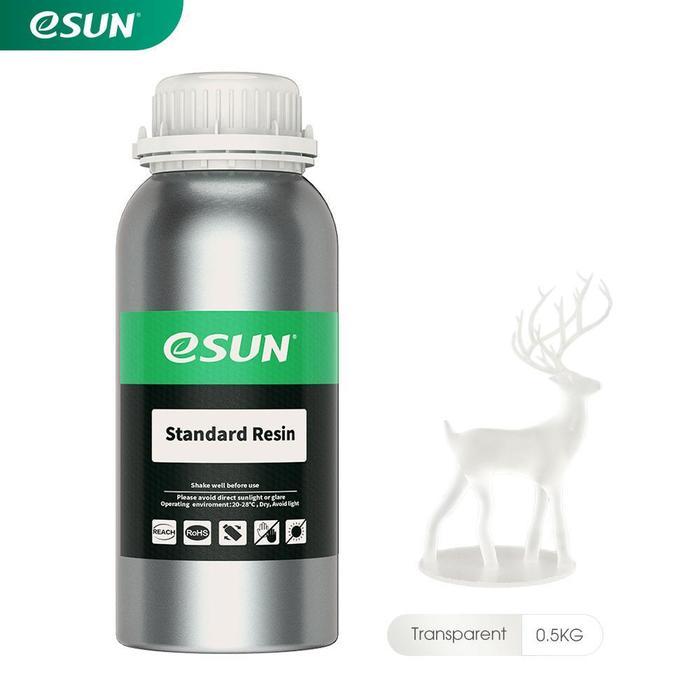

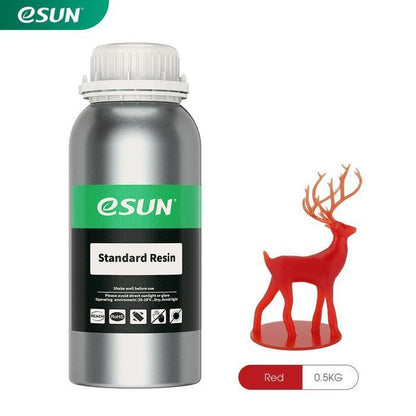

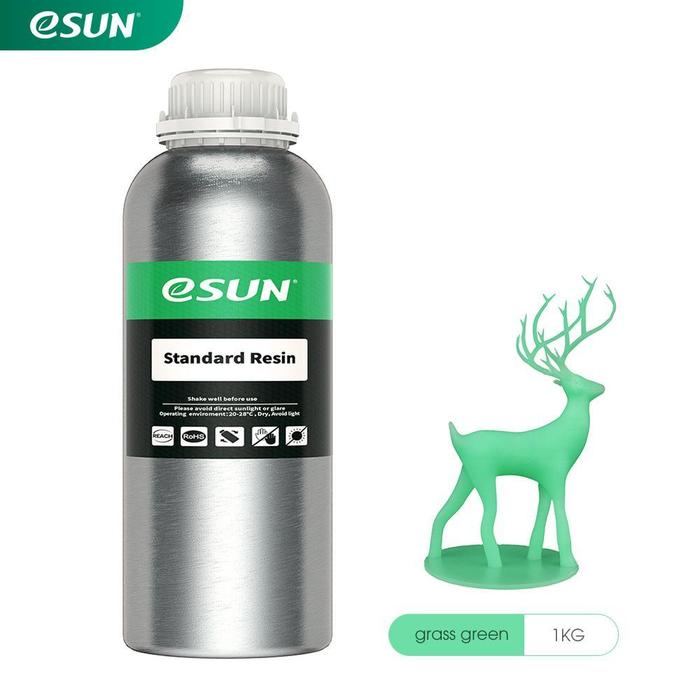

Esun General Purpose LCD 3D Print Resin is specifically designed for LCD/LED light source printers to achieve better printing quality.
Product Features
- General Purpose Resin, Compatible to most LCD printers and DLP with LED UV.
- High Hardness 88 shore D, Low Shrinkage
- Faster Printing Speed
- Low Odor and No Toxic
Resin parameters
Solidify wavelength: 395nm to 405nm
Hardness (D): 88D
Viscosity (25C,mPa.s): 100 to 150 mpa.s
Density: 1.07 to 1.12 g / cm3
Shrinkage of Vol.: 3.72%-4.24%
Physical Properties
Flexural strength (Mpa): 59Mpa to 70Mpa
Flexural Modulus (Mpa): 1.88 to 2.38
Tensile strength (Mpa): 35Mpa to 42 Mpa
Elongation at break (%): 11% to 20%
Hardness (D): 88D
Precautions
1. Storage
- 1) Keep away from light and sealed at room temperature.
- 2) It is recommended to store the resin between 15 Celsius and 35 Celsius in its original container.
- Avoid any dusty or moist environment.
2. Usage
- Shake well before use. Avoid any direct sunlight during usage.
- Keep it away from the children. Do not put in mouth.
- Wear gloves before use to avoid direct contact with the skin and keep the room ventilated.
- If accidentally contacted, please wash with plenty of water immediately. Seek medical advice if necessary.
- Finished models are required to clean by high-concentration alcohol (>95%) about 30 seconds.
