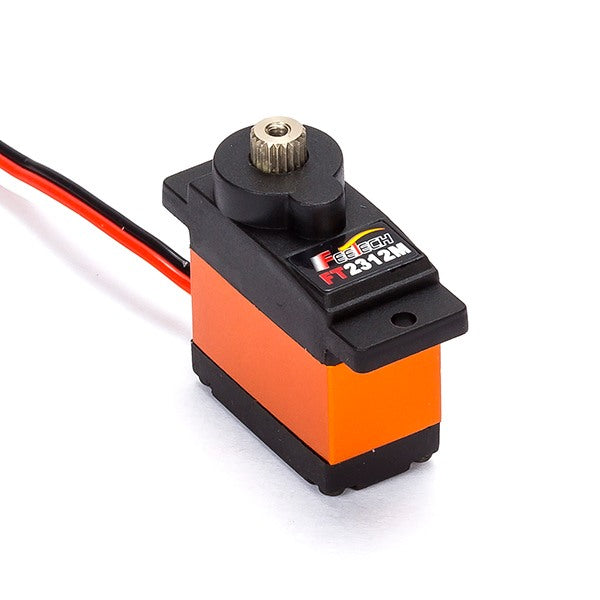

This is a Digital servo motor manufactured by Feetech.The operating voltage of the servo is 4.8 to 6V. Also the motor is light weighted. The operating angle of the motor is 120 degrees.
Specifications:
- Operating Speed:
- 0.12sec/60degree (4.8V)
- 0.10sec/60degree (6V)
- Stall Torque:
- 1.2kg.cm/16.69oz.in(4.8V)
- 1.5kg.cm/20.87oz.in(6V)
- Operating Voltage: 4.8V~6V
- Control System: Digital
- Direction: CW
- Operating Angle: 120degree
- Required Pulse: 900us-2100us
- Bearing Type: 1BB
- Gear Type: Metal
- Motor Type: Carbon
- Connector Wire Length: 20 cm
- Dimensions: 23.2 × 12.3 × 25.6 mm
- Weight: 14 g

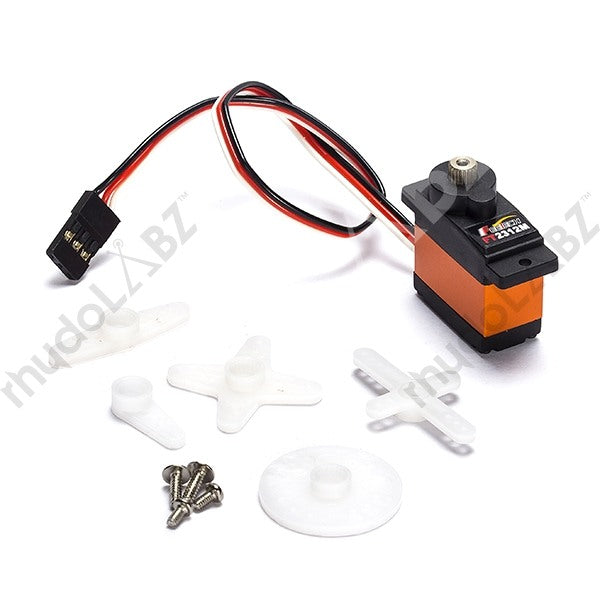

Package Includes:
- 1 x FT2312M Micro 0.1sec/60degree 1.5kg.cm Digital Servo
- 1 x Standard Accessory Kit
