When brushless motors decelerate from high speeds, they can generate powerful back EMF spikes that may exceed the 30V voltage rating of most electronic components on a printed circuit board (PCBA). These transient voltage surges can silently damage FPV electronics, leading to unexpected electronic speed controller (ESC) failures and costly repairs during flight.

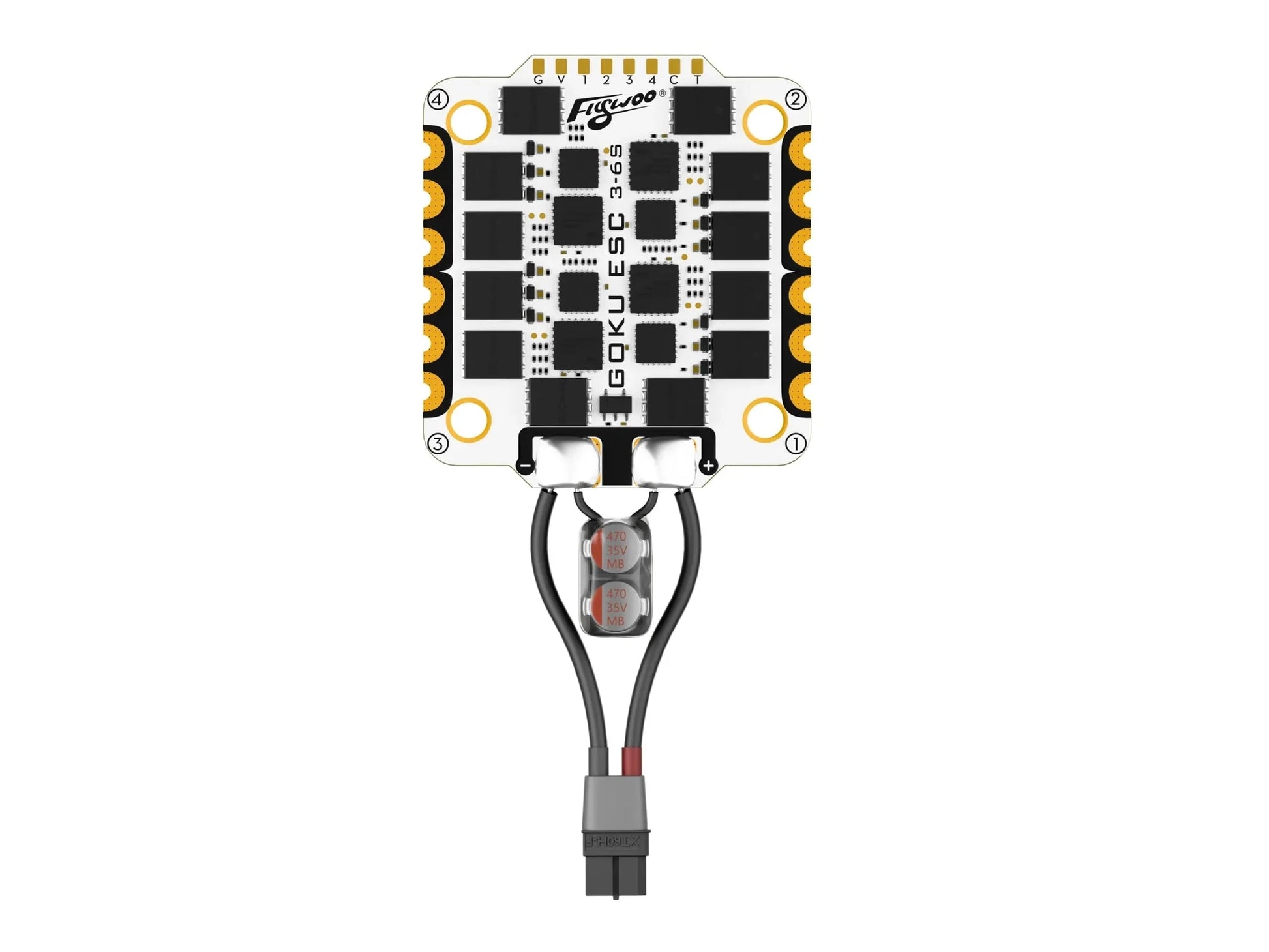

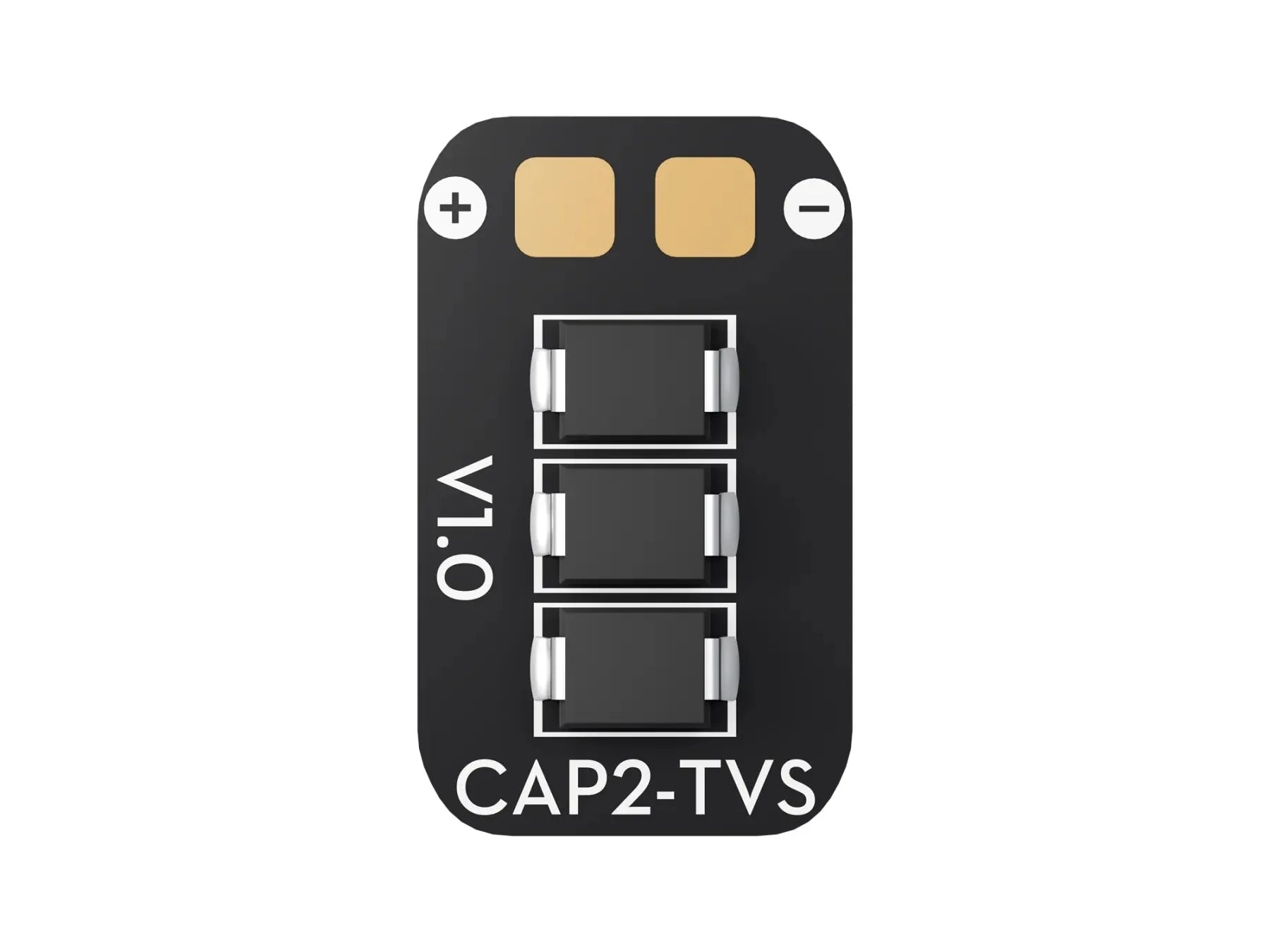

The Flywoo CAP2-TVS ESC Power Filter Board is designed to eliminate this risk entirely. It features high-performance Transient Voltage Suppressors (TVS) that instantly clamp voltage spikes above 26V to safe operating levels, providing robust protection for your flight controller and ESCs. Additionally, with two pre-soldered 470µF 35V MB solid-state capacitors, it offers superior power filtering for a smoother throttle response and improved signal integrity.
Specifications:

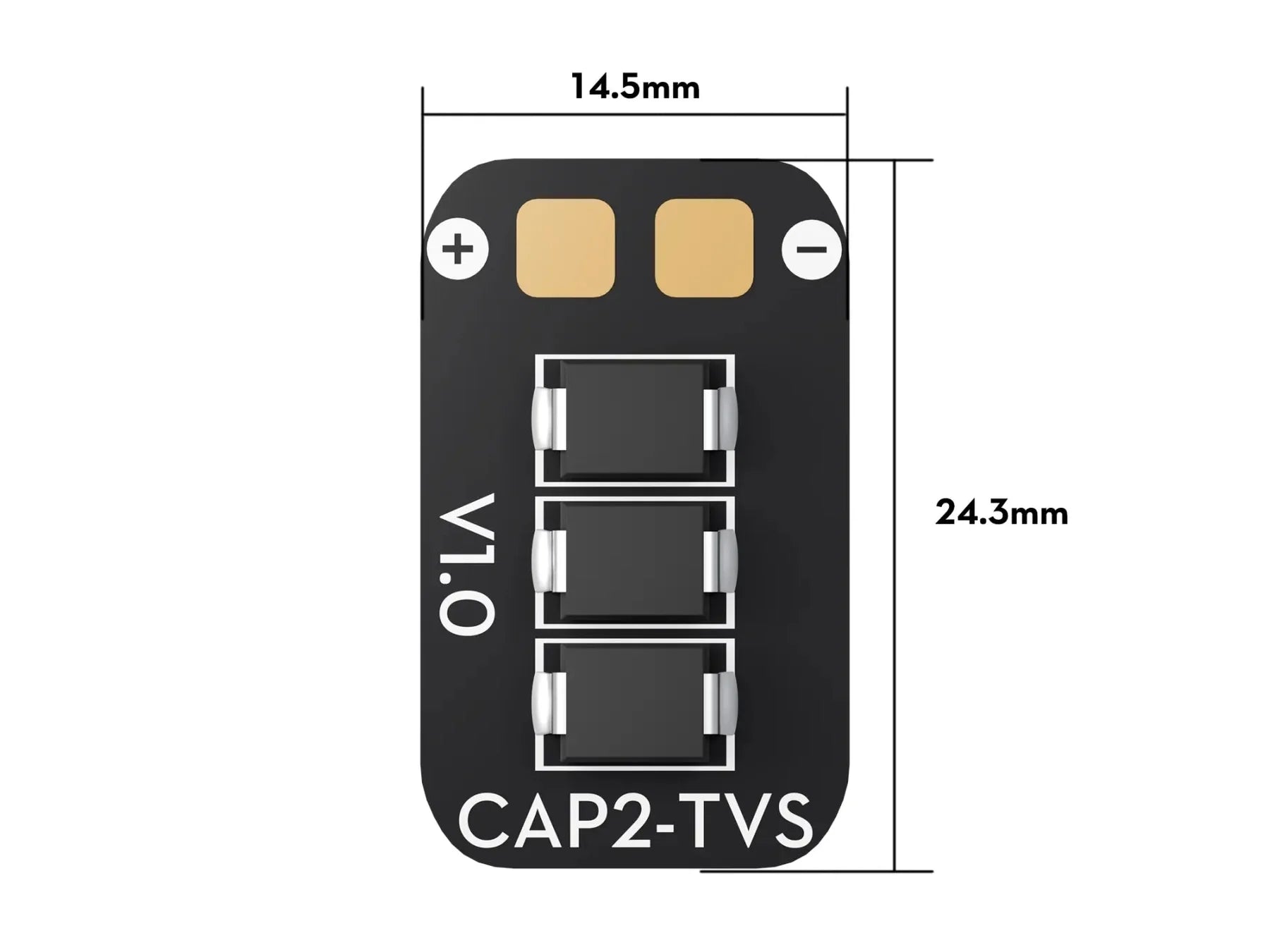

- Dimensions: 24x14.5x15.3mm

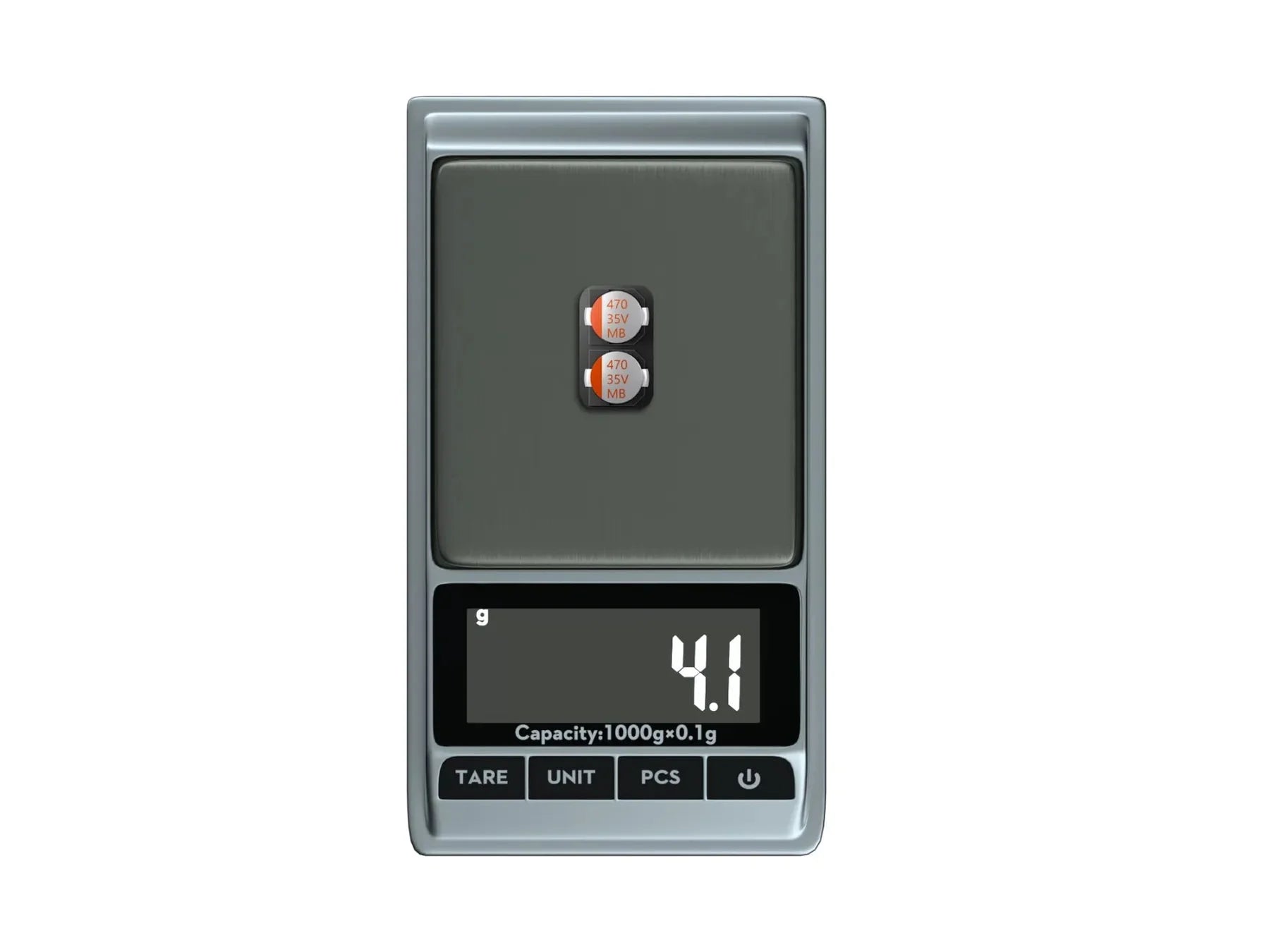

- Weight: 3.9g
- Input Voltage: 3-6S LiPo (11.1-25.2V)

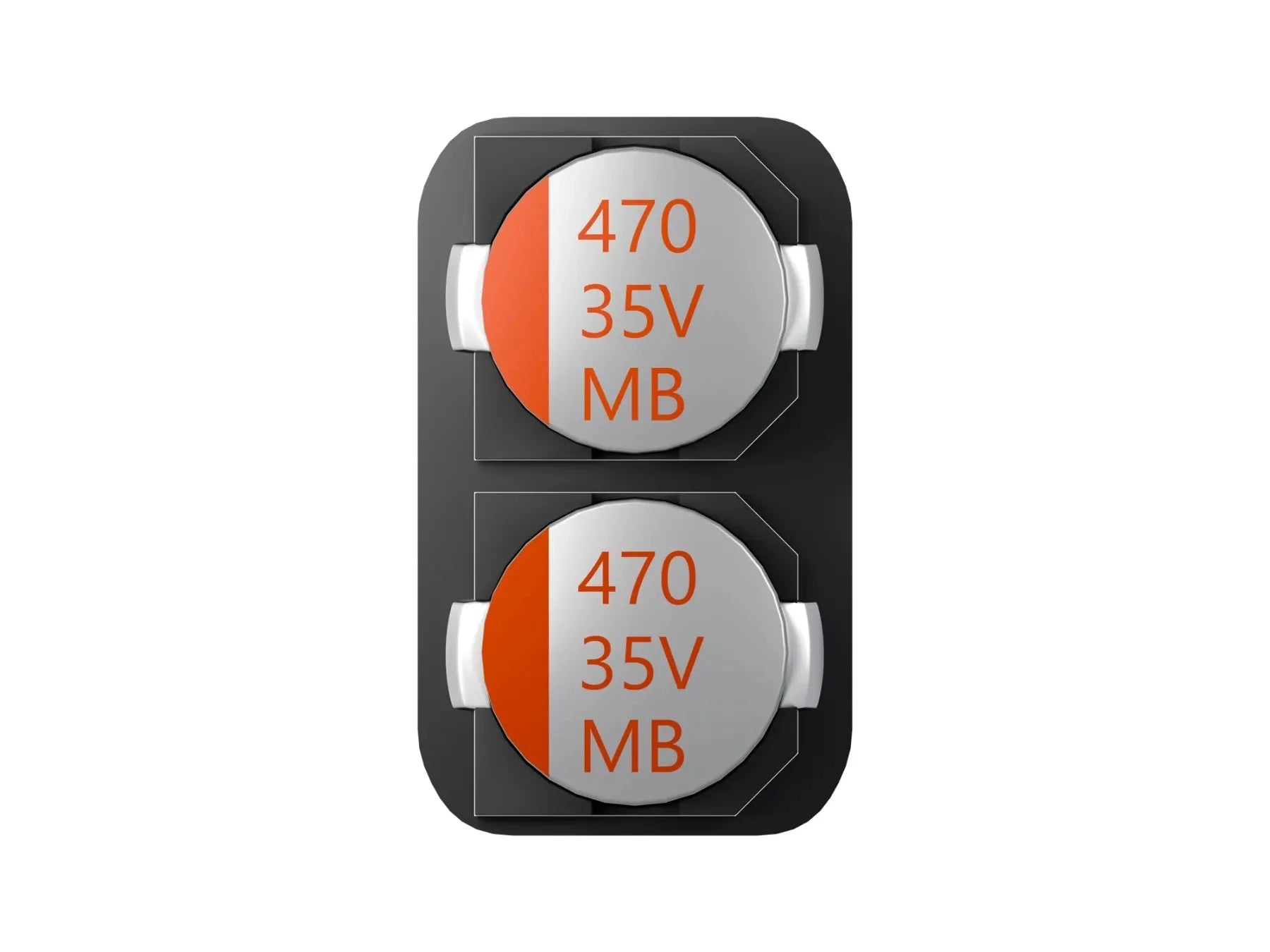

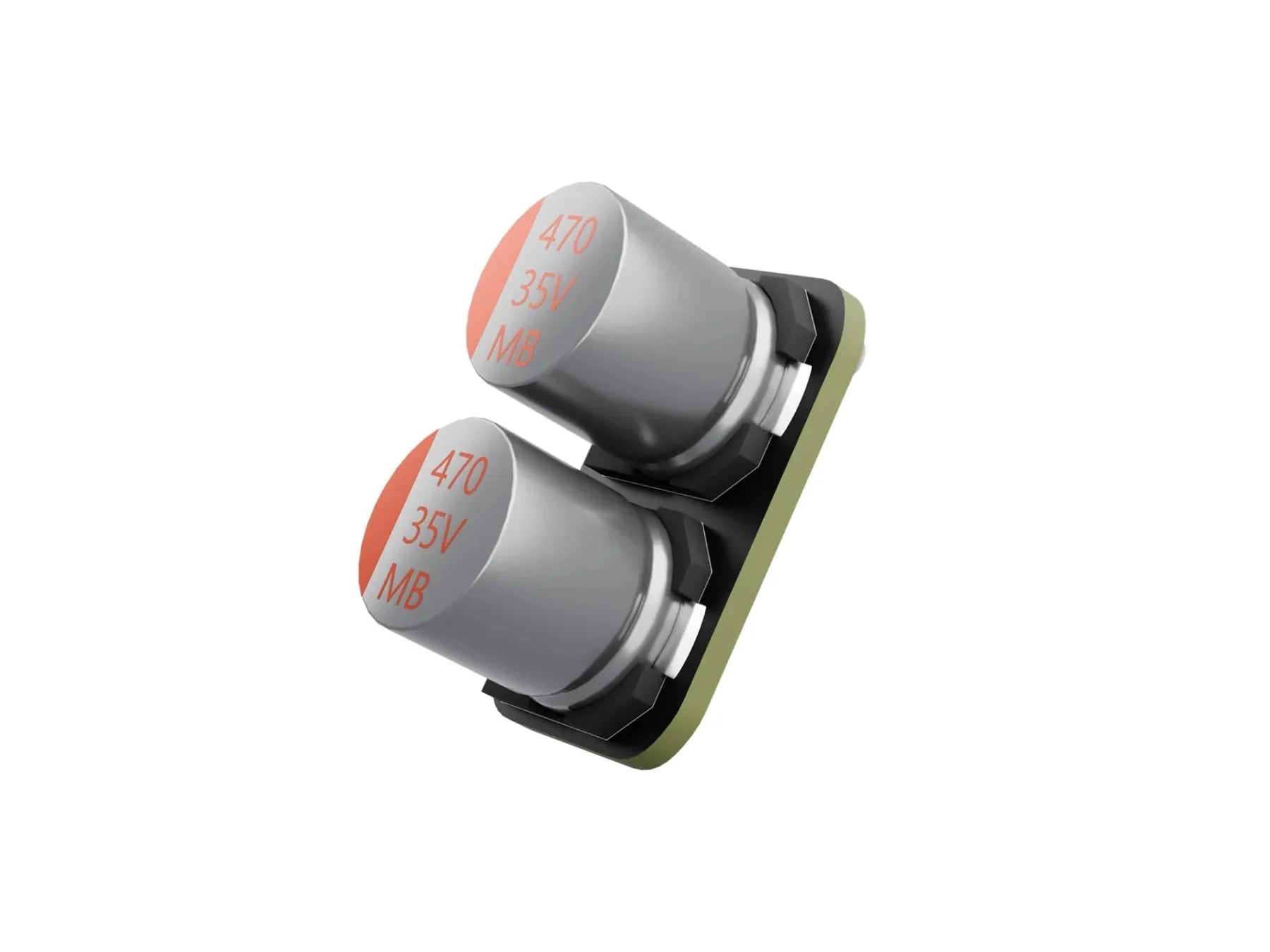

- Capacitors: 2x 470uF 35V MB Solid-State
Includes:
1x Flywoo CAP2-TVS ESC Power Filter (with pre-soldered TVS and Capacitors)
