About this product

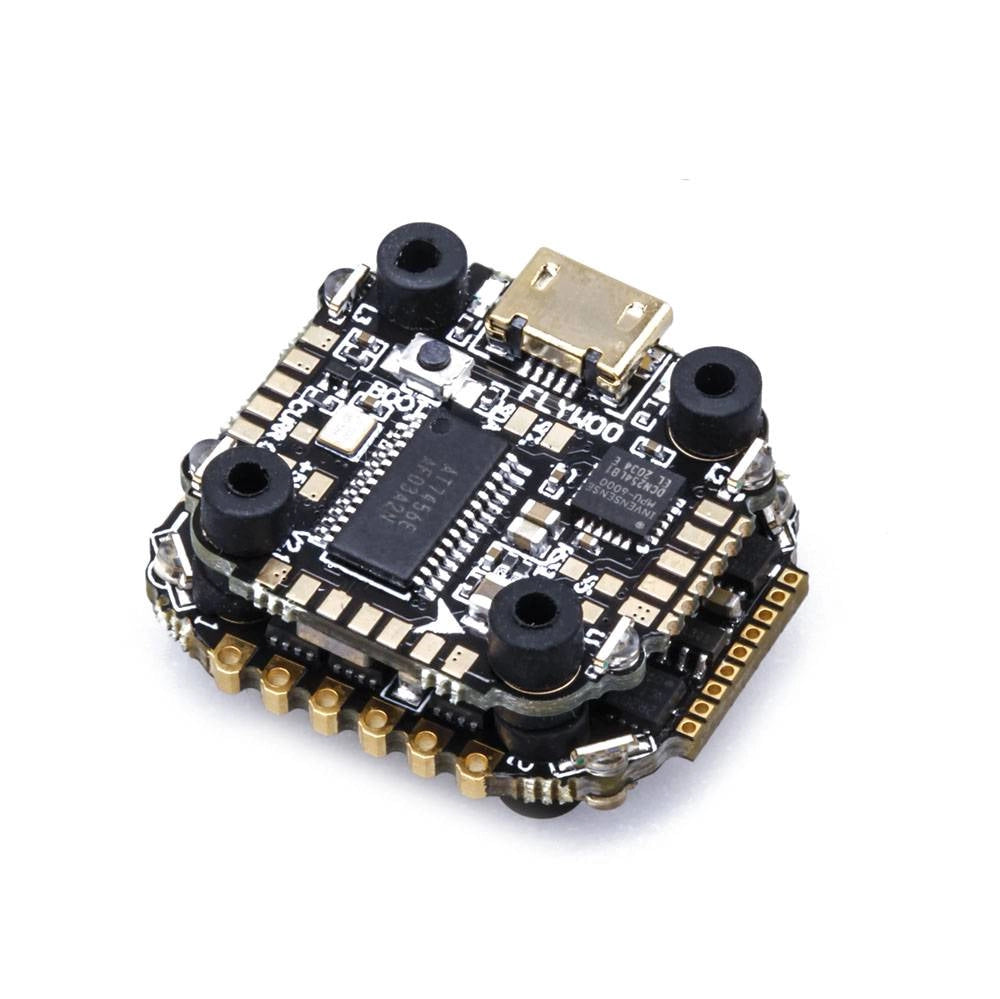

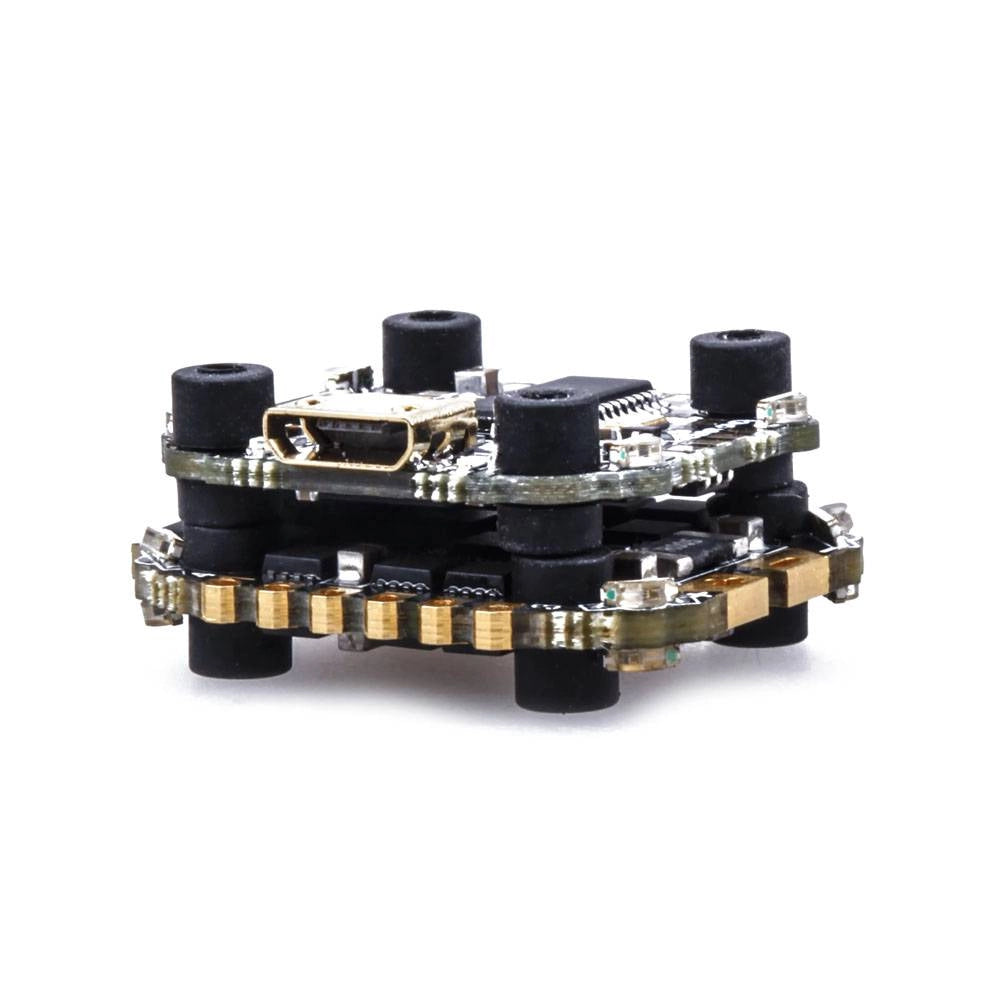

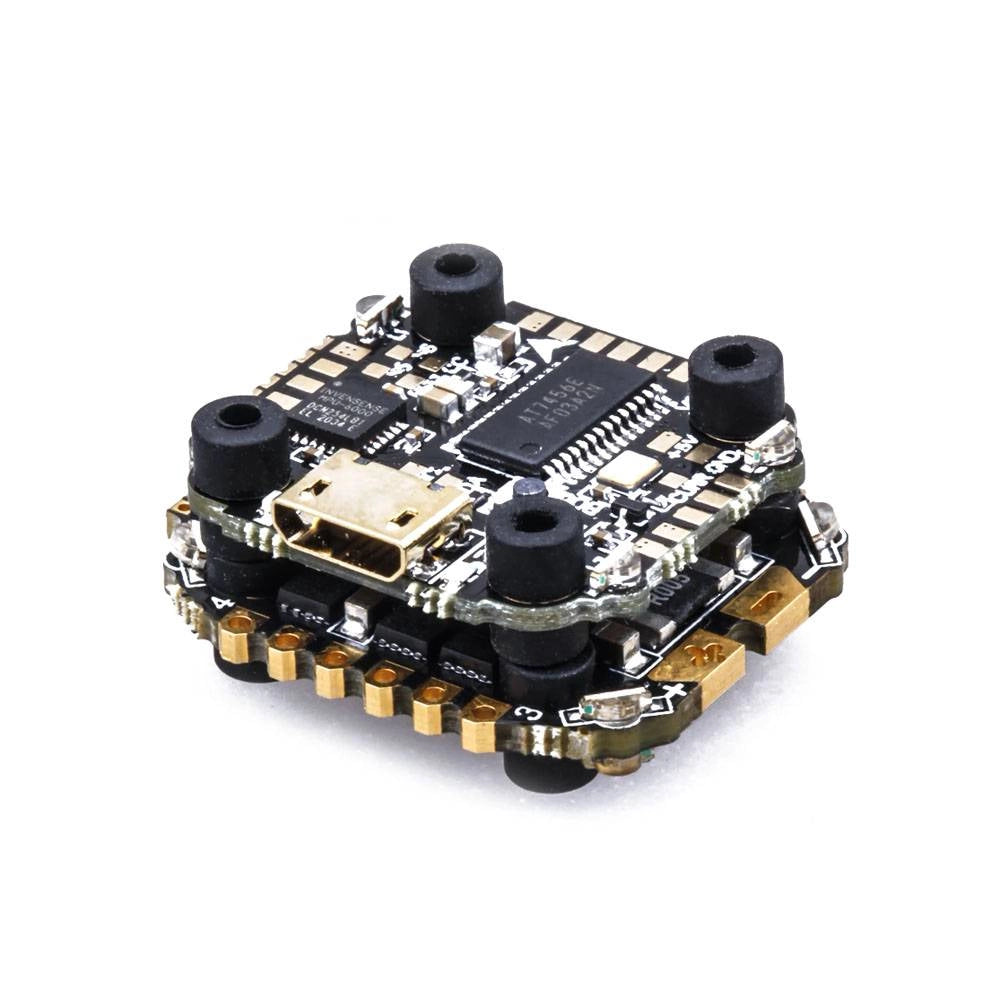

The Flywoo GOKU F4 35A nano stack features GOKU F411 F4 V2.1 16x16 FC and GOKU 35A 2-6S BL_S 4-in-1 ESC. If you don't like AIO, but want you want to build an ultralight 3'' -5'' racing quads, this powerful stack can definitely meet your FPV needs!
The Flywoo GOKU F411 Flight Controller (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. The F411 features 2 hardware serial ports, 2 software serial ports,4 WS2812 LEDs, a black box, I2C, and 5V/2A BEC. The ESC uses BLS, supports DSHOT600 built-in current sensor, supports up to 6S input, and the maximum current is 35A.
Specifications

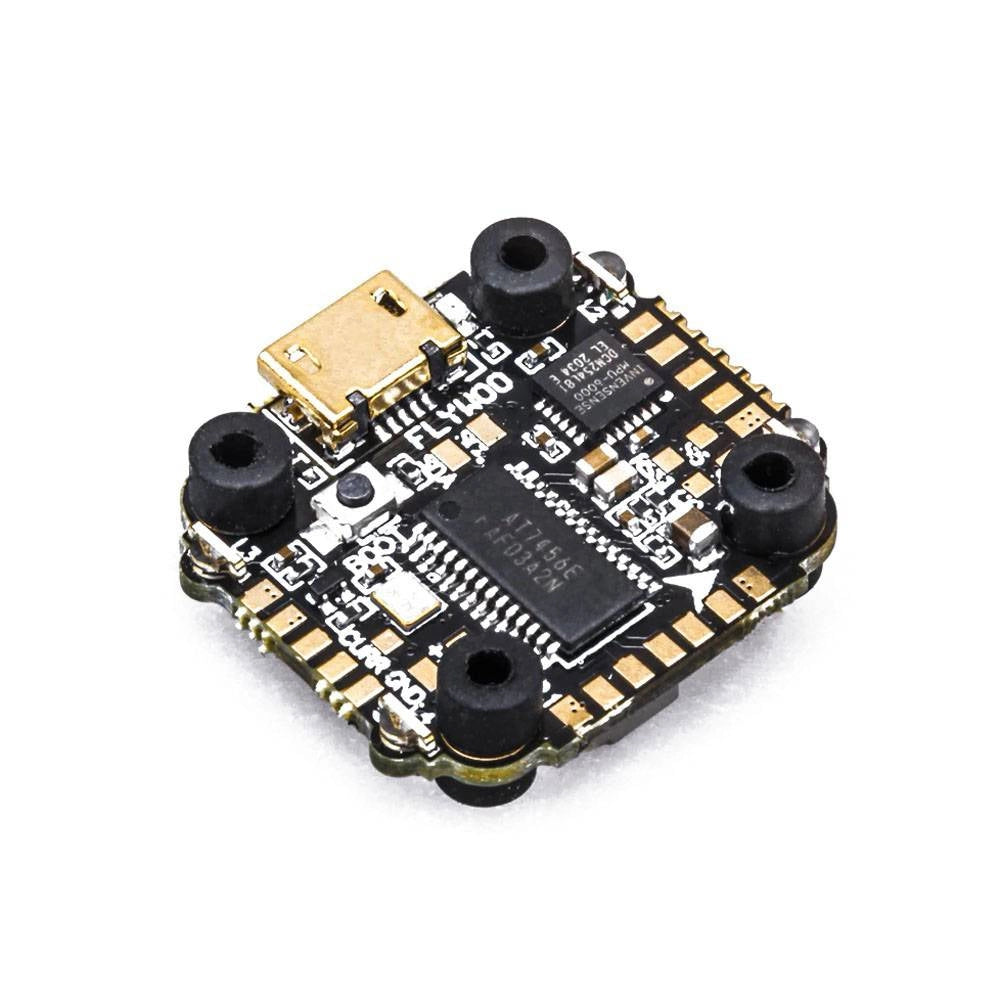

Flywoo GOKU F411 F4 V2.1
- MCU: STM32F411
- IMU: MPU6000 (SPI)
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 2 hardware UARTS (UART1,2)
- 2 Software serial port
- 1 I2C port for compass/baro
- Onboard LED：WS2812*8(FC*4/ESC*4)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onboard 8Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 23.5x23.5mm
- Mounting Holes: Standard 16mm square to the center of holes
- Weight: 6.5g

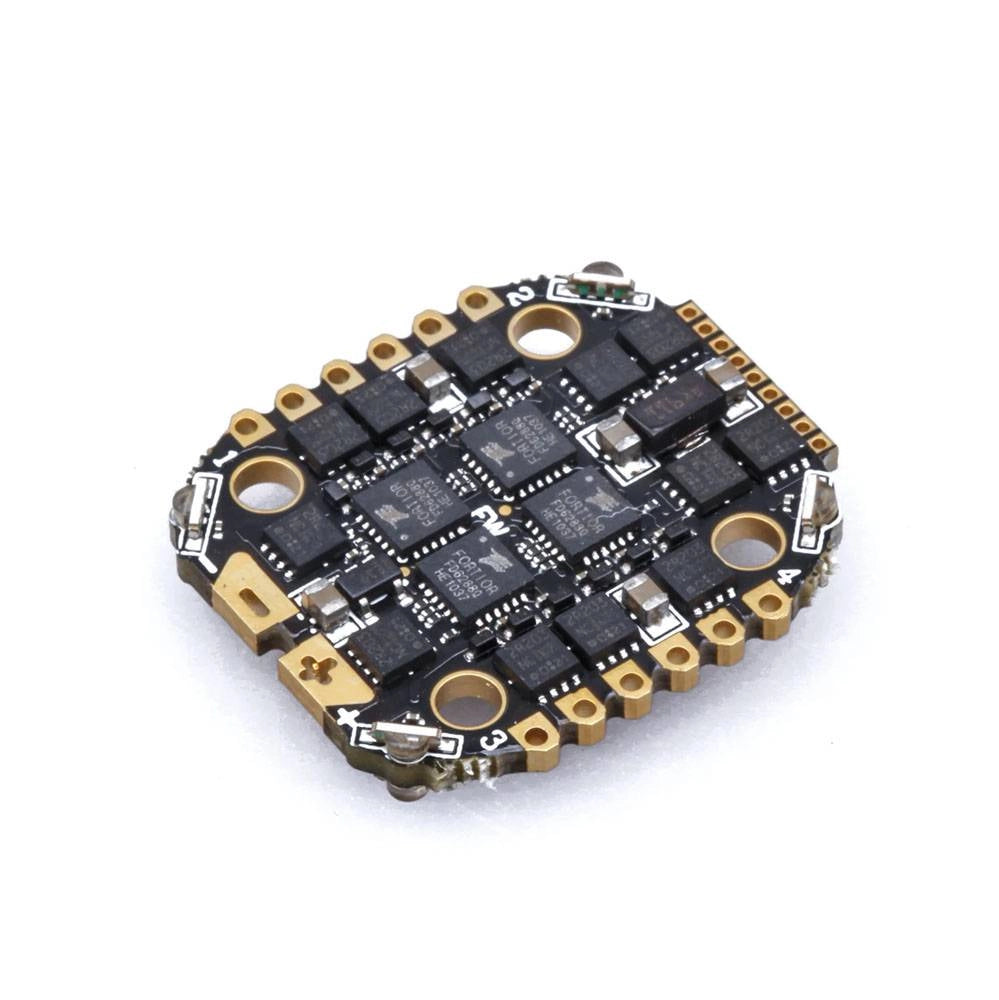

Flywoo 35A 2-6S BL_S 4-in-1 ESC
- Support BLheli / BLHELI_S
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Input Voltage: 2-6S Lipo
- Continuous Current: 35A
- Firmware: BLHELI_S
Includes
- 1 x Flywoo GOKU F411 F4 V2.1 16x16
- 1 x Flywoo 35A 2-6S BL_S 4-in-1 ESC
