FLYWOO TX-NANO AND VTX625 Instructions

INAV Firmware download
VTX625 TABLE

Specification:

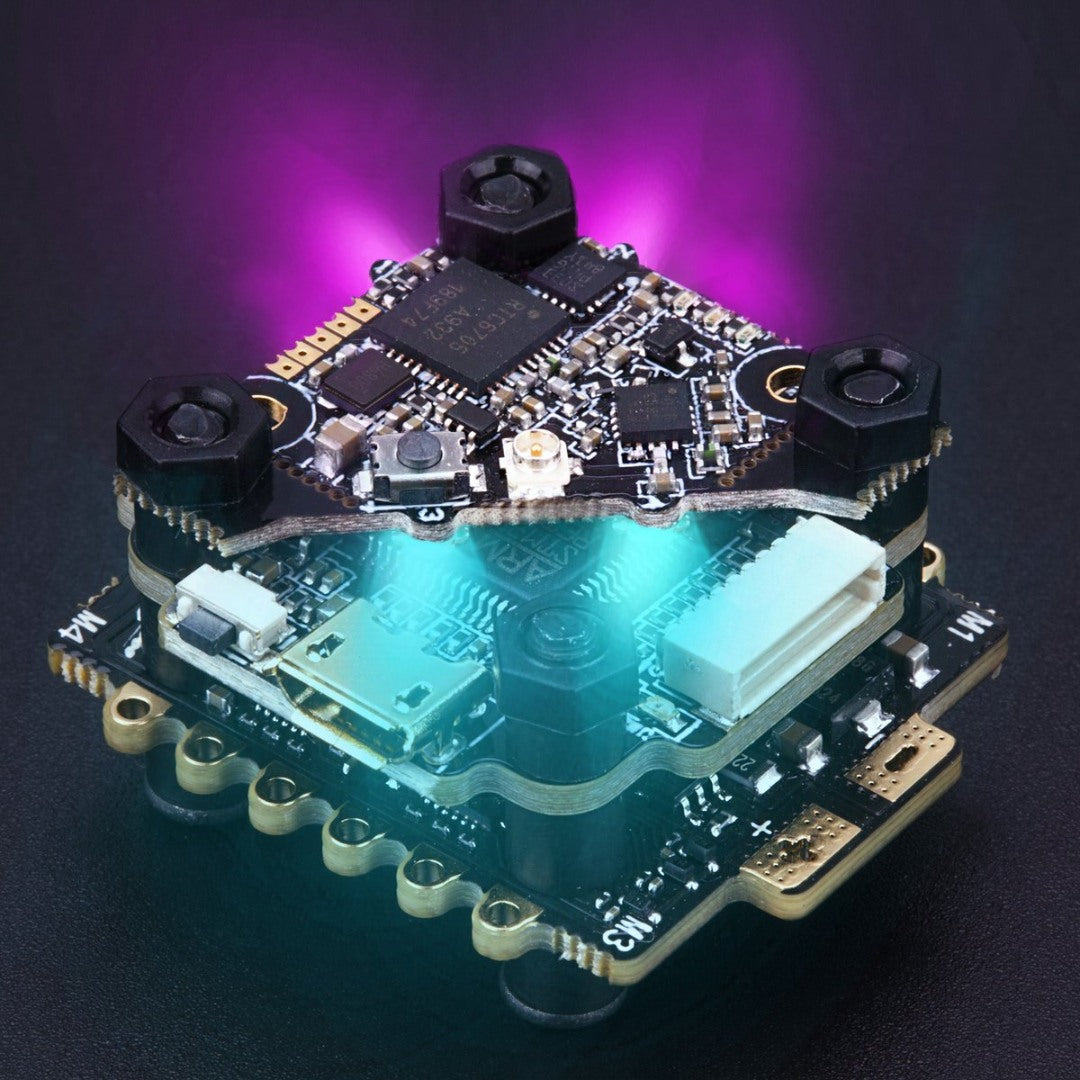

Model:  GOKU F722 MINI
Hole: 20*20-3mm
MCU: STM32F722RET6 216MHz
GYRO: MPU6000
BARO: BMP280/FLASH: 16M
Input Voltage: 3-8s/BEC: 5V 2A/9V 2A
Dual camera switch&Support Camera Menu Settings
Max voltage 50V input
6 Functional UARTS (UART1,2,3,4,5,6)
Max 6 motor output
Firmware: FLYWOOF722DUAL

Specification:
Model:  GOKU406S
Item Name: 40A BLheli_32 2-6S 4in1 Brushless ESC
Peak Current: 50A
Input Voltage: 2-6S
Firmware: BLheli_32
BEC: NO
Weight: 7.2g (including heatsink)
Mounting Hole: 20x20mm ( M3)
- Support Telemetry/Current Meter
- Support Oneshot, Multishot, DShot150/300/600 and DShot1200

GOKU VTX625
Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 5V
LED: 4*WS2812LED
Video System: NTSC/PAL
Antenna: IPEX
Size: 31MM*31MM
hole: 16*16mm/20*20mm/25.5*25.5mm
Weight: 3g
