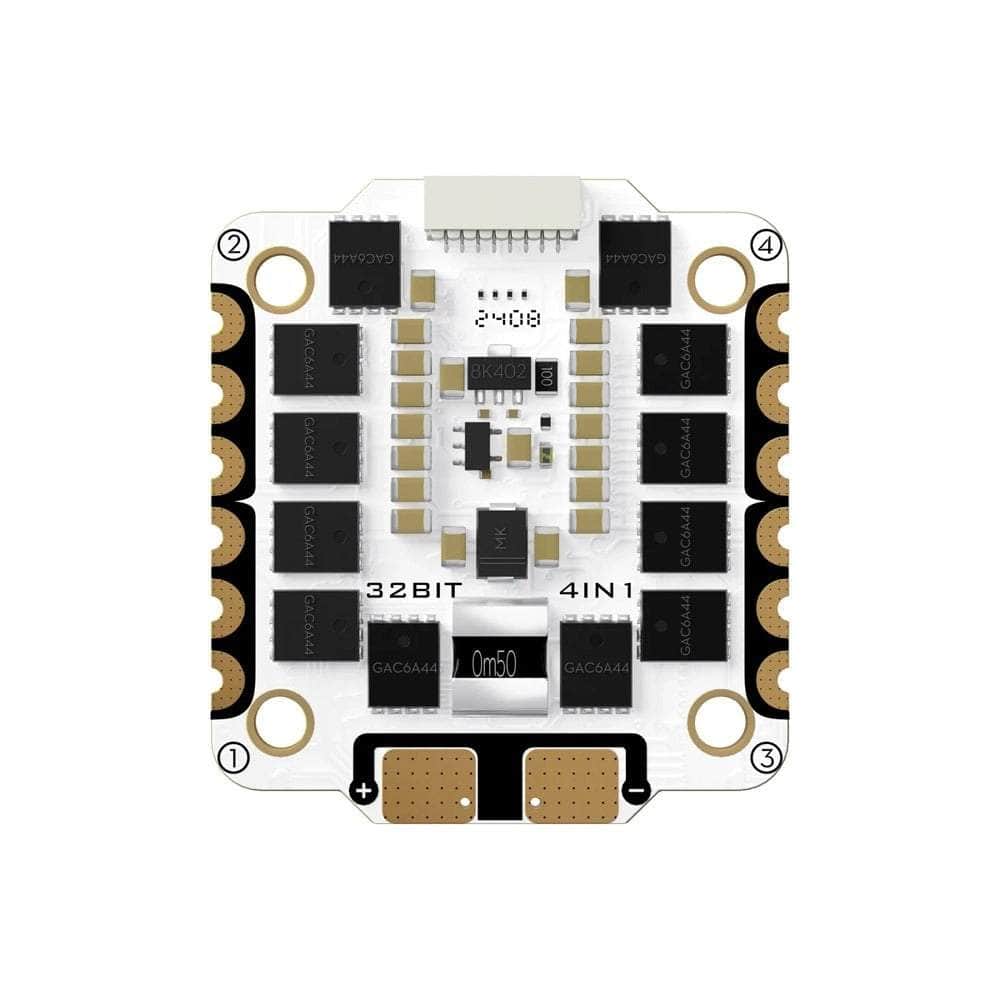

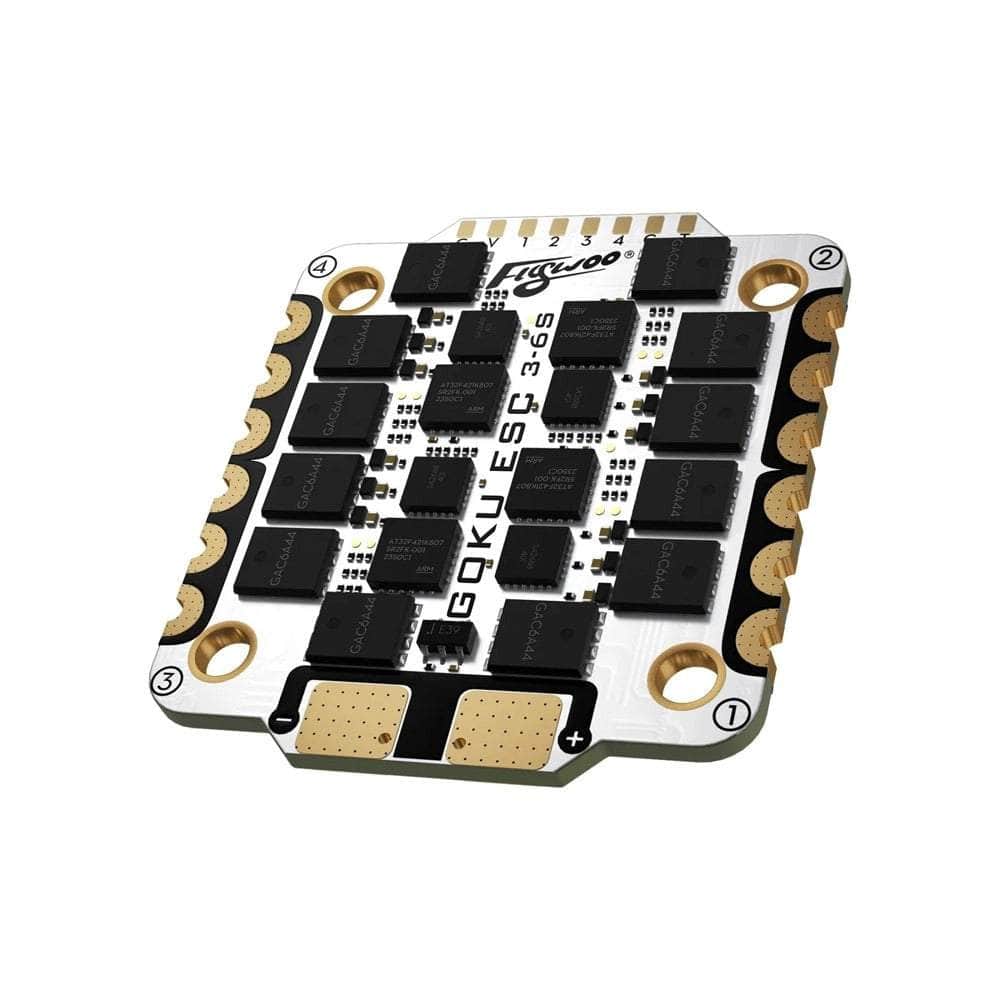

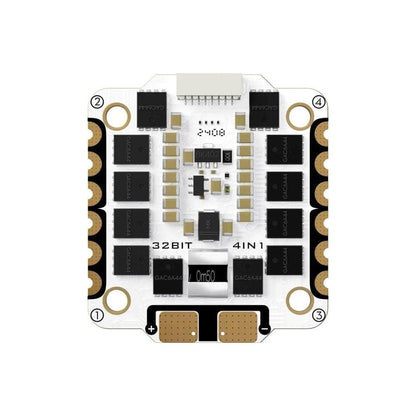

The GOKU G55M is a high-performance ESC from Flywoo! The 55A continuous current and AM32 firmware, the G55M is ready for action. Key features include imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G55M ensures an exceptional flying experience.
Features
- Quality Components
- Powerful Functions
- Compatible with multiple VTX Systems
- AM32 Firmware
Specifications
- DShot Support: DShot300, DShot600, DShot1200
- Continuous / Peak Current: 55A x 4 / 60A x 4 (10s)
- Name: GOKU G55M BL32 / AM32 4-in-1 ES
- Output Wires: None, reserved solder pads
- Firmware: BL32: GOKU_F4A32_PRO
- Power Connector: XT30 / XT60
- PWM Frequency: 24K-128K
- Dimensions: 44mm x 40mm
- Continuous Current: 55A
- Input Voltage: 3-6S LiPo
- Battery Cells: 3-6S LiPo
- Supports: BL32 / AM32
- AM32: AT32DEVF421
- Weight: 15g
Includes
- 1x Flywoo GOKU G55M 55A 3-6S AM32 4-in-1 ESC - 30x30
- 1x FC to ESC Connection Cable
- 4x M3 Shock-Absorbing Ball
- 1x XT60 Cable
- 1x Capacitor
