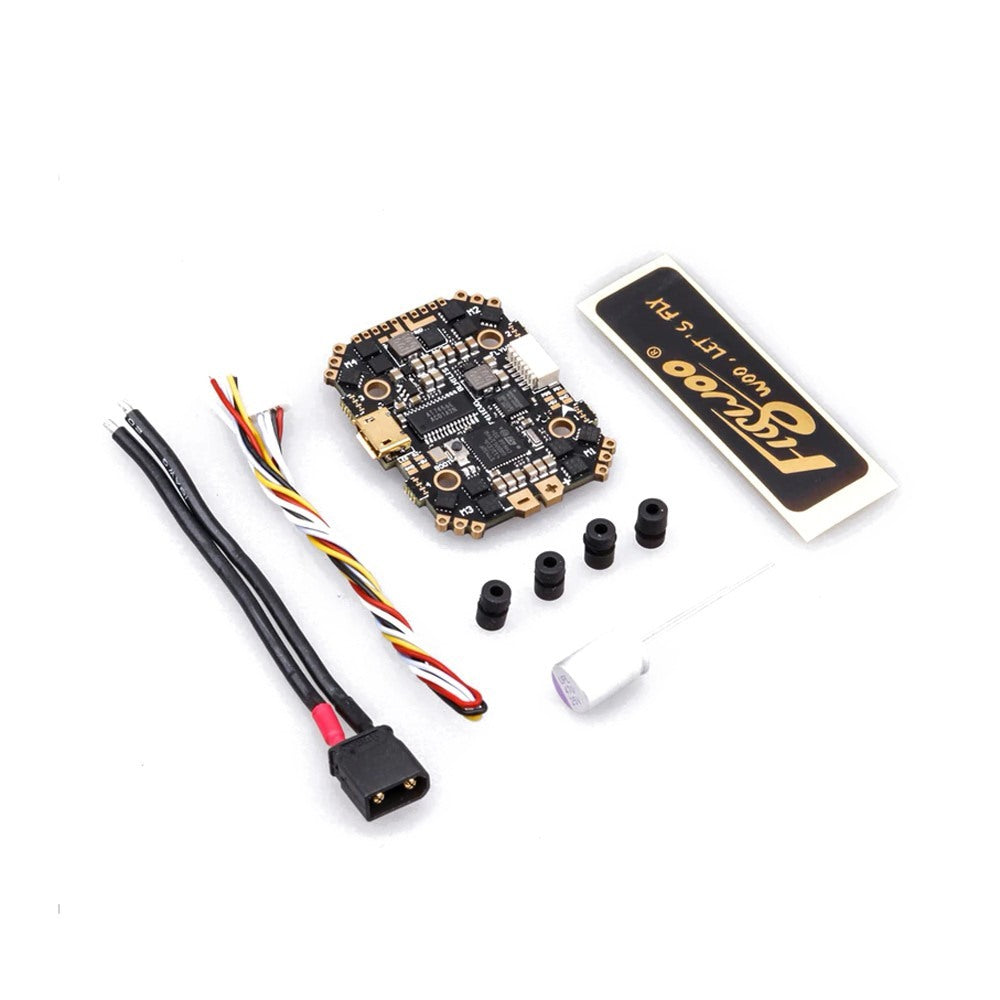

Flywoo GOKU GN411 EVO HD 40A 2-6S BLHeli_S AIO Flight Controller

The FLYWOO new top GOKU series AIO is finally here! The GOKU HDF4 20A FC is an economical and durable all-in-one (AIO) FC that features STM32F411 MCU,  MPU6000 (SPI) IMU, 2 hardware UARTS, and much more to meet your FPV needs!

Specifications

GN411EVO HD BLHELI_S 40A

• MCU: STM32F411
• IMU: MPU6000 (SPI)
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 2 hardware UARTS (UART1,2)
• 1 Software serial port
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onboard 8Mbytes for Blackbox logging
• 9V Power Out: 1.5A max
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 41x32mm
• Mounting Holes: Standard 20mm square to the center of holes
• Weight: 8.5g

Built-in 40A BL_S 4in1 ESC

• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-6S Lipo
• Continuous Current: 40A
• Firmware: BLHELI_S

Diagram

Includes

• 1 x Flywoo GN411 EVO HD 40A 2-6S BLHeli_S AIO Flight Controller
