About this product

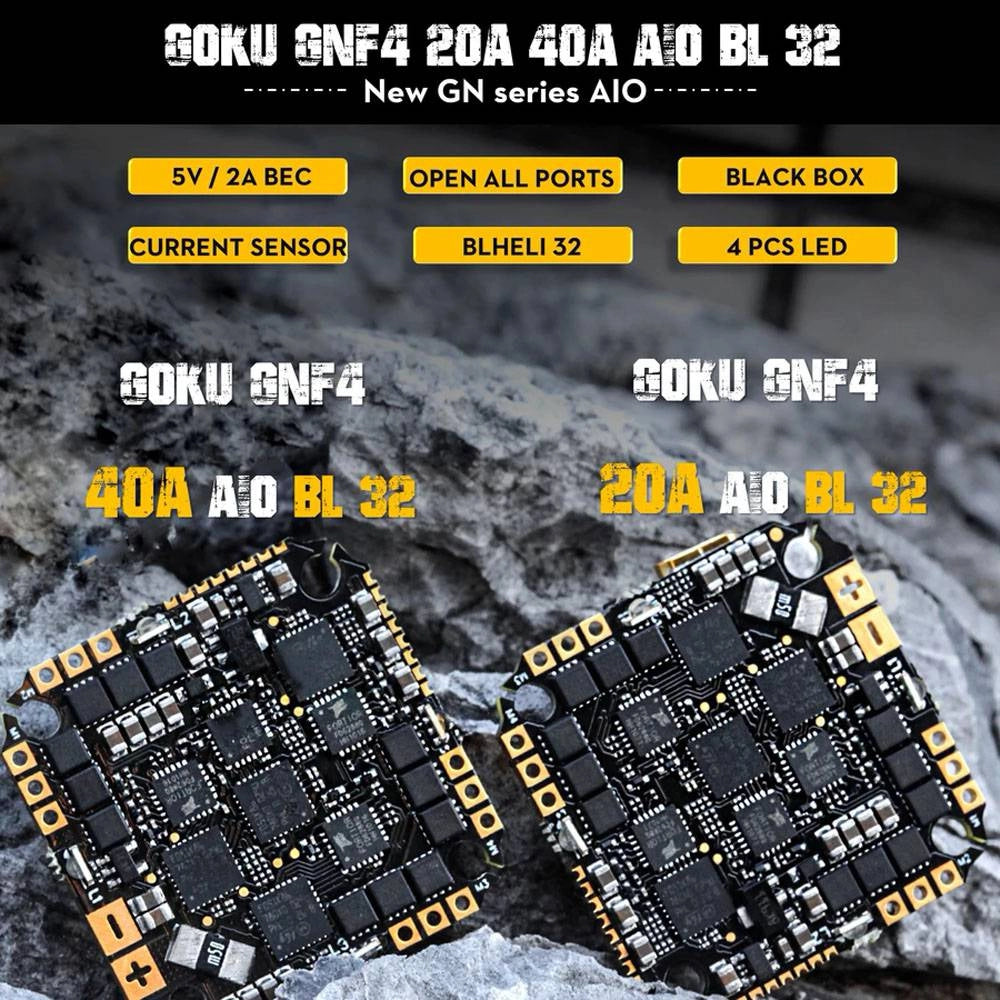

The FLYWOO new top GOKU series AIO is finally here! The GOKU GNF411 FC is an economical and durable all-in-one (AIO) FC that features STM32F411 MCU, MPU6000 (SPI) IMU, 2 hardware UARTS, and much more to meet your FPV needs!
Specifications
GN411AIO BLHELI_32 40A
- MCU: STM32F411
- IMU: MPU6000 (SPI)
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 2 hardware UARTS (UART1,2)
- 2 Software serial port/Support ESC telemetry
- Onboard LED：WS2812*4
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onboard 8Mbytes for Blackbox logging
- 9V Power Out: 1.5A max
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 33.5x33.5mm
- Mounting Holes: Standard 25.5/26.5mm square to the center of holes
- Weight: 8.5g
Built-in 20A/40A BL_32 4in1 ESC
- Support BLheli / BLHELI_32
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
- Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- Firmware: BLHELI_32
Recommended (Not Included)
- VTX : GOKU HM600 600MW VTX
Includes
- 1 x Flywoo GNF411 F4 40A AIO BLHeli32 Flight Controller
