FLYWOO
ROBO 1303 6000KV 2-4S FPV Motor
A lightweight 1303 brushless motor for whoop and toothpick FPV builds, using a dual-bearing design, 7075 aluminium rotor construction, N52H magnets and a 2-4S rated voltage.
6000KV, 2-4S
Rated by Flywoo for 2-4S power systems in micro FPV builds.

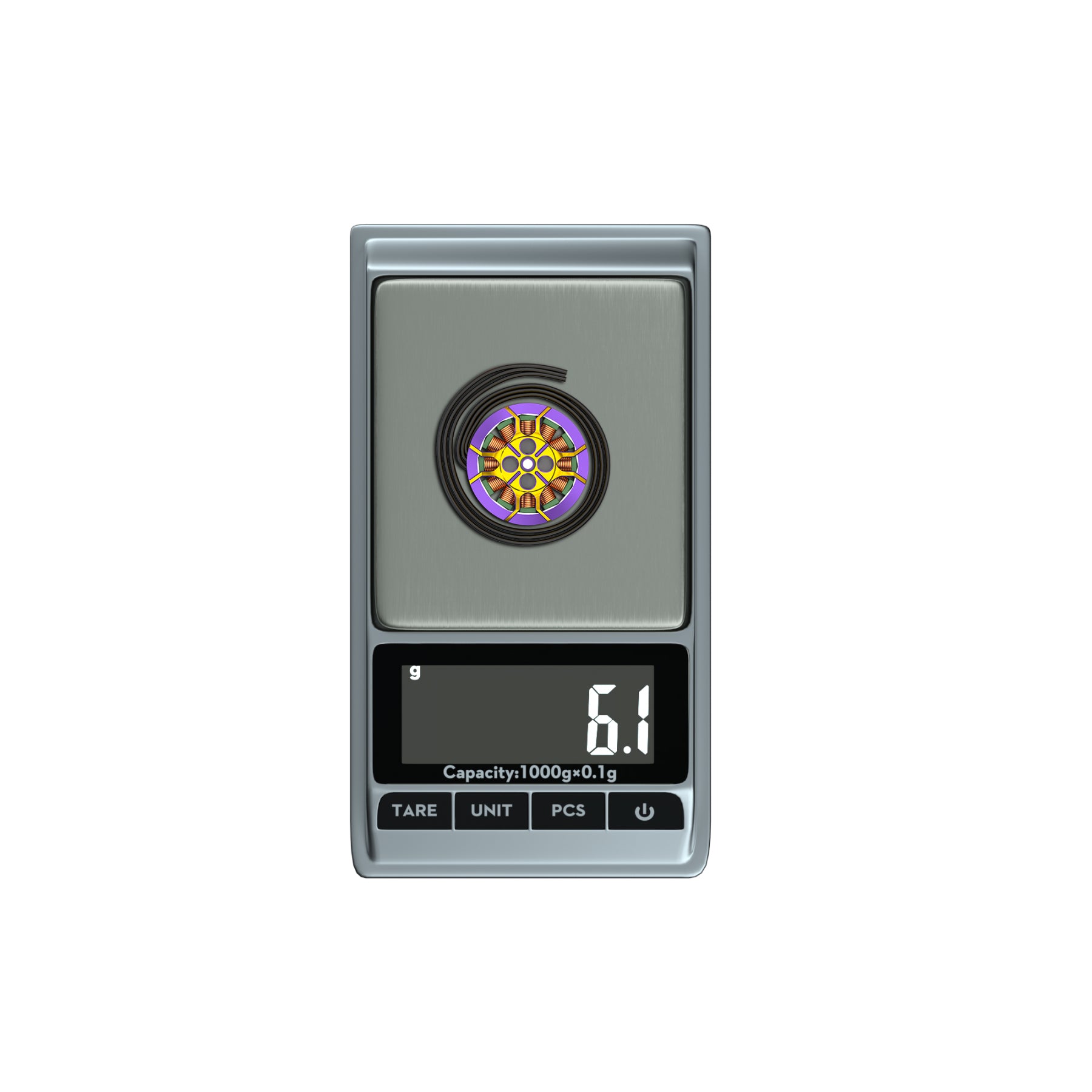

6.1 g motor weight
Manufacturer weight is listed as 6.1 g without wire. Shopify shipping weight is left blank because no packaged weight was supplied.

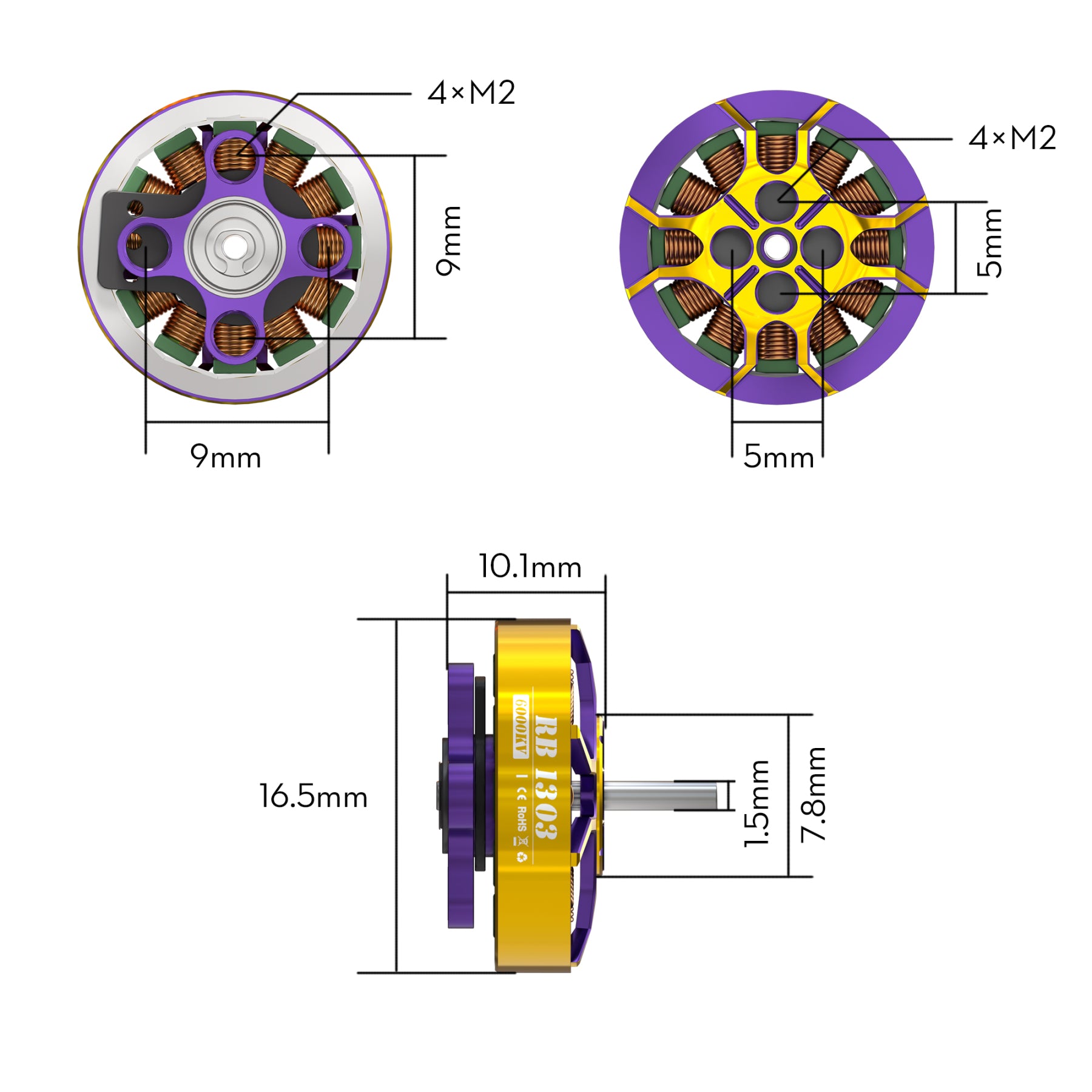

9 x 9 mm mounting
Uses a 9 x 9 mm mounting pattern with a 1.50 mm output shaft.
Built for compact FPV aircraft
Flywoo describes the RB 1303 motor as suitable for whoop and toothpick models. The design uses NSK bearings, a high-efficiency magnetic circuit, customised N52H arc-shaped magnets and high-temperature resistant 200 C copper wire.
This listing is for the single motor option only.
Key features
- Dual-colour oxidation finish
- 7075 aviation aluminium high-strength rotor
- Customised N52H arc-shaped strong magnet
- High-temperature resistant 200 C copper wire
- Imported Kawasaki silicon steel sheet
- Dual bearing design
Single motor option
Flywoo offers quantity options on the source page, but this Buzz FPV product is configured as one sellable variant:
Included: 1 x motor and 1 x screw package.
Complete your build
- Browse all FPV motors for other motor sizes and KV options.
- Shop 13XX - 15XX motors if you are comparing similar stator-size options.
- 2S batteries, 3S batteries and 4S batteries are relevant power categories for a motor rated 2-4S; choose a battery that suits the full aircraft setup.
Specifications
| Specification | Details |
|---|---|
| Brand | FLYWOO |
| Model | RB 1303 Brushless motor |
| KV | 6000KV |
| Bearings | NSK |
| Magnet | N52H |
| Stator diameter | 13 mm |
| Stator height | 3 mm |
| Output shaft diameter | 1.50 mm |
| Rated voltage | 2-4S |
| Mounting hole | 9 x 9 mm |
| Motor weight | 6.1 g without wire |
Package contents
- 1 x Motor
- 1 x Screw package
Important notes
This is the single motor option. Propellers, batteries, electronics, frame and other build parts are sold separately.
