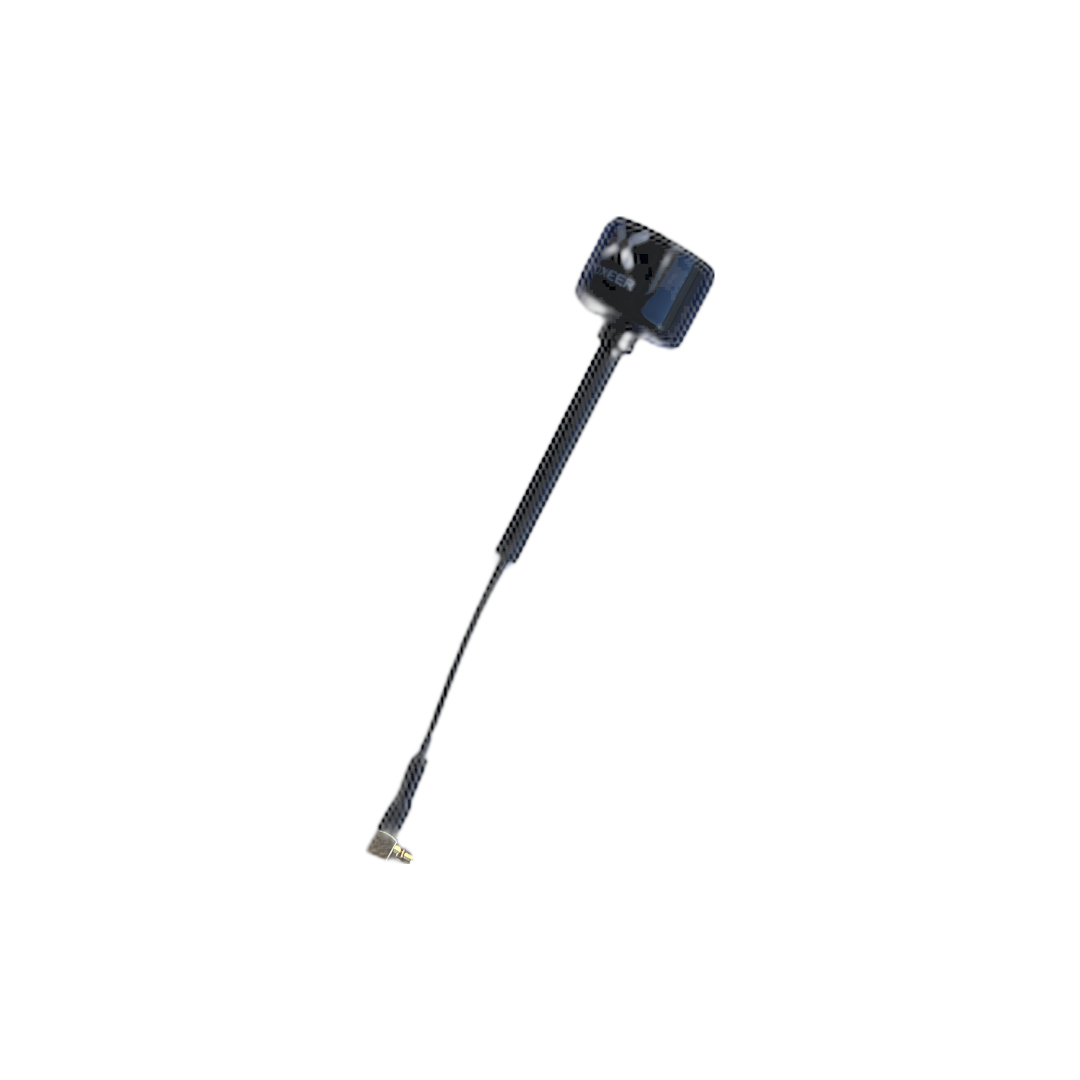

LHCP MMCX 90 Tube Short
Center Frequency5.7GHz
Gain2.6dBi
Axial RatioClose to 1
Band Width5.5G~6GHz
Radiation Efficiency98%
SWR1.07 at Center Frequency
PolarizationRHCP/LHCP
Case MaterialPC+ABS
WeightSMA/RPSMA: 7.8g
Straight MMCX: 4.4g
Angle MMCX: 4.5g
SMA-10CM: 9.7g
Angle SMA-15CM: 13.9g
UFL : 2.8g
UFL Tube Short: 2.9g
UFL Tube Long: 3.8g
Angle MMCX Tube Short: 4.8g
Angle MMCX Tube Long: 6.8g

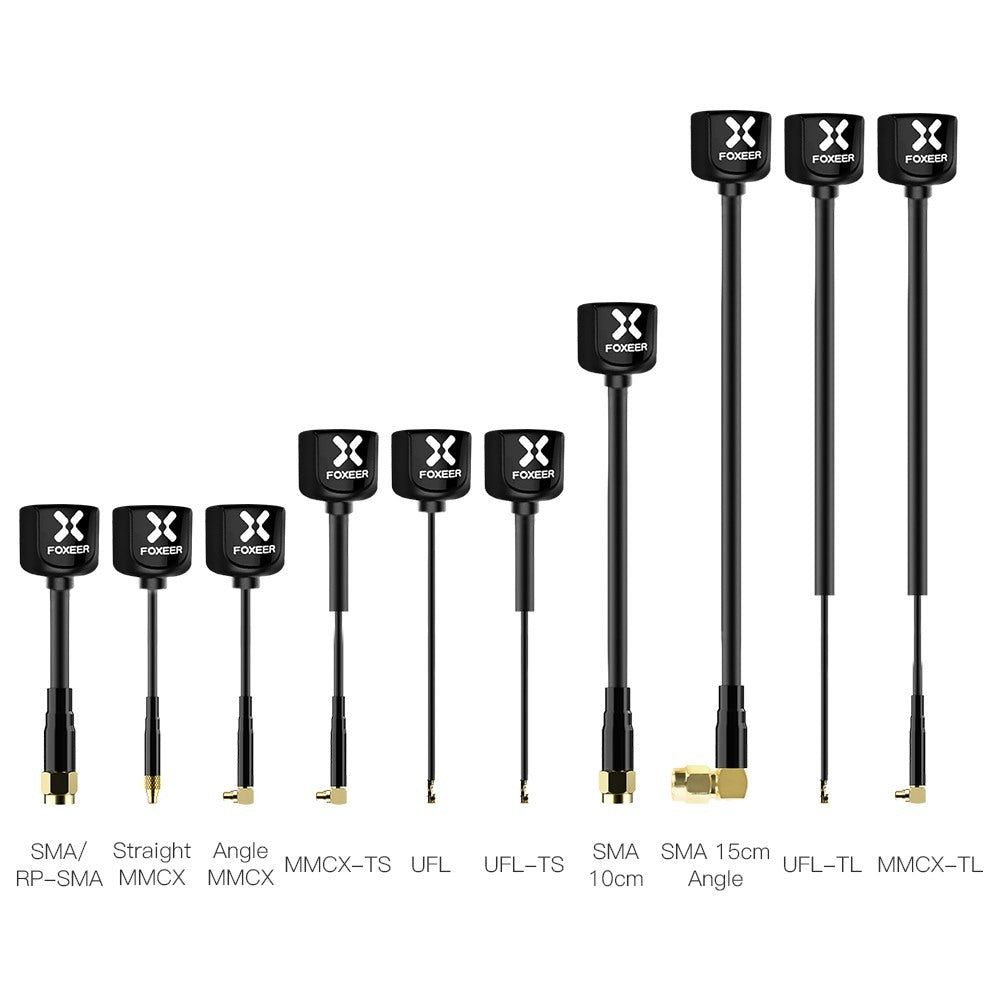

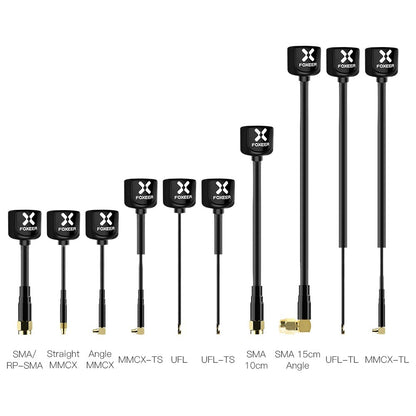

Connector & LengthSMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm
UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm
SMA-10CM: Φ11*100mm
SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*165mm
Quantity2pcs Antennas
