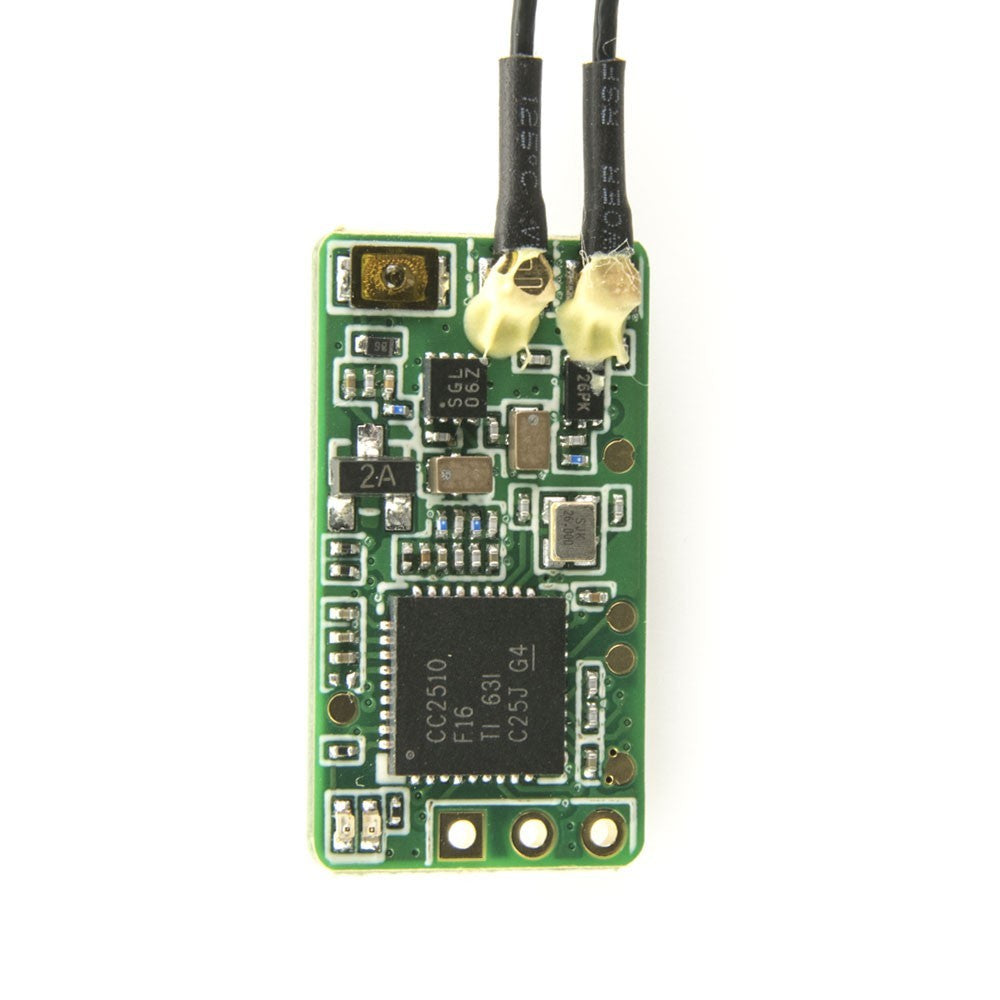

FrSky XM+ SBUS Mini Receiver

Shipping with latest v2 firmware - if you need the older 1.7 we can flash the receiver for a small fee
choose your option at checkout

FrSky XM+ Ultra Mini SBUS Receiver, ONLY 1.6g

Specification

Dimension: 21.5x12x3.5mm(LxWxH)
Weight: 1.6g
Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA@5V
Operating Range: FULL range
With RSSI output on board: Analog 0~3.3V
Firmware Upgradeable
Compatibility: FrSky D16 mode
No Telemetry

Includes

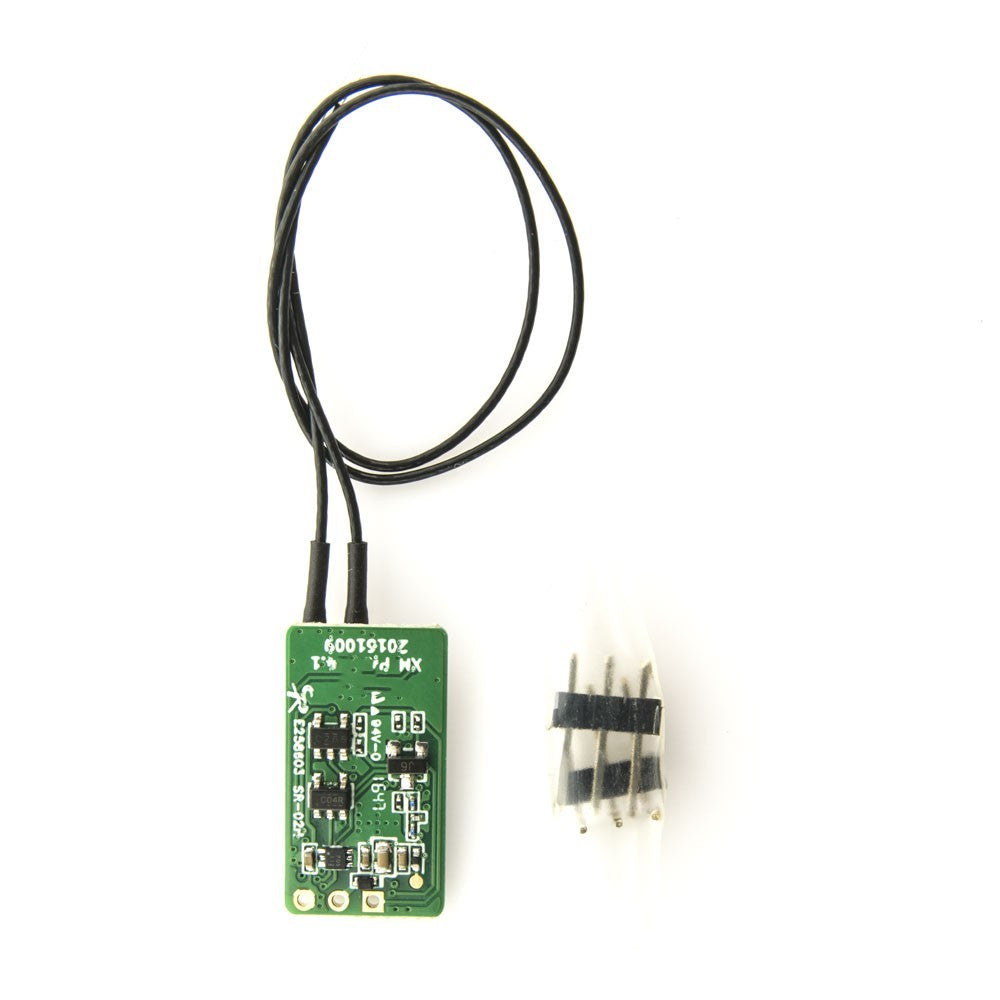

1 X FrSky XM+ SBUS Mini Receiver
