Furious FPV High Performance DVR Module - DVR Perfection.

The ultimate DVR solution has arrived, offering insane levels of feature packed brilliance in a compact, light weight layout for the ultimate levels of FPV recording.

Designed to interface with up to a 64GB Class 10 MicroSD card, the DVR Module is ready to bolt directly to the DOCK-KING, offering the ultimate in user friendly perfection.

Powerful, compact and utilizing multiple user modes for epic levels of FPV video playback, the DVR Module is a must have when it comes to the DOCK-KING Ground Station, allowing the pilot to extract maximum data after each and every flight.

Incorporating Smart Auto Start & Stop technology, the DVR Module will begin recording the moment the RSSI senses a video signal, and will cease recording when the RSSI shows no video activity. This capability saves room for the video action you want, all the while recording useful video versus a static filled screen. Further this with Auto Save when a video signal is lost, and you now have every aspect of video playback that cannot be lost once your flight is complete.

Offering excellent video playback for the ultimate FPV video clarity, the DVR Module is massively easy to use with HSHCS & GH connectors. Simply add a Micro SD card of choice, attach to the DOCK-KING, and you are moments away from recording your next flight. And with instant LED feedback via the DVR Module, it's ultra easy to see when the unit is at work, with a flashing LED for video recording, and a solid red LED when recording has stopped.

Relive your FPV flight in epic fashion with the ultimate ease of the Furious FPV DVR Module. Paired with the Furious FPV DOCK-KING Ground Station, your next FPV flight is ready and waiting for playback, with ultra clear video via the massively capable Furious FPV DVR Module.

Features & Capabilities:

- 64GB Class 10 MicroSD Card Ready

- Ultra Clear Video Recording

- Auto Start & Stop Technology

- Auto Save Technology

- Only Records When RSSI Is Detected

- NTSC / PAL Supported

- Ultra Compact & Easy To Use

- Direct Bolt On Mounting via DOCK-KING

- HSHCS & GH Connectors

Power Specifications:

Power supply: +/- 5.0V

Current Consumption: 250mA Maximum

Environmental Specifications:

Operating Temperature: -10°C - +55°C

Storage Temperature: -30°C - +85°C

Operating Humidity Levels: 85% RH

Audio & Video Specifications:

Video In Format: NTSC / PAL

Compression Format: MJPEG

Video Recording Resolution: VGA (640*480)

Frame Rate Recording: 30fps

Maximum TF Card: 64GB

Video Save Time: 10 Minutes

Record Maximum: Stops When Card Is Full

High Capacity MicroSD Card Ready.

Choose the MicroSD card of your choice with up to a 64GB Class 10 card capability, offering massive amounts of video storage for maximum video playback functionality.

Ultra Clear Video Playback.

Designed to offer ultra clear levels of video recording, the Furious FPV DVR Module allows replay of your flights with maximum levels of clarity, offering the very best video quality when reviewing your flight.

Auto Start / Stop Video Technology.

No more worry of filling up your MicroSD card with useless video noise. With the DVR Module, the unit will only begin recording when the RSSI detects video signals. Once the RSSI has no signal to display, the DVR Module will cease recording, making sure the video you playback is worth seeing.

Auto Save Technology.

Designed to preserve the video being recorded, the DVR Module will auto save after (10) minutes of use, making sure your epic FPV flight has been perfectly preserved for your playback enjoyment.

Ultra Easy To Use & Attach.

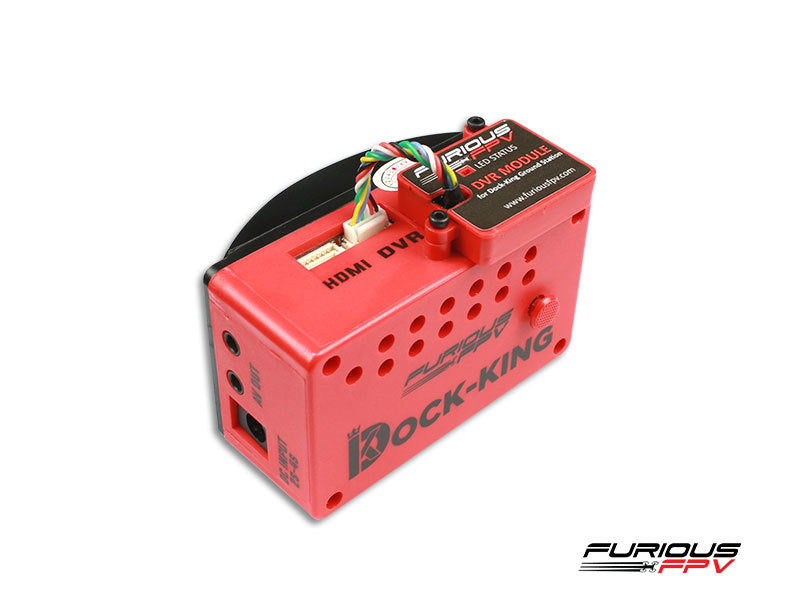

Designed to perfectly pair with the Furious FPV DOCK-KING Ground Station, the DVR Module literally bolts to the DOCK-KING with (2) included screws, utilizing a single wire connector that is as plug and play as it gets.
