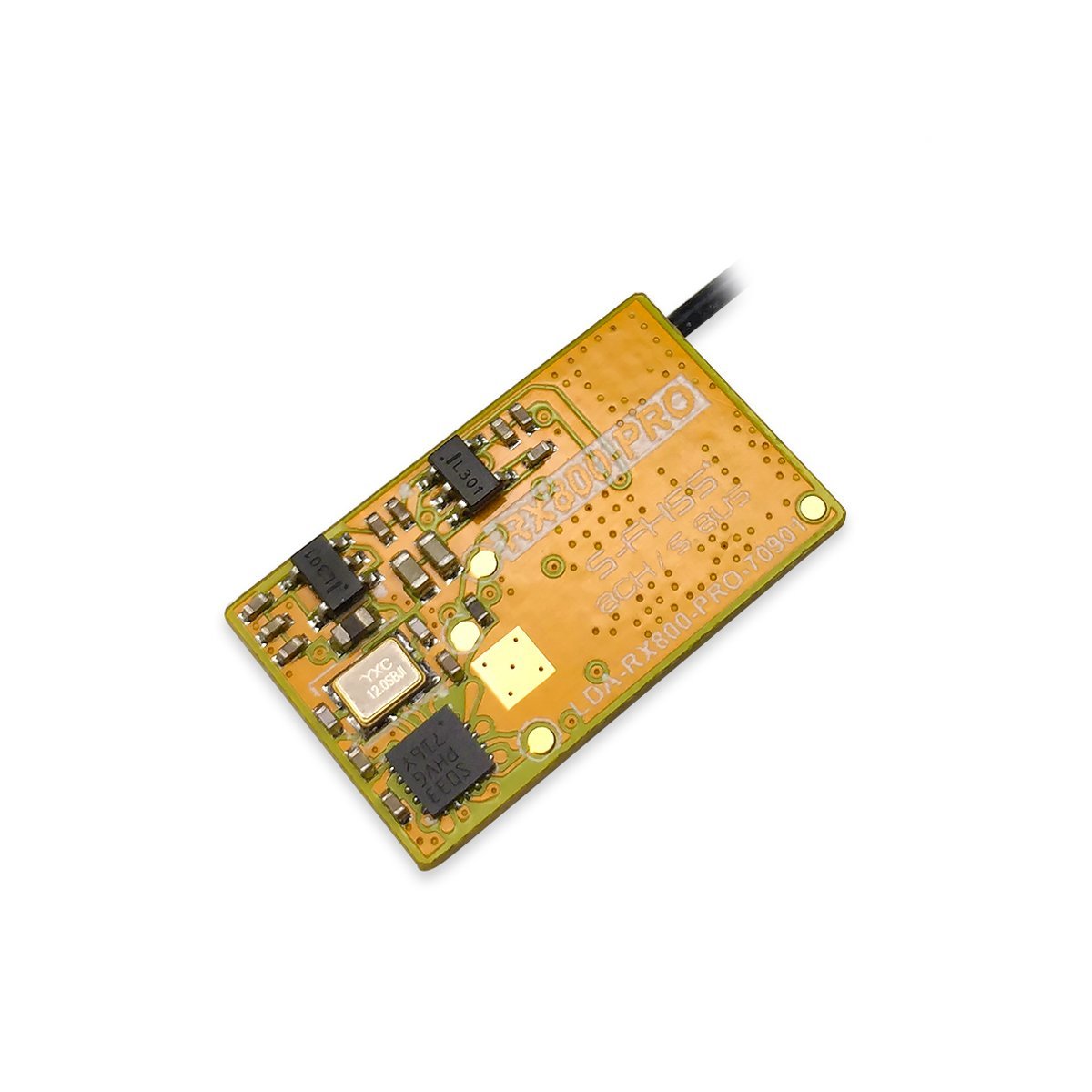

This is a tiny Futaba S-FHSS receiver for micro brushed / brushless drones. This is also the stock receiver for BETAFPV BNF drones.
SPECIFICATION
- Input: 4.0V - 6.0V
- Input Current: 35mA
- Output: S.BUS (3.3V high level signal)
- Weight: 1.2g
- Size: 22x13x3mm
- Ground Distance: 150m in open area
- Air Distance: 500m
- Compatible S-FHSS Transmitter: Futaba 14SG,16SZ,18SZ,18MZ,6J,6K,8J,10J
HOW TO BIND
Turn on the transmitter, power on the receiver while pressing the receiver's key, bind procedure is completed and the receiver is working normally when green LED is solid.
FAILSAFE FUNCTION
Support 2 failsafe modes, press the key and hold 3s while the receiver working normally can switch failsafe mode.
- Mode A, Green LED Indicator: After 1s when lost transmitter signal, S.BUS keep output,THR will 988us,all other channels will 1500us.
- Mode B, Red LED Indicator: After 1s when lost transmitter signal, S.BUS not output, user should set related parameters to ensure flight controller handle failsafe.
PACKAGE
- 1 * Futaba RX800-PRO Receiver
