The Drone is PNP (no receiver installed) but you can use the DJI FPV V2 controller,
or Install a compatible receiver to suit your transmitter
Summary
Since DJI released a new generation of O3 AIR Unit FPV high-definition video transmission system, the GEPRC team has followed closely to make the latest set of O3 AIR Unit system, Cinebot30 HD O3 AIR Unit version.
Cinebot 30 is a new generation of cinematic FPV drone developed by the GEPRC team. The aluminum parts of the camera are still made of high-strength 7075 aircraft-grade aluminum alloy materials. The TPU shock-absorbing pad is designed on the bracket structure, which can excellently isolate the high-frequency vibration of the fuselage, so that the camera can still obtain jelly-free high-definition images during high-speed flight The installation of the video transmission has also designed an assembly scheme, which allows the O3 video transmission to be completely installed inside the fuselage without affecting the Type-C USB data cable connected to the Air Unit to read video data. O3 Air Unit is currently the most advanced FPV system on the market. It can transmit 1080P 60fps real-time images, and can also record up to 4K 60fps images with anti-shake effect at the same time.
The upgraded video transmission system also combines market feedback to upgrade the gimbal top plate of the fuselage, which is compatible with the camera base fixed by 4-hole screws, so that Cinebot30 can mount a full-sized GoPro camera very well, and the battery life can reach 5 minutes and 30 seconds. However, the GEPRC team recommends flying with Naked GoPro 10, with a battery life of up to 10 minutes and 30 seconds.
Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!
Cinebot30 will be equipped with a powerful 1804 motor with optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations.
Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!
Features
1. Adopts the most advanced O3 Air Unit FPV digital video transmission system on the market
2. Video transmission with high-definition anti-shake 4K 60fps ultra-high resolution video quality
3. The highest bit rate is 50MBPS, the delay is as low as 30 milliseconds, and the highest image quality is 1080P 60FPS

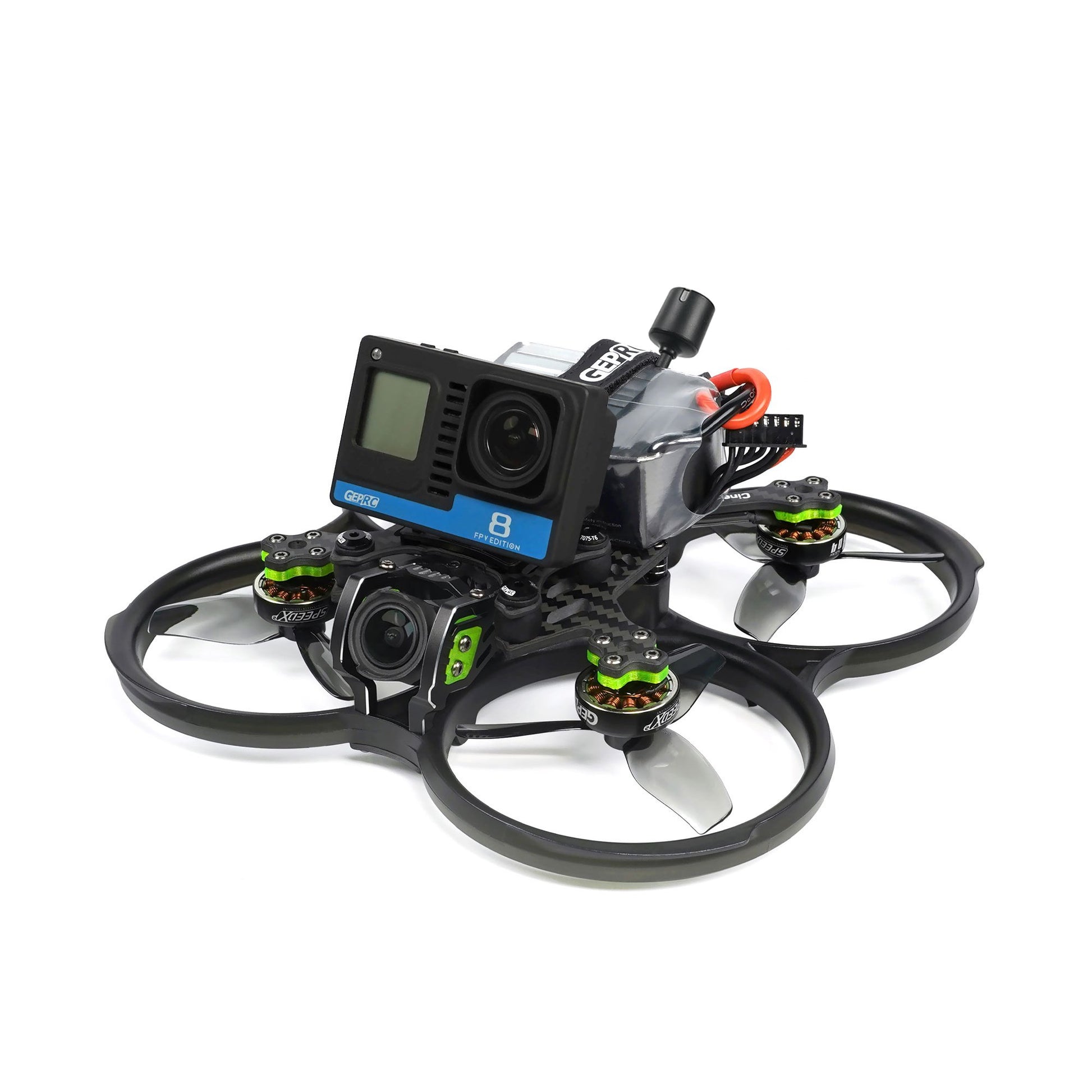

4. Upgraded the top plate of the fuselage gimbal, compatible with the camera base fixed by 4-hole screws, and supports mounting a full-sized GoPro camera for flight
5. The camera aluminum mechanism is designed with TPU shock absorption, which can effectively eliminate the image jello caused by the vibration of the body
6. The ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. Color brightness can be clearly displayed in day and night
7. Selection of high-quality high-toughness, impact-resistant PC+PET material injection molding
8. Powerful 1804 motor, surging torque to cope with ultra-low altitude flight
9. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts
10. With the new GEP-F722-45A AIO V2, the performance is stable and the flight is more secure
11. Tuned by GEPRC professionals, delicate and silky flying feel
Specifications
- Model: Cinebot30 HD O3 Quadcopter
- Brand: GEPRC
- Frame: GEP-CT30 O3

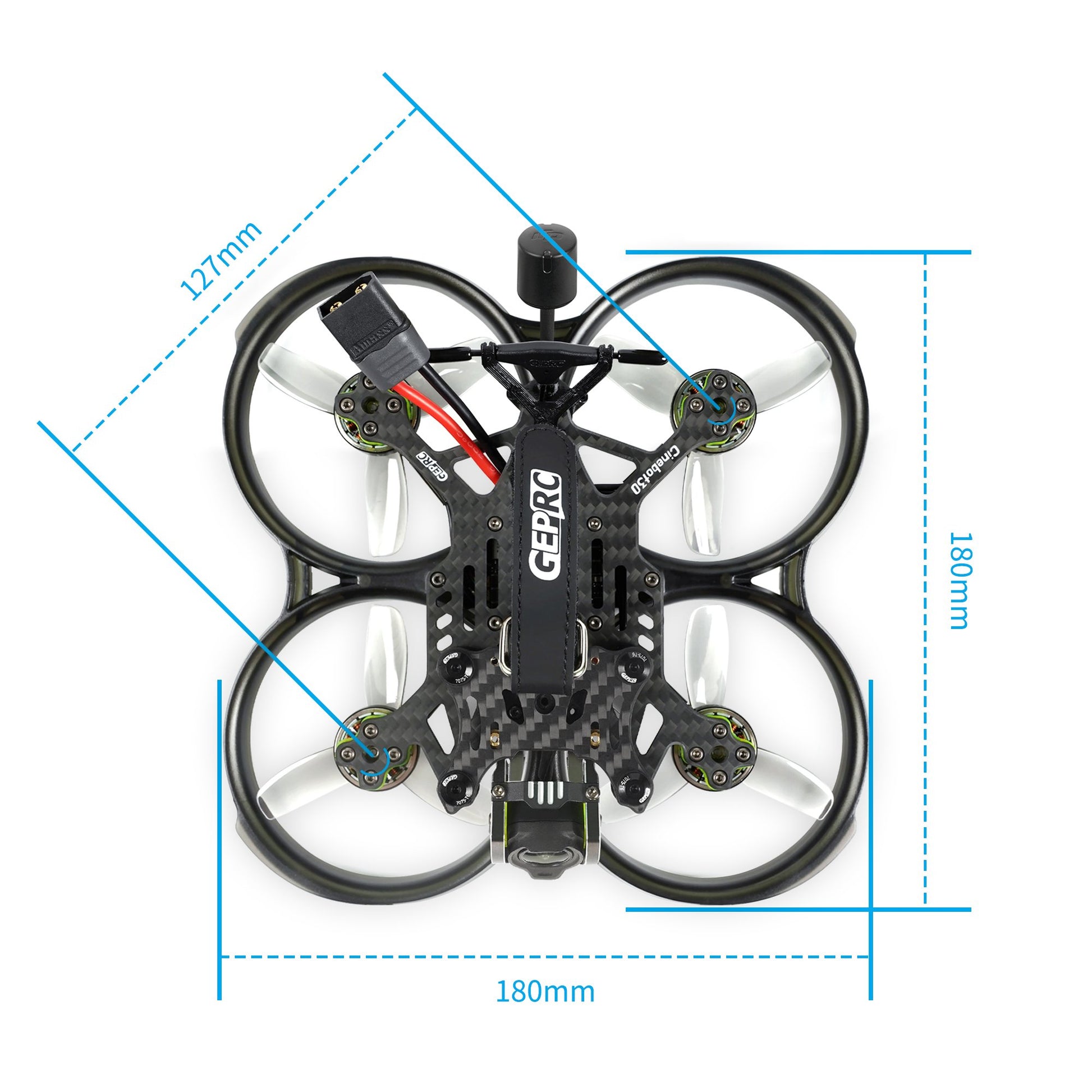

- Wheelbase:127mm
- Isolation Plate:2mm
- Main plate:3mm
- Bottom plate:1.5mm
- FC: GEP-F722-45A AIO V2
- MCU: STM32F722RET6
- IMU: ICM-42688-P
- VTX: DJI O3 Air Unit
- Video resolution: 4K@50/60fps, 2.7K@50/60/100/120fps, 1080p@50/60/100/120fps
- Camera: DJI O3
- Propeller: HQ prop T76mm
- Antenna: DJI O3Â Antenna
- Charge connector: XT60H-M
- Motor: SPEEDX2 1804-2450KV（6S Version）/ SPEEDX2 1804-3450KV（4S Version）

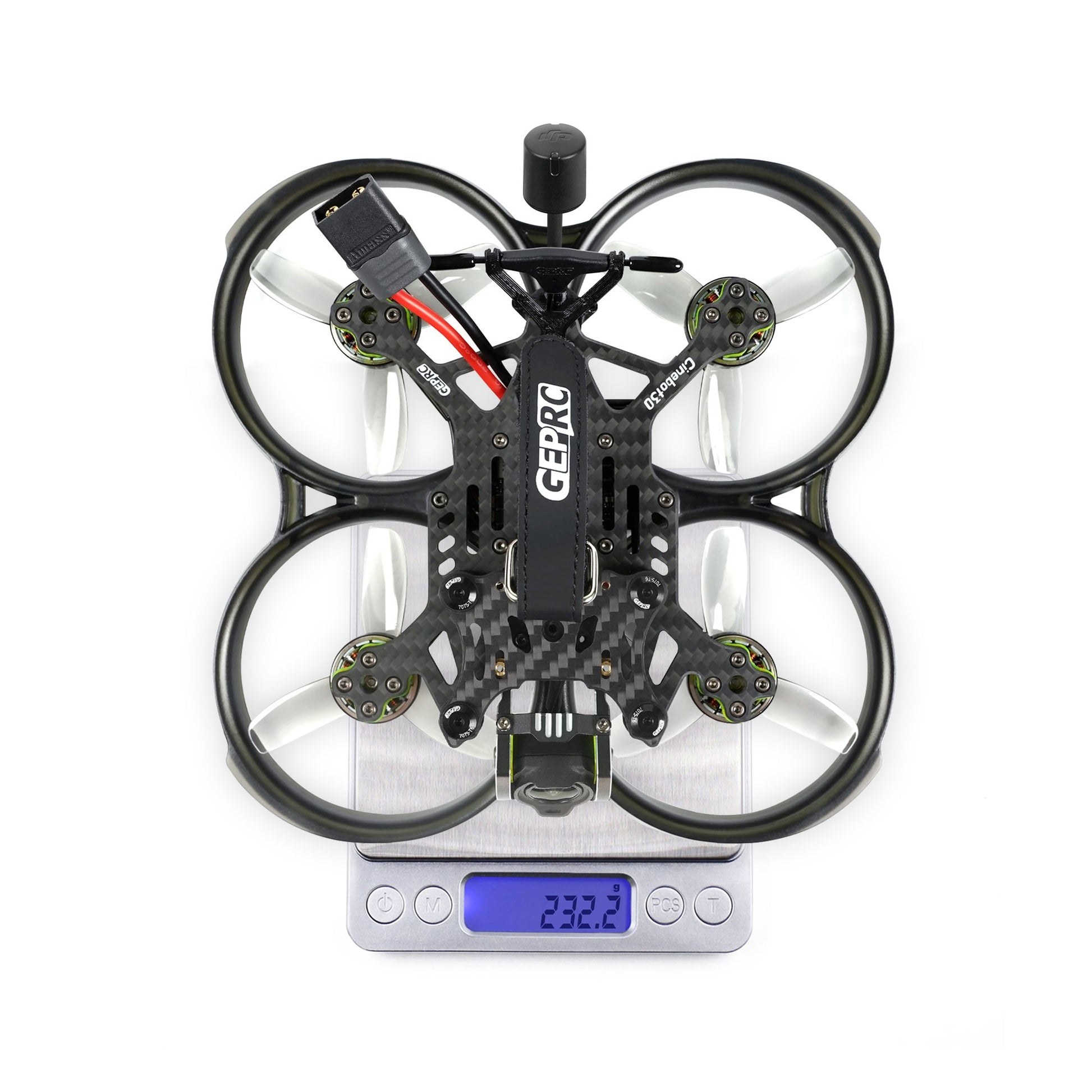

- Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g / O3 version 234.7g (excluding battery, the above are TBS Nano RX version)
- Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
- Recommended Battery: LiPo 4S 1100mAh-1300mAh (4S Version) / LiPo 6S 850mAh-1100mAh(6S Version)
Includes
1 x Cinebot30 HD O3 Quadcopter
2 x HQProp T76MM（pair）
1 x Battery strap M15*200mm
1 x Battery strap M15*220mm
2 x Battery Silicone Pads
1  x  Set of screws
1  x  Set of screwdrivers
1 x GoPro camera mount holder
1  x  Set of screws
1  x  Set of screwdrivers
1  x  Antenna fixed tube
