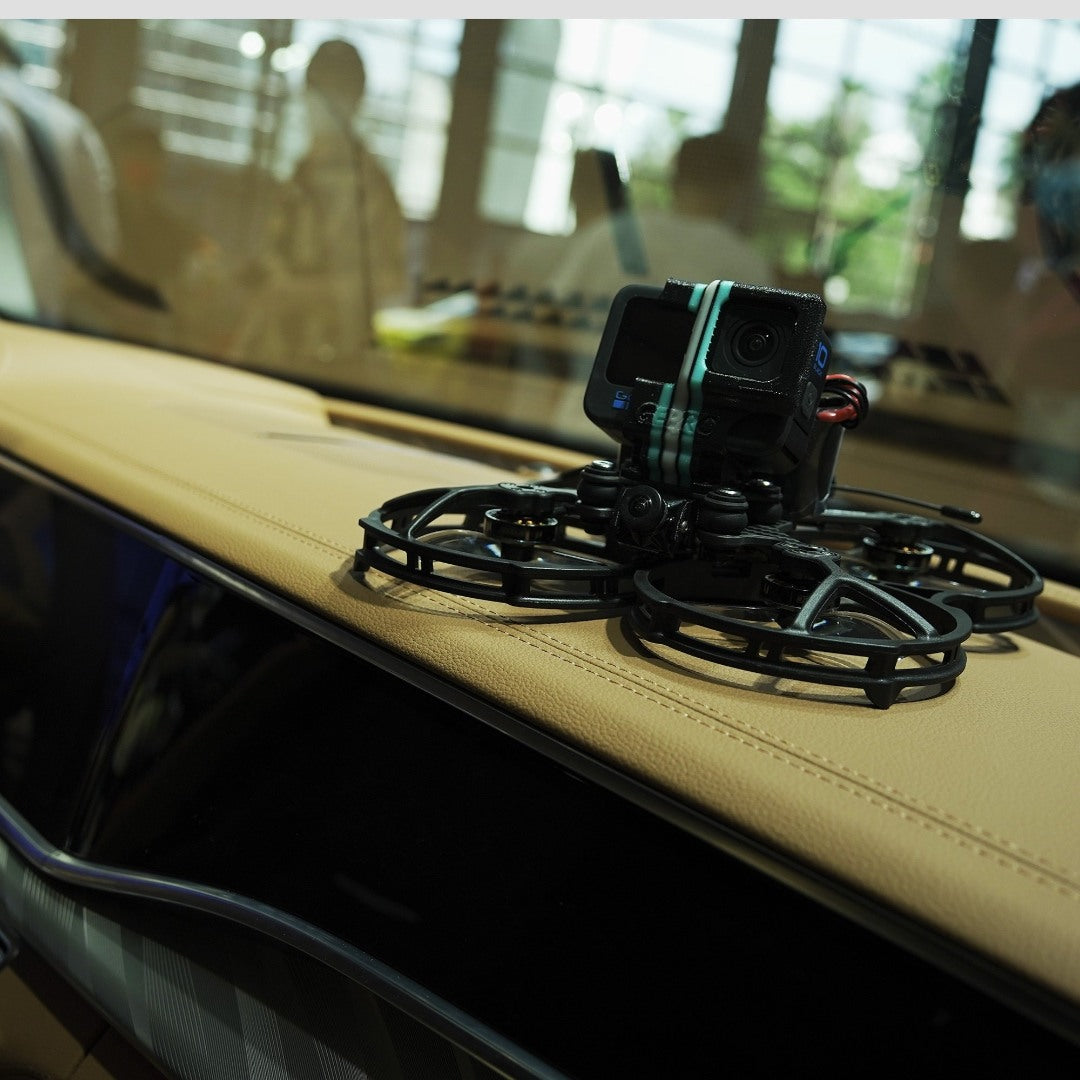

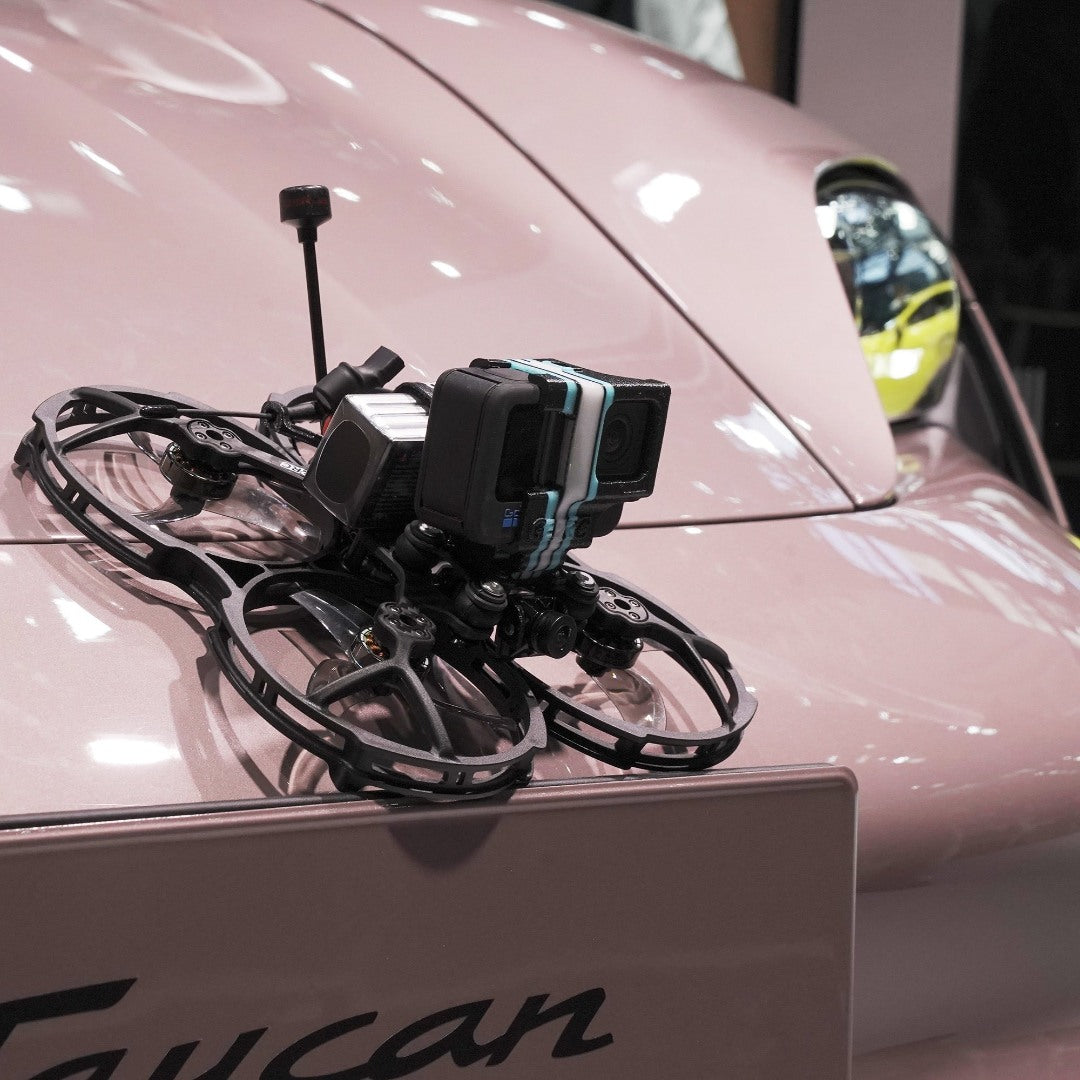

GEPRC CineLog35 Analog CineWhoop FPV Drone 4S-6S

Feature:

1. Upgrade 3.5-inch integrated protection guard to ensure flight safety. The new design has significant roles at many aspects such as Low noise, Vibration and noise reduction, durable high-strength structural design.
2. Equipping with VISTA HD VTX and the Nebula Pro camera.
3. It comes with a 3D Print mount to install the GoPro 9 & GoPro 10. and the Incidental base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera.
4. Improving the damping rings, the shooting effect is more stable, clearer and reduce jelly.
5. 2004 motor with D90-3 propeller has stronger power output.
6. Independent receiver cabin, conveniently and quickly to binding.
7. The GEPRC Team’s Splendid Tuning and the overall flight feel is delicate and flexible.

Specifications：

• Model: CineLog35 Analog
• Brand: GEPRC
• Frame: GEP-CL35
• Wheelbase: 142mm
• Top plate: 2.5mm
• bottom plate: 2.0mm
• Arm plate3.5mm
• FC system:
  4S Version:GEP-F722-35A AIO
  6S Version:GEP-F722-45A AIO
• MCU: STM32F722
• IMU: MPU6000(SPI)
• OSD: BetaFlight OSD w/AT7456E chip
• ESC: BLheli_S 45A
• VTX: 600mW VTX
• Camera: Caddx Ratel2
• Propeller: D90-3
• Antenna: Momoda Long version MMCX RHCP 195mm Antenna
• Motor:
  GR2004-1750KV 6S Version
  GR2004 2550KV 4S Version
• Weight: 220.5g (CineLog35 Analog 4S PNP)
• Receiver: PNP(Without receiver)/Frsky R-XSR/TBS Nano RX
• Battery:
  Recommend Battery:LiPo 4S 850mAh-1500mAh ,LiPo 6S 850mAh-1100mAh

Include:

• 1  x CineLog35 Analog Quadcopter
• 2  x  D90-3 propellers (pair)
• 1  x  Battery strap M15x200mm
• 2  x  Battery Silicone Pads
• 2  x  Landing Pads
• 4  x  15 degree damping rings
• 1  x  3D print mountings combination
• 1  x  screw combination
• 1  x  screwdriver combination
• 1  x  Antenna fixed tube
