Summary：

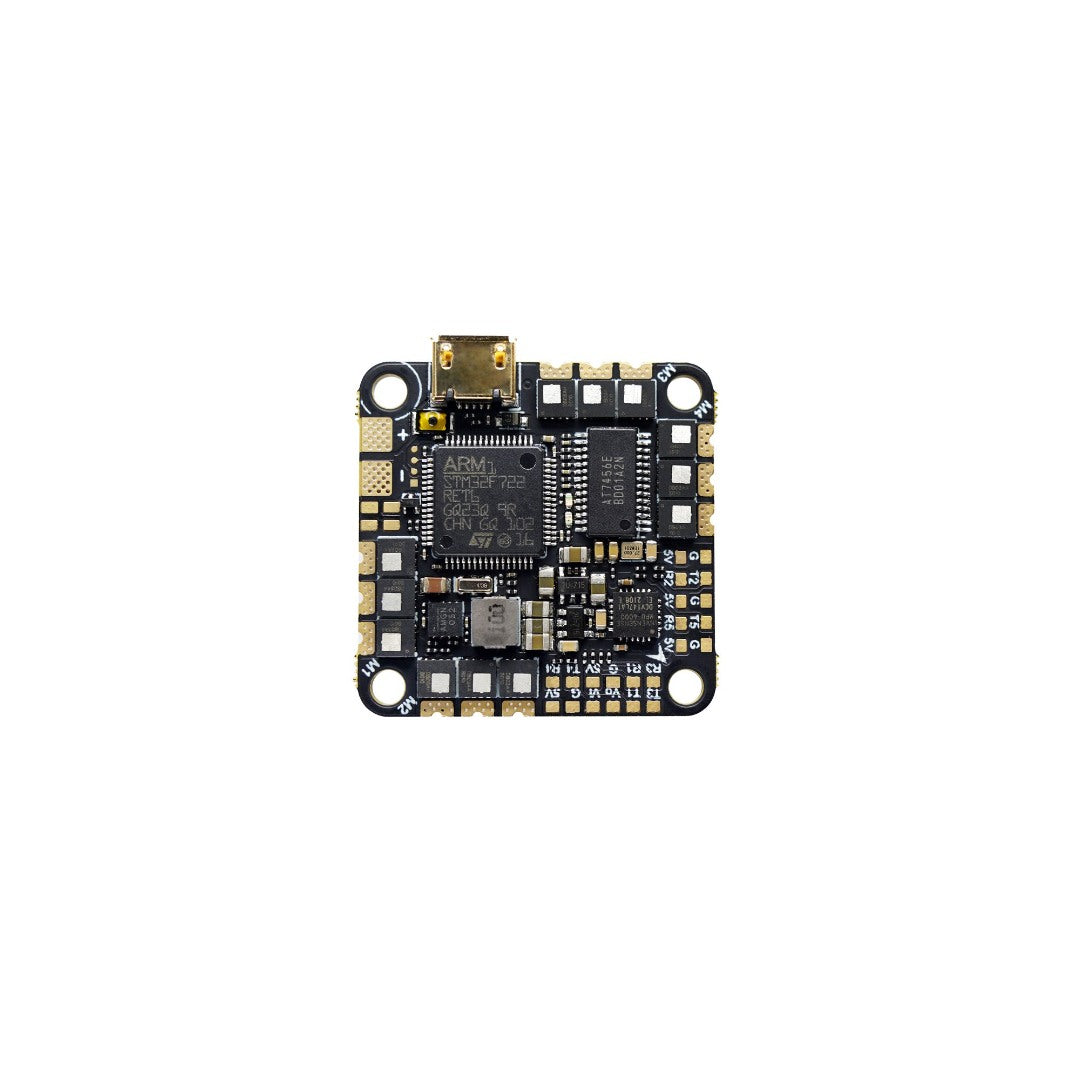

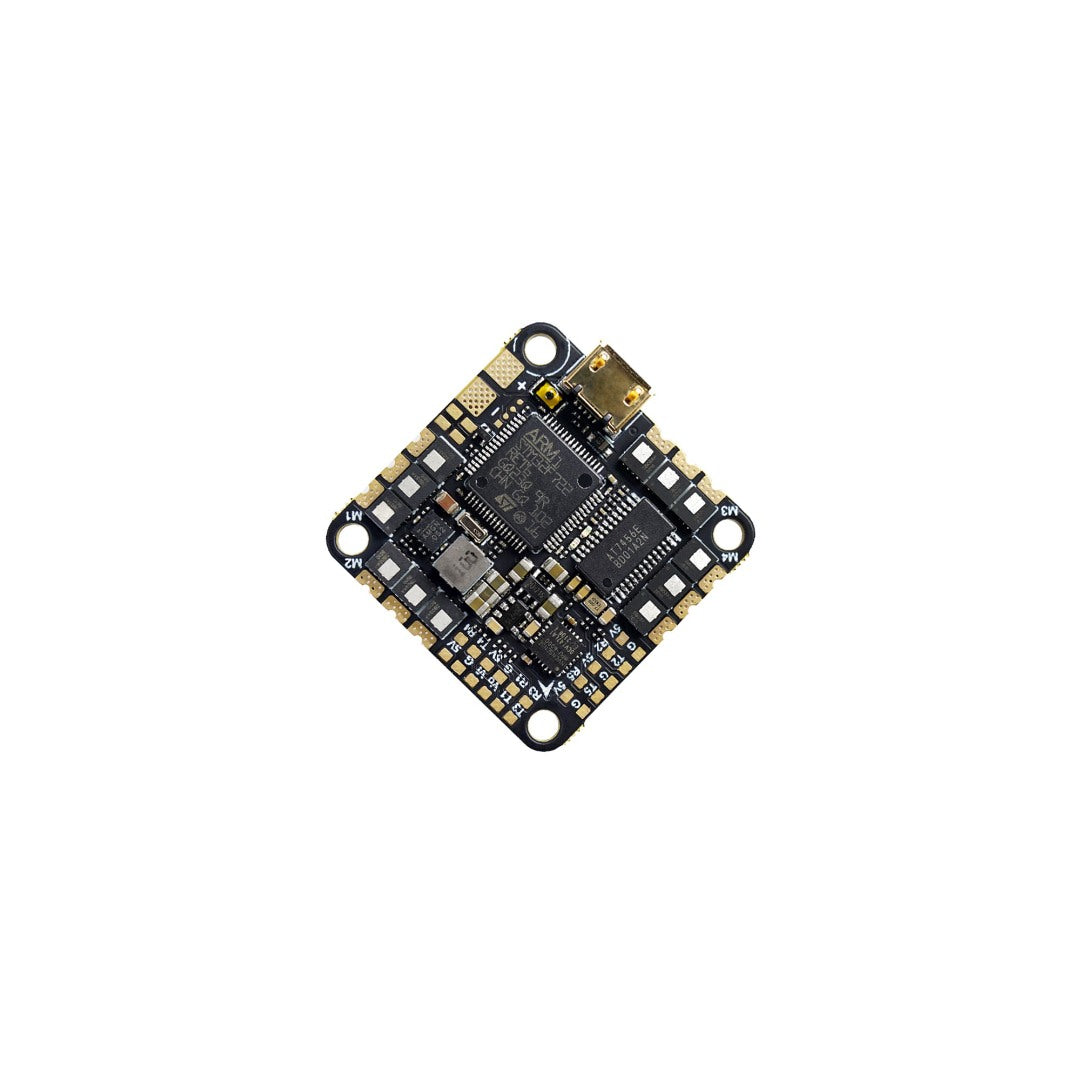

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO,it is released now.
GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.
We designed a 6-pin connector for DJI AIR UNIT MODULE, plug and play.

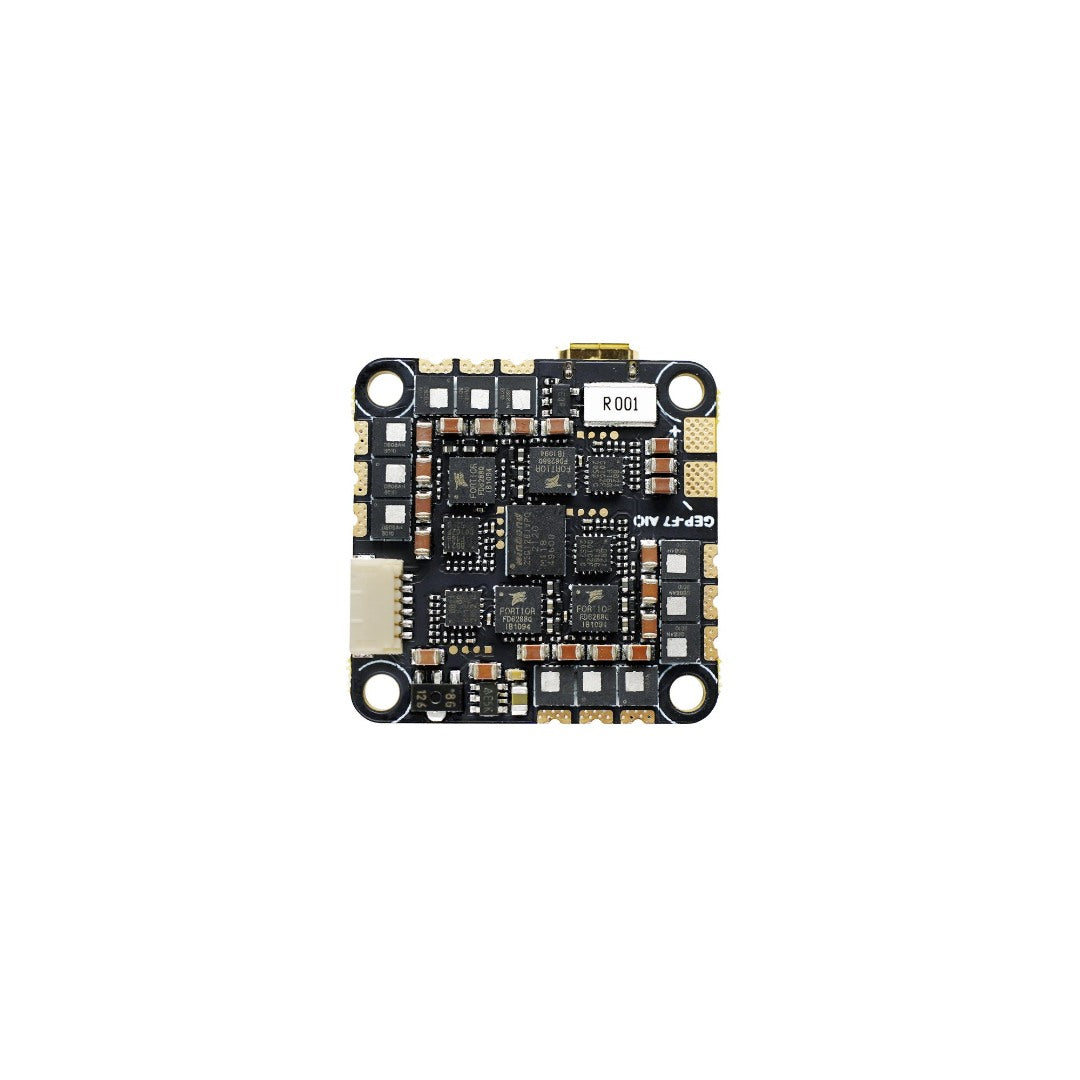

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 26.5mm * 26.5mm mounting hole, suitable for most of the frames on the market.
We pursue lighter weight, smaller volume, more functions and better performance Flight controller.
Specification：
- Model Name:GEP-F722-45A AIO
- MCU:STM32F722
- IMU:MPU6000 gyro/accelerometer(SPI)
- Firmware target:GEPRC_F722_AIO
- OSD:Betaflight OSD w/ AT7456Ev
- UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
- Beeper:YES
- LED:YES
- USB:Micro USB
- BEC output:5V@1A
- Intergrated LC Filter
- ESC MCU:8BB21F16G
- Continuous current:45A
- MAX current:55A (10s)
- Input:2~6S
- Supports:Dshot600,Oneshot,Multishot
- BlackBox: 16Mb
- Traget:G_H_30

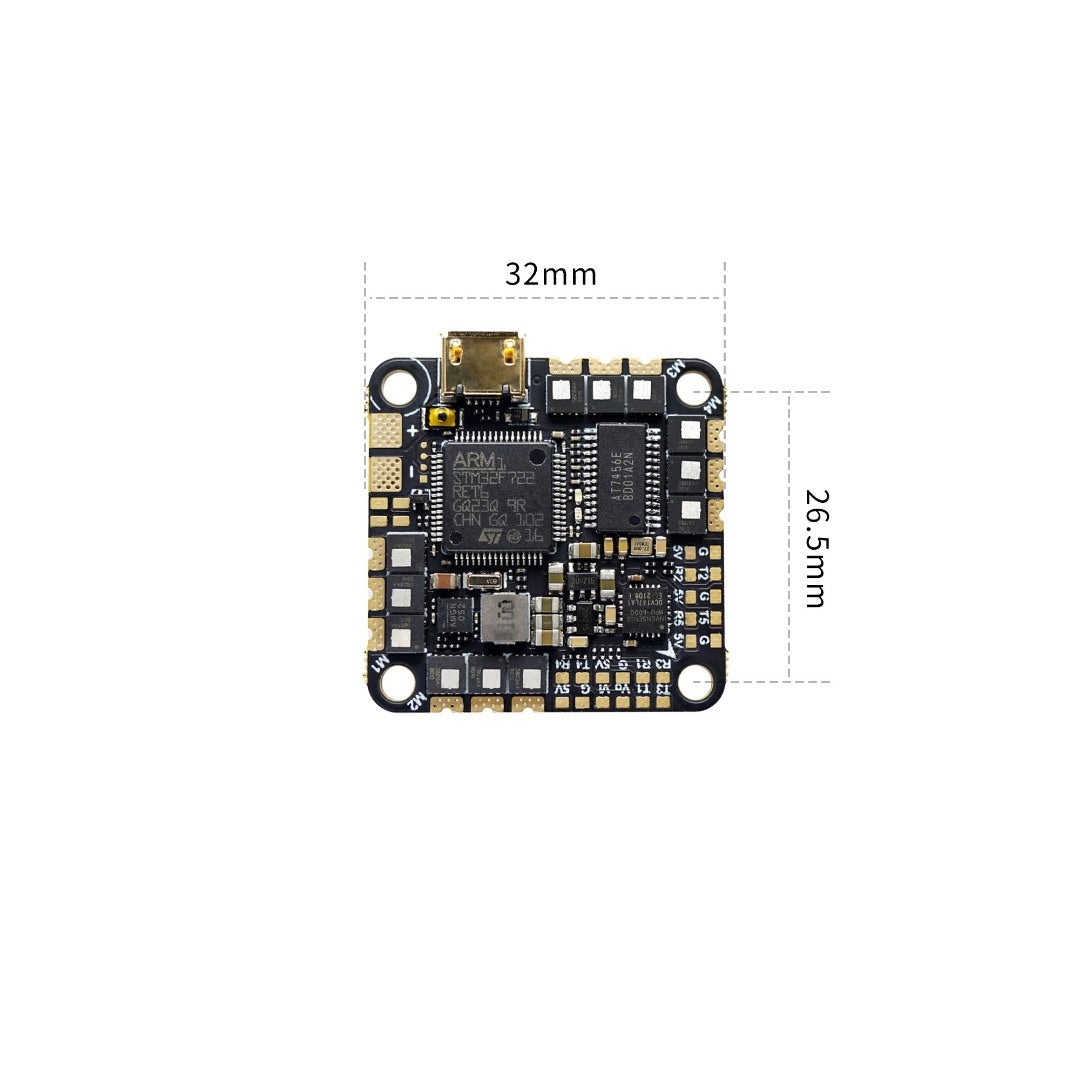

- Size:32x32mm Board
- Installing Hole:26.5×26.5mm,M2

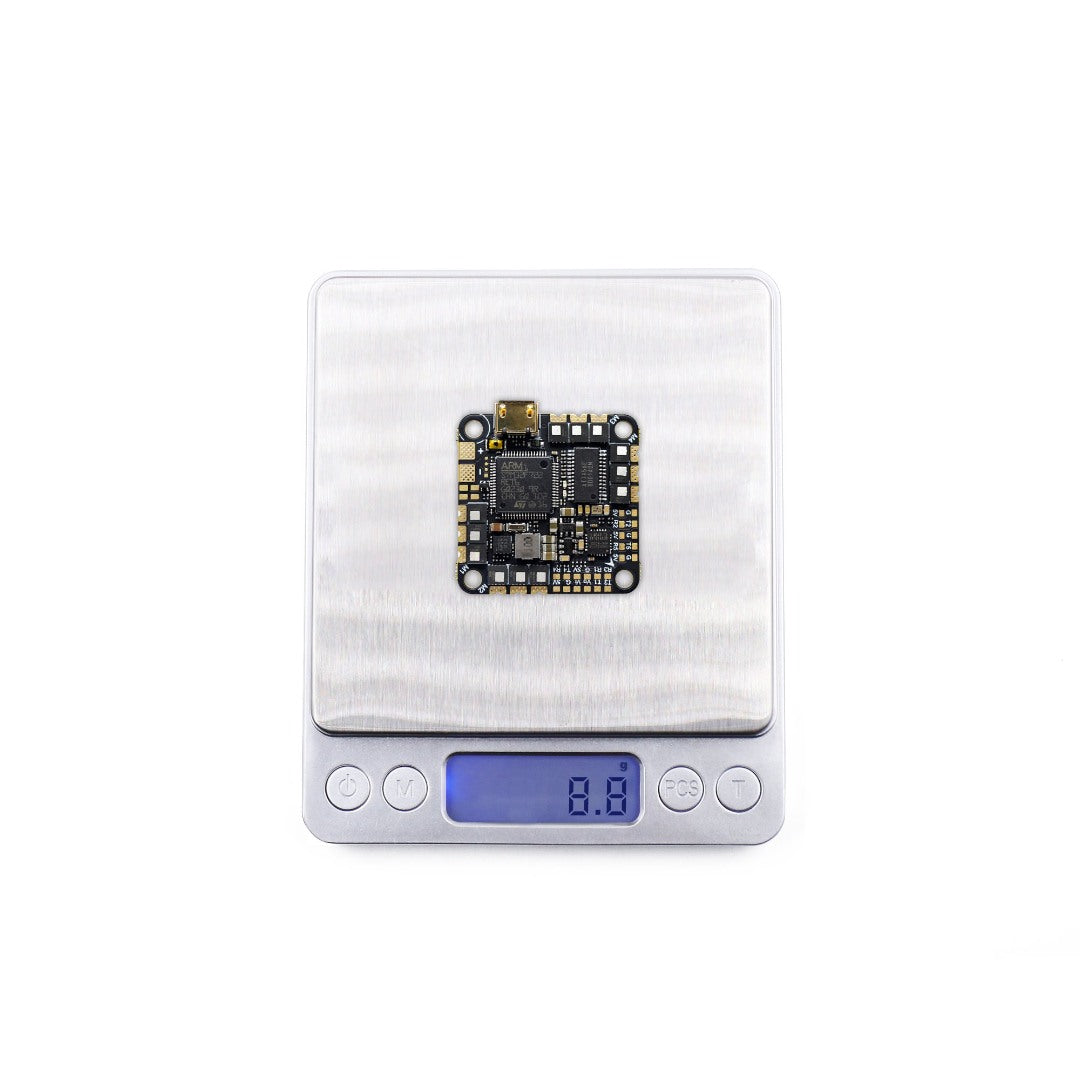

- Weight:8.8g
Features:
- MCU:STM32F722,with strong performance and higher computing speed.
- It has 5 full UART ports, which can connect more external devices
- Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
- The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
- Support OSD parameter adjustment, buzzer, led and other functions.
- 8g ultra light weight
- 5mm * 26.5mm mounting hole, suitable for most frames

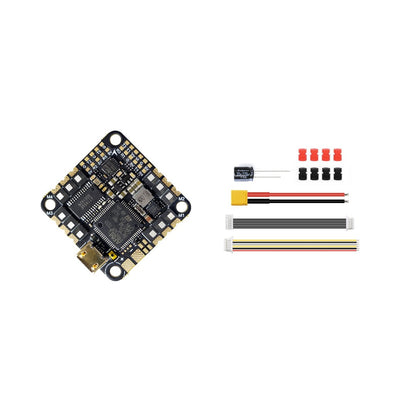

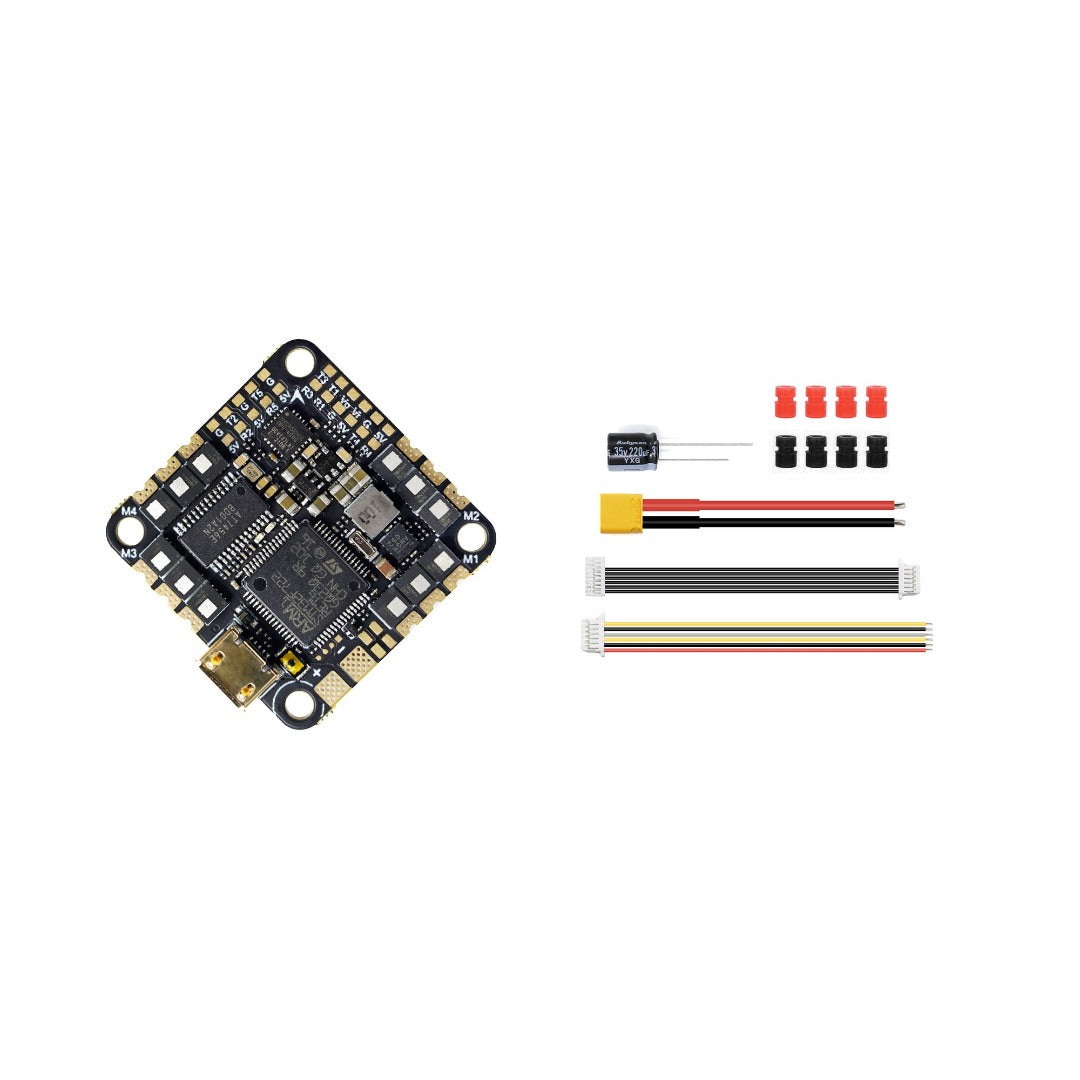

Include:
- 1 x GEP-F722-45A AIO
- 1 x XT30-7CM-18AWG Power cables
- 1 x 35V220UF capacitor
- 1 x SH1.0-6Pin to GH1.25-8Pin cables
- 8 x M2*6.5mm Damping rings
Manual:
GEP-F722-45A AIO USER MANUAL
