Summary
Hello FPV fans, GEPRC team has developed a GPS module to upgrade the user experience.
GEP-M8U GPS module features as small size, light weight, fast positioning and stable connection. Suitable for FPV, fixed-wing and other products.
Specifications
- Model: GEP-M8U GPS module
- Input Voltage: 3.3V-5V
- Receiving Format: GPS, BDS
- Channel: 72ch
- Compass: None
- Baud Rate: 115200bps
- Output Connector: SH1.0-4P
- Communication Protocol: UART
- Output Protocol: UBLOX
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m / s
- Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
- Timing Accuracy: 30 ns
- Receiving Sensitivity: Trace -162dBm, Capture-160dBm
- Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s
- Max Acceleration: 4G
- Size: 22mm x 22mm x 8mm

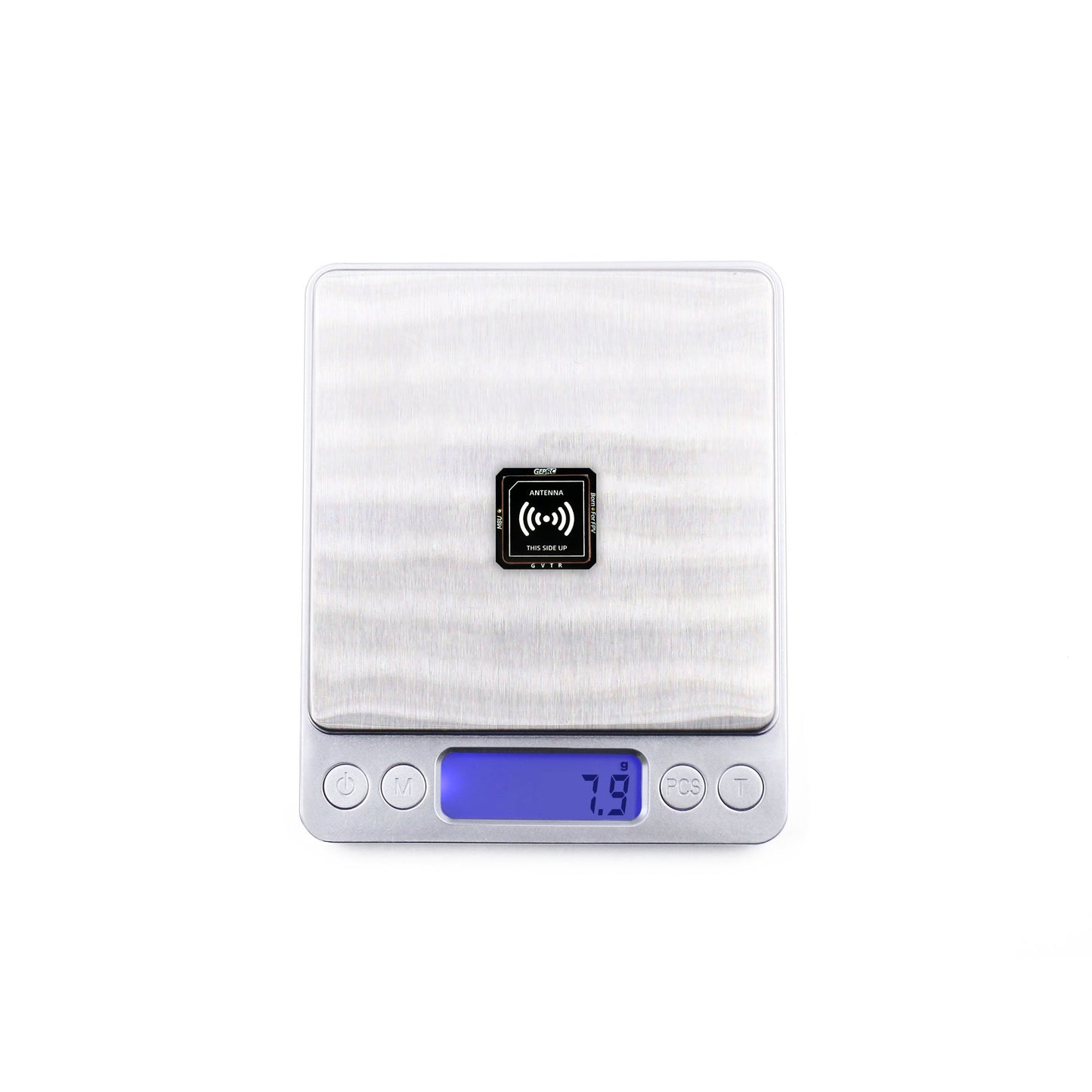

- Weight: 7.9g
Feature
1. Fast positioning speed
2. Stable connection
3. Unique appearance design
4. Small size and light weight
5. SH1.0-4Pin terminal design, no soldering required.
6. On-board PPS positioning and power indicator, easy to use.
Includes
1 x GEP-M8U GPS module
1 x SH1.0-4Pin terminal cable
1 x GPS user manual
