GEPRC RAD VTX 5.8G

GEPRC RAD VTX 5.8G

$79.00 AUD
$79.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

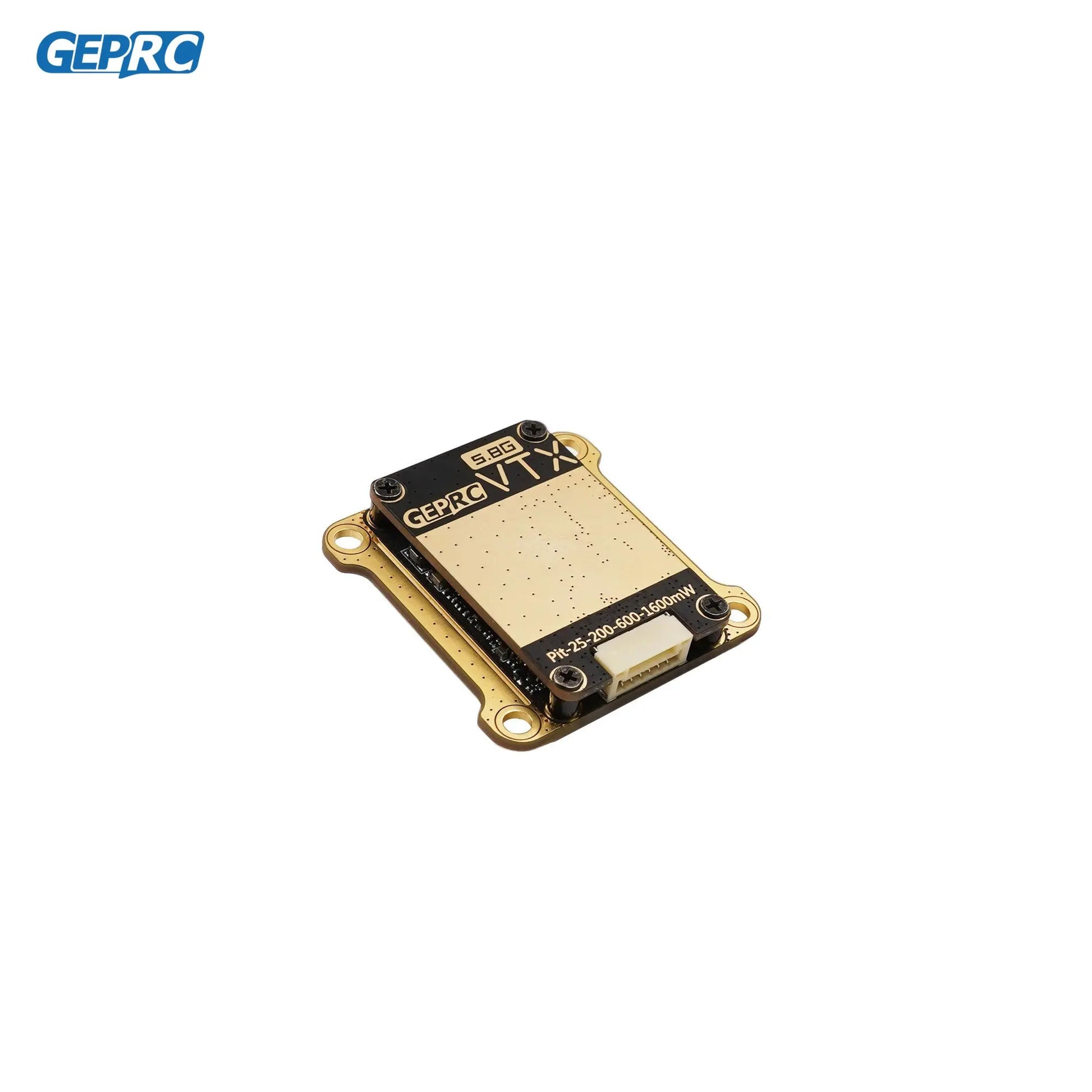

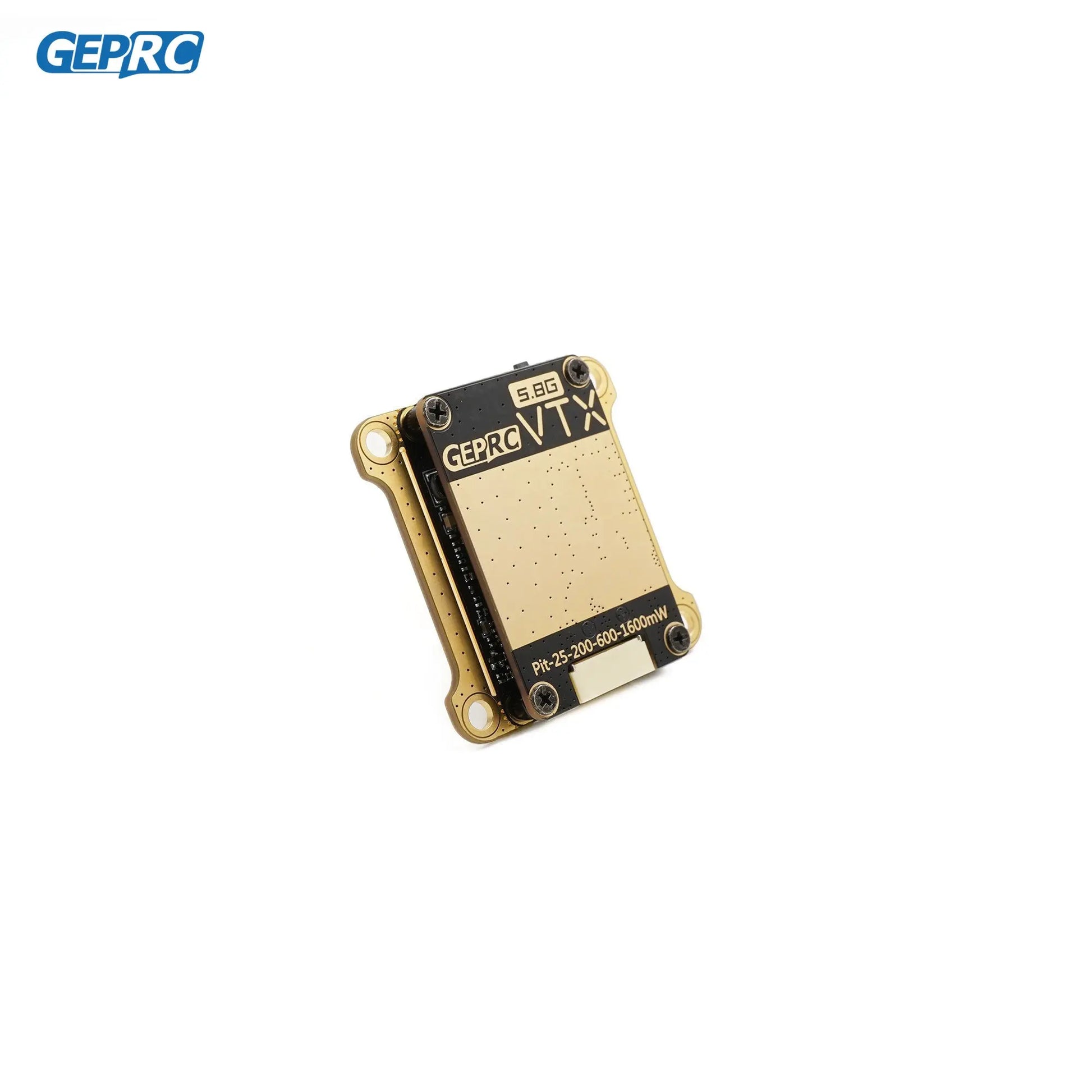

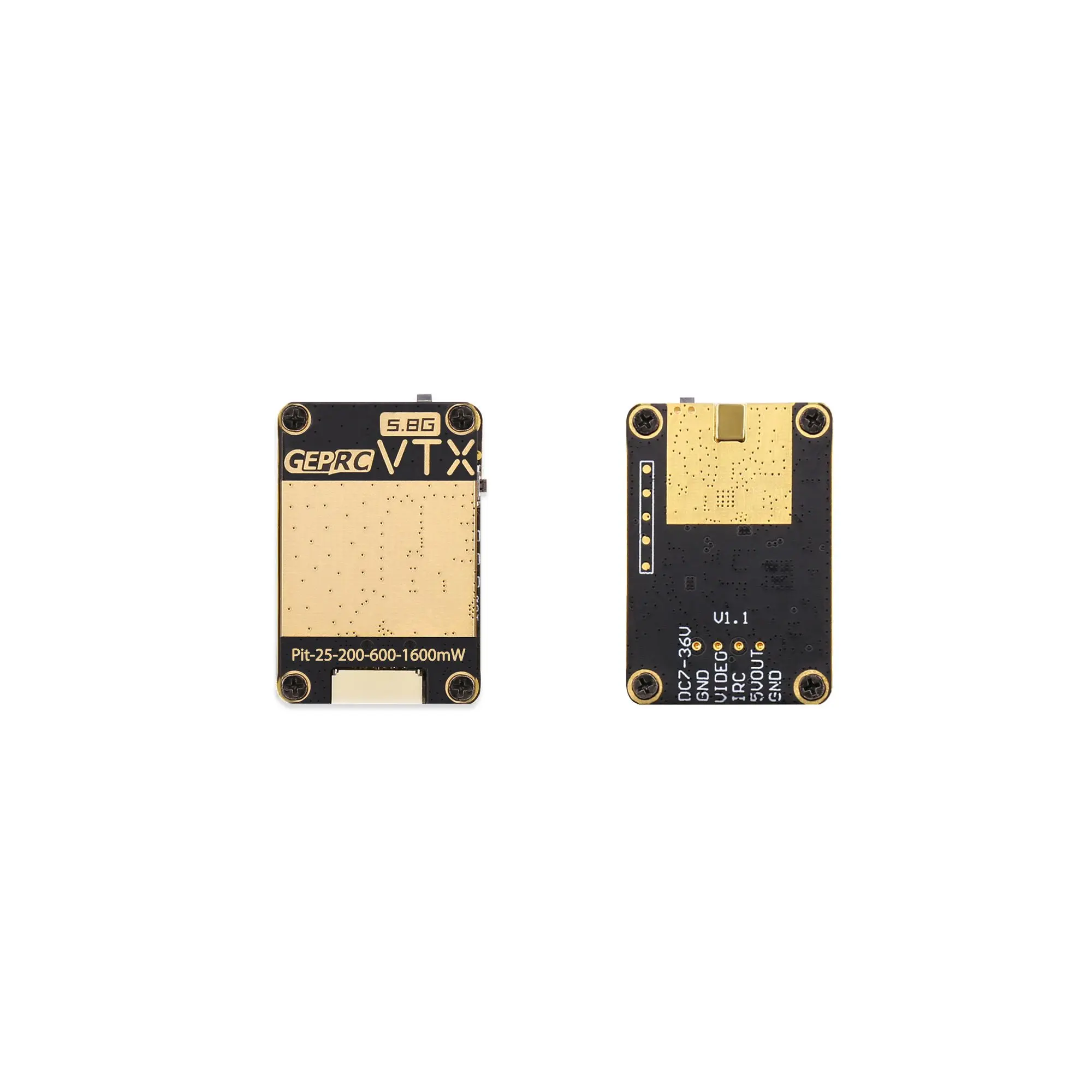

Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board,supports 7-36V voltage(2-8S Battery) input, uses the mainstream MMCX connector ,and the mounting hole is 30.5×30.5mm.

 Set to 25mw for use in Australia


Feature:

  1. 1600mW Super power ,Suitable for Long Range flight with good stability.

  2. Five power channel: PIT mode/25mW/200mW/600mW/1600mW.

  3. Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.

  4. Temperature control protection function that can prevent high temperature burning

  5. Wide voltage input, Supports 7V-36V Voltage input.

  6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

  7. VTX built in microphone,Real-time transmission of Drone's sounds.

  8. Has 3 regional frequency tables to meet the needs of various regions.

  9. Two function buttons, three indicator lights, easy to control.

  10. Mounting hole is 30.5mmx30.5mm.



Specifications:

  • Model: GEPRC RAD VTX 5.8G 1.6W

  • Input voltage: DC 7-36V(2-8S Battery)

  • Output:5V@600mA(power 5V to Camera)

  • Input impedance: 75Ω

  • Protocol: IRC Tramp

  • Antenna interface: MMCX

  • Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE

  • Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)

  • Video format: PAL / NTSC

  • Microphone: Built in microphone

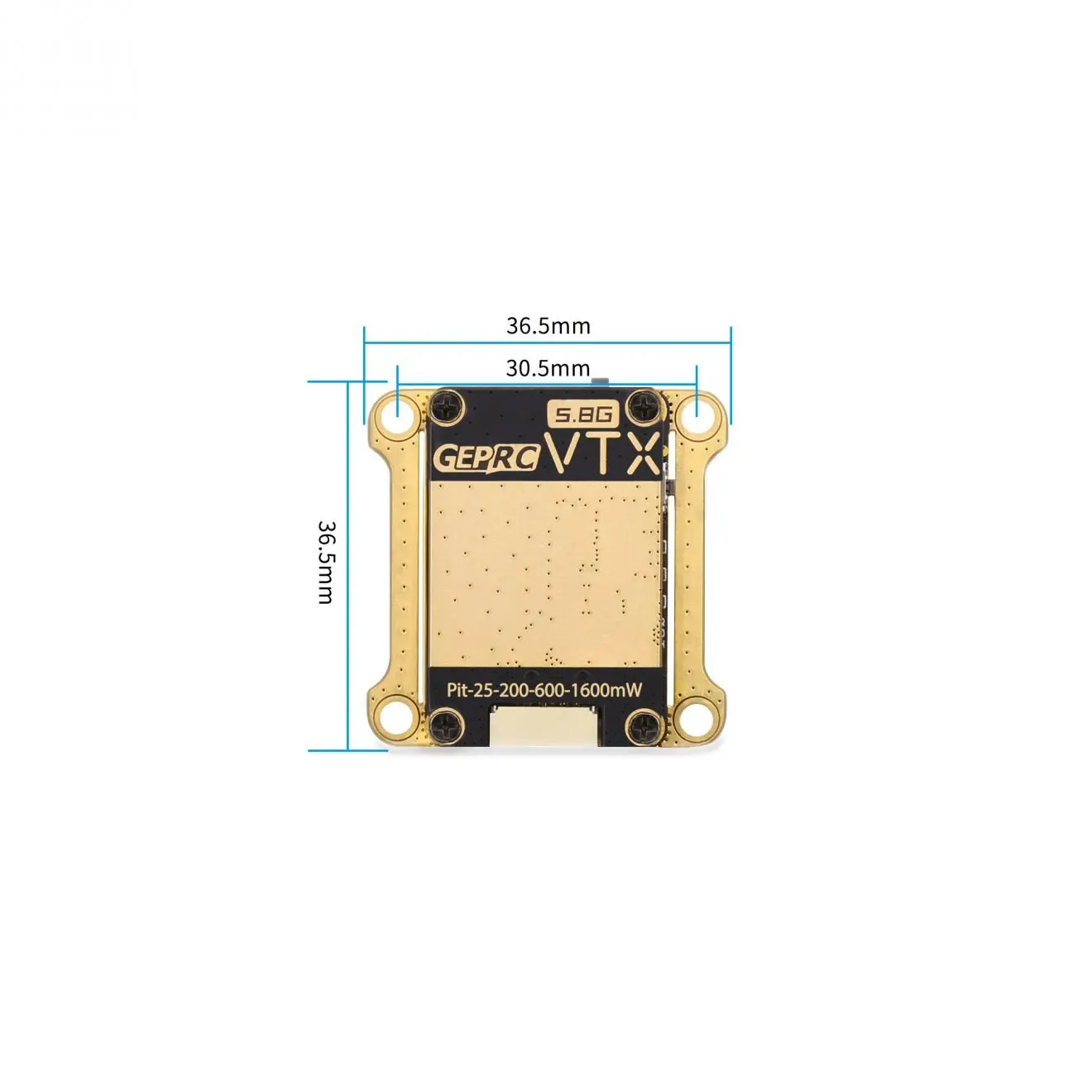

  • Size: 36×36.5×5.5mm

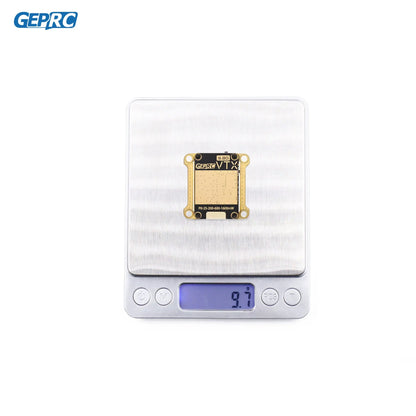

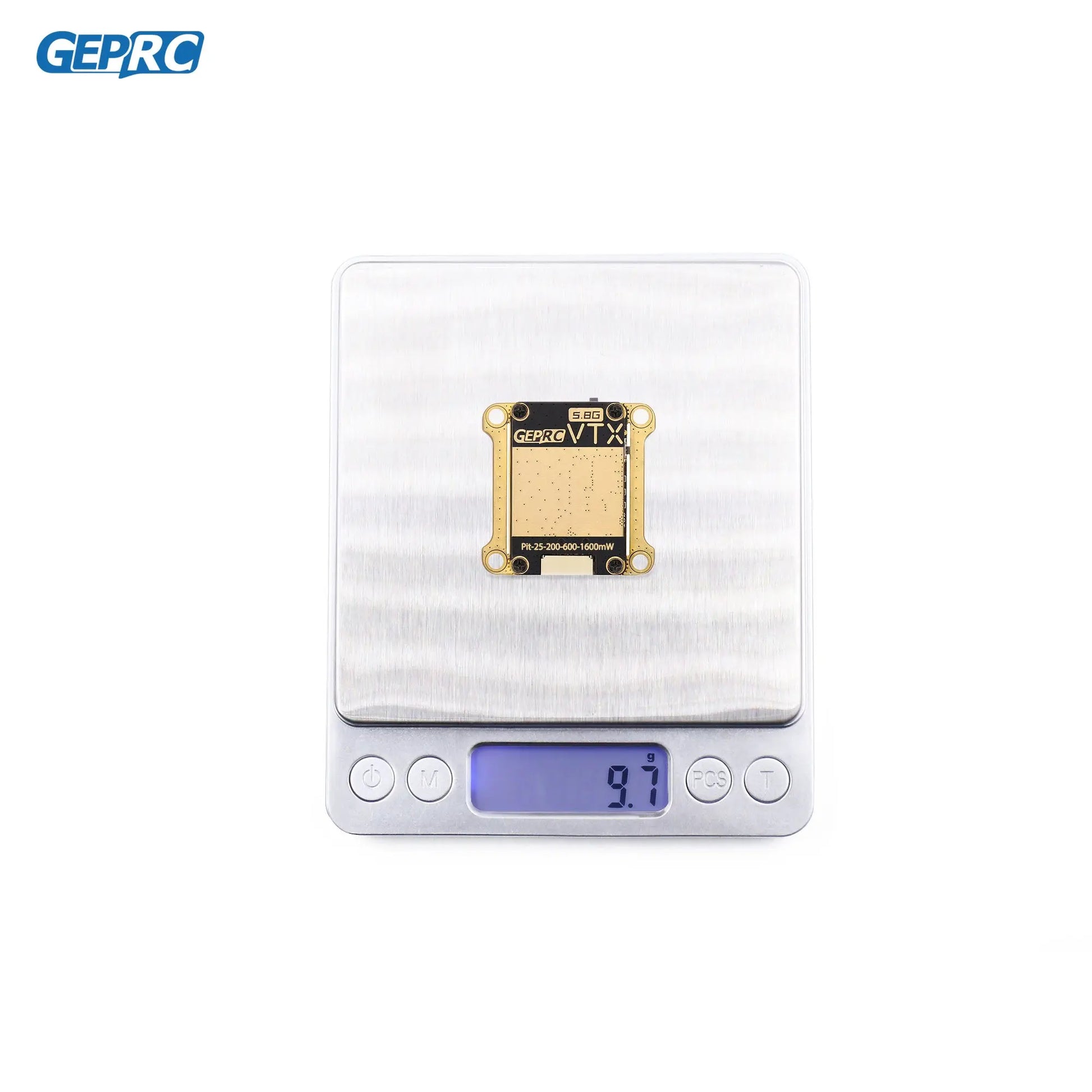

  • Weight: 9.7g(without cable)

  • Mounting hole: 30X30mm(M3)




Warning:

  1. Install Antenna before use.

  2. To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

  3. The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

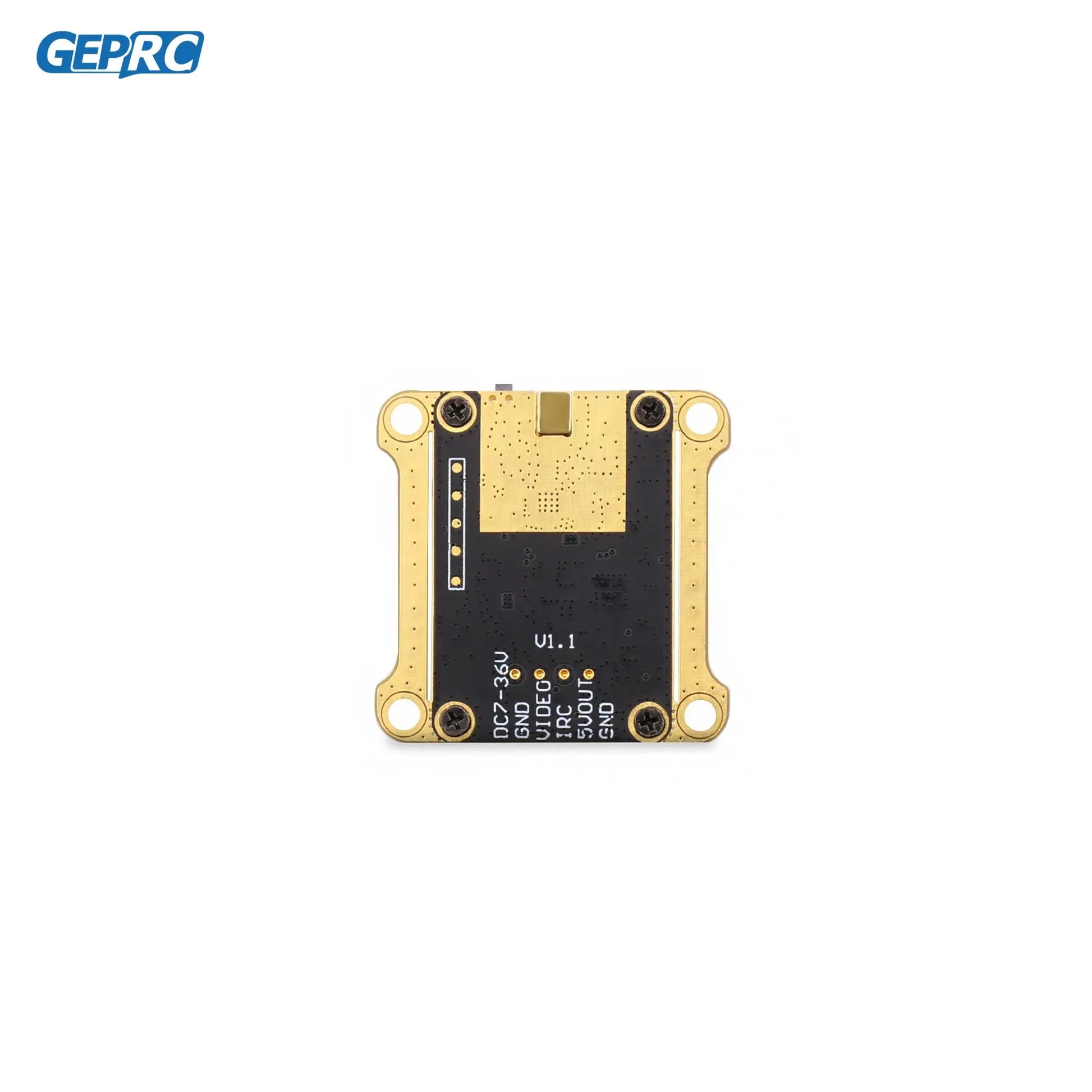

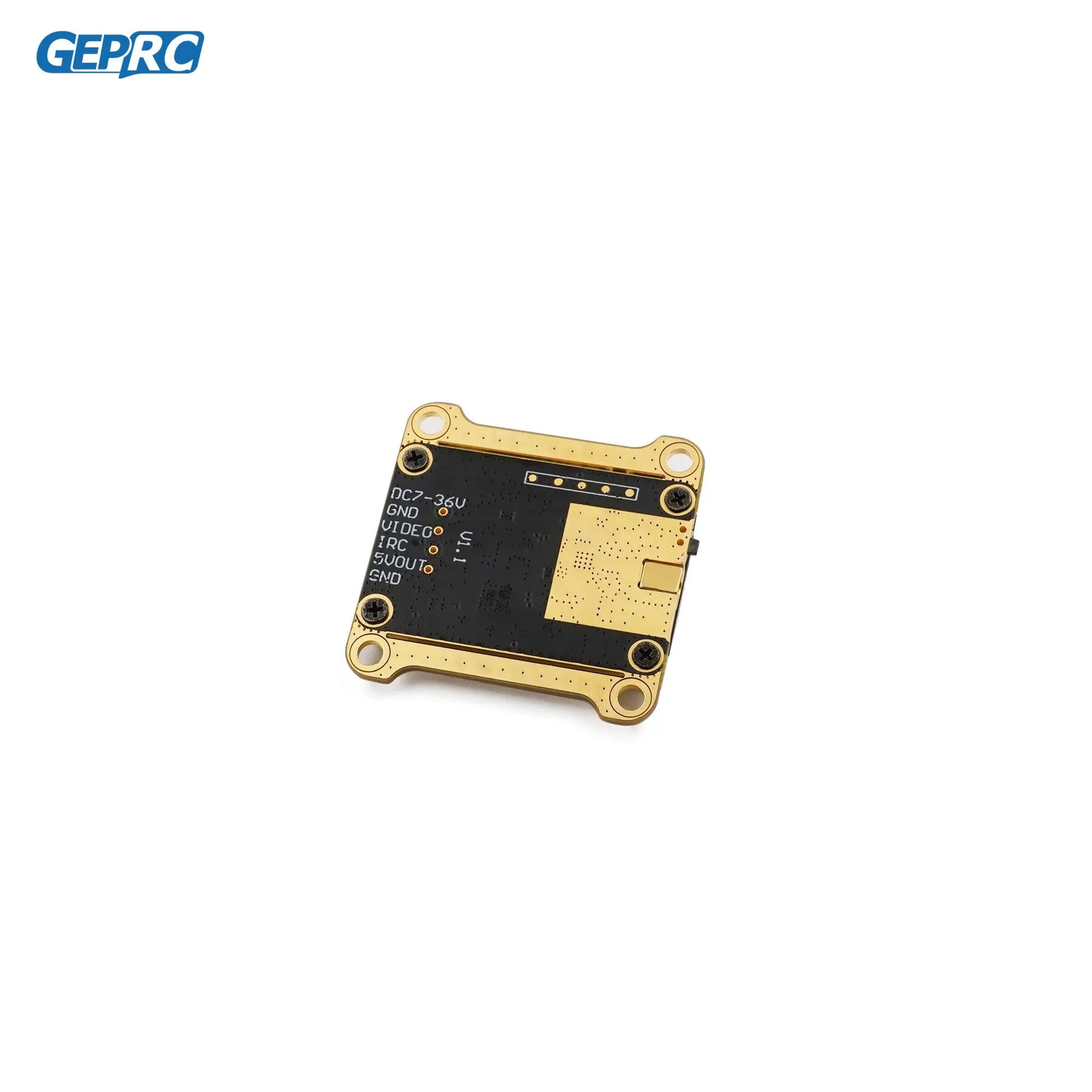

Connector definition description:

  • DC 7-36V: Input 2-8s Battery power

  • GND: Common ground wire

  • Video: connect to the video output port of FC or Camera

  • IRC: Connect to UART TX port of FC

  • 5V OUT: output 5V power to the Camera

  • GND: Common ground wire

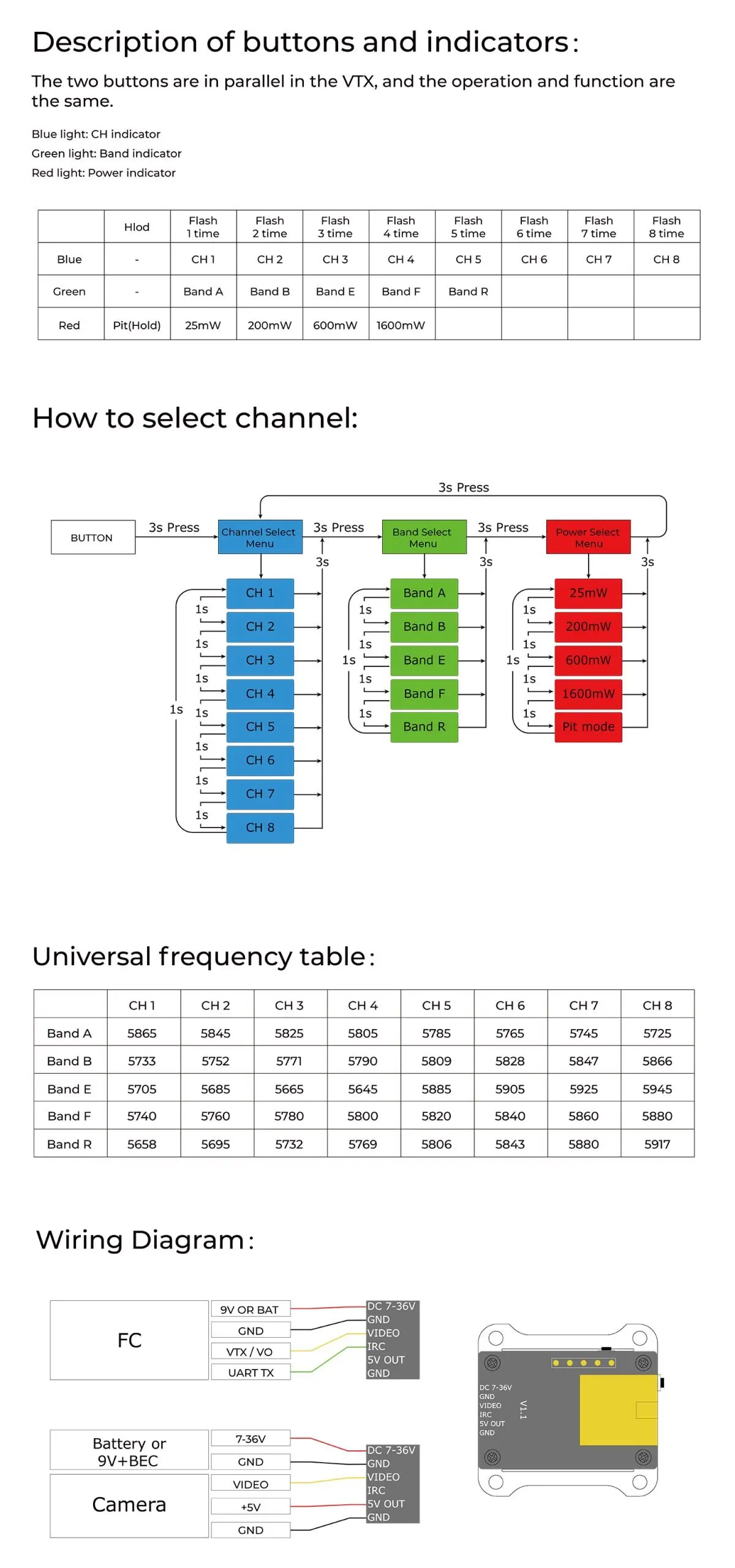

Description of button and indicator light:

  • Two function button are parallel in the VTX circuit, and the operation and function are the same

  • Blue light: Ch indicator

  • Green light: Band indicator

  • Red light: Power indicator

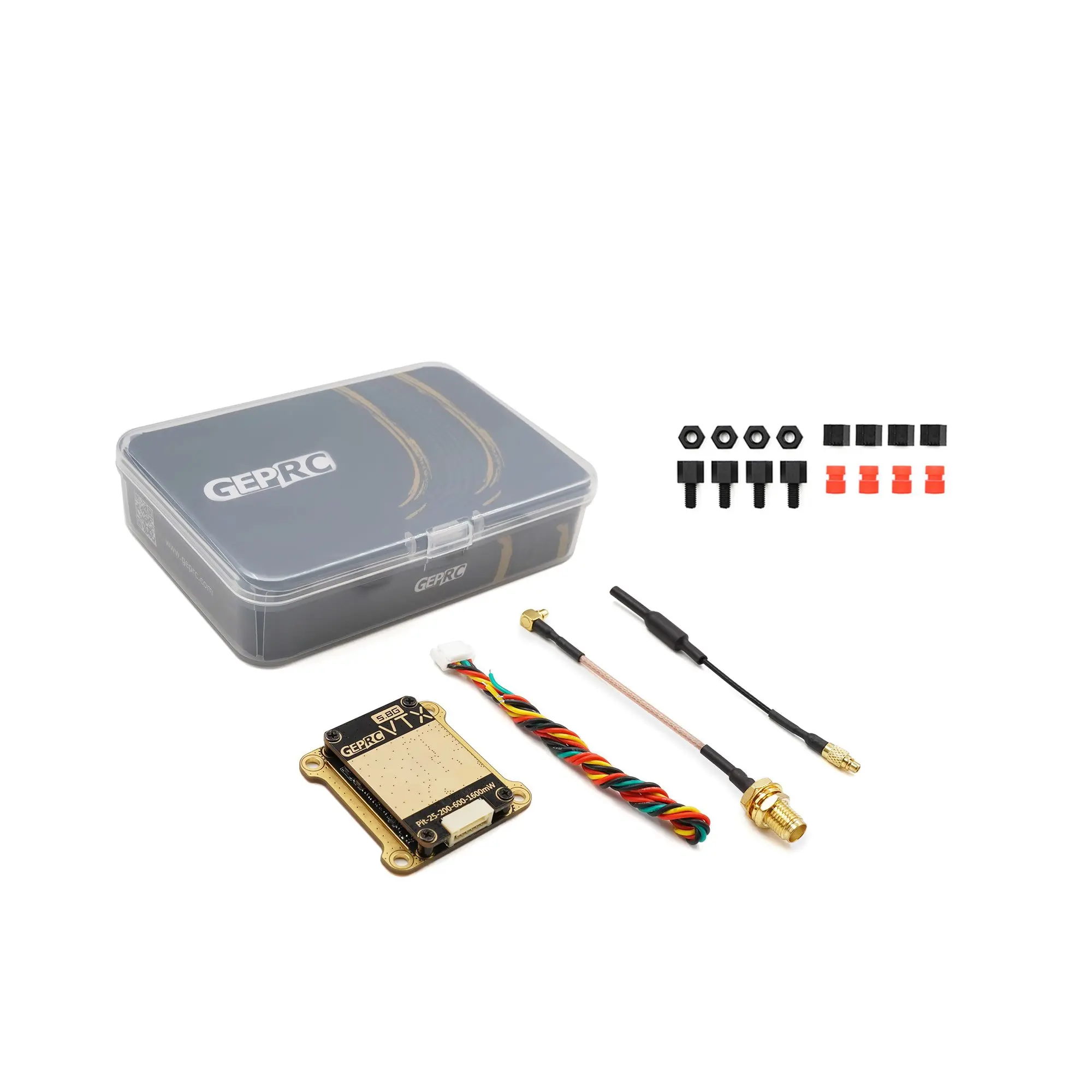

Includes:

  • 1 x GEPRC RAD VTX 5G8 1.6W

  • 1 x 72mm MMCX Copper tube antenna

  • 1 x GH 1.25*6P 150mm Connecting cable

  • 1 x MMCX to SMA(Internal foramen)connector

  • 1 x Matching screw package.

Size:

Include:











Model: GEPRC RAD VTX 5.8G 1.6WnInput voltage: DC 7-36V (2-8S Battery)nOutput: 5V@600mA (power 5V to Camera)nProtocol: IRC TrampnAntenna interface: MMCXnOutput power: PIT mode/25mW/200mW/600mW/1600mW PIT MODEnFrequency tables: Universal frequency table(40CH), American FCC frequency table(37CH), European EU frequency table(26CH)nVideo format: PAL / NTSCnMicrophone: Built in microphonenSize: 36×36.5×5.5mmnWeight: 9.7g (without cable)nMounting hole: 30X30mm(M3)nnn**Advanced Technology for Aerial Imagery**nnThe GEPRC RAD VTX is a cutting-edge flight controller accessory designed to elevate your aerial experience. With a robust output power ranging from PIT mode to 1600mW, this VTX ensures stable, long-range flights. The device's versatile output channels cater to various flight scenarios, from precise PIT mode for indoor flying to powerful 1600mW for extended outdoor flights. Utilizing a high-performance IRC Tramp protocol, the VTX supports OSD parameter adjustments, providing pilots with real-time control over their flight data.nn**Designed for Durability and Performance**nnBuilt with a dual-layer PCB design, the GEPRC RAD VTX separates the power supply from the main board, reducing and shielding interference. This innovative structure also aids in efficient heat dissipation, ensuring the VTX operates flawlessly under high loads. The built-in microphone captures the drone's sounds in real-time, enhancing the immersive experience of live video feeds. The device supports a wide range of input voltages (7V-36V), making it compatible with 2-8S batteries, suitable for a variety of drone types and power configurations.nn**Ease of Use and Universal Compatibility**nnThe GEPRC RAD VTX is engineered for ease of use, featuring two function buttons and three indicator lights for straightforward control. The universal frequency table with 40CH options, as well as regional frequency tables for the US (FCC) and Europe (EU), ensures compatibility with various flight regions. A mounting hole of 30.5mmx30.5mm (M3) simplifies the installation process, making it an ideal accessory for a variety of drones, including the Mark4 LR10 MOZ7 MARK5D series. Despite its compact form factor, the VTX delivers robust performance, weighing just 9.7g without the cable, ensuring that it remains an unobtrusive yet essential part of your drone's flight system.
