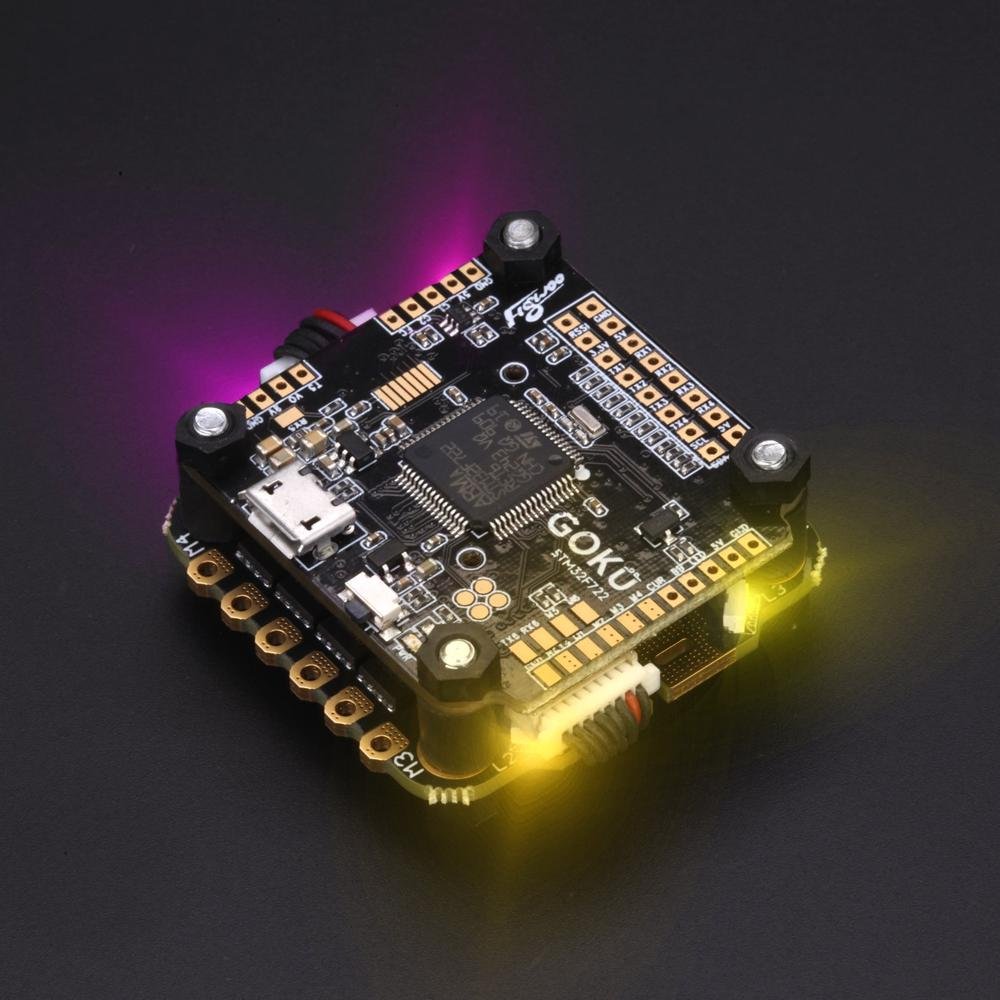

A powerful stack by Flywoo featuring Flywoo GOKU F722 FC, 50A 6S BL32 4-in-1 ESC, and HM600 VTX (MPU6000). This stack can handle 6S input voltage and will push your FPV quad/s to the max!
Specifications
GOKU 506S 50A ESC
- Brand Name: FLYWOO
- Model: GOKU506S
- Item Name: 50A BLheli_32 2-6S 4in1 Brushless ESC
- Con. Current: 50A
- Burst Current: 55A ( 10 Seconds)
- Input Voltage: 2-6S
- Firmware: GOKU32_PRO
- Support DShot300/600/1200
- LED: 4*WS2812
- Current Sensor: YES
- Telemetry Function: Yes
- BEC Output: NO
- Size: 42×42×4mm
- Mounting Hole: 30.5x30.5mm ( M3)
- Weight: 10g
GOKU F722DUAL FC
- Hole: 30.5*30.5-3mm
- MCU: STM32F722RET6 216MHz
- GYRO: MPU6000
- BARO: BMP280/FLASH: 16M
- Input Voltage: 3-8s/BEC: 5V 2A/9V 2A
- Dual camera switch&VTX power switch&Support Camera Menu Settings
- Max voltage 50V input
- 6 Functional UARTS (UART1,2,3,4,5,6)
- Max 6 motor output
- Firmware: FLYWOOF722DUAL
FLYWOO GOKU HM600 VTX
- Frequency: 5.8GHz 5 bands 37 channels
- Raceband: 5362-5945 MHZ
- Power: switchable
- Control Mode:IRC(RX)/Button
- BAT: +7-28V Input
- Video System: NTSC/PAL
- Antenna: IPX
- Size: 30.5mm×3.5mm×3mm
- Weight: 3 g
Includes
- 1 x GOKU506S 50A 4-in-1 ESC
- 1 x GOKU F722DUAL FC
- 1 x FLYWOO GOKU HM600 VTX
- 1 x bag of Screw
- 1 x bag of Anti-vibration Ball
- 1 x Capacitor
- 1 x Manual
-
