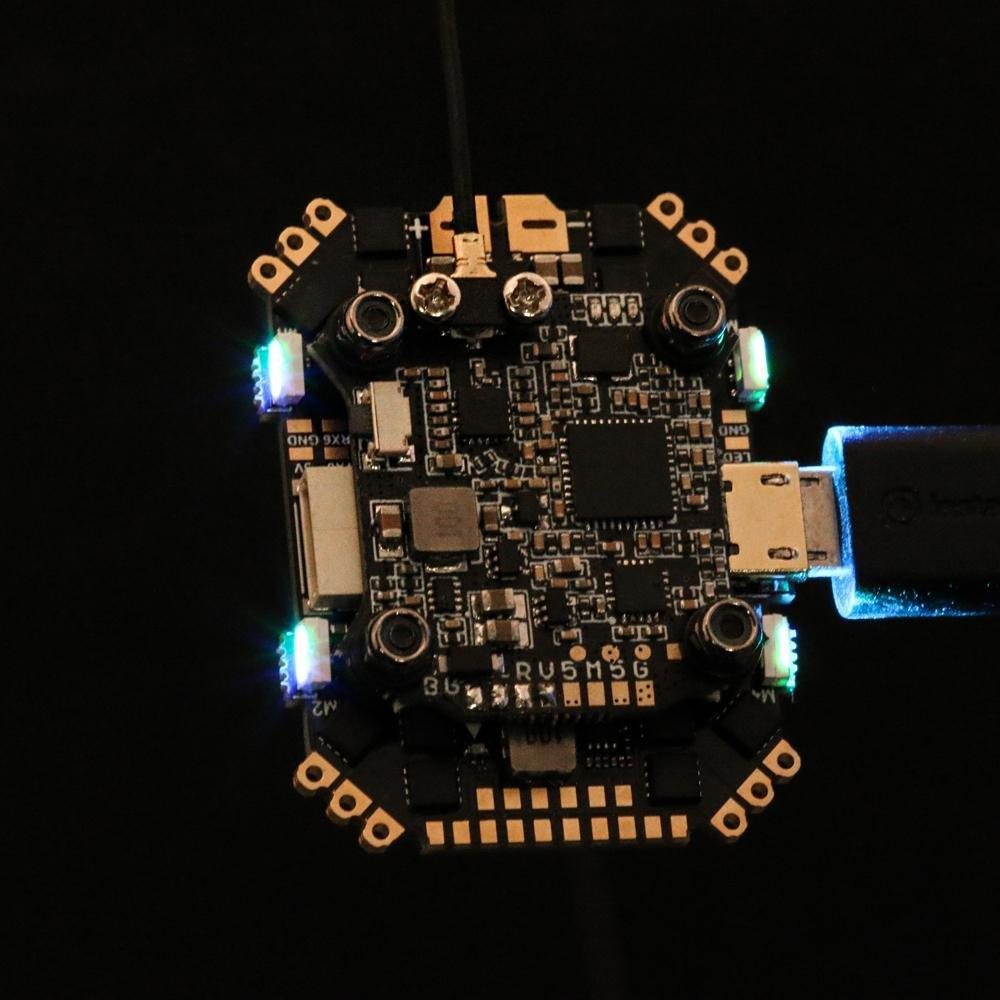

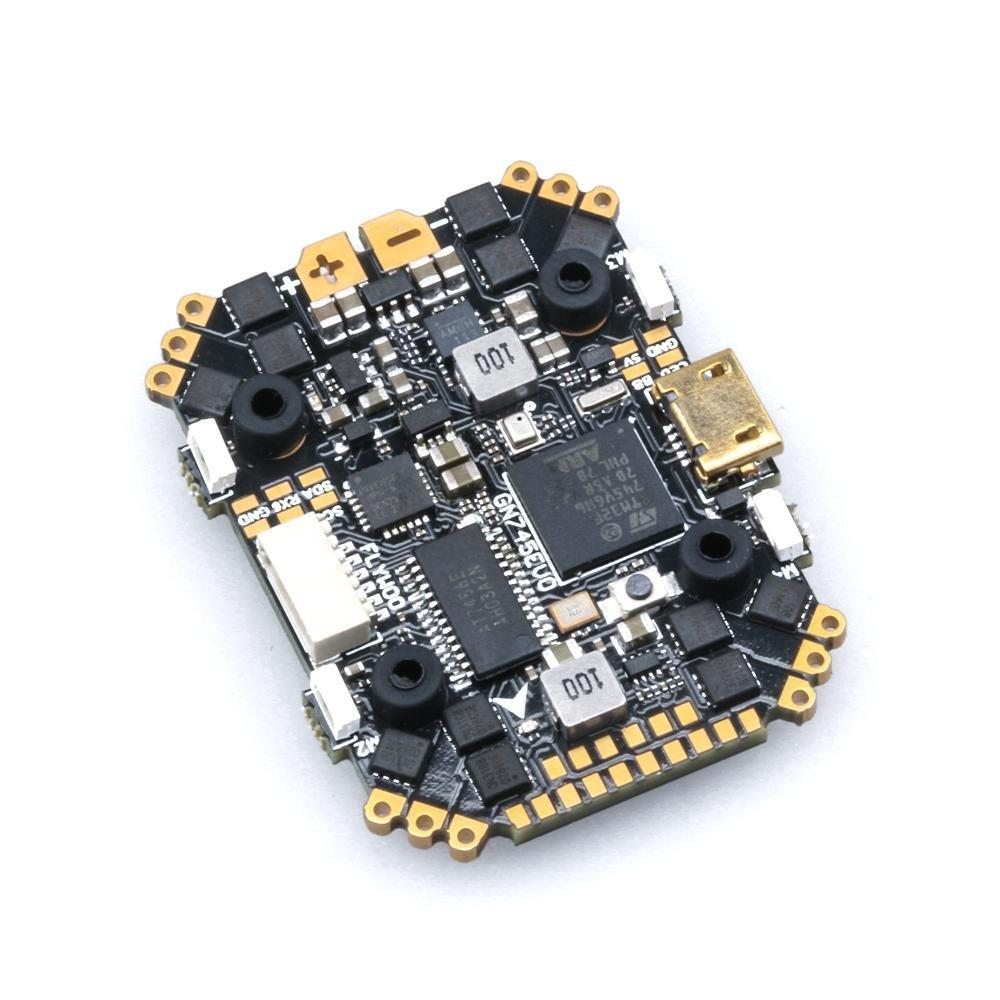

GOKU HD 745 EVO 40A AIO BL_32 DJI PLUG & PLAY （20mm X 20mm ）

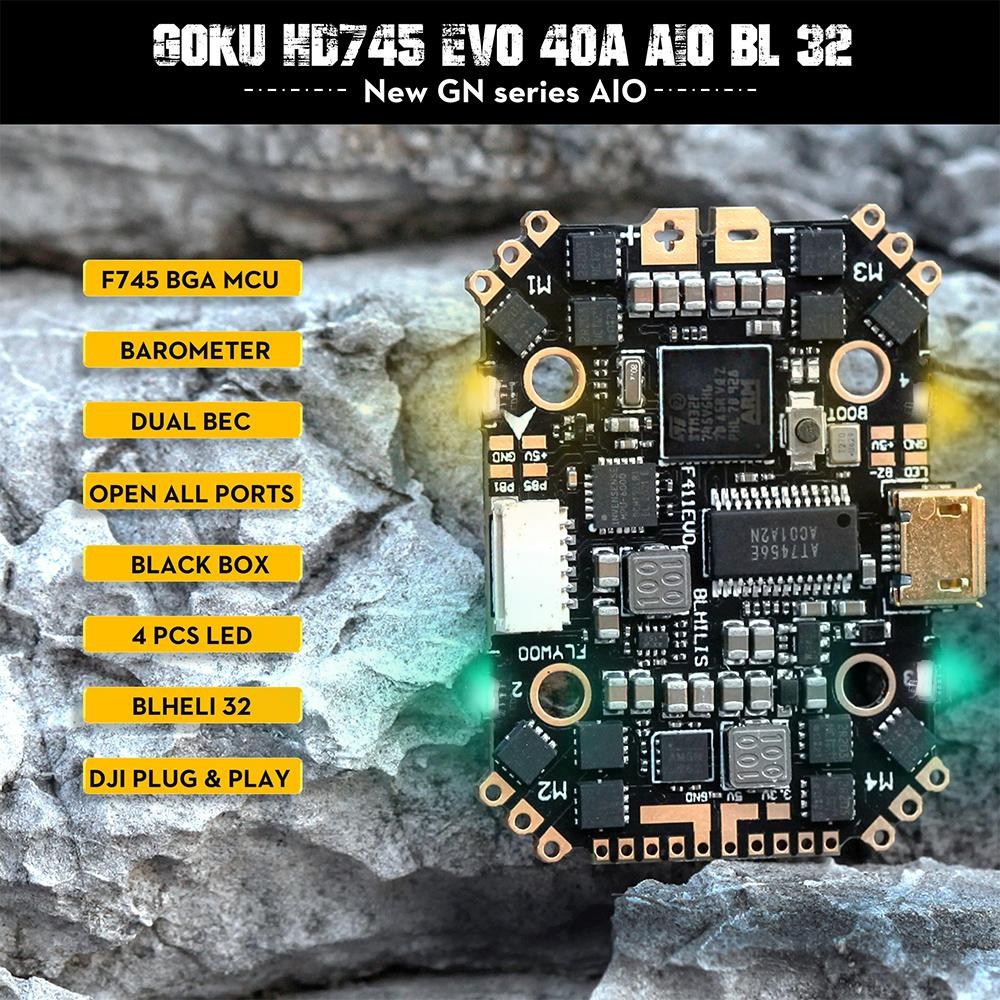

FLYWOO new top GOKU series AIO are finally here! GOKU HDF745 40A FC is currently the highest level of all-in-one FC, which can meet all your FPV needs.

Use powerful F745 BGA chip and BLHELI_32 ESC firmware, integrate 5V/9V dual BEC, barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C and other functions are all open.
This is currently the most integrated and powerful FC AIO board on the market. It brings pilots a more stable and smoother flight.! Perfect for ultralight quad! It will be the most powerful FC AIO board in 2021.

HD745EVO BLHELI32 40A
Specification:
MCU: STM32F745 32-bit processor,216MHz, 512Kbytes Flash
IMU: MPU6000 (SPI)
Barometer: BMP280
Onboard LED：WS2812*4
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
9V Power Out: 1.5A max
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max

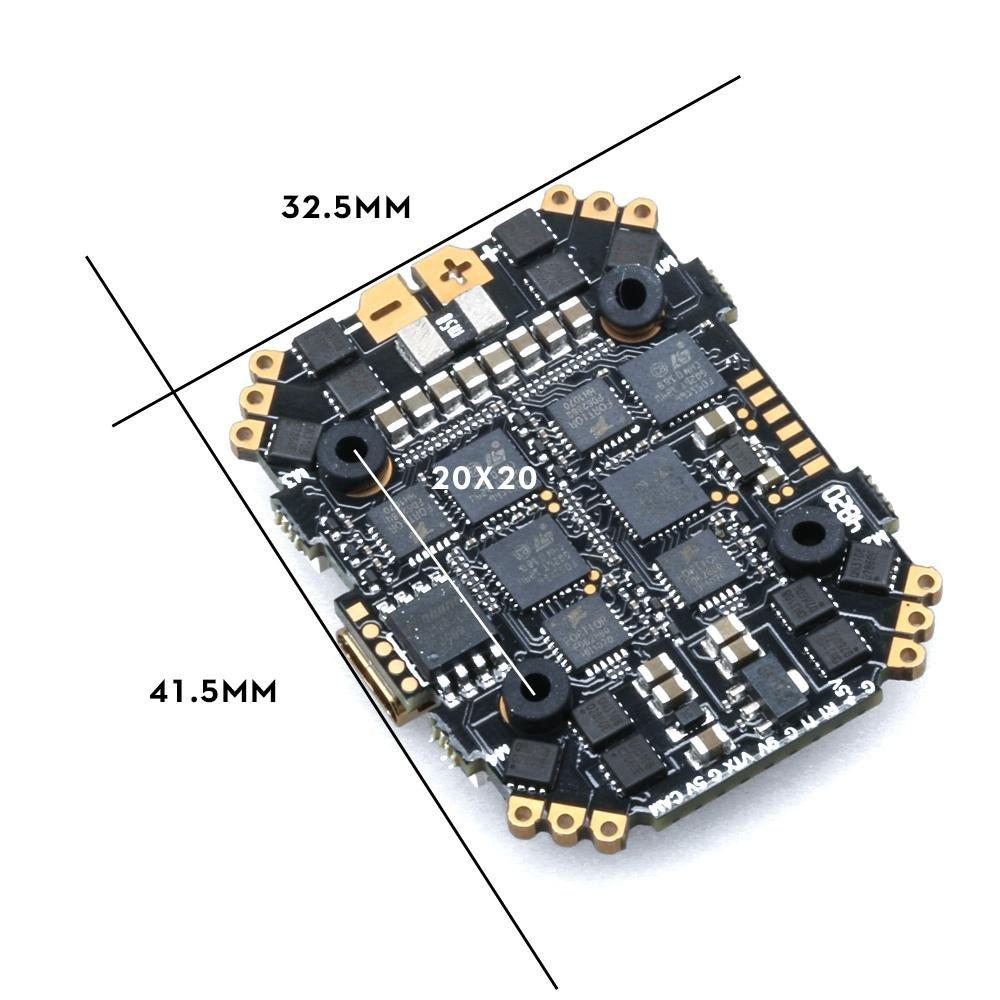

Dimensions: 41x32mm
Mounting Holes: Standard 20mm square to center of holes

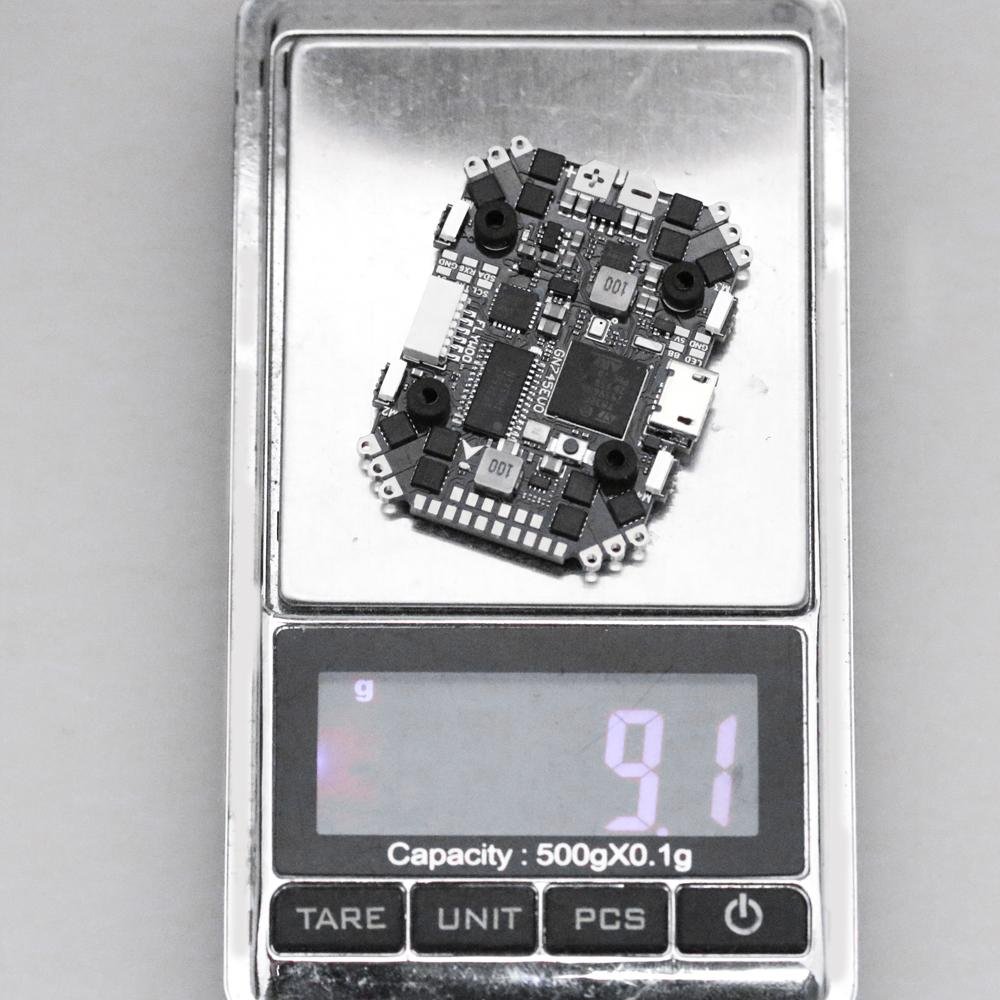

Weight: 8.5g

Built-in 40A BL_32 4in1 ESC
Support BLheli / BLHELI_32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 40A
Firmware: BLHELI_32
