GT R369 SX 3INCH CRAZY RACING F7 MINI- TBS- 6S EDITION

Note：Because STM32F722 runs hot， please leave at least 5mm inner space at both sides of the FC with nothing covered to make sure it has good air circulation.

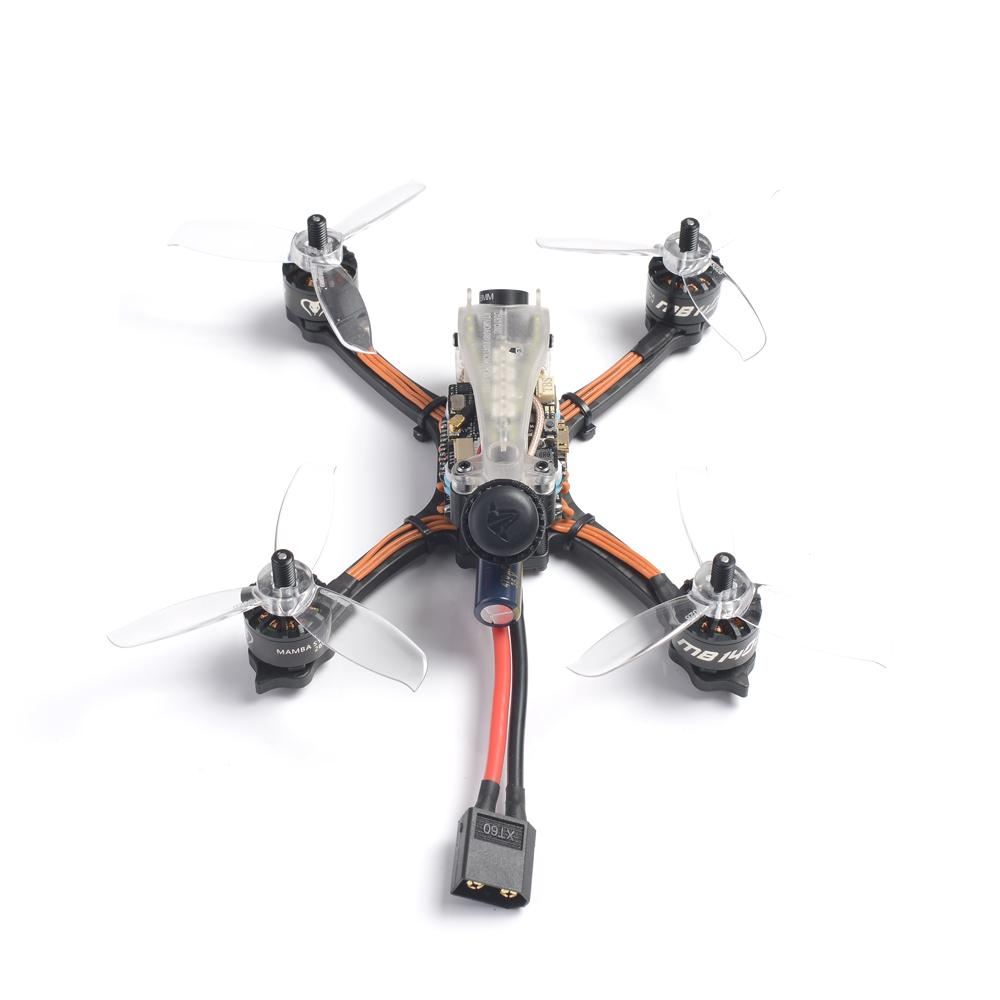

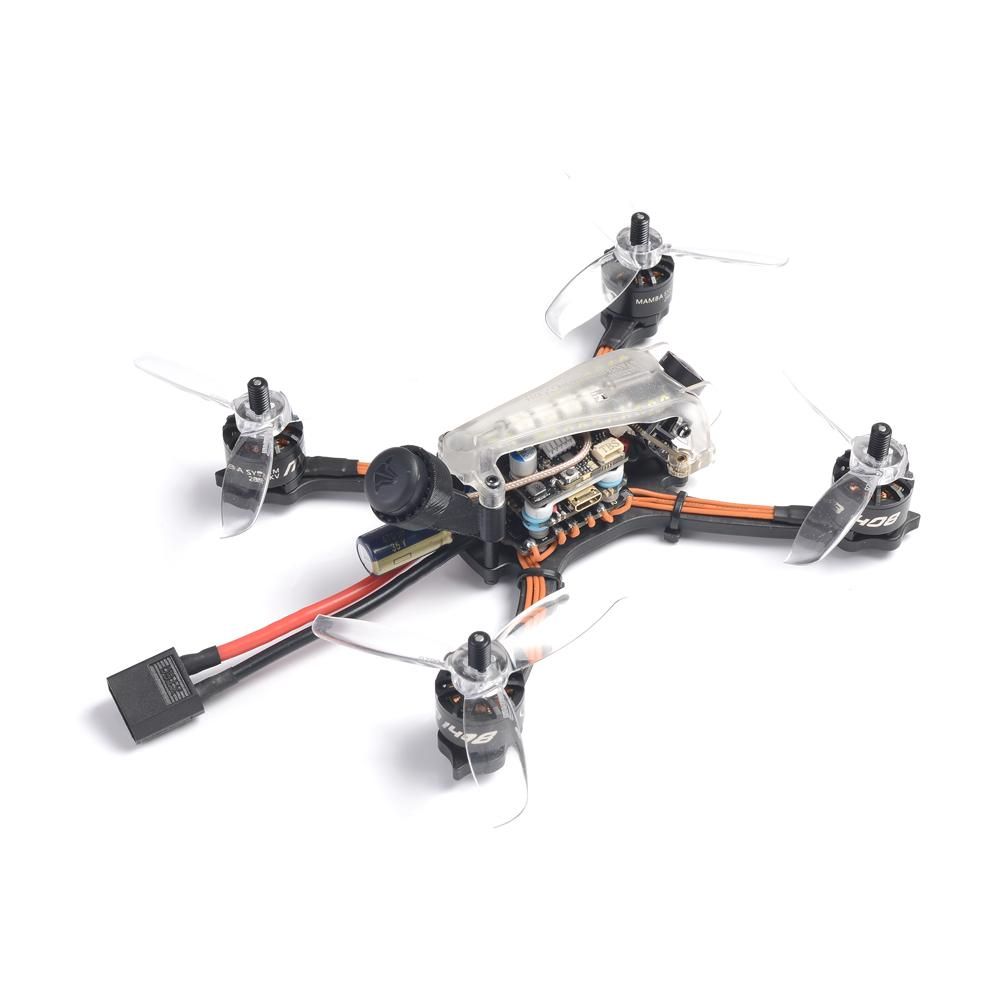

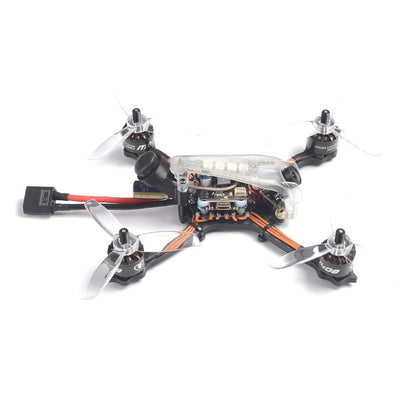

Diatone 2019 GT R369 SX 3inch Crazy Racing Edition
Receiver plug port - Frsky R-XSR JST1.25
Specification:
Brand name: Diatone
Item name: 2019 GT-Rabbit R369
Color:Transparent

FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)

Camera: FOXEER predator V4

Antenna: TBS

VTX: TBS UNIFY 800mW max

Motor: MAMBA Racing MB1408 2800KV

Led board：Switchable Sw2812

ESC Specifications
INPUT VOLTAGE: 2~6S Lipo (7.4V~25V)
CONTINUE CURRENT: 30A×4
BURST CURRENT: 35A (10S)
BEC: NO SOFT: Dshot300/600/1200
MOUNTING: 20mm/M2
Supply : Panasonic High Frequency 470uF/35V
Diagram Link
FC Firmware
BetaFlight
Target: MAMBA F722 （uploading.....）
Download Link
