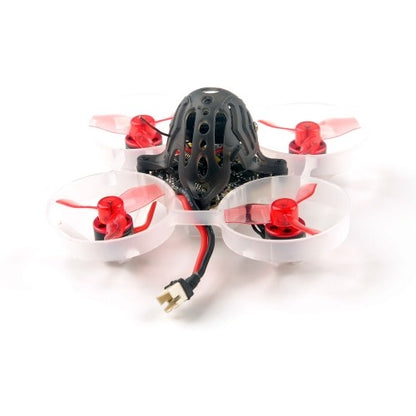

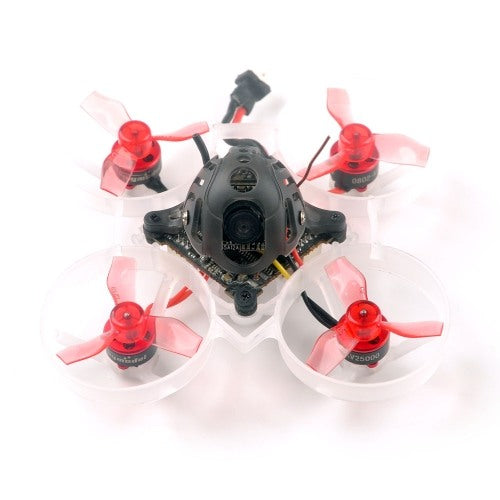

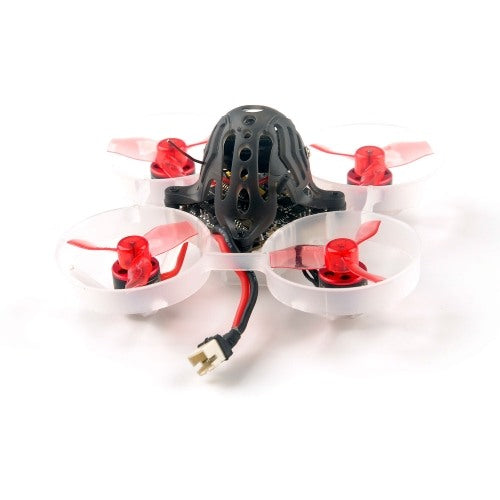

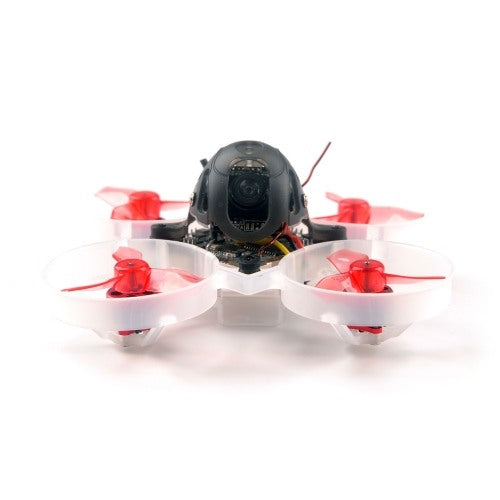

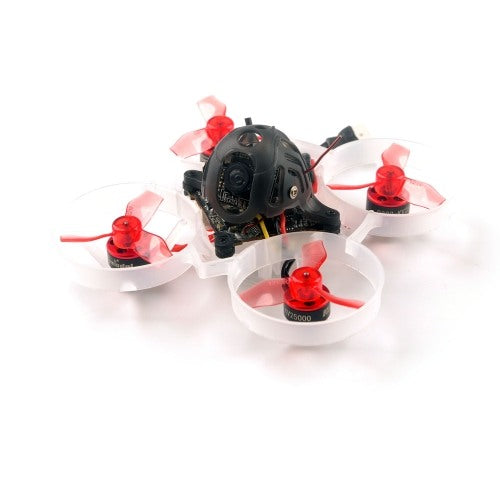

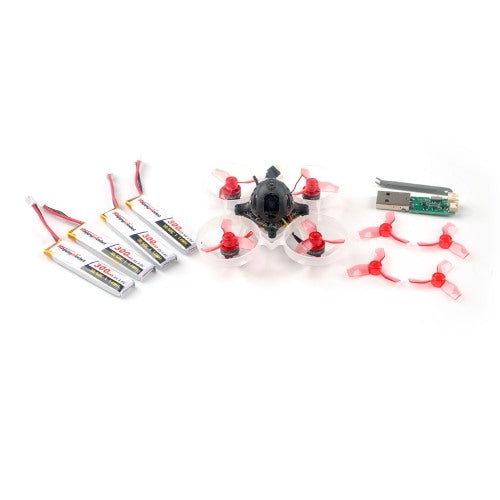

Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF
Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF
Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF
Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF
Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF

Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF

Features:AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTXExtreme light 1S 65mm Brushless whoop only 20gRuncam...
Vendor: HAPPYMODEL
Availability: Out Of Stock
$159.50
$159.50
Subtotal: $159.50
Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF

Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF

$159.50

Happy Model - Mobula6 1S 65mm Brushless whoop drone BNF

$159.50
Features:
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless whoop only 20g

Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm

Weight: 20g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Motor speed option:
SE0802 KV19000(Regular Edition)

Spare parts specifications:


Motor
Mode: SE0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only


Propellers
Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g


Flight controller
(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky receiver
Built-in 5V 1A BEC
Built-in voltage detection


Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600


Onboard Frsky SPI D8 receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard 5.8g VTX


Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready


Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V  120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm


Lipo Battery
Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0
