Note: looks like a spot to solder on some BT2 connectors
you can now put your 1s batteries in storage
you can now put your 1s batteries in storage

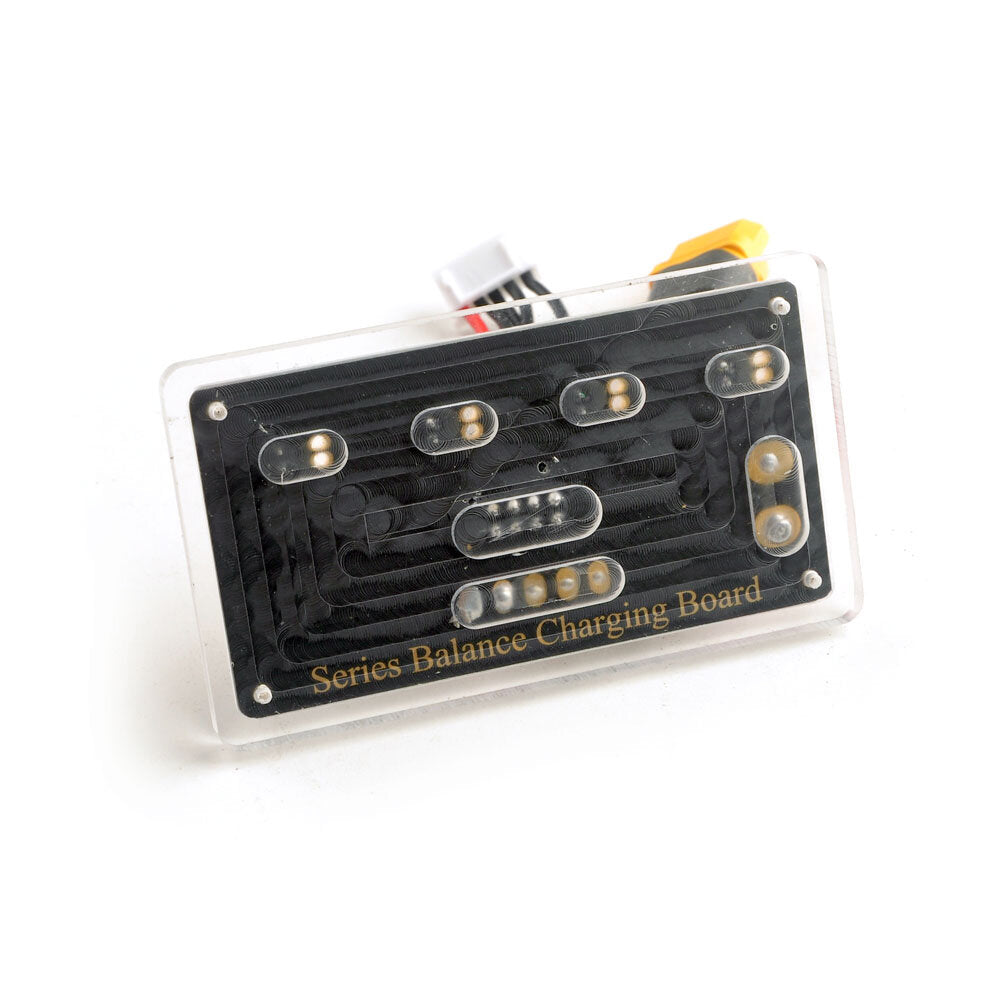

Specification:
Connection to the charger in XT60 + 4S balancing plug
Max amperage: 1.5A
Supports up to 4 1S lipos simultaneously
Weight: 35g
Dimensions: 81 * 46 * 20mm
Selection of the number of elements to be detected using the jumper (included)
Connector:
1x XT60H-F
1x JST-XH 4S1P
4x PH2.0
Note: Be careful to always load identical Lipos with an equivalent discharge.
If you charge 4 batteries at the same time, please insert the jumper cap.
into the position of number "4"; if you charge 3 batteries at the same time,
please insert the jumper cap into the position of number "3", and so on.
