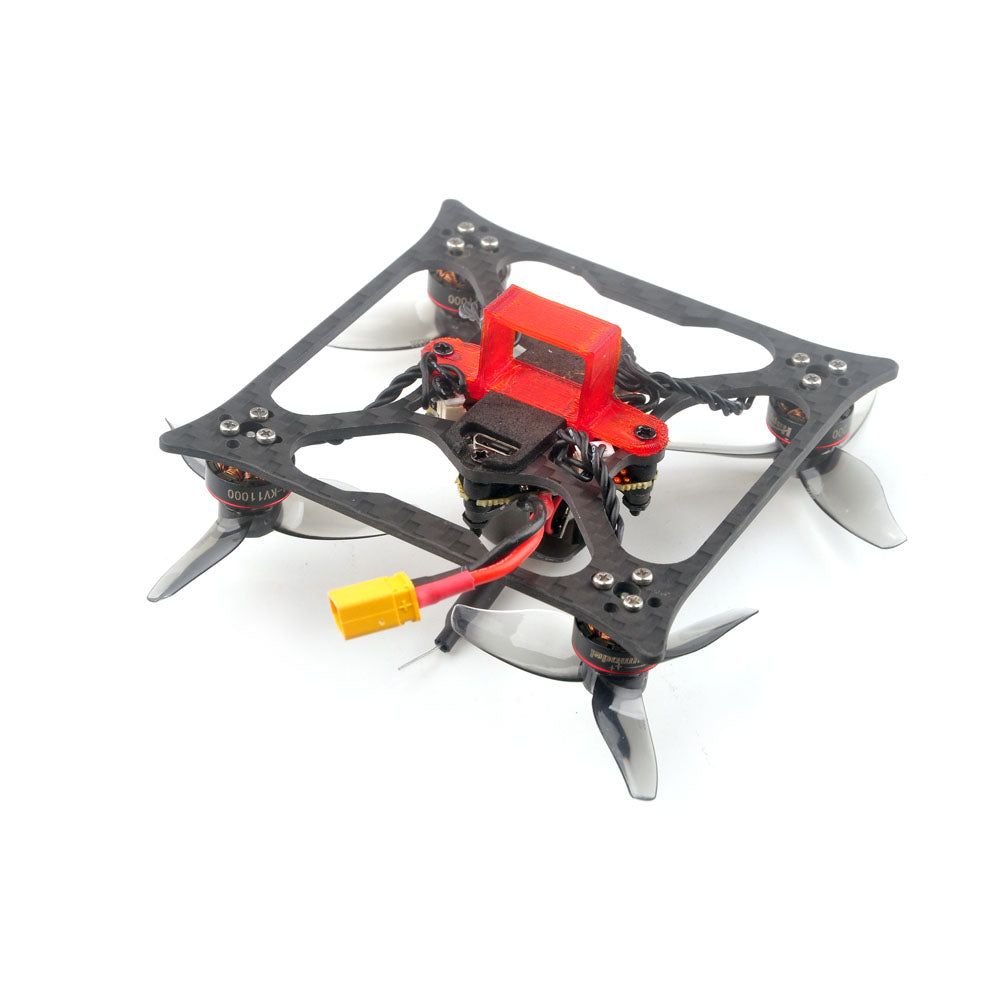

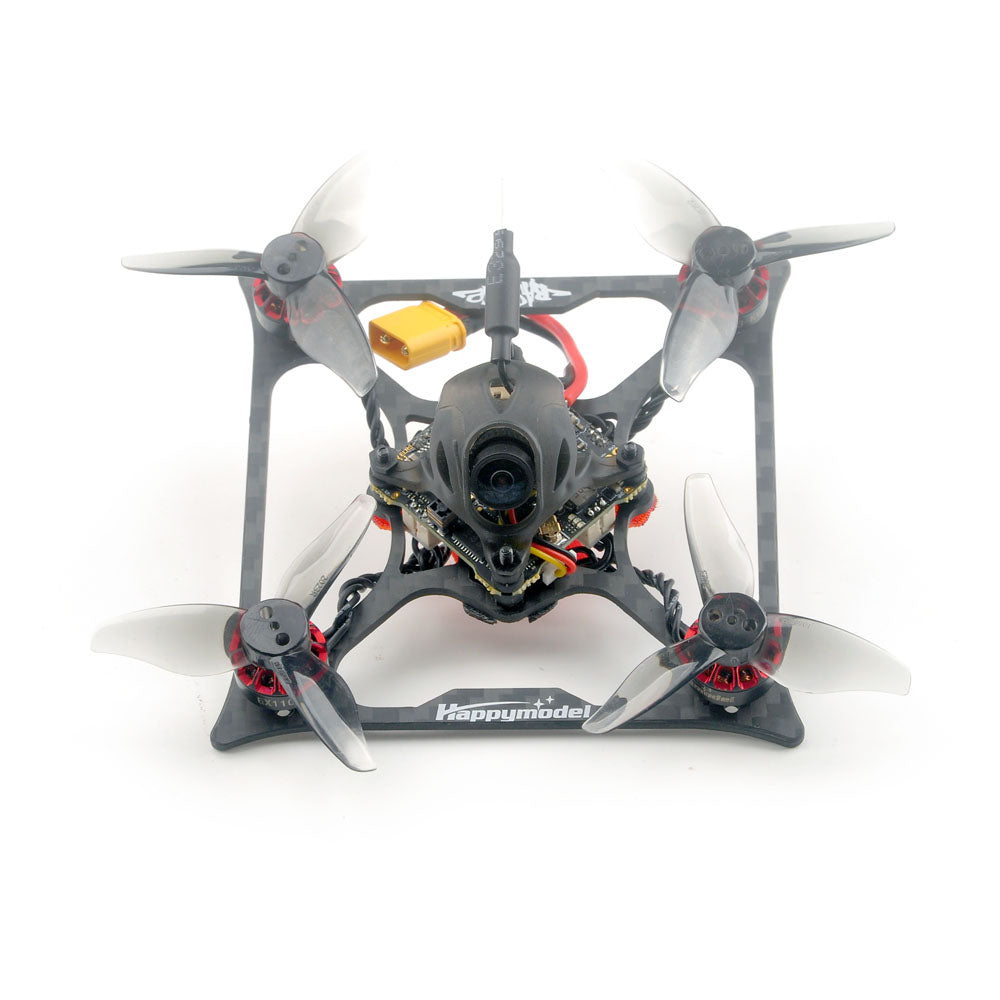

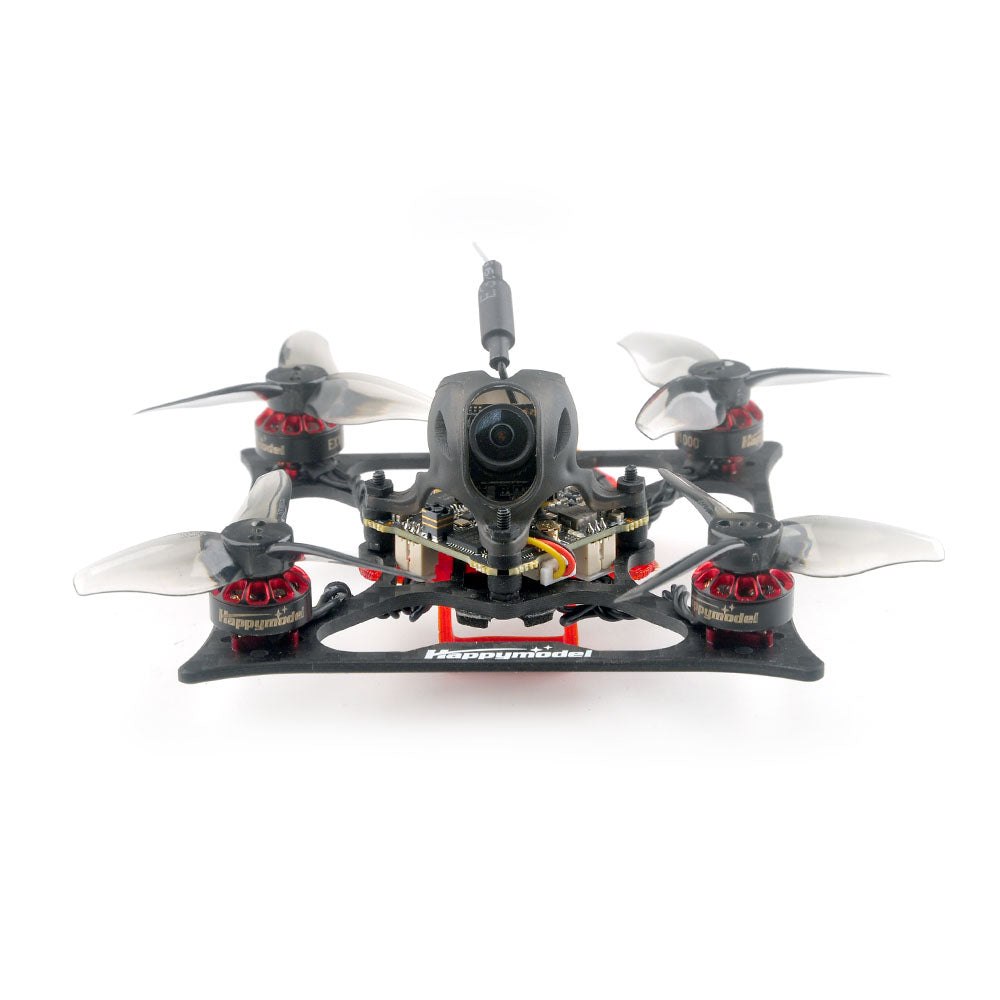

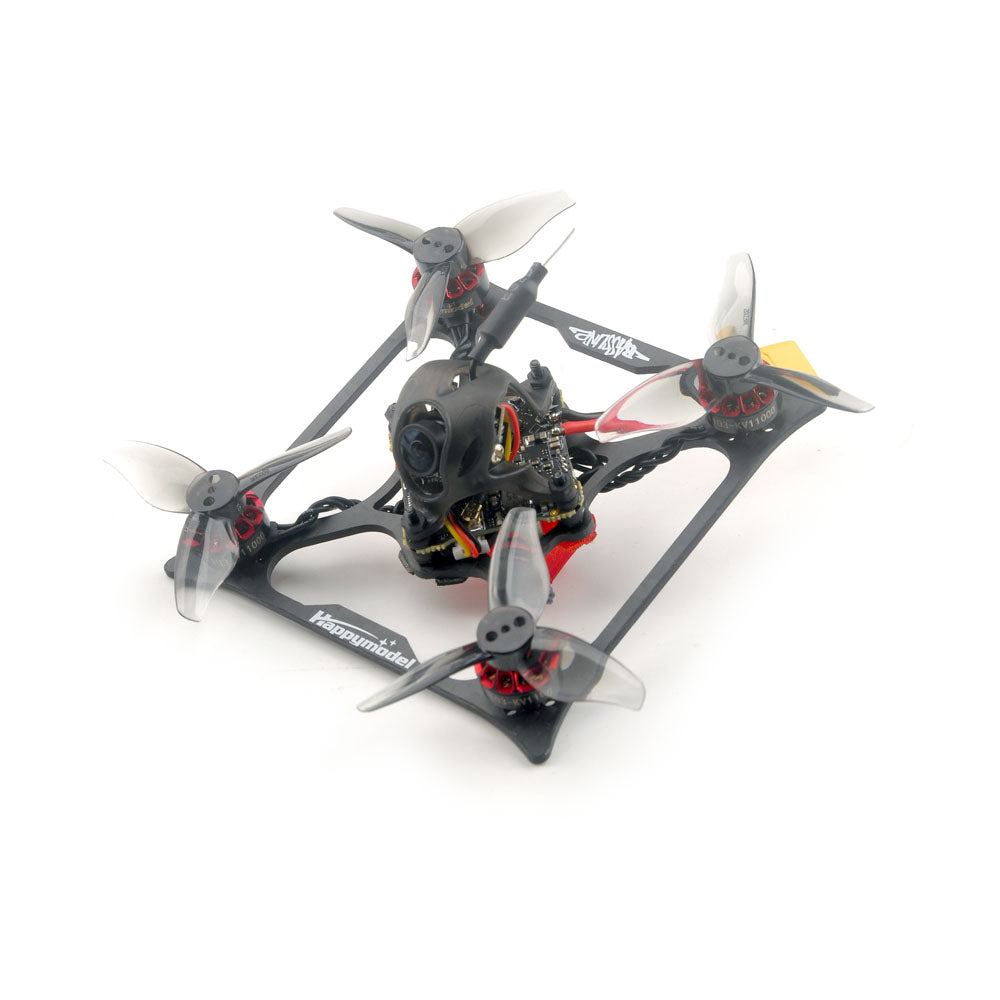

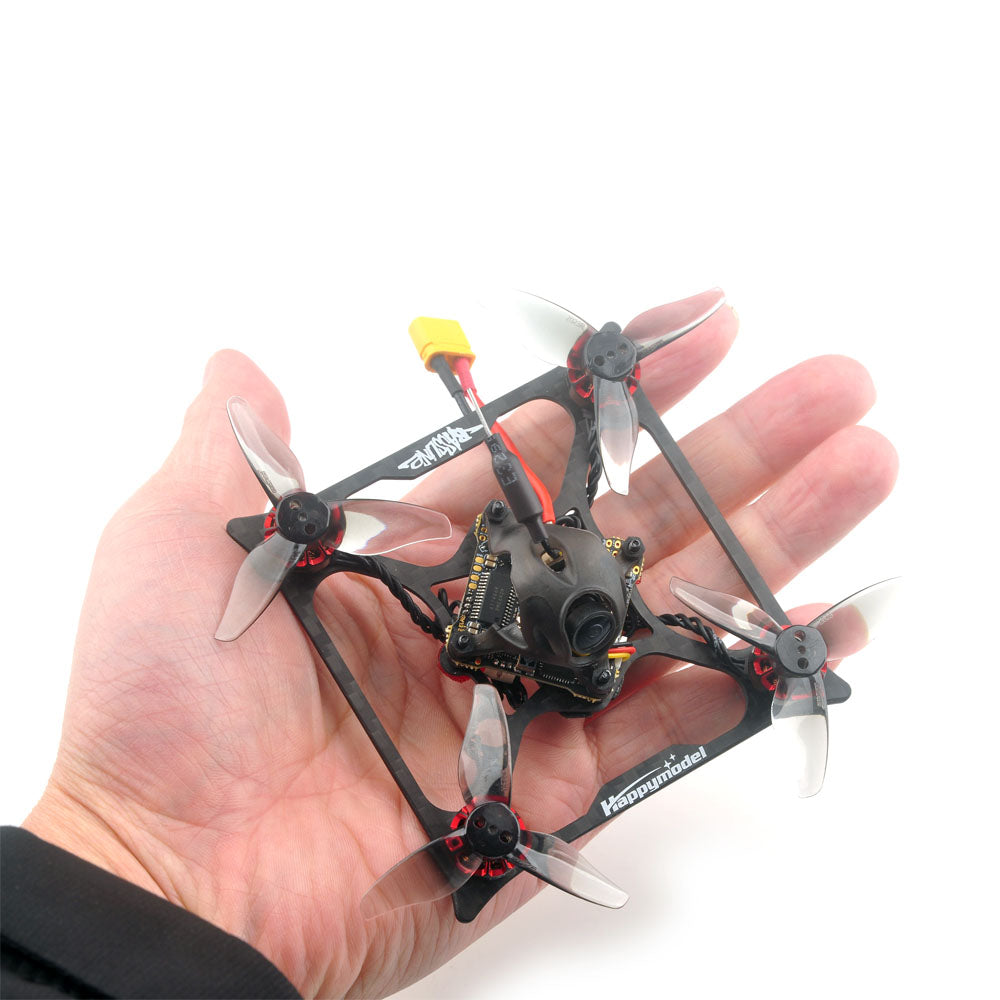

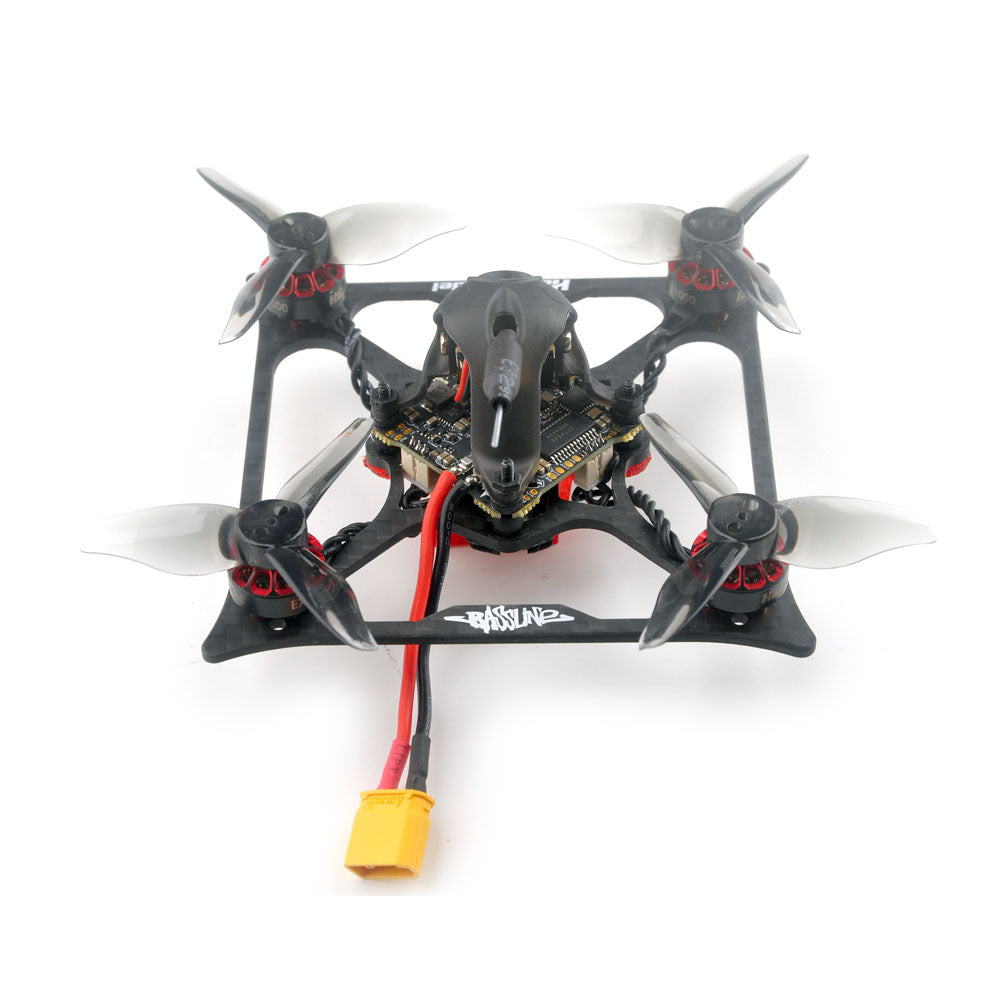

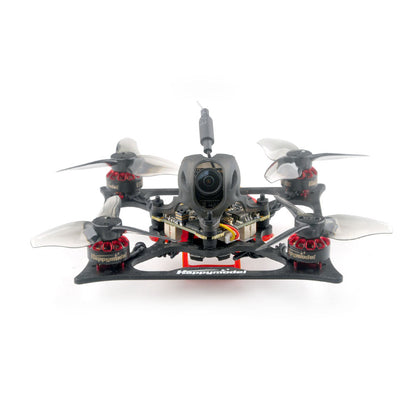

HappyModel Bassline 2 Inch Micro 2S Toothpick FPV FreeStyle Drone BNF ELRS
The Happymodel Bassline 2s Fpv Racer was inspired from happymodel team pilot Nathan Loopz. This idea was originally born in 2019 and now finally it comes true.
Features:
- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
- VTX Power up to 400mw
- Support ELRS V3.0 (Need to upgrade firmware)
- Powerful EX1103 KV11000 motors
- CaddxFPV Ant FPV camera
- Recommend 2S 350mah/450mah/550mah/650mah battery (Not include)
- Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm
Specifications:
- Brand Name: Happymodel
- Item Name: Bassline 2S 2inch Micro FPV toothpick drone
- Wheelbase: 90mm
- Size: 115mm*115mm*40mm

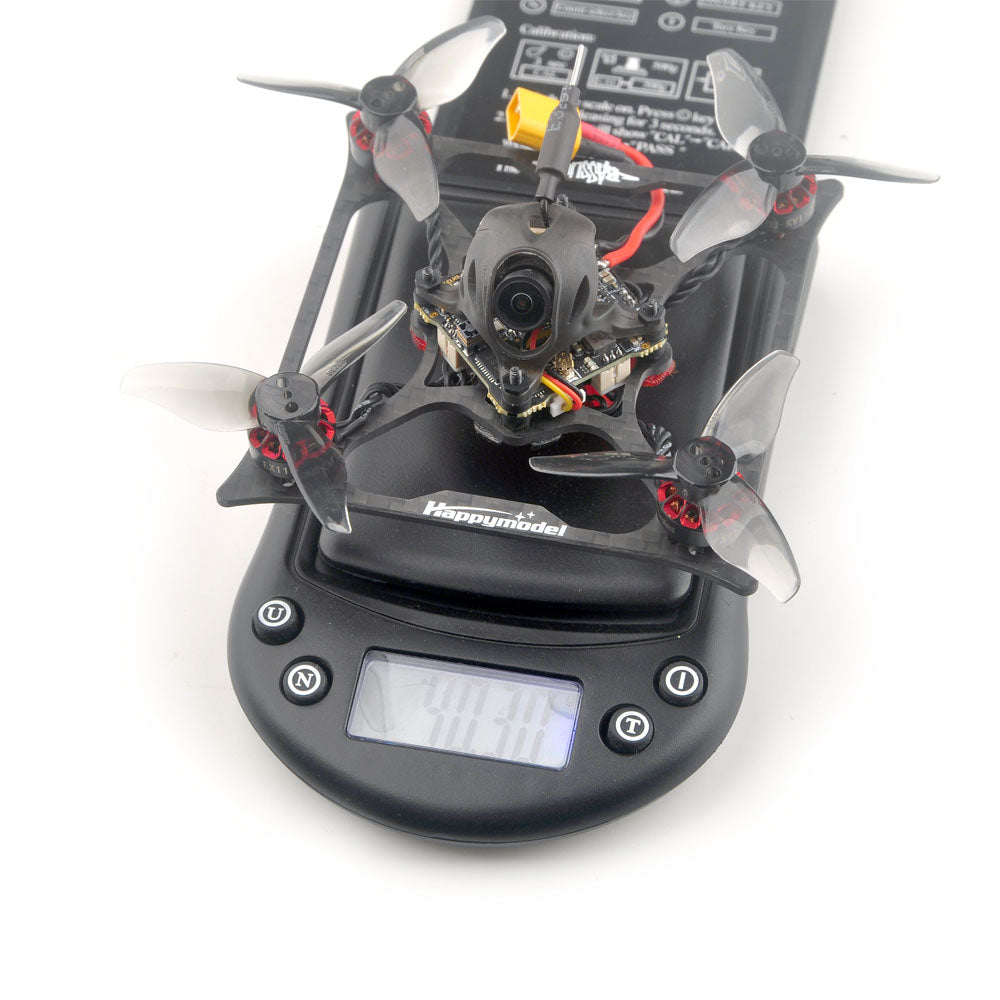

- Analog version Weight: 40gram
Analog version option:
Spare parts specifications:
Motor
- Mode: EX1103 KV11000
- Configu-ration:9N12P
- Stator Diamter:11mm
- Stator Length:3mm
- Shaft Diameter:Φ1.5mm
- Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
- Weight(g):3.8g
- No.of Cells(Lipo):1-2S
Propellers
- Weight:0.88g
- Material: PC
- Pitch:2.3inch
- Props Dia:52.17mm
- Center Thickness:5mm
- Center Hole Dia:1.5mm
Flight controller
- X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: ICM20689 or ICM42688P(SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Built-in 12A(each) Blheli_S 4in1 ESC
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G OpenVTX 0mw~400mw
- Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
- Built-in voltage detection
- Built-in current sensor
Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Support BLHeliSuite programmable
- Default Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS Firmware version: V2.0
- RF Frequency: 2.4GHz
- Antenna : SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol: SPI ExpressLRS
- Compatible with ExpressLRS V2.0 TX Module
- Couldn’t flash separately ExpressLRS firmware
- Could flash FC firmware to support ExpressLRS v3.0 TX module
Onboard 5.8g OPENVTX
- Firmware version: OPENVTX
- Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels:48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
Caddx ANT 1200tvl camera
- Image Sensor: 1/3" CMOS Sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC or PAL
- IMAGE: 16:9 or 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio : >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm
- Min. Illumination: 0.001Lux@F1.2
- Auto Gain Control: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14*14mm(with bracket to 19*19mm)
- Wide Power Input: DC 3.7-18V
- Weight: 2g (N.W.)
Package Included:
- 1x Bassline 2inch frame and canopy
- Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver
- 4x EX1103 KV11000 brushless motor
- 1x Gemfan toothpick 2023 tri-blade propellers(4cw+4ccw)
- 1x Caddx ANT 1200TVL Camera
- 1x Onboard 5.8G Openvtx 0mw~400mw VTX

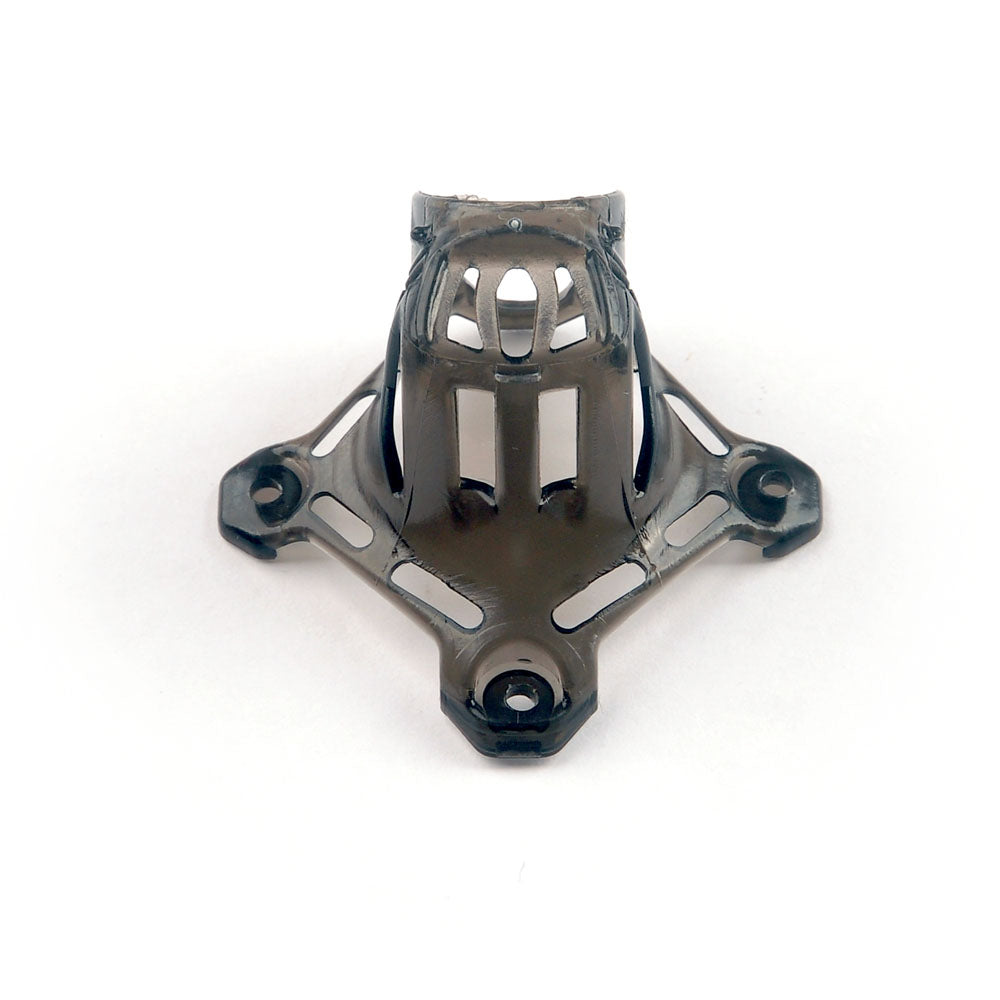

- 1x Canopy for 14mmx14mm camera
- 1x Screwdriver
