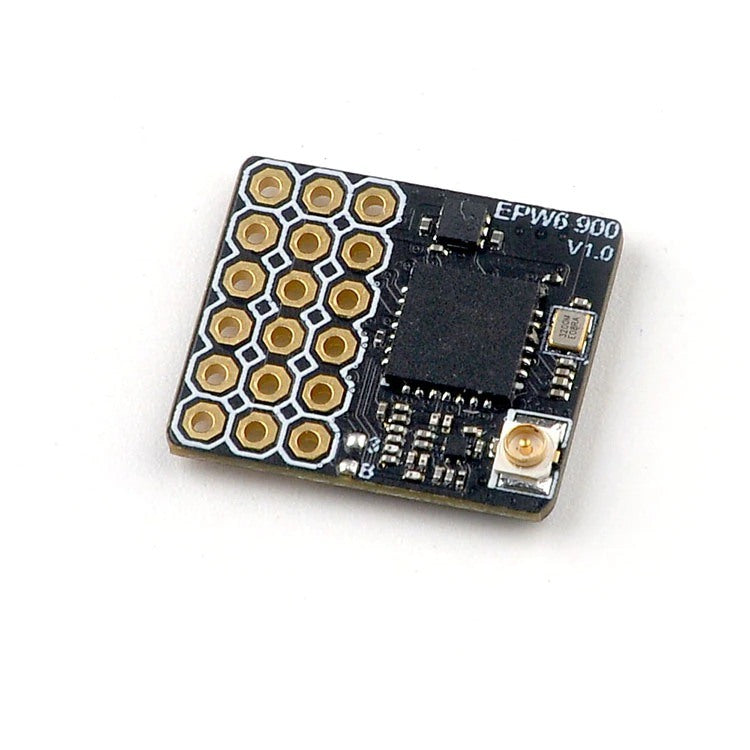

Happymodel ExpressLRS ELRS EPW6 900MHz 6CH PWM RC receiver

Happymodel ExpressLRS ELRS EPW6 900MHz 6CH PWM RC receiver For Fixed-wing

Specifications:

Item: Happymodel EPW6 900MHz pwm receiver

ESP8285, SX1276

Antenna connector: IPEX MHF 1/U.FL

6x PWM outputs

RF Frequency: 868MHz(EU), 915MHz(FCC)

Telemetry power: <17dbm

Receiver protocol: PWM or CRSF

Input voltage: +5V DC @ "+" pad

PCB size: 18.5mm x 16mm

Weight: 1 g without antenna

Default firmware version: ExpressLRS v2.0

Firmware target:

DIY_900_RX_PWMP(Factory default firmware), PWM receiver via 1~6 PWM outputs

HappyModel_RX_ES900_RX, CRSF Serial receiver via TX and RX

Firmware update via UART or WIFI

Package Included:

1 x Happymodel EPW6 900MHz pwm receiver

1 x 915MHz antenna

1 x 868MHz antenna

3 x 6pin 2.54mm

Bind Procedure:

1.Supply power to the EPW6 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to double-flash, which means that the RX enters the binding mode

2.Get into menu of ELRS.LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will getting to be solid if bind successfully.

Receiver LED status meanings:

LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)
